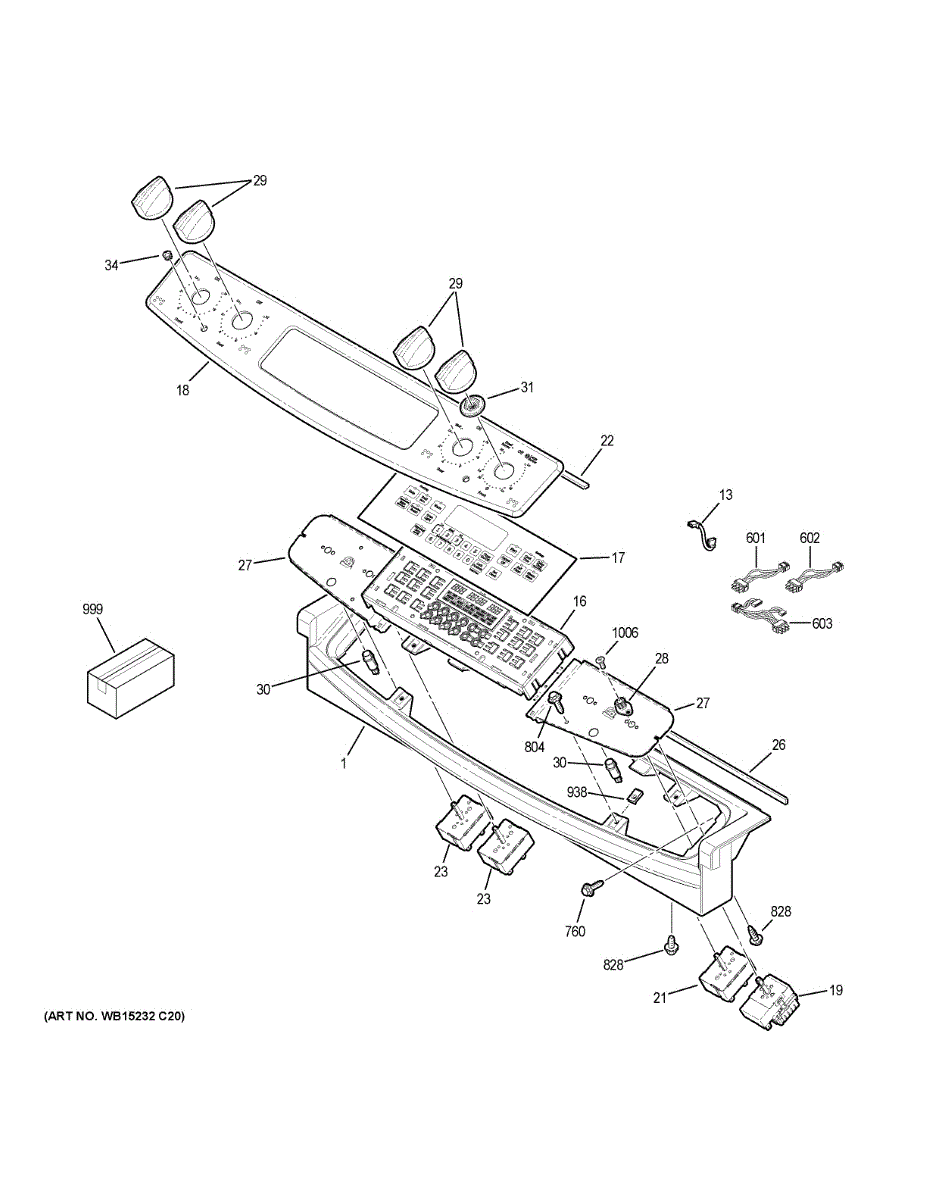

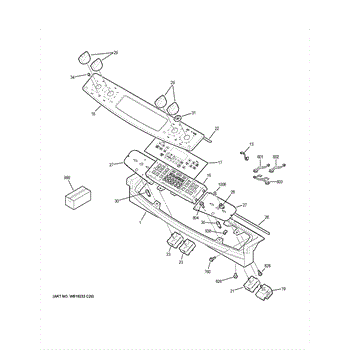

Parts for Ge JD630DF6BB: Control Panel Parts

This control panel assembly replaces the front user-interface panel, restoring a secure, clearly labeled surface for operating your appliance. Install a new panel when the original is cracked, loose, or the control markings have become worn or unreadable. What it does:

• Provides the user-facing interface area for selecting functions and settings
• Houses and aligns buttons/switches and other control components
• Shields the control area from heat, spills, and impact
• Common symptoms: cracked or warped panel, worn/peeling graphics, loose or broken mounting points, sticky or misaligned buttons

• 1 control panel assembly

• Disconnect power at the breaker before servicing.
• Remove knobs/trim and the screws securing the existing panel; carefully lift it away.
• Transfer any reusable parts from the old panel to the new panel.
• Reinstall fasteners and trim, restore power, and test all controls.

This electrical jumper links two terminals within the appliance's wiring to restore proper continuity for the affected circuit. Replace a burnt, damaged, or missing jumper to bring the related function back to reliable operation.

• Bridges terminals to complete or modify an electrical circuit as designed by the manufacturer
• Helps address symptoms like a specific feature not working, intermittent operation, or no power to a component
• Replace if the original shows heat damage, broken leads, or loose connections
• Direct replacement for the original jumper used in the wiring harness

• Disconnect power at the breaker or unplug the appliance before servicing
• Use your model's wiring diagram to locate the correct jumper
• Label/photograph wire positions and transfer one connection at a time
• Ensure connectors are fully seated; do not alter the factory wiring configuration

This part is a range control board. It is responsible for controlling all of the functions on the appliance, from setting the heat temperature, setting the timer or bake time, turning on the oven light, and controlling the burners. Allow the oven plenty of time to cool down before attempting to access and replace this part.When the control board is faulty, then the buttons and knobs will not respond. For example, the burner knob could be turned on, but the burner itself does not turn on. The digital display may not work. An error code may appear on the display. Unplug the electric range from the electrical outlet first. Wear work gloves for safety during the process.This component is sourced straight from the manufacturer. It is sold individually. This particular control board is compatible with electric ranges that are manufactured by GE.

The Switch Infinite Control is an OEM component specifically designed for GE ranges. This particular switch operates the infinite heat settings on the front left cooking element.

Causes of switch malfunctions can include repeated toggling over years of usage. Electrical fluctuations or physical impacts could potentially degrade internal connections as well.

Symptoms include:

• Inability to select certain heat levels for the front left burner
• Erratic or unresponsive behavior from the infinite switch
• Inaccurate temperature control of associated burner

This genuine GE switch is compatible with Hotpoint, RCA and select Kenmore ranges too.

The Infinite Warmer Switch is an OEM part for GE ranges. It is designed to control the temperature settings of the warmer elements, allowing you to adjust the heat level for precise cooking and warming.

Causes of a bad infinite warmer switch can include electrical issues such as short circuits, wear and tear from frequent use, or internal component failure that affects the switch's ability to regulate power.

Symptoms of a bad Infinite Warmer Switch include:

• Inability to adjust the temperature of the warmer element
• Warmer element remains cold or overheats regardless of the setting
• Intermittent functioning or complete failure to operate

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

A replacement gasket faceplate that seals the appliance faceplate to help keep out moisture, dust and debris while restoring a snug fit and reducing rattling. Fits select GE appliances as the factory-style replacement. What it does:

• Seals the faceplate to the cabinet, helping prevent drafts and moisture intrusion.
• Replaces worn, cracked or deformed gaskets that cause visible gaps or uneven fit.
• Helps reduce faceplate movement and rattling during operation.
• Use when you see splits, compression set, or persistent gaps around the faceplate.

• Disconnect power to the appliance and remove any panels necessary to access the gasket.
• Carefully remove the old gasket and clean the mating surfaces of adhesive, dirt and debris.
• Align the new gasket in the mounting channel and press into place; replace any damaged clips or fasteners.
• Follow the appliance service manual for model-specific steps.

The Infinite Switch Control is an OEM part compatible with GE ranges and ovens. It is a crucial component that allows users to precisely control and adjust the temperature or heating levels of the cooktop surface burners or oven.

Symptoms of a faulty infinite switch control:

• Erratic temperature regulation or inability to maintain the desired heat setting
• Surface burners or oven not heating properly or not heating at all
• Indicator lights not functioning correctly
• Burnt or melted switch knobs or control panel

Causes of a bad infinite switch control can include electrical malfunctions, physical damage, overheating, or general wear and tear over time.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore range and oven models.

This control panel gasket seals the appliance console to help keep moisture, grease, and debris out of the control area and maintain a tidy, responsive panel. It replaces worn or damaged seals that let contaminants reach electronics. What it does:

• Creates a protective seal around the control panel to reduce moisture and grime intrusion
• Helps prevent dirt and cooking residue from collecting under buttons and behind the console
• Reduces the chance of control panel corrosion and intermittent button response caused by contamination
• Restores a flush fit and finished appearance to the console area

• Disconnect power to the appliance before starting any repair to avoid shock or unexpected operation.
• Remove the control panel or console per the service manual to access the old gasket; follow OEM disassembly steps.
• Clean mating surfaces of old adhesive or debris before installing the new gasket for a secure fit.
• If adhesive is used, allow proper cure time and verify proper alignment before reassembly.

This control panel insert is the trim piece that covers and protects the appliance's front control area while allowing the panel lighting to show through, restoring a clean, finished appearance. What it does:

• Replaces a cracked, faded, or damaged control panel insert to improve appearance
• Protects the underlying control board and switches from spills and debris
• Lets control indicator/backlighting transmit clearly for easier visibility
• Matches OEM fit and mounting points for a direct replacement

• Disconnect power to the appliance before starting any repair
• Removal typically requires removing the console or trim; keep screws and fasteners organized
• Handle the insert carefully to avoid scratching the finish or damaging mounting tabs
• After installation, restore power and verify control operation and lighting

This crystal mount secures the small clear lens ("crystal") in the appliance's panel opening, keeping it properly seated and protecting internal components. Replace a damaged or missing mount to restore a snug, finished fit and reliable indicator visibility. What it does:

• Holds the lens firmly in place within the console or backsplash opening
• Helps shield internal controls from grease, spills, and heat around the opening
• Restores proper appearance and panel feel when the original mount is cracked or warped
• Common symptoms: loose or missing lens, rattling panel, visible gap, or a lens that won't stay clipped

• 1 crystal mount

• Disconnect power and allow the appliance to cool before servicing
• Access the panel area; remove screws/clips to release the existing lens and mount
• Transfer the lens to the new mount, align tabs, and secure with existing fasteners
• Do not overtighten; verify the lens sits flush and operates as intended

This replacement control knob restores a secure, accurate feel when setting temperatures on your cooktop or range. Swap out a worn or broken knob to regain smooth, dependable control of your appliance's settings. What it does:

• Attaches to the valve or switch stem to select Off and heat levels
• Restores positive grip and precise adjustment when turning the control
• Common symptoms: cracked or stripped knob, wobbling/loose feel, missing knob, difficulty adjusting heat
• Helps ensure consistent, repeatable burner control

• One control knob

• Disconnect power; shut off gas supply before servicing
• Pull the old knob straight off the stem—do not pry against the control panel
• Align the flat/D-shaped opening with the stem and press the new knob on fully in the Off position
• Test for smooth rotation and proper engagement

This wire harness connects the infinite burner control to the cooktop's wiring, restoring proper electrical routing for surface element regulation. It replaces a damaged or worn harness to help re-establish safe, reliable burner control. What it does:

• Provides the correct wiring connection between the infinite switch and cooktop terminals.
• Restores electrical continuity when a frayed, burned, or disconnected harness prevents burner operation.
• Helps eliminate intermittent or no-heat symptoms caused by broken wires or loose terminals.
• Maintains OEM routing and connector fit for consistent control response.

• One wire harness for infinite control (exact OEM configuration)

• Disconnect all power to the range at the breaker before starting work.
• Handle connectors gently; use proper tools to release terminals without bending.
• Verify proper connector seating and secure routing away from heat sources before restoring power.
• If terminals or the infinite switch show damage, replace the affected components as recommended.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

This replacement screw is a simple fastener used to secure panels, trim, and internal components on GE appliances, restoring proper fit and preventing loose parts. It's a direct-replacement hardware piece for common mounting and assembly points. What it does

• Secures panels, brackets, and trim to prevent rattling or gaps
• Replaces missing, stripped, or corroded fasteners that compromise fit
• Helps maintain proper alignment of controls and components
• Keeps internal parts fixed for safe, reliable operation

• Screw as shown

• Unplug or disconnect power to the appliance before starting repairs
• Use the correct screwdriver or bit to avoid stripping the head
• Install with moderate torque; do not overtighten to prevent thread or component damage
• If threads are damaged or the mating hole is stripped, replace the mating hardware or repair the thread before reuse

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas
