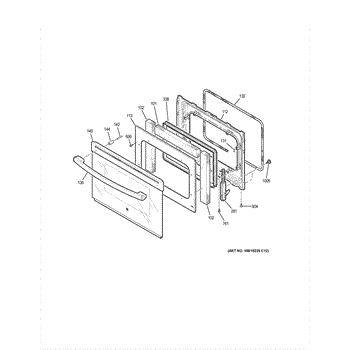

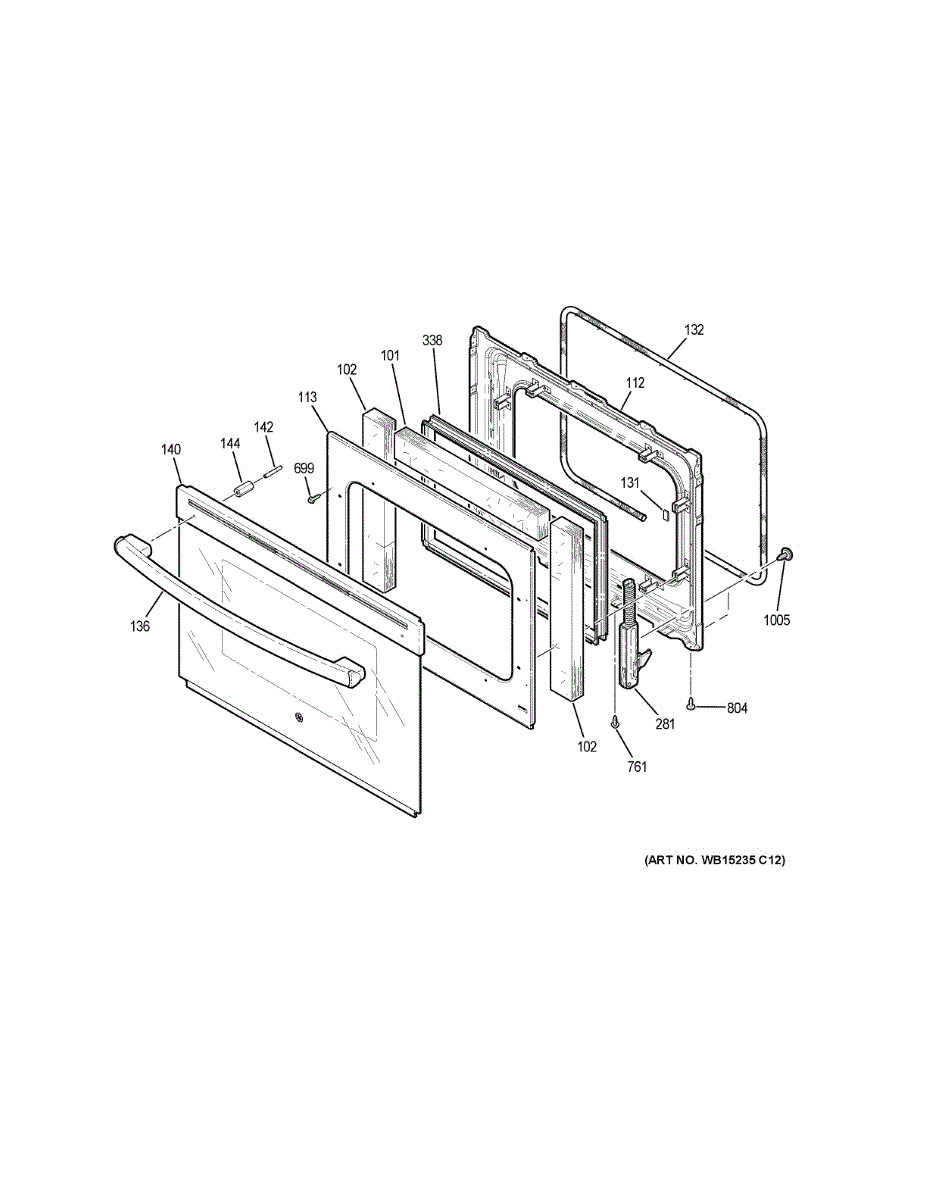

Parts for Ge JD630DF6BB: Door Parts

This oven door insulation pad replaces the thermal padding inside the oven door to help contain heat for more even cooking and reduce exterior door temperature. Designed as a direct-fit oven door inner insulation. What it does:

• Provides thermal barrier inside the oven door to help retain heat and improve cooking consistency
• Reduces outer door temperature to help protect cabinets and nearby surfaces
• Helps prevent heat-related wear to the door assembly and trim
• Common symptom: oven door feels unusually hot or cooking performance seems affected

• Disconnect power to the appliance before beginning any repair
• Door disassembly is often required; support glass panels and gaskets to avoid damage
• Handle insulation and any sharp sheet-metal edges with gloves and eye protection

This oven door side insulation sits between the inner and outer door panels to limit heat loss and reduce hot spots along the door edge. Replace when the original is burnt, brittle, or missing to help restore safe thermal performance.

• Provides a thermal barrier along the side of the oven door between panels
• Helps retain oven heat and reduce heat transfer to the outer door surface
• Can help address heat escaping around door edges or a door exterior that feels hotter than normal
• Replace if the insulation is charred, frayed, compressed, or contaminated during service

• Disconnect power at the breaker and allow the oven to cool completely
• Remove the door and disassemble per your model's service instructions; work on a padded surface
• Wear gloves and eye protection; handle insulation carefully and avoid compressing it
• Do not block vents or air passages during reassembly; note orientation for proper fit

This oven door lining is the inner panel that protects internal insulation and helps secure the oven door glass—restoring a proper seal and interior appearance. It fits the OEM door assembly to maintain safe, efficient oven operation. What it does:

• Replaces the inner oven door panel that shields insulation and internal components from heat and abrasion
• Helps keep the door glass properly seated and the oven cavity sealed for even cooking
• Commonly replaced for visible cracks, dents, heat damage, or a rattling/loose inner panel
• Restores interior appearance and prevents insulation exposure that can cause odors or reduced performance

• Disconnect power (and gas if applicable) before starting work; allow oven to cool completely.
• Handle door glass and metal edges carefully—wear gloves and eye protection.
• Installation typically requires removing the oven door and unfastening retainers; follow OEM instructions for safe removal and reassembly.
• Only install parts that match the oven's OEM part number to ensure proper fit and safe operation.

This oven door insulation retainer secures the insulation inside the oven door, helping maintain proper heat containment and preventing insulation from shifting. It's a small but important clip that keeps the door's inner components stable. What it does:

• Holds inner door insulation in place so insulation stays positioned during use
• Helps maintain consistent heat distribution by preventing insulation gaps
• Reduces rattling or movement of the door interior when opening or closing
• Commonly replaced when insulation is loose, visible, or shifting inside the door

• One oven door insulation retainer

• Disconnect power to the appliance before beginning any repair to avoid shock or injury
• Access typically requires removing the oven door or inner door panel — follow your model's service instructions
• Handle door panels and insulation carefully to avoid damage; keep fasteners organized for reassembly

This is the door pad. Consider replacing both when replacing trim number WB07T10230

The Oven Door Gasket is an OEM part for GE ranges. This gasket is responsible for creating an air-tight seal between the door and the oven housing. It allows heat to be properly contained within the oven cavity during the cooking process.

Causes of a bad gasket can include warping, cracking, or breakdown of the gasket material over repeated heating and cooling cycles. Exposure to excessive heat or impact damage is also possible.

Symptoms of a bad gasket include:

• Inability to maintain proper oven temperatures
• Leaks of heat, smoke, or flames from the door seal area
• Drafts or cold spots felt around the door perimeter
• Difficulty in fully latching the oven door closed

This OEM GE replacement gasket is also compatible with Hotpoint, RCA, and some Kenmore models.

The Black Handle is an OEM part for GE electric range models. It facilitates safely opening and closing the oven door for cooking access.

Symptoms of a faulty handle include:

• Loosened mounting stresses vulnerable to long-term impact
• Potential pinched fingers if stability fades over repetitive use
• Degraded aesthetic appeal detracting from the kitchen space

Failures stem from wear on mounting screws after years of heating cycles, stresses from accidental impacts compromising structure, and faded color from sustained thermal exposures.

This OEM handle is compatible with select Hotpoint and RCA gas range models.

This composite support stud mounts on the cooktop to provide a stable resting point for the burner grate. It helps keep the grate level and protects the cooktop finish from metal-to-enamel contact.

• Supports and levels the burner grate at its contact point
• Helps protect the porcelain/enamel surface from scratches and chips
• Maintains proper grate alignment over the burner
• Typical symptoms of a failed/missing stud: wobbly or rocking grate, rattling, scuffing around grate landing points

• Disconnect power and shut off gas; allow the surface to cool completely
• Remove the grate and the damaged/missing stud; clean the contact area
• Install the new stud per your model's design and seat it fully without overtightening
• Reinstall the grate and confirm it sits flat and stable

This reinforcement spacer maintains the correct gap and supports the joint between mating parts in your appliance. Replacing a worn or missing spacer helps keep panels, trim, or brackets aligned for a solid fit and smooth operation.

• Maintains proper spacing and alignment between components to prevent rubbing or distortion
• Reinforces mounting points to distribute fastener load and reduce cracking around holes
• Helps reduce rattles and looseness; promotes tight, even gaps
• Common signs include a missing/broken spacer, wobbly panels/trim, rattling noises, or visible misalignment

• Disconnect power; allow the appliance to cool completely. For gas units, shut off the gas supply
• Access the affected area and note the spacer's orientation before removal
• Reuse original hardware and install the spacer in the same position; do not overtighten fasteners
• Reassemble, check clearances and alignment, then test operation

This left-side refrigerator door hinge secures and pivots the door for smooth opening and proper alignment. It restores stable door movement and helps maintain a tight seal to protect internal temperatures and food freshness. What it does:

• Provides a mounting point for the refrigerator door and allows it to swing open and closed
• Keeps the door aligned to ensure consistent sealing and energy efficiency
• Replaces worn, bent or broken hinges that cause sagging, rubbing or uneven gaps
• Works with factory hinge pins and fasteners to restore original door operation

• Intended for the left-side door; verify orientation before installation
• Installation requires basic hand tools and safe handling of the door to avoid damage or injury
• If needed, support the door or have a helper during removal and reattachment to prevent dropping
• Inspect hinge mounting screws and surrounding trim; replace hardware if stripped or damaged

This right-side refrigerator door hinge provides a secure pivot for the door, restoring proper alignment and smooth opening. It replaces worn or bent hinges to reduce scraping and uneven sealing for better cold retention. What it does:

• Supports the refrigerator door on the right side and lets it pivot smoothly.
• Restores proper door alignment to help ensure a consistent seal and prevent gaps.
• Reduces rubbing, sticking, or noisy movement caused by worn or bent hinges.
• Helps prevent premature wear of the door and cabinet mating surfaces.

• Basic mechanical skills and common hand tools are required; remove power to the appliance before starting any repair.
• Support the door while removing or installing the hinge to prevent injury or damage.
• Tighten mounting fasteners to secure fit; avoid over-tightening which can strip screws or deform the hinge.

The Window Pack Assembly is an OEM replacement part for GE electric ranges. It comprises the outer oven window and securing brackets that hold the glass in place.

Causes of failure can include cracks in the glass from impact or thermal stress over time. Mounting brackets may loosen from normal use.

Symptoms of a faulty window pack assembly include:

• Fogging or condensation between panes of glass
• Leaks evident around the perimeter of the oven window
• Window that rocks or wiggles in the frame
• Inability to securely latch the window shut

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore oven models.

ST10-16 X 7/16"

This silicon controlled rectifier (SCR) is an electronic switching component that controls current flow in appliance control circuits, helping regulate power to heaters, motors, or other loads for stable operation. What it does:

• Switches and regulates current in control boards and power circuits
• Can prevent power from reaching a heater, motor, or element when failed
• Helps protect downstream components by controlling surge/current flow

• Disconnect power to the appliance before servicing to avoid shock.
• Handle the SCR carefully to avoid electrostatic discharge (ESD) damage.
• May require board-level replacement or soldering skills.

Package of 12

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
