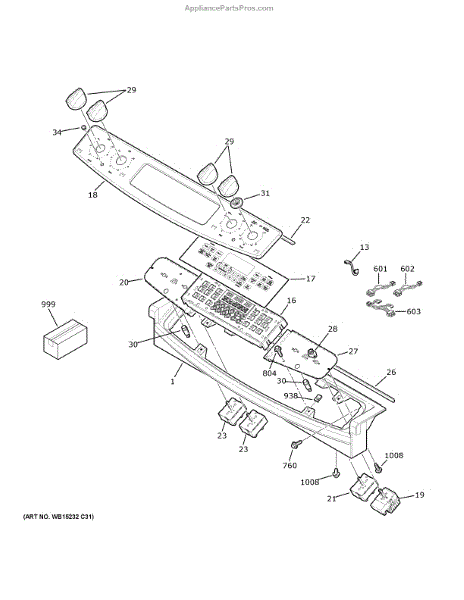

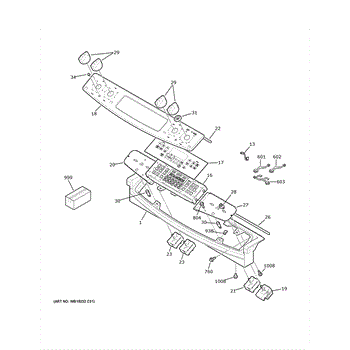

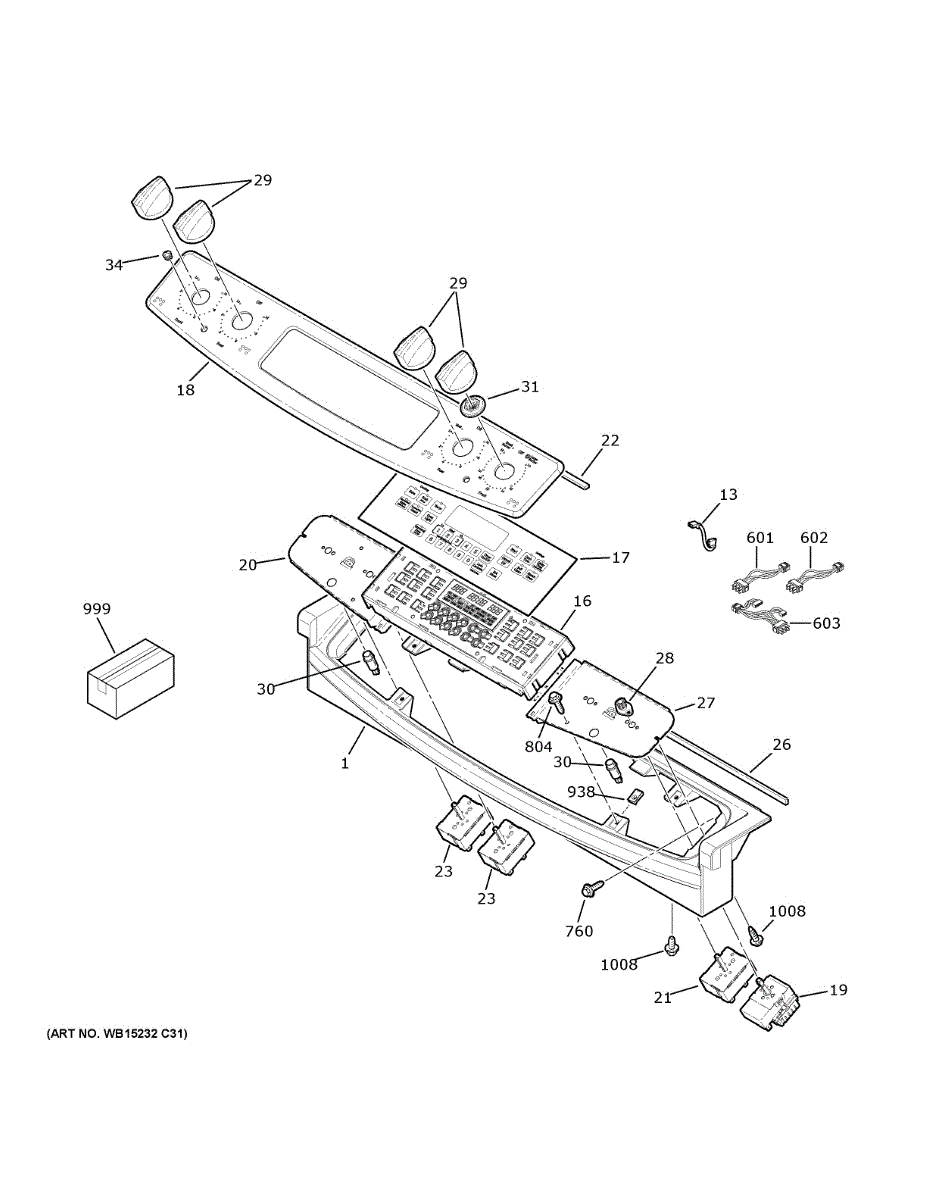

Parts for Ge JD630ST2SS: Control Panel Parts

This control panel assembly replaces the front user-interface panel, restoring a secure, clearly labeled surface for operating your appliance. Install a new panel when the original is cracked, loose, or the control markings have become worn or unreadable. What it does:

• Provides the user-facing interface area for selecting functions and settings
• Houses and aligns buttons/switches and other control components
• Shields the control area from heat, spills, and impact
• Common symptoms: cracked or warped panel, worn/peeling graphics, loose or broken mounting points, sticky or misaligned buttons

• 1 control panel assembly

• Disconnect power at the breaker before servicing.
• Remove knobs/trim and the screws securing the existing panel; carefully lift it away.
• Transfer any reusable parts from the old panel to the new panel.
• Reinstall fasteners and trim, restore power, and test all controls.

This electrical jumper links two terminals within the appliance's wiring to restore proper continuity for the affected circuit. Replace a burnt, damaged, or missing jumper to bring the related function back to reliable operation.

• Bridges terminals to complete or modify an electrical circuit as designed by the manufacturer
• Helps address symptoms like a specific feature not working, intermittent operation, or no power to a component
• Replace if the original shows heat damage, broken leads, or loose connections
• Direct replacement for the original jumper used in the wiring harness

• Disconnect power at the breaker or unplug the appliance before servicing
• Use your model's wiring diagram to locate the correct jumper
• Label/photograph wire positions and transfer one connection at a time
• Ensure connectors are fully seated; do not alter the factory wiring configuration

This part is a range control board. It is responsible for controlling all of the functions on the appliance, from setting the heat temperature, setting the timer or bake time, turning on the oven light, and controlling the burners. Allow the oven plenty of time to cool down before attempting to access and replace this part.When the control board is faulty, then the buttons and knobs will not respond. For example, the burner knob could be turned on, but the burner itself does not turn on. The digital display may not work. An error code may appear on the display. Unplug the electric range from the electrical outlet first. Wear work gloves for safety during the process.This component is sourced straight from the manufacturer. It is sold individually. This particular control board is compatible with electric ranges that are manufactured by GE.

This gray control panel overlay is the printed faceplate for the user interface, restoring clear labels and a clean, finished look when the original graphics are worn, peeling, or damaged—without replacing the underlying keypad or electronics.

• Provides the printed button labels and icons on the control panel
• Cosmetic overlay that covers and protects the touchpad/bezel area
• Typical symptoms: cracked, peeling, bubbling, faded, or unreadable graphics
• Cosmetic part only; it does not sense button presses or fix unresponsive keys

• Disconnect power before servicing
• Remove the control panel assembly as needed to access the old overlay; carefully remove it and clean any residue
• Align and apply the new overlay; press evenly for proper adhesion
• Be aware of high-voltage components even when unplugged

This replacement control panel overlay restores the printed labels and clean appearance of your appliance's control console. It helps ensure settings and buttons are easy to see and read again for everyday operation.

• Provides the graphic legends and markings for the control panel
• Fits over the console to present a factory look and proper button alignment
• Helps address faded, peeling, bubbled, or cracked graphics
• Can improve visibility of controls when original markings are worn

• Disconnect power to the appliance before servicing
• Follow your model's service information to access the control panel and remove the old overlay
• Handle by the edges to avoid damage to the printed surface
• Carefully align with openings and edges before final placement

The Switch Infinite Control is an OEM component specifically designed for GE ranges. This particular switch operates the infinite heat settings on the front left cooking element.

Causes of switch malfunctions can include repeated toggling over years of usage. Electrical fluctuations or physical impacts could potentially degrade internal connections as well.

Symptoms include:

• Inability to select certain heat levels for the front left burner
• Erratic or unresponsive behavior from the infinite switch
• Inaccurate temperature control of associated burner

This genuine GE switch is compatible with Hotpoint, RCA and select Kenmore ranges too.

This control panel insert is the trim piece that covers and protects the appliance's front control area while allowing the panel lighting to show through, restoring a clean, finished appearance. What it does:

• Replaces a cracked, faded, or damaged control panel insert to improve appearance
• Protects the underlying control board and switches from spills and debris
• Lets control indicator/backlighting transmit clearly for easier visibility
• Matches OEM fit and mounting points for a direct replacement

• Disconnect power to the appliance before starting any repair
• Removal typically requires removing the console or trim; keep screws and fasteners organized
• Handle the insert carefully to avoid scratching the finish or damaging mounting tabs
• After installation, restore power and verify control operation and lighting

A replacement gasket faceplate that seals the appliance faceplate to help keep out moisture, dust and debris while restoring a snug fit and reducing rattling. Fits select GE appliances as the factory-style replacement. What it does:

• Seals the faceplate to the cabinet, helping prevent drafts and moisture intrusion.
• Replaces worn, cracked or deformed gaskets that cause visible gaps or uneven fit.
• Helps reduce faceplate movement and rattling during operation.
• Use when you see splits, compression set, or persistent gaps around the faceplate.

• Disconnect power to the appliance and remove any panels necessary to access the gasket.
• Carefully remove the old gasket and clean the mating surfaces of adhesive, dirt and debris.
• Align the new gasket in the mounting channel and press into place; replace any damaged clips or fasteners.
• Follow the appliance service manual for model-specific steps.

Replace a cracked, stripped, or missing control knob and restore smooth, reliable setting of temperatures and functions. This knob assembly fits the control shaft to provide positive engagement and a refreshed look on the control panel. What it does

• Attaches to the valve or switch shaft to select heat level or function
• Restores proper engagement when the knob is cracked or stripped
• Fixes knobs that spin without turning the control stem
• Replaces loose, hard-to-grip, or missing knobs

• 1 control knob assembly

• Disconnect power and let the appliance cool completely before servicing
• Pull the old knob straight off the control shaft; avoid bending the stem
• Align the new knob's opening with the flat/D-shaped shaft and press firmly until fully seated
• Verify the pointer aligns with the panel markings and test operation

This indicator light installs in the control panel and illuminates to show when the monitored circuit is powered, restoring a clear visual status cue so you know at a glance when the appliance function is active.

• Provides a visible ON indication when the circuit it monitors is energized
• Typically used to indicate a surface unit, oven, or other energized function on the control panel
• Restores clear, reliable status feedback during operation
• Symptoms: light does not illuminate, stays on constantly, flickers intermittently, or lens shows heat damage

• Disconnect power by unplugging the appliance or switching off the circuit breaker
• Access the rear of the control panel; note wire locations or take a photo before removal
• Move wires to the new light and secure it in the panel without pinching leads
• Restore power and test for proper illumination

This snap-in indicator lens covers and diffuses a panel light, restoring clear status visibility while protecting the lamp opening. Replace a cracked, missing, or discolored lens to keep your appliance looking clean and functioning safely. What it does:

• Snaps into the panel to cover and protect the indicator light opening
• Diffuses the lamp for clear, consistent visibility
• Helps keep out dust, grease, and moisture
• Common symptoms: lens missing or cracked, won't stay seated, yellowed/opaque, indicator hard to see

• 1 snap-in indicator lens

• Disconnect power before servicing
• Access the control/backguard area as required by your model
• Release the old lens tabs and remove; align the new lens and press until it snaps flush
• Do not force; ensure correct orientation to avoid damaging the panel

This wire harness connects the infinite burner control to the cooktop's wiring, restoring proper electrical routing for surface element regulation. It replaces a damaged or worn harness to help re-establish safe, reliable burner control. What it does:

• Provides the correct wiring connection between the infinite switch and cooktop terminals.
• Restores electrical continuity when a frayed, burned, or disconnected harness prevents burner operation.
• Helps eliminate intermittent or no-heat symptoms caused by broken wires or loose terminals.
• Maintains OEM routing and connector fit for consistent control response.

• One wire harness for infinite control (exact OEM configuration)

• Disconnect all power to the range at the breaker before starting work.
• Handle connectors gently; use proper tools to release terminals without bending.
• Verify proper connector seating and secure routing away from heat sources before restoring power.
• If terminals or the infinite switch show damage, replace the affected components as recommended.
