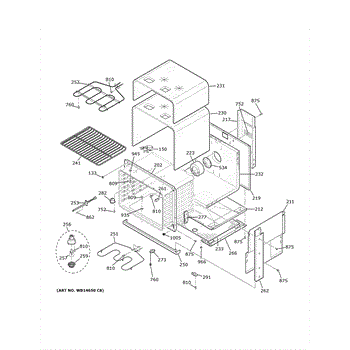

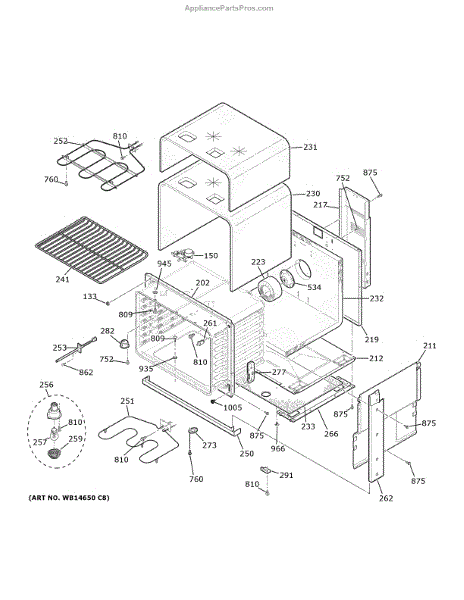

Parts for Ge JD630ST2SS: Body Parts

This oven door latch secures the door to the oven frame as designed, restoring safe, reliable door locking. Replacing a worn or damaged latch helps ensure proper operation and prevents cycles from being interrupted by a door that won't latch.

• Locks and releases the oven door as required by the appliance's design
• Helps the oven operate safely by ensuring positive door engagement
• Can help resolve issues like a door that won't lock/unlock or a clean cycle that won't start due to latch problems
• Replaces bent, broken, or sticking latch mechanisms

• Disconnect power at the breaker before servicing; allow the oven to cool completely
• Access location varies by model
• Take photos of spring/linkage orientation and transfer any reused components from the original latch
• After installation, verify the door opens, closes, and locks/unlocks smoothly before running a cycle

The Oven Rack is an OEM part for GE ranges, providing a sturdy and reliable platform for baking and roasting a variety of dishes. Its design allows for easy placement and removal from the oven, offering flexibility in cooking heights and accommodating different sizes of bakeware.

Causes of a bad Oven Rack can range from excessive weight being placed on the rack, exposure to high moisture levels leading to rust, or simply the age-related wear and tear that comes from regular use.

Symptoms of a bad Oven Rack include:

• Warping or bending, which can prevent the rack from sitting level in the oven and affect cooking performance.
• Rust or corrosion, which can weaken the rack's structure and potentially contaminate food.
• Difficulty sliding the rack in and out, which may indicate damage or misalignment.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bake element is the oven's lower heating element that provides consistent radiant heat for baking and roasting. Replacing a burned or damaged element restores normal oven baking performance and even cooking results. What it does:

• Heats the oven cavity during bake cycles to maintain set cooking temperatures.
• Common symptom: oven won't reach or maintain temperature during baking.
• Common symptom: visible break, blistering, or exposed wiring on the element.
• Common symptom: oven tripping a breaker or showing error codes related to heating.

• One bake element (lower oven) as shown.

• Disconnect power to the appliance at the circuit breaker before starting work.
• Handle the element carefully—the exposed metal and terminals can be sharp or fragile.
• Installation typically requires removing the oven floor or interior panels to access mounting screws and terminal connections.
• After installation, restore power and test the oven on a bake cycle to ensure proper operation.

This broil element replaces the upper heating element in the oven to restore broiling performance and even top-heat cooking. Direct-fit element designed to heat quickly and deliver consistent browning and searing results. What it does:

• Heats the top of the oven for broiling, browning, and finishing dishes
• Restores broil function when the element is visibly burned, broken, or not heating
• Works with the oven's broil cycle and temperature controls for even top-side cooking
• Compatible with factory mounting and electrical connections for a straightforward replacement

• Disconnect power to the oven at the breaker before starting any repair
• Handle the element carefully to avoid bending or damaging the terminals
• Use appropriate tools to remove oven panels or racks as needed; support the element while disconnecting wires

This high-amp SPDT switch routes power between circuits in cooking appliances to control items such as locks, element relays, or fans. Replacing a worn switch restores dependable operation and helps eliminate intermittent on/off issues. What it does:

• Single-pole, double-throw action directs power between NO/NC circuits based on actuator position
• Used to signal or control a component per the model's design (e.g., latch/lock, relay, fan)
• Failure symptoms can include no activation, stuck-on/off behavior, intermittent operation, or heat-damaged terminals
• Electrical tests may show incorrect continuity between COM–NO/NC when pressed or released

• Includes: 1 SPDT high-amp switch

• Disconnect power at the breaker or unplug the appliance before servicing
• Label or photograph wiring; move leads to matching COM/NO/NC terminals on the new switch
• Mount with the correct actuator orientation and secure any bracket or screws
• Inspect connectors for heat damage; ensure tight spade fits, restore power, and test operation
