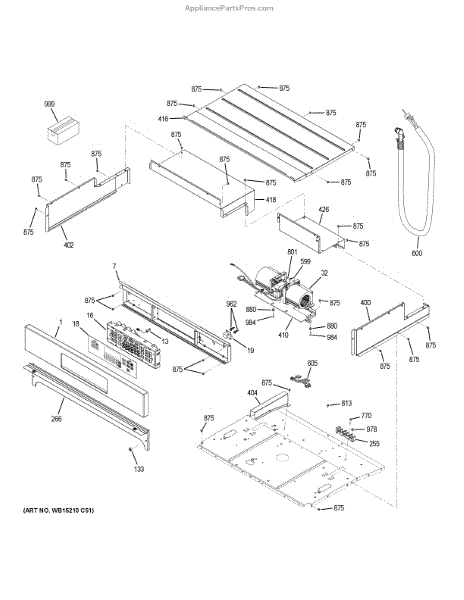

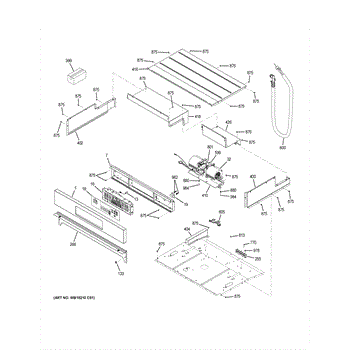

Parts for Ge JK3000SF5SS: Control Panel Parts

This electrical jumper links two terminals within the appliance's wiring to restore proper continuity for the affected circuit. Replace a burnt, damaged, or missing jumper to bring the related function back to reliable operation.

• Bridges terminals to complete or modify an electrical circuit as designed by the manufacturer
• Helps address symptoms like a specific feature not working, intermittent operation, or no power to a component
• Replace if the original shows heat damage, broken leads, or loose connections
• Direct replacement for the original jumper used in the wiring harness

• Disconnect power at the breaker or unplug the appliance before servicing
• Use your model's wiring diagram to locate the correct jumper
• Label/photograph wire positions and transfer one connection at a time
• Ensure connectors are fully seated; do not alter the factory wiring configuration

This is a T012 control board with white LED indicators for range/oven control panels. It replaces a failed or faulty control board to restore responsive touch keys and readable display elements. What it does:

• Controls front-panel user inputs and manages oven/range display functions
• Provides white LED illumination for indicator lights and status readouts
• Helps resolve symptoms like unresponsive controls, missing display indicators, or incorrect on-screen information
• Works as the main interface board communicating commands to the appliance's main system

• Disconnect power at the breaker or unplug the appliance before beginning work
• Match connectors and mounting points to the original board; do not force components
• Handle the board by edges and avoid static discharge; use proper ESD precautions

The Overlay is an OEM component specifically designed for GE electric ranges. This decorative door panel surrounds the exterior of the oven cavity and controls.

Causes of a damaged overlay can include normal wear over time from repeated door openings and closings. Accidental impacts or exposure to heat can also degrade the surface.

Symptoms include:

• Cracks, chips, or discoloration appearing on the surface
• Warping of the material out of its proper alignment
• Loose or detached sections of the overlay panel

This OEM part is also compatible with Hotpoint, RCA, and select Kenmore electric range models.

The Fan Blower is an OEM part for GE ranges and wall ovens. This part helps to circulate air within the oven cavity. The fan blower ensures that heat is evenly distributed during cooking, contributing to consistent cooking results, and prevents the electronic components from overheating, which could lead to malfunctions or reduced lifespan of the appliance.

Causes of damage to the Fan Blower can include accumulation of debris and grease, which can obstruct the fan and strain the motor, and mechanical wear over time that affects the fan's efficiency.

Symptoms of a bad Fan Blower in a range include:

• The oven not cooking evenly
• Overheating of the range's electronic control panel
• Unusual noises, such as rattling or buzzing

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This block terminal is the wire-connection block that secures incoming power and internal wiring, restoring a safe, reliable electrical connection for the appliance. Replaces worn or damaged terminal connections to help prevent loose wires and arcing. What it does:

• Provides a secure connection point for incoming power and internal leads
• Replaces cracked, burned, or corroded terminal blocks that cause intermittent power or arcing
• Helps stop loose wires that can produce sparks, burning smells, or blown fuses/breakers
• Restores a stable electrical path so controls and heating elements receive power reliably

• One block terminal

• Always disconnect all power (unplug or shut off circuit breaker) before inspecting or replacing electrical parts
• Take a photo of wire routing and terminal screw positions before removal for correct reassembly
• Tighten terminal screws to secure wires; replace if mounting tabs or insulation are damaged

This is a replacement screw used to secure appliance components and restore proper fit and function. Installing the correct screw prevents loose panels and noisy operation and keeps parts aligned for safe use. What it does:

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Helps stop rattling or vibration caused by missing or stripped fasteners
• Restores secure fit where a screw has been lost or damaged
• Matches the OEM fit so adjoining parts align correctly

• One replacement screw as pictured

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread by hand first, then snug; do not overtighten to avoid cracking plastic or stripping threads
• Replace only with the same type and size screw to ensure proper fit

This silicon controlled rectifier (SCR) switches and regulates power to heating or motor circuits, helping the appliance control temperature and run cycles reliably. It's a direct-fit electronic switching component used in a variety of control systems. What it does:

• Acts as an electronic switch to regulate AC power to heating elements or motors
• Helps control temperature output and maintain consistent cycle performance
• Can prevent unwanted continuous current flow when functioning properly
• Commonly replaced when ovens, ranges, or dryers fail to heat or cycle correctly

• One silicon controlled rectifier (SCR) as shown

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Handle the SCR by its body; avoid touching terminals and static-sensitive areas
• Verify proper orientation and secure mounting; follow OEM wiring and torque practices

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Black. 8-18 AB HXW 3/8

A replacement hex nut used to secure appliance components and restore proper fastening. Installs quickly and helps stop loose or rattling parts caused by a missing or stripped nut. What it does

• Secures mounting studs, brackets, or components in place
• Prevents parts from shifting, vibrating, or coming loose during operation
• Replaces a missing, damaged, or corroded nut to restore reliable fastening

• One hex nut

• Disconnect power and gas before starting work
• Start threads by hand to avoid cross-threading, then tighten with the proper-size wrench
• Do not overtighten; snug until secure to avoid damaging studs or threads
• Use replacement only where the OEM hex nut is specified
