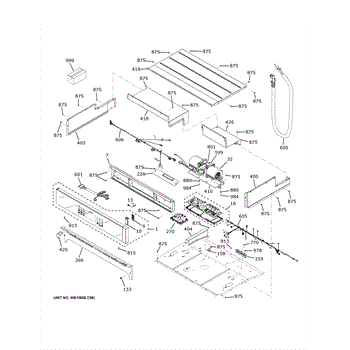

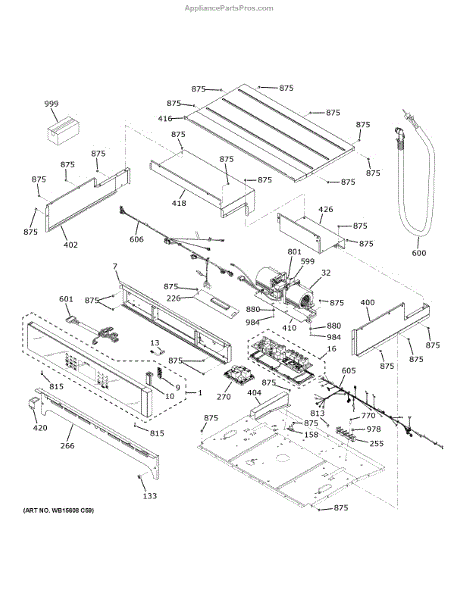

Parts for Ge JKD5000SV1SS: Control Panel Parts

This housing transceiver is the outer mounting enclosure that secures and protects the appliance's transceiver assembly, helping maintain reliable signal and control communication. It replaces cracked or broken housings to restore proper fit and protection. What it does:

• Holds and protects the wireless/transceiver module and related wiring from physical damage
• Helps maintain proper alignment and connection to the appliance control assembly
• Common symptom: damaged or cracked housing that exposes electronics or prevents secure mounting
• Common symptom: intermittent signal or communication issues when the transceiver is loose or misaligned

• One housing transceiver

• Disconnect power to the appliance before beginning any repair to avoid shock or component damage
• Handle the transceiver and circuit connections carefully to avoid bending pins or ESD damage
• Installation typically requires removing the control console or access panel and a few fasteners; keep track of screws and gaskets

If your range or oven has a circuit not working or intermittent function, this electrical jumper wire bridges terminals to restore proper continuity.

The Fan Blower is an OEM part for GE ranges and wall ovens. This part helps to circulate air within the oven cavity. The fan blower ensures that heat is evenly distributed during cooking, contributing to consistent cooking results, and prevents the electronic components from overheating, which could lead to malfunctions or reduced lifespan of the appliance.

Causes of damage to the Fan Blower can include accumulation of debris and grease, which can obstruct the fan and strain the motor, and mechanical wear over time that affects the fan's efficiency.

Symptoms of a bad Fan Blower in a range include:

• The oven not cooking evenly
• Overheating of the range's electronic control panel
• Unusual noises, such as rattling or buzzing

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This cover latch access is the small replacement latch that secures the appliance access cover so panels stay closed and maintain safe operation. It restores proper cover engagement for a solid, reliable fit. What it does:

• Holds the access/cover panel closed to prevent unwanted opening during use
• Restores a loose, wobbly, or non-securing access cover
• Helps eliminate rattling or vibration caused by a faulty latch
• Works as the mechanical catch for access panels where specified

• One cover latch access

• Disconnect power (and gas if applicable) before beginning any repair
• Basic hand tools are typically required; remove the access panel to replace the latch
• Handle sharp sheet metal edges carefully and wear protective gloves

Fixes loose power connections and electrical arcing in ranges and ovens. This terminal block secures incoming wiring for safe, reliable operation.

Range won't heat or start? This relay board assembly controls power switching to the heating elements and motor. Direct replacement for failed relay modules.

Upper air vent channel for wall ovens. Directs airflow in the vent system. Replace if cracked, broken, or missing to restore proper ventilation.

Upper fan mount bracket for wall ovens and ranges. Secures the cooling fan assembly in place. Replace if bracket is bent, broken, or missing.

This RJ45 mounting bracket secures an RJ45 network/communication jack to the appliance frame, restoring proper connector alignment and mechanical support. It's a simple replacement part for damaged or missing brackets. What it does:

• Holds the RJ45 jack firmly in place to prevent connector movement and intermittent connections
• Aligns the jack for easy cable insertion and secure mating
• Protects the connector and wiring from strain or damage during use
• Helps restore reliable network/communication port positioning after panel or bracket damage

• One RJ45 mounting bracket

• Unplug the appliance or disconnect power before servicing
• Remove the access panel or trim to reach the existing bracket; retain fasteners for reassembly
• Gently disconnect the jack/cable before removing the old bracket; avoid pulling on wires
• Hand-tighten or torque screws to manufacturer specifications; do not overtighten

The Cooling Fan Sensor Board is an OEM component for GE ovens and ranges. It is an electronic module connected to the main control board that monitors internal temperatures. An onboard thermistor sensor in the board regulates the convection fan relay and fan motor speed based on heating demands during the bake and broil functions.

Causes of a failed Cooling Fan Sensor Board can include moisture damage from spills or steam, faulty soldering connections, or manufacturing defects over time. Electronic components are also susceptible to normal wear from frequent heating cycles.

Symptoms of a bad board fan sensor include:

• Inconsistent or improper temperature control not maintaining set oven temperatures
• Issues with selected convection bake or broil modes not activating properly
• Abnormal fan speeds that do not correlate with heating element operation

It is also compatible with Hotpoint, RCA, and KitchenAid wall ovens and range models using the same electronic control system.

Replacement screw for securing panels and components on ranges and ovens. Needed when original fastener is stripped, missing, or damaged during repairs.

Rubber grommet for electric ovens and ranges. Seals and protects wiring or components passing through metal panels. Replace if cracked or missing.
