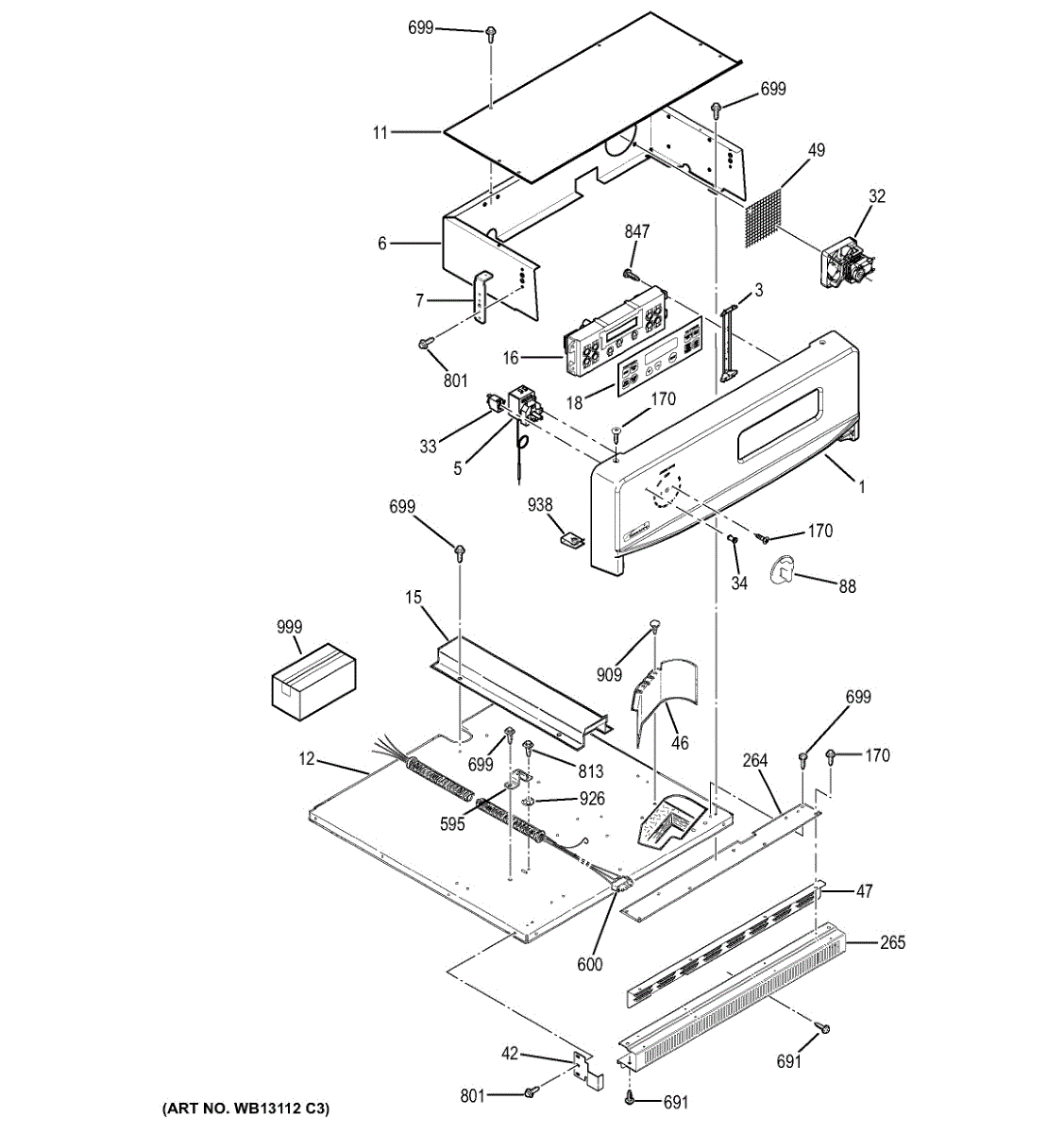

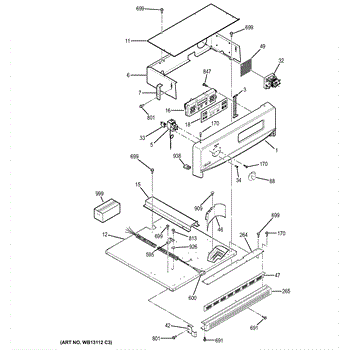

Parts for Ge JRP28BJ2BB: Control Panel Parts

This control panel is the user interface assembly that houses the touchpads, display, and control electronics so you can select cycles and view status. It replaces a damaged or unresponsive front console to restore normal operation. What it does:

• Provides the buttons, display, and electronics that send commands to the appliance control board
• Lets you select cycles, options, and start/pause functions through the front console
• Fixes symptoms such as unresponsive or non-functioning buttons, blank or erratic display, or intermittent control input
• Maintains the finished appearance of the appliance's front interface

• One control panel assembly as shown

• High-level replacement; disconnect power before servicing to avoid shock
• Access may require removing exterior trim or fascia; keep fasteners organized
• Handle display and ribbon/connector areas carefully to avoid damage

This oven temperature control thermostat regulates heat by cycling the elements to maintain your set temperature. Replacing a worn thermostat helps restore accurate baking and consistent, reliable oven performance.

• Senses oven temperature and opens/closes contacts to hold the selected setting
• Can resolve inconsistent baking results, extended preheat, or erratic cycling
• In some failures, the oven may not heat at all

• Disconnect power at the breaker and allow the appliance to cool before service
• Access the control area; move wires to the new thermostat one at a time to match positions
• Route and secure the sensing probe/tube along the original path and retainers; avoid kinks or sharp bends
• After installation, verify temperature with an oven thermometer and calibrate per service instructions if needed

A replacement control panel bracket that secures the oven/range control console to the chassis, restoring a stable, aligned control panel for safe operation and clean appearance. Fits the OEM mounting location and restores proper panel support. What it does

• Provides a secure mounting point to hold the control/console assembly in place.
• Prevents a loose, wobbly, or sagging control panel that can cause buttons or touchpads to misalign.
• Stops rattling or vibration noise from the control area during use.
• Helps maintain correct spacing so knobs, buttons and electronic controls operate reliably.

• Disconnect power to the appliance before starting any work to avoid electrical shock.
• Basic hand tools (screwdriver, nut driver) are typically required; follow the OEM service instructions for disassembly/reassembly.
• Handle surrounding trim, glass, and control surfaces carefully to avoid damage.
• If electronic components were removed, connections before restoring power and test functions after installation.

The Oven Control Board is an OEM part for GE ranges. It is an important electronic component that is responsible for monitoring and regulating all oven functions including bake, broil, convection, temperature probes, preheat indicator lights, clock, and timers.

Symptoms of a bad oven control board include:

• Oven failing to heat or cook food properly
• Inaccurate or fluctuating temperature readings
• Control locks or buttons not working as expected
• Timers or clocks not keeping time
• Pre-heat light not illuminating

Causes of failure can include water damage, circuitry issues, component degradation over time, or surges that disrupt electrical signals.

This OEM GE replacement board ensures consistent and reliable oven operation. It restores full functionality to critical baking and cooking systems. This part is also compatible with Hotpoint, RCA, and select Kenmore range models.

This control panel overlay replaces the printed faceplate on the oven/range electronic control. It restores clear, readable button legends and a clean factory look while shielding the touchpad area from everyday wear.

• Provides the printed graphics/labels for buttons and display windows on the control panel
• Adheres over the keypad/control area to finish and protect the surface
• Typical replacement reasons: faded or worn text, peeling/bubbling film, cracks, discoloration, or damaged faceplate
• Addresses readability/appearance; electrical input or display issues usually involve the keypad or control board

• Disconnect power at the breaker before servicing
• Remove the control panel/backguard per your model's service information to access the overlay area
• Carefully peel the old overlay and clean adhesive residue; align the new overlay using the display and key outlines, then press firmly from the center outward
• Avoid touching the adhesive or stretching the film; reassemble the panel before restoring power

This lower cooling fan assembly circulates air to cool internal components and help maintain proper airflow in the appliance. Replacing a worn fan restores quieter operation and helps prevent overheating of electrical parts. What it does:

• Moves air through the appliance cabinet to aid component cooling and temperature regulation.
• Reduces hot spots around controls, electronics, and motors that can cause premature failure.
• Commonly used when you hear unusual noise from the lower area or detect reduced airflow.
• Supports overall appliance performance and reliability by maintaining designed ventilation.

• One lower cooling fan assembly as shown

• Disconnect power before attempting any service to avoid electric shock.
• Inspect surrounding mounts and ducts for damage; replace any broken clips or supports.
• Use basic hand tools; confirm correct orientation and secure mounting before restoring power.

Keep your oven's cooling or convection fan safe from debris and contact with loose items. This round mesh guard provides a simple barrier that helps maintain airflow while protecting the fan blade from damage and blockages. What it does:

• Shields the fan blade from loose debris, pans, or dropped food that can cause blades to bend or break
• Helps maintain proper airflow by preventing blockages that reduce cooling or convection performance
• Reduces risk of fan-related noise from objects striking the blade
• Helps protect the fan assembly from corrosion and buildup over time

• One fan screen protector (round mesh guard)

• Designed for replacement on compatible oven/range fan assemblies; verify fit with your model before installation
• Turn off power to the appliance at the breaker and allow all surfaces to cool before beginning work
• Basic hand tools are typically required; handle the mesh carefully to avoid bending or distortion
• If the fan or motor shows damage, replace the damaged components rather than relying on the screen alone

This conduit wire assembly routes and protects electrical wiring between appliance components, keeping connections secure and reducing risk of shorts. It's a direct-fit harness used where a protected wire run is required for reliable power and signal delivery. What it does:

• Provides a protected conduit for multiple conductors to route power or signals between control and functional modules
• Keeps wire bundles organized and secured to prevent chafing and accidental disconnection
• Helps prevent electrical shorts and arcing by shielding wires from heat and abrasion
• Commonly replaced when wiring is frayed, connectors are damaged, or intermittent power/operation occurs

• Always disconnect the appliance from power before beginning service.
• Match connector types and routing to the original harness; secure with existing clips/fasteners.
• Inspect nearby terminals and components for damage; replace any corroded connectors.

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or control components where a small black screw is required
• Restores secure mounting to eliminate vibration, rattling or misaligned parts
• Matches finished appliance surfaces for a clean, unobtrusive look
• Simple hardware replacement for small fastener loss or damage

• One black screw

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver to seat the screw; avoid overtightening to prevent stripping or cracking surrounding material
• Keep track of small fasteners during disassembly and handle with care
• Replace with the exact part number if the original screw is damaged or the thread/length differs

ST10-16 X 7/16"

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

This push-type plastic rivet is a small fastening clip that secures trim, panels and lightweight components on appliances. It replaces worn or broken rivets to restore a snug fit and reduce rattles or loose trim. What it does:

• Secures interior or exterior trim, panels and access covers
• Holds wiring harnesses or insulation in place where a low-profile fastener is required
• Replaces missing or damaged rivets that cause loose panels or vibration noise
• Simple push-in design creates a firm hold without screws or adhesives

• Disconnect power to the appliance before working on panels or wiring
• Push the rivet stem into the hole until it snaps; remove by prying out the center pin or using pliers
• Use the same style and size rivet as the original to ensure proper fit and retention
• Protect surrounding surfaces from tools and work deliberately to avoid damage
