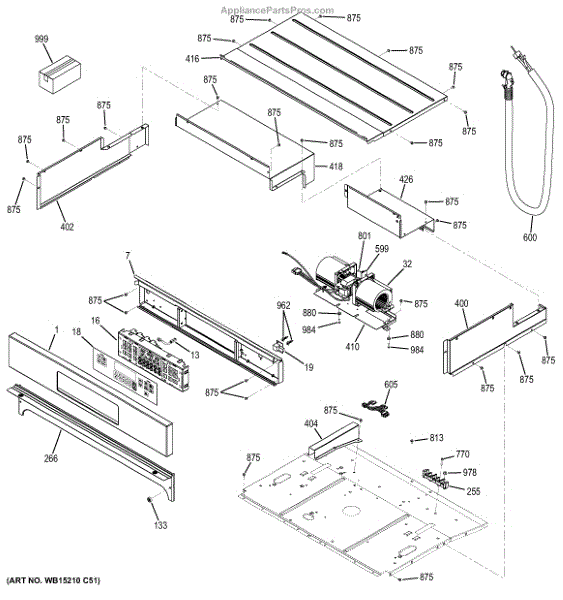

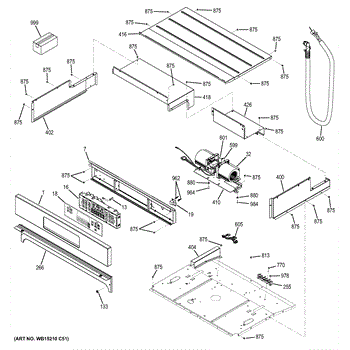

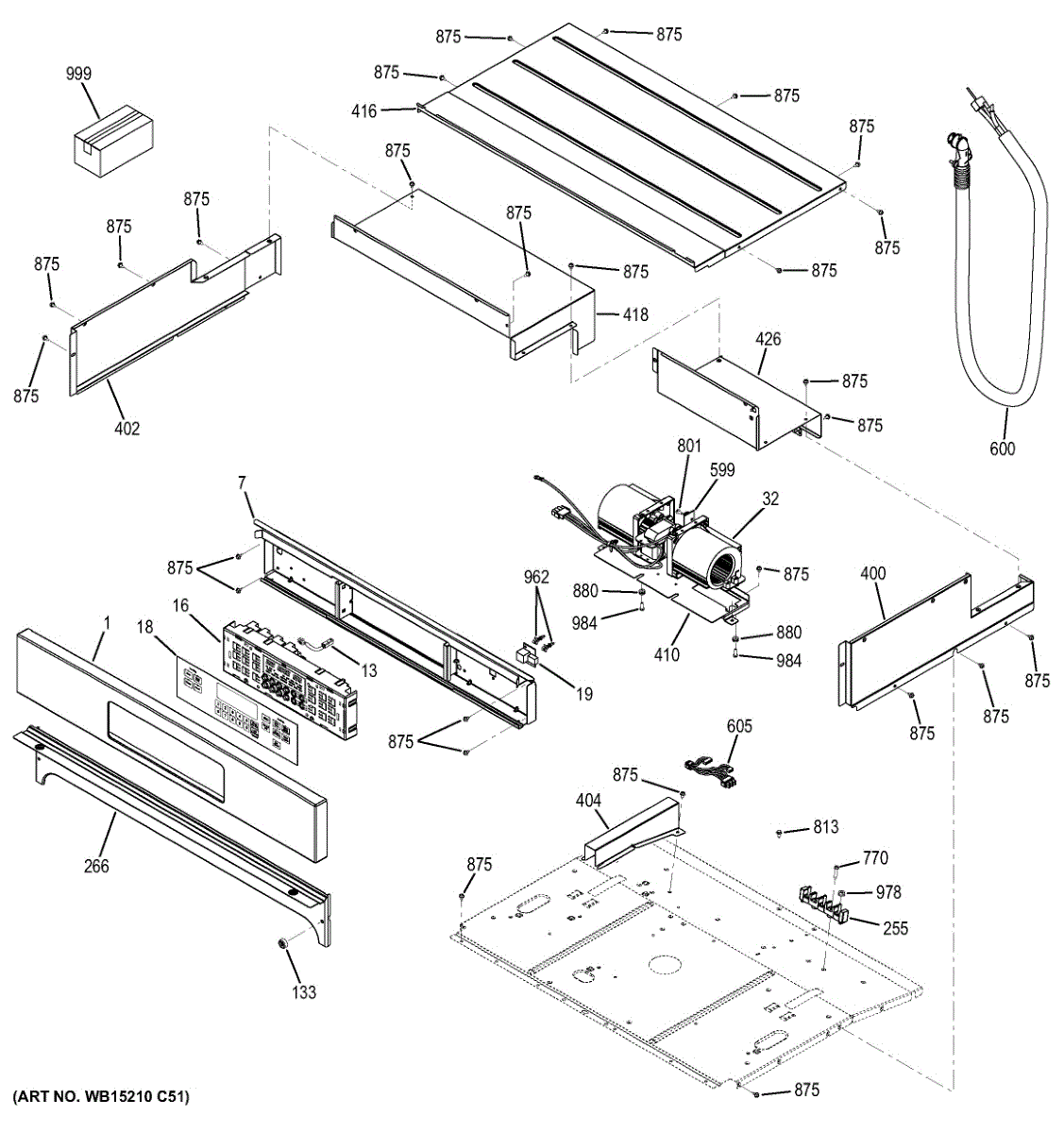

Parts for Ge JT3000EJ3ES: Control Panel Parts

This electronic control board is the unit's control center. It interprets keypad inputs, drives the display, and switches critical loads so the appliance responds to selections and runs cycles as designed when the original board fails.

• Interprets touchpad/keypad commands and updates the display
• Switches relays/triacs to control heating, fan, lights, and other functions
• Monitors door and sensor signals to enable safe operation
• Common symptoms of a failed board: blank/dead display, unresponsive buttons, erratic beeping/controls, won't start or won't run

• Disconnect power at the breaker or fuse before servicing
• Use ESD precautions; handle the board by the edges only
• Note/photograph all connectors and transfer any brackets or shields from the original board
• Be aware the high-voltage capacitor can retain a dangerous charge even when unplugged.

The Overlay is an OEM component specifically designed for GE electric ranges. This decorative door panel surrounds the exterior of the oven cavity and controls.

Causes of a damaged overlay can include normal wear over time from repeated door openings and closings. Accidental impacts or exposure to heat can also degrade the surface.

Symptoms include:

• Cracks, chips, or discoloration appearing on the surface
• Warping of the material out of its proper alignment
• Loose or detached sections of the overlay panel

This OEM part is also compatible with Hotpoint, RCA, and select Kenmore electric range models.

This block terminal is the wire-connection block that secures incoming power and internal wiring, restoring a safe, reliable electrical connection for the appliance. Replaces worn or damaged terminal connections to help prevent loose wires and arcing. What it does:

• Provides a secure connection point for incoming power and internal leads
• Replaces cracked, burned, or corroded terminal blocks that cause intermittent power or arcing
• Helps stop loose wires that can produce sparks, burning smells, or blown fuses/breakers
• Restores a stable electrical path so controls and heating elements receive power reliably

• One block terminal

• Always disconnect all power (unplug or shut off circuit breaker) before inspecting or replacing electrical parts
• Take a photo of wire routing and terminal screw positions before removal for correct reassembly
• Tighten terminal screws to secure wires; replace if mounting tabs or insulation are damaged

The Cooling Fan Sensor Board is an OEM component for GE ovens and ranges. It is an electronic module connected to the main control board that monitors internal temperatures. An onboard thermistor sensor in the board regulates the convection fan relay and fan motor speed based on heating demands during the bake and broil functions.

Causes of a failed Cooling Fan Sensor Board can include moisture damage from spills or steam, faulty soldering connections, or manufacturing defects over time. Electronic components are also susceptible to normal wear from frequent heating cycles.

Symptoms of a bad board fan sensor include:

• Inconsistent or improper temperature control not maintaining set oven temperatures
• Issues with selected convection bake or broil modes not activating properly
• Abnormal fan speeds that do not correlate with heating element operation

It is also compatible with Hotpoint, RCA, and KitchenAid wall ovens and range models using the same electronic control system.

This conduit wire assembly routes power and signals between oven/range components, restoring proper electrical connections for heating and control circuits. It provides a pre-formed, insulated harness that replaces damaged or worn wiring for reliable operation. What it does:

• Carries electrical power and control signals between terminals, control board, and heating elements.
• Replaces damaged, frayed, or burnt wiring that can cause intermittent operation.
• Commonly used when burners, oven elements, or controls fail to get power or work inconsistently.
• Helps prevent shorts by restoring proper insulation and secure connector fit.

• One conduit wire assembly as shown.

• Disconnect all power at the breaker or appliance cord before servicing.
• Verify the harness routing and connector orientation before disconnecting old wiring.
• Inspect terminal connectors and mounting points; replace if corroded or damaged.

This flexible 6-foot conduit routes and protects power wiring for compatible appliances, providing a neat, durable path for electrical leads and helping prevent kinks or abrasion during installation and service. What it does:

• Shields and organizes the appliance power cord or wiring harness to reduce wear and chafing
• Provides a protected, flexible pathway when extra cable length is needed
• Helps maintain a clean installation and prevents sharp bends near terminals
• Commonly used as an optional accessory when relocating or extending factory wiring

• One 6 ft flexible conduit

• Suitable for use where manufacturer allows optional conduits; follow appliance wiring and grounding instructions
• Disconnect power before installing or routing wiring to avoid shock or damage
• Use appropriate connectors/clamps at both ends to secure conduit and prevent strain on wires

This is a replacement screw used to secure appliance components and restore proper fit and function. Installing the correct screw prevents loose panels and noisy operation and keeps parts aligned for safe use. What it does:

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Helps stop rattling or vibration caused by missing or stripped fasteners
• Restores secure fit where a screw has been lost or damaged
• Matches the OEM fit so adjoining parts align correctly

• One replacement screw as pictured

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread by hand first, then snug; do not overtighten to avoid cracking plastic or stripping threads
• Replace only with the same type and size screw to ensure proper fit

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Black. 8-18 AB HXW 3/8

A replacement hex nut used to secure appliance components and restore proper fastening. Installs quickly and helps stop loose or rattling parts caused by a missing or stripped nut. What it does

• Secures mounting studs, brackets, or components in place
• Prevents parts from shifting, vibrating, or coming loose during operation
• Replaces a missing, damaged, or corroded nut to restore reliable fastening

• One hex nut

• Disconnect power and gas before starting work
• Start threads by hand to avoid cross-threading, then tighten with the proper-size wrench
• Do not overtighten; snug until secure to avoid damaging studs or threads
• Use replacement only where the OEM hex nut is specified
