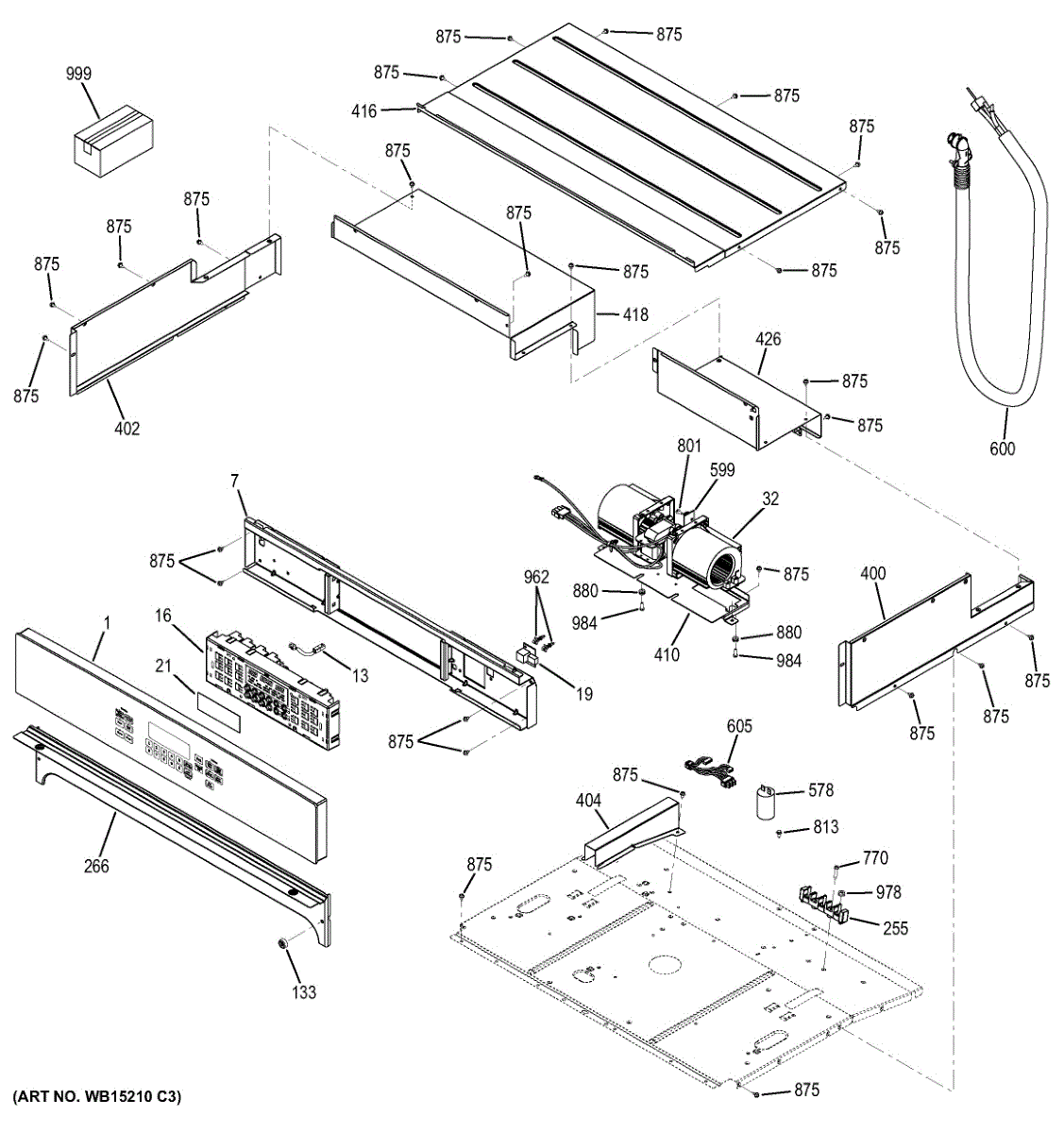

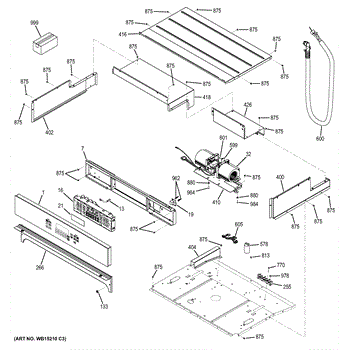

Parts for Ge JT5000DF1BB: Control Panel Parts

If your range or oven has a circuit not working or intermittent function, this electrical jumper wire bridges terminals to restore proper continuity.

Fix a blank display, unresponsive controls, or erratic oven operation. This control board manages all oven functions and display outputs. Moderate DIY repair.

Control panel housing assembly for cooktops and ranges. Replaces cracked, broken, or damaged housing that protects control interface components.

Illuminates the oven cavity so you can monitor cooking without opening the door. Replace when dim or burned out to restore proper visibility.

Fix F96 error codes and overheating shutdowns with this wall oven cooling fan. Keeps control electronics at safe temperatures during cooking.

Fixes loose power connections and electrical arcing in ranges and ovens. This terminal block secures incoming wiring for safe, reliable operation.

Black upper vent trim for wall ovens. Covers the ventilation opening on the control panel area. Replace if cracked, faded, or missing for a clean look.

Upper air vent channel for wall ovens. Directs airflow in the vent system. Replace if cracked, broken, or missing to restore proper ventilation.

Upper fan mount bracket for wall ovens and ranges. Secures the cooling fan assembly in place. Replace if bracket is bent, broken, or missing.

Oven won't heat or fan won't run? This high-amp SPDT switch routes power to locks, relays, and fans. Fixes intermittent operation. Moderate DIY fix.

Fix F96 or F97 error codes with this cooling fan sensor board. Controls convection fan speed based on oven temperature. Moderate DIY, 30-60 min.

Oven not heating or controls not responding? This conduit wire assembly restores electrical connections between components for proper heating and operation.

Flexible 6-foot conduit that routes and protects power wiring for ranges and wall ovens. Replace if cracked, damaged, or missing during installation.

Fix intermittent oven failures or total power loss with this main wire harness. Connects control board to heating elements and sensors in your wall oven.

Replacement mounting screw for ranges and ovens. Secures panels, brackets, and internal components. Order when original screw is missing, stripped, or lost.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Black hex washer screw for securing range components like door trim, control panels, and internal brackets. Replace missing or stripped screws during repairs.

Rubber grommet for electric ovens and ranges. Seals and protects wiring or components passing through metal panels. Replace if cracked or missing.

A replacement hex nut used to secure appliance components and restore proper fastening. Installs quickly and helps stop loose or rattling parts caused by a missing or stripped nut. What it does

• Secures mounting studs, brackets, or components in place
• Prevents parts from shifting, vibrating, or coming loose during operation
• Replaces a missing, damaged, or corroded nut to restore reliable fastening

• One hex nut

• Disconnect power and gas before starting work
• Start threads by hand to avoid cross-threading, then tighten with the proper-size wrench
• Do not overtighten; snug until secure to avoid damaging studs or threads
• Use replacement only where the OEM hex nut is specified
