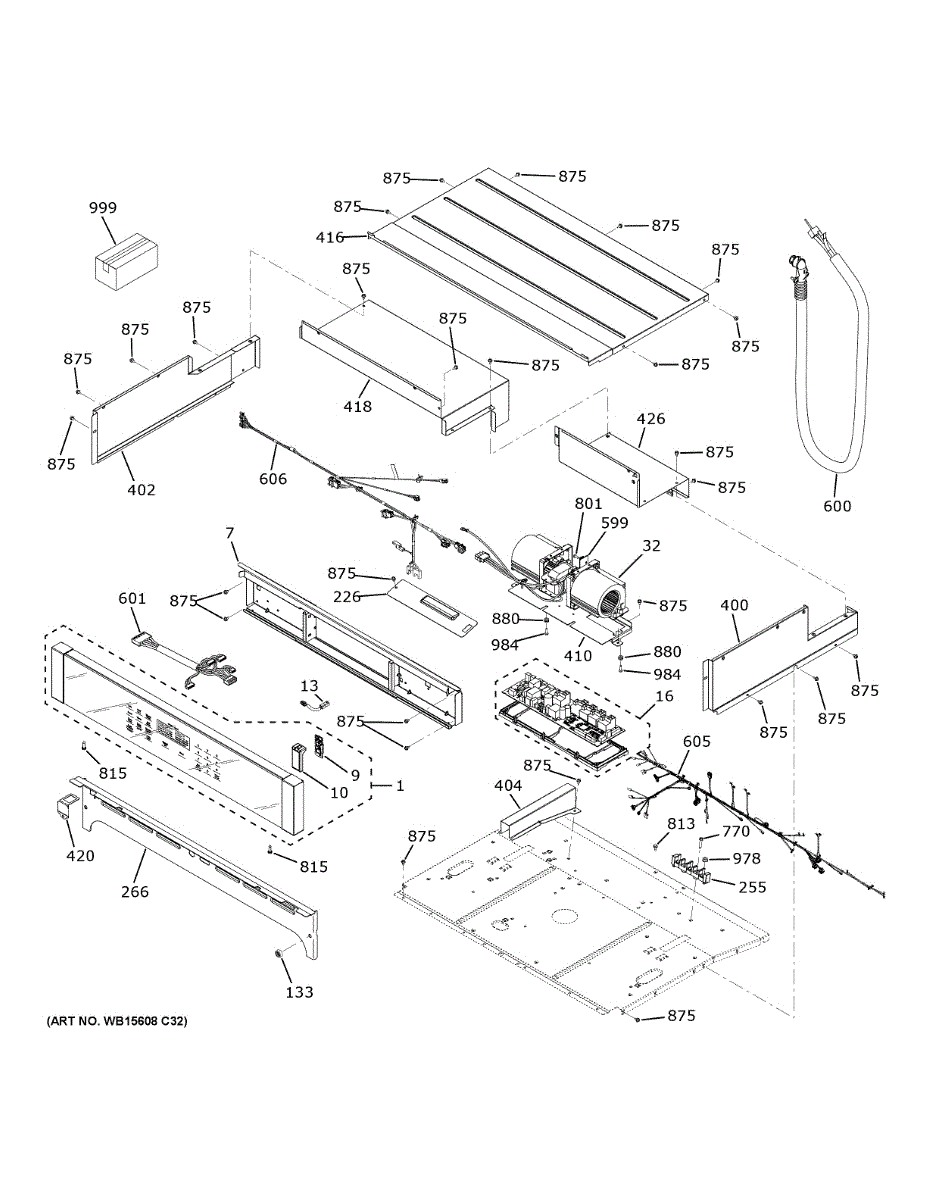

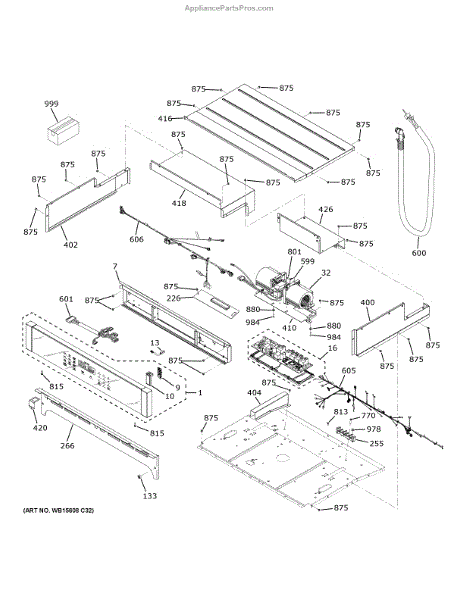

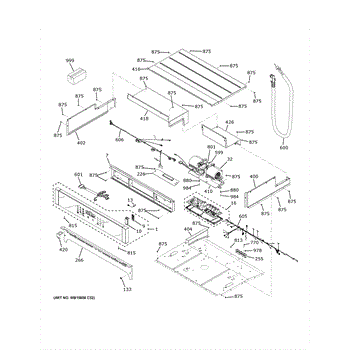

Parts for Ge JTS3000SN1SS: Control Panel Parts

Color: Stainless Steel

The User Interface LCD Control Panel is an OEM part for GE wall ovens. This digital control panel provides intuitive access to the oven's functions through a large touchscreen display.

Causes of a bad control panel include wear from continual use over time, exposure to moisture or cleaning chemicals that damage internal circuitry, as well as direct impact or accidental breakage.

Symptoms of needing replacement include:

• Non-responsive or uncalibrated touch controls
• Pixels burnt out or malfunctioning on the screen
• Panel unable to turn the oven on or off
• Diagnostic error codes appearing
• Instructions or menus no longer accessible

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This Wi-Fi module kit replaces the appliance's wireless communications board to restore smart connectivity and app features. Use it when your appliance can't join your home network or when remote functions stop responding. What it does

• Provides the wireless interface so the appliance can connect to a home Wi-Fi network and communicate with the manufacturer app or cloud services
• Restores remote monitoring and control features that rely on a network connection
• Addresses symptoms such as inability to connect to Wi-Fi, lost smart features, or communication-related error messages
• Works with the appliance's control system to enable firmware updates and remote diagnostics when supported

• One Wi-Fi module kit

• Disconnect power to the appliance before beginning any work to avoid shock or injury
• Follow the OEM service instructions for removal and installation; proper seating and connector alignment are required
• After installation, reconnect to your home network and complete any app/registration steps per the manufacturer's setup guide

This housing transceiver is the outer mounting enclosure that secures and protects the appliance's transceiver assembly, helping maintain reliable signal and control communication. It replaces cracked or broken housings to restore proper fit and protection. What it does:

• Holds and protects the wireless/transceiver module and related wiring from physical damage
• Helps maintain proper alignment and connection to the appliance control assembly
• Common symptom: damaged or cracked housing that exposes electronics or prevents secure mounting
• Common symptom: intermittent signal or communication issues when the transceiver is loose or misaligned

• One housing transceiver

• Disconnect power to the appliance before beginning any repair to avoid shock or component damage
• Handle the transceiver and circuit connections carefully to avoid bending pins or ESD damage
• Installation typically requires removing the control console or access panel and a few fasteners; keep track of screws and gaskets

This electrical jumper links two terminals within the appliance's wiring to restore proper continuity for the affected circuit. Replace a burnt, damaged, or missing jumper to bring the related function back to reliable operation.

• Bridges terminals to complete or modify an electrical circuit as designed by the manufacturer
• Helps address symptoms like a specific feature not working, intermittent operation, or no power to a component
• Replace if the original shows heat damage, broken leads, or loose connections
• Direct replacement for the original jumper used in the wiring harness

• Disconnect power at the breaker or unplug the appliance before servicing
• Use your model's wiring diagram to locate the correct jumper
• Label/photograph wire positions and transfer one connection at a time
• Ensure connectors are fully seated; do not alter the factory wiring configuration

This RC17 electronic control (flashed) manages oven functions and user inputs for compatible GE ranges and wall ovens, restoring responsive touchpad/display and proper cycle control. Designed as a direct-replacement control module. What it does:

• Receives user commands from the console and sends timed signals to bake, broil and other oven elements
• Controls display, clock, and temperature setpoint processing for accurate cycle selection
• Can resolve symptoms like non-responsive touchpad, blank or error-displaying console, or ovens that won't start
• Works as the primary logic board to coordinate safety interlocks and heating sequences

• Disconnect power to the appliance at the breaker before starting — no power, no risk of shock
• Handle the control by its housing; avoid touching exposed circuitry and use ESD precautions if available
• Reconnect power and run a basic function test after installation

The Fan Blower is an OEM part for GE ranges and wall ovens. This part helps to circulate air within the oven cavity. The fan blower ensures that heat is evenly distributed during cooking, contributing to consistent cooking results, and prevents the electronic components from overheating, which could lead to malfunctions or reduced lifespan of the appliance.

Causes of damage to the Fan Blower can include accumulation of debris and grease, which can obstruct the fan and strain the motor, and mechanical wear over time that affects the fan's efficiency.

Symptoms of a bad Fan Blower in a range include:

• The oven not cooking evenly
• Overheating of the range's electronic control panel
• Unusual noises, such as rattling or buzzing

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This block terminal is the wire-connection block that secures incoming power and internal wiring, restoring a safe, reliable electrical connection for the appliance. Replaces worn or damaged terminal connections to help prevent loose wires and arcing. What it does:

• Provides a secure connection point for incoming power and internal leads
• Replaces cracked, burned, or corroded terminal blocks that cause intermittent power or arcing
• Helps stop loose wires that can produce sparks, burning smells, or blown fuses/breakers
• Restores a stable electrical path so controls and heating elements receive power reliably

• One block terminal

• Always disconnect all power (unplug or shut off circuit breaker) before inspecting or replacing electrical parts
• Take a photo of wire routing and terminal screw positions before removal for correct reassembly
• Tighten terminal screws to secure wires; replace if mounting tabs or insulation are damaged

This RJ45 mounting bracket secures an RJ45 network/communication jack to the appliance frame, restoring proper connector alignment and mechanical support. It's a simple replacement part for damaged or missing brackets. What it does:

• Holds the RJ45 jack firmly in place to prevent connector movement and intermittent connections
• Aligns the jack for easy cable insertion and secure mating
• Protects the connector and wiring from strain or damage during use
• Helps restore reliable network/communication port positioning after panel or bracket damage

• One RJ45 mounting bracket

• Unplug the appliance or disconnect power before servicing
• Remove the access panel or trim to reach the existing bracket; retain fasteners for reassembly
• Gently disconnect the jack/cable before removing the old bracket; avoid pulling on wires
• Hand-tighten or torque screws to manufacturer specifications; do not overtighten

The Cooling Fan Sensor Board is an OEM component for GE ovens and ranges. It is an electronic module connected to the main control board that monitors internal temperatures. An onboard thermistor sensor in the board regulates the convection fan relay and fan motor speed based on heating demands during the bake and broil functions.

Causes of a failed Cooling Fan Sensor Board can include moisture damage from spills or steam, faulty soldering connections, or manufacturing defects over time. Electronic components are also susceptible to normal wear from frequent heating cycles.

Symptoms of a bad board fan sensor include:

• Inconsistent or improper temperature control not maintaining set oven temperatures
• Issues with selected convection bake or broil modes not activating properly
• Abnormal fan speeds that do not correlate with heating element operation

It is also compatible with Hotpoint, RCA, and KitchenAid wall ovens and range models using the same electronic control system.

This flexible 6-foot conduit routes and protects power wiring for compatible appliances, providing a neat, durable path for electrical leads and helping prevent kinks or abrasion during installation and service. What it does:

• Shields and organizes the appliance power cord or wiring harness to reduce wear and chafing
• Provides a protected, flexible pathway when extra cable length is needed
• Helps maintain a clean installation and prevents sharp bends near terminals
• Commonly used as an optional accessory when relocating or extending factory wiring

• One 6 ft flexible conduit

• Suitable for use where manufacturer allows optional conduits; follow appliance wiring and grounding instructions
• Disconnect power before installing or routing wiring to avoid shock or damage
• Use appropriate connectors/clamps at both ends to secure conduit and prevent strain on wires

This UI communication harness connects the user interface to the main control board, providing a reliable RJ45-style link for touchpad and display communication. Replacing a damaged harness restores proper control-panel signaling. What it does:

• Carries data signals between the console/user interface and the main control board
• Restores touchscreen/display responsiveness when the UI loses communication
• Helps resolve intermittent errors or "communication" fault codes caused by a damaged connector or wiring
• Prevents miscommunication that can stop cycle selection or display updates

• Disconnect power to the appliance before accessing electrical components
• Handle connectors carefully and seat them fully to ensure good contact
• Avoid pinching or routing the harness near sharp edges or heat sources

This silicon controlled rectifier (SCR) switches and regulates power to heating or motor circuits, helping the appliance control temperature and run cycles reliably. It's a direct-fit electronic switching component used in a variety of control systems. What it does:

• Acts as an electronic switch to regulate AC power to heating elements or motors
• Helps control temperature output and maintain consistent cycle performance
• Can prevent unwanted continuous current flow when functioning properly
• Commonly replaced when ovens, ranges, or dryers fail to heat or cycle correctly

• One silicon controlled rectifier (SCR) as shown

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Handle the SCR by its body; avoid touching terminals and static-sensitive areas
• Verify proper orientation and secure mounting; follow OEM wiring and torque practices

This is a replacement screw used to secure panels and components on compatible appliances. It provides a direct-fit fastening solution to restore proper part alignment and prevent rattling or loose panels. What it does

• Fastens appliance panels, brackets or assemblies where an 8-18 x 5/8 screw is specified
• Replaces missing or stripped fasteners that allow parts to shift or vibrate
• Restores secure mounting for components to reduce noise and movement
• Useful when a factory screw is damaged, corroded, or lost during service

• One screw

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct driver size and type to avoid stripping the head
• Install by hand first, then snug with a driver—do not over-torque
• Keep removed hardware organized to ensure correct reassembly
