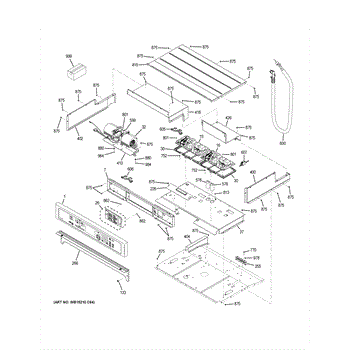

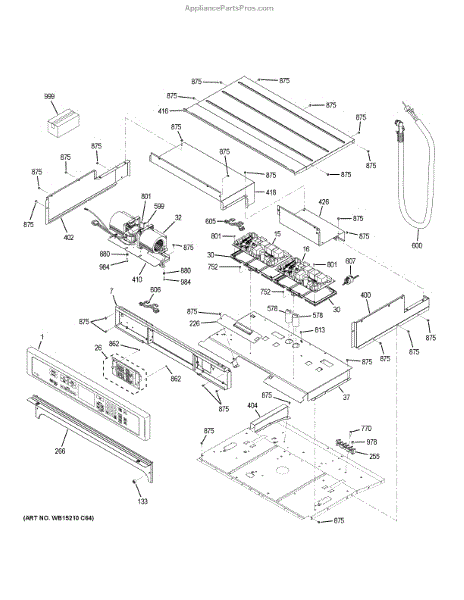

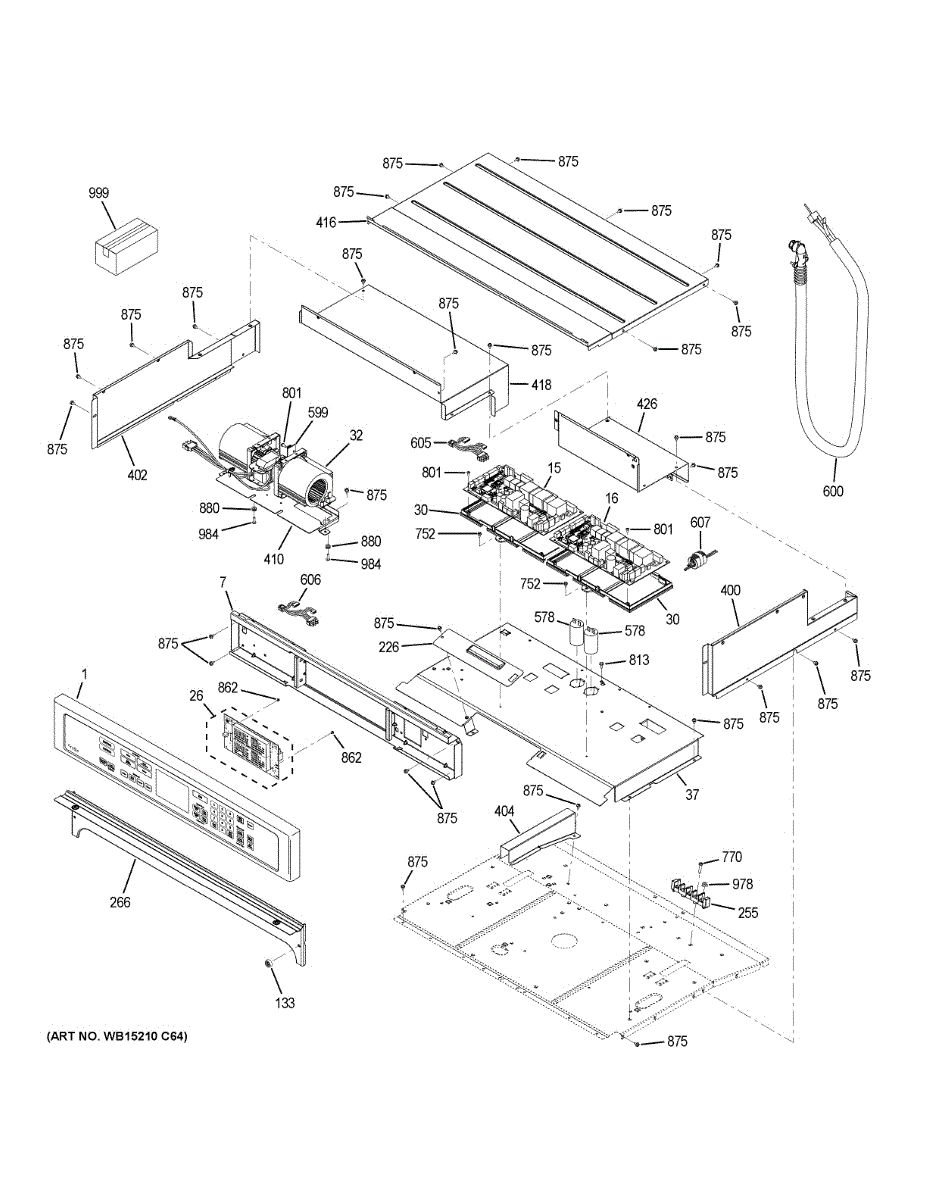

Parts for Ge PT7550EH7ES: Control Panel Parts

The GE Board Machine Control is an OEM part for GE ovens. It directs circuit-based electrical processes system-wide.

Symptoms of a bad control board include:

• Unresponsive stove or oven functions
• Incorrect temperatures reported or failure to maintain proper heat levels
• Error codes or diagnostic beeps indicating electrical faults

Causes may involve failures in circuitry or connectors after many years of powering range systems. Damage from liquid or impact accidents could also render the board inoperative.

This OEM GE part is also compatible with Hotpoint, RCA, and selected Kenmore models.

This replacement part is a control board that has been manufactured by General Electric and is compatible with wall ovens.The control board monitors and controls the heat and temperature functions of the oven, making it a critical part. Over time or with regular use, this part is subject to significant wear and tear, which can prevent the oven from heating up properly, if at all. The appliance needs to be disconnected from power or the circuit breaker shut off before any repair attempts are made to prevent serious injuries from occurring. This is a genuine OEM part that has been sourced directly from the manufacturer. It is compatible with different wall ovens manufactured by General Electric, Hotpoint, RCA, and other brands. This part is only sold individually.

The Control Board and Overlay Assembly is an OEM component specifically designed for GE ovens. It houses electronic control boards along with an overlay screen and touch controls. This assembly acts as the "brain" of the oven, processing commands and regulating functions through its control boards and interfaces.

Causes of a bad control board can include water, heat or electrical damage over time.

Symptoms of a bad control board include:

• Touch controls not responding properly or at all
• Display screen malfunctions such as flickering or going blank
• Inability to change temperature or cooking settings
• Oven failing to turn on or operate as selected
• Error codes appearing unexpectedly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Fan Blower is an OEM part for GE ranges and wall ovens. This part helps to circulate air within the oven cavity. The fan blower ensures that heat is evenly distributed during cooking, contributing to consistent cooking results, and prevents the electronic components from overheating, which could lead to malfunctions or reduced lifespan of the appliance.

Causes of damage to the Fan Blower can include accumulation of debris and grease, which can obstruct the fan and strain the motor, and mechanical wear over time that affects the fan's efficiency.

Symptoms of a bad Fan Blower in a range include:

• The oven not cooking evenly
• Overheating of the range's electronic control panel
• Unusual noises, such as rattling or buzzing

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This block terminal is the wire-connection block that secures incoming power and internal wiring, restoring a safe, reliable electrical connection for the appliance. Replaces worn or damaged terminal connections to help prevent loose wires and arcing. What it does:

• Provides a secure connection point for incoming power and internal leads
• Replaces cracked, burned, or corroded terminal blocks that cause intermittent power or arcing
• Helps stop loose wires that can produce sparks, burning smells, or blown fuses/breakers
• Restores a stable electrical path so controls and heating elements receive power reliably

• One block terminal

• Always disconnect all power (unplug or shut off circuit breaker) before inspecting or replacing electrical parts
• Take a photo of wire routing and terminal screw positions before removal for correct reassembly
• Tighten terminal screws to secure wires; replace if mounting tabs or insulation are damaged

The Cooling Fan Sensor Board is an OEM component for GE ovens and ranges. It is an electronic module connected to the main control board that monitors internal temperatures. An onboard thermistor sensor in the board regulates the convection fan relay and fan motor speed based on heating demands during the bake and broil functions.

Causes of a failed Cooling Fan Sensor Board can include moisture damage from spills or steam, faulty soldering connections, or manufacturing defects over time. Electronic components are also susceptible to normal wear from frequent heating cycles.

Symptoms of a bad board fan sensor include:

• Inconsistent or improper temperature control not maintaining set oven temperatures
• Issues with selected convection bake or broil modes not activating properly
• Abnormal fan speeds that do not correlate with heating element operation

It is also compatible with Hotpoint, RCA, and KitchenAid wall ovens and range models using the same electronic control system.

This 6 ft conduit provides a protective, flexible channel for routing wiring between components, helping keep wiring organized and shielded from damage. It's an optional replacement for appliances that require extended wiring protection. What it does

• Protects and organizes electrical wiring by enclosing wires in a flexible conduit
• Helps reduce wear from abrasion, vibration, or contact with sharp edges
• Useful when original wiring routing needs extension or added protection
• Can reduce the chance of exposed wiring that may lead to shorts or intermittent power issues

• One 6 ft conduit

• Intended for use where an appliance's wiring routing requires a longer protective conduit;
• Use appropriate tools and secure conduit ends to strain reliefs or fittings as originally installed
• Disconnect power to the appliance before attempting any wiring work

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

This is a replacement screw used to secure appliance components and restore proper fit and function. Installing the correct screw prevents loose panels and noisy operation and keeps parts aligned for safe use. What it does:

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Helps stop rattling or vibration caused by missing or stripped fasteners
• Restores secure fit where a screw has been lost or damaged
• Matches the OEM fit so adjoining parts align correctly

• One replacement screw as pictured

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread by hand first, then snug; do not overtighten to avoid cracking plastic or stripping threads
• Replace only with the same type and size screw to ensure proper fit

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Black. 8-18 AB HXW 3/8

A replacement hex nut used to secure appliance components and restore proper fastening. Installs quickly and helps stop loose or rattling parts caused by a missing or stripped nut. What it does

• Secures mounting studs, brackets, or components in place
• Prevents parts from shifting, vibrating, or coming loose during operation
• Replaces a missing, damaged, or corroded nut to restore reliable fastening

• One hex nut

• Disconnect power and gas before starting work
• Start threads by hand to avoid cross-threading, then tighten with the proper-size wrench
• Do not overtighten; snug until secure to avoid damaging studs or threads
• Use replacement only where the OEM hex nut is specified

This lubricant/cleaner is used during service of cooking appliances to dissolve residue and provide light lubrication on small moving parts. It helps restore smoother operation of control shafts and valves when burner knobs feel stiff or sticky. What it does:

• Cleans deposits and old grease from control shafts and valve components
• Provides light lubrication to reduce friction and sticking
• Helps address symptoms such as hard-to-turn burner knobs or rough valve rotation
• Supports preventative maintenance during range/cooktop service

• Lubricant/cleaner

• Disconnect power and shut off gas; allow the appliance to cool before servicing
• Work in a well-ventilated area and keep away from open flames or ignition sources
• Apply sparingly per service instructions; avoid contact with igniters, electrical components, and flame ports
• Replace any worn or leaking valve—do not rely on lubricant/cleaner to correct a leak
