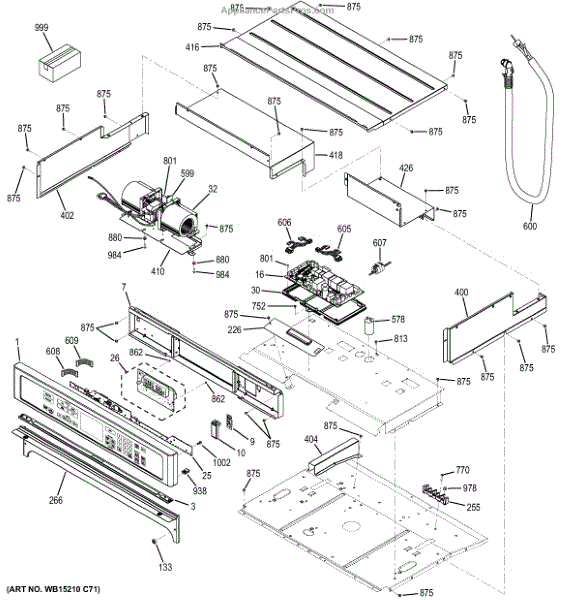

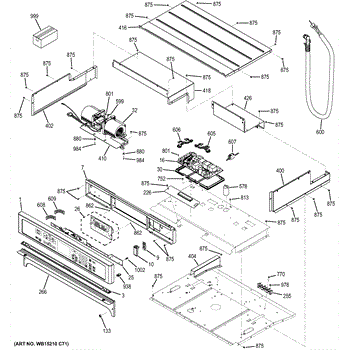

Parts for Ge PT9050DF3BB: Control Panel Parts

This Wi-Fi module kit replaces the appliance's wireless communications board to restore smart connectivity and app features. Use it when your appliance can't join your home network or when remote functions stop responding. What it does

• Provides the wireless interface so the appliance can connect to a home Wi-Fi network and communicate with the manufacturer app or cloud services
• Restores remote monitoring and control features that rely on a network connection
• Addresses symptoms such as inability to connect to Wi-Fi, lost smart features, or communication-related error messages
• Works with the appliance's control system to enable firmware updates and remote diagnostics when supported

• One Wi-Fi module kit

• Disconnect power to the appliance before beginning any work to avoid shock or injury
• Follow the OEM service instructions for removal and installation; proper seating and connector alignment are required
• After installation, reconnect to your home network and complete any app/registration steps per the manufacturer's setup guide

This housing transceiver is the outer mounting enclosure that secures and protects the appliance's transceiver assembly, helping maintain reliable signal and control communication. It replaces cracked or broken housings to restore proper fit and protection. What it does:

• Holds and protects the wireless/transceiver module and related wiring from physical damage
• Helps maintain proper alignment and connection to the appliance control assembly
• Common symptom: damaged or cracked housing that exposes electronics or prevents secure mounting
• Common symptom: intermittent signal or communication issues when the transceiver is loose or misaligned

• One housing transceiver

• Disconnect power to the appliance before beginning any repair to avoid shock or component damage
• Handle the transceiver and circuit connections carefully to avoid bending pins or ESD damage
• Installation typically requires removing the control console or access panel and a few fasteners; keep track of screws and gaskets

The Machine Control Board is an OEM replacement part for GE ovens. It is responsible for regulating and coordinating all of the oven's electronic components and ensuring they work correctly. This includes circuits for the bake and broil heating elements, temperature sensors, display panel, control buttons, timers, and more.

Symptoms of a faulty machine control board include:

• Unresponsive controls or buttons
• Error codes displayed on the control panel
• Inconsistent heating or temperature regulation

A bad machine control board can occur due to electrical malfunctions, power surges, or component failure. If you notice issues such as unresponsive controls, error codes, or an inability to heat or maintain proper temperature, it may be time to replace the old or damaged machine control board with this genuine OEM part.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


Control board and overlay assembly with white LED restores the range's front control functions and illuminated display. Replaces a failed or unresponsive electronic control so oven timers, clock and burner controls respond normally. What it does:

• Houses the electronic control circuitry that manages oven bake/ broil and surface burner functions.
• Provides the front membrane/overlay and white LED readout for the clock, timer and user controls.
• Commonly replaces assemblies that show a blank or dim display, intermittent or unresponsive touch/button input, or incorrect timer/clock behavior.
• Restores visible status feedback and user input when the original control assembly has failed.

• Disconnect power to the appliance before attempting service to avoid shock or injury.
• Handle the circuit board as an electrostatic-sensitive device; avoid touching contacts and use proper grounding.
• Ensure all wire harness connectors are fully seated and the overlay is aligned before securing the assembly.
• Test the unit's functions (display, buttons, timers) after reconnecting power and before final reassembly.

The Fan Blower is an OEM part for GE ranges and wall ovens. This part helps to circulate air within the oven cavity. The fan blower ensures that heat is evenly distributed during cooking, contributing to consistent cooking results, and prevents the electronic components from overheating, which could lead to malfunctions or reduced lifespan of the appliance.

Causes of damage to the Fan Blower can include accumulation of debris and grease, which can obstruct the fan and strain the motor, and mechanical wear over time that affects the fan's efficiency.

Symptoms of a bad Fan Blower in a range include:

• The oven not cooking evenly
• Overheating of the range's electronic control panel
• Unusual noises, such as rattling or buzzing

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This block terminal is the wire-connection block that secures incoming power and internal wiring, restoring a safe, reliable electrical connection for the appliance. Replaces worn or damaged terminal connections to help prevent loose wires and arcing. What it does:

• Provides a secure connection point for incoming power and internal leads
• Replaces cracked, burned, or corroded terminal blocks that cause intermittent power or arcing
• Helps stop loose wires that can produce sparks, burning smells, or blown fuses/breakers
• Restores a stable electrical path so controls and heating elements receive power reliably

• One block terminal

• Always disconnect all power (unplug or shut off circuit breaker) before inspecting or replacing electrical parts
• Take a photo of wire routing and terminal screw positions before removal for correct reassembly
• Tighten terminal screws to secure wires; replace if mounting tabs or insulation are damaged

The Cooling Fan Sensor Board is an OEM component for GE ovens and ranges. It is an electronic module connected to the main control board that monitors internal temperatures. An onboard thermistor sensor in the board regulates the convection fan relay and fan motor speed based on heating demands during the bake and broil functions.

Causes of a failed Cooling Fan Sensor Board can include moisture damage from spills or steam, faulty soldering connections, or manufacturing defects over time. Electronic components are also susceptible to normal wear from frequent heating cycles.

Symptoms of a bad board fan sensor include:

• Inconsistent or improper temperature control not maintaining set oven temperatures
• Issues with selected convection bake or broil modes not activating properly
• Abnormal fan speeds that do not correlate with heating element operation

It is also compatible with Hotpoint, RCA, and KitchenAid wall ovens and range models using the same electronic control system.

This conduit wire assembly routes power and signals between oven/range components, restoring proper electrical connections for heating and control circuits. It provides a pre-formed, insulated harness that replaces damaged or worn wiring for reliable operation. What it does:

• Carries electrical power and control signals between terminals, control board, and heating elements.
• Replaces damaged, frayed, or burnt wiring that can cause intermittent operation.
• Commonly used when burners, oven elements, or controls fail to get power or work inconsistently.
• Helps prevent shorts by restoring proper insulation and secure connector fit.

• One conduit wire assembly as shown.

• Disconnect all power at the breaker or appliance cord before servicing.
• Verify the harness routing and connector orientation before disconnecting old wiring.
• Inspect terminal connectors and mounting points; replace if corroded or damaged.

This flexible 6-foot conduit routes and protects power wiring for compatible appliances, providing a neat, durable path for electrical leads and helping prevent kinks or abrasion during installation and service. What it does:

• Shields and organizes the appliance power cord or wiring harness to reduce wear and chafing
• Provides a protected, flexible pathway when extra cable length is needed
• Helps maintain a clean installation and prevents sharp bends near terminals
• Commonly used as an optional accessory when relocating or extending factory wiring

• One 6 ft flexible conduit

• Suitable for use where manufacturer allows optional conduits; follow appliance wiring and grounding instructions
• Disconnect power before installing or routing wiring to avoid shock or damage
• Use appropriate connectors/clamps at both ends to secure conduit and prevent strain on wires

This wire harness connects the oven's control/display assembly to the Wi-Fi/communication module so the user interface and wireless functions can communicate reliably. Replaces a damaged or broken display-to-WiFi wiring harness. What it does

• Carries power and data signals between the control/display assembly and the Wi-Fi/communications module
• Restores display response and touchscreen/indicator communication when harness wiring is faulty
• Helps resolve intermittent Wi-Fi connectivity or communication error codes caused by broken or shorted wires
• Prevents signal loss from damaged connectors or frayed wiring

• Disconnect power at the breaker before servicing to avoid shock or component damage
• Handle connectors by the housings; avoid pulling on individual wires
• Route and secure the harness to match factory clips and channels; avoid pinching or sharp edges

This wire harness is an LED jumper assembly used to connect oven or range control LEDs to the main wiring harness, restoring light/status indicator connections for safe, reliable operation. What it does:

• Carries low-voltage power and signals between control board LED(s) and the main harness
• Replaces damaged, burned, or loose LED jumper wiring that causes indicator lights to fail or flicker
• Helps recover proper front-panel LED indications and touch/control feedback when wiring is the fault
• Compatible with OEM LED connector interfaces

• One LED wire harness jumper

• Disconnect power at the breaker or unplug the appliance before any service
• Match connectors and routing to the original harness; do not force connectors or alter leads
• Inspect mating connectors and control board for damage before installing new harness

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

This is a replacement screw used to secure appliance components and restore proper fit and function. Installing the correct screw prevents loose panels and noisy operation and keeps parts aligned for safe use. What it does:

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Helps stop rattling or vibration caused by missing or stripped fasteners
• Restores secure fit where a screw has been lost or damaged
• Matches the OEM fit so adjoining parts align correctly

• One replacement screw as pictured

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread by hand first, then snug; do not overtighten to avoid cracking plastic or stripping threads
• Replace only with the same type and size screw to ensure proper fit

Black. 8-18 AB HXW 3/8

A replacement hex nut used to secure appliance components and restore proper fastening. Installs quickly and helps stop loose or rattling parts caused by a missing or stripped nut. What it does

• Secures mounting studs, brackets, or components in place
• Prevents parts from shifting, vibrating, or coming loose during operation
• Replaces a missing, damaged, or corroded nut to restore reliable fastening

• One hex nut

• Disconnect power and gas before starting work
• Start threads by hand to avoid cross-threading, then tighten with the proper-size wrench
• Do not overtighten; snug until secure to avoid damaging studs or threads
• Use replacement only where the OEM hex nut is specified
