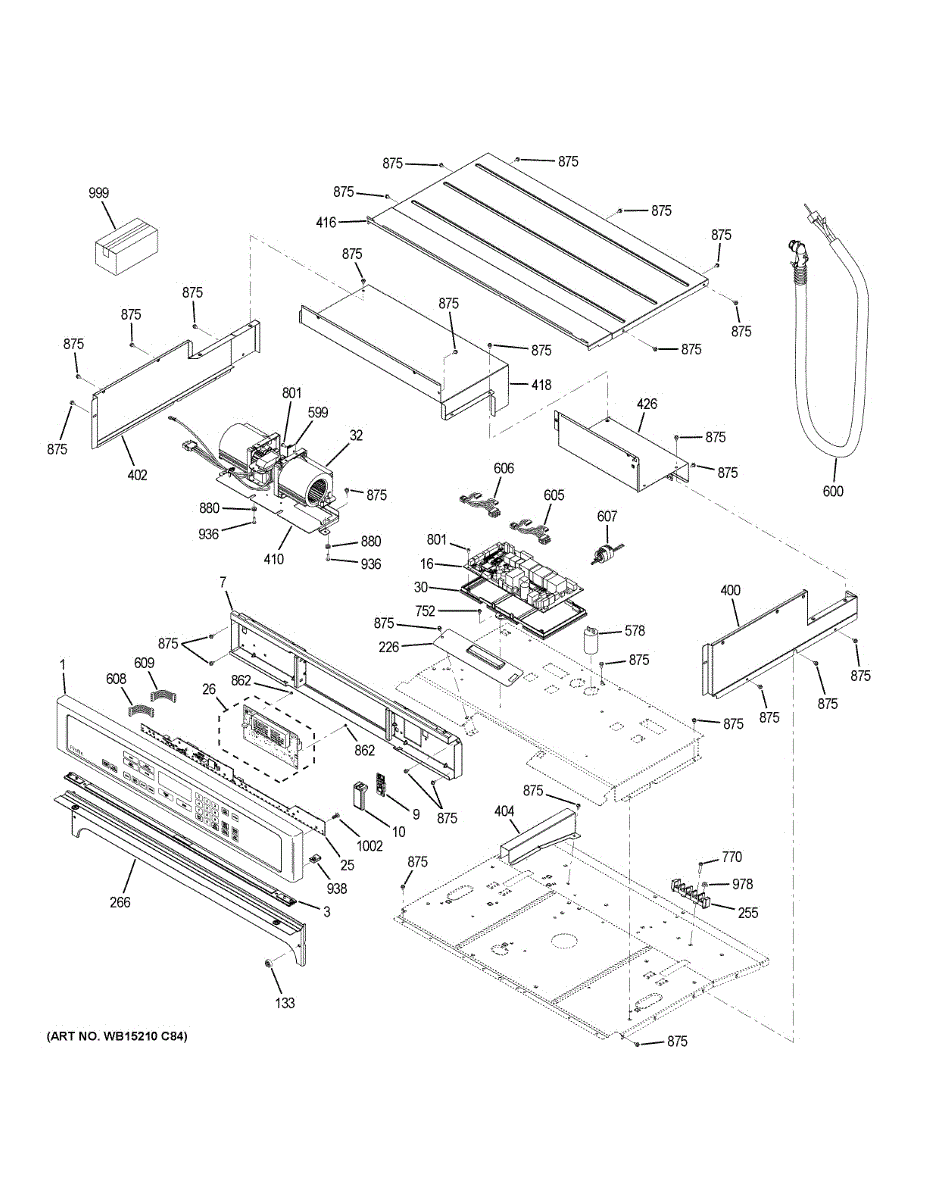

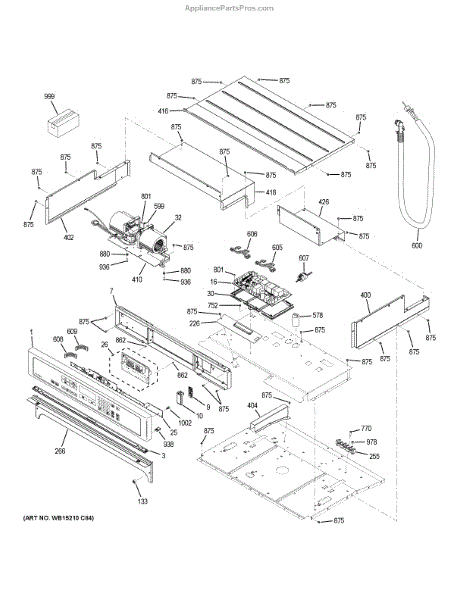

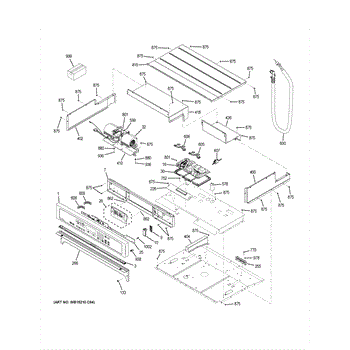

Parts for Ge PT9050SF7SS: Control Panel Parts

This housing transceiver is the outer mounting enclosure that secures and protects the appliance's transceiver assembly, helping maintain reliable signal and control communication. It replaces cracked or broken housings to restore proper fit and protection. What it does:

• Holds and protects the wireless/transceiver module and related wiring from physical damage
• Helps maintain proper alignment and connection to the appliance control assembly
• Common symptom: damaged or cracked housing that exposes electronics or prevents secure mounting
• Common symptom: intermittent signal or communication issues when the transceiver is loose or misaligned

• One housing transceiver

• Disconnect power to the appliance before beginning any repair to avoid shock or component damage
• Handle the transceiver and circuit connections carefully to avoid bending pins or ESD damage
• Installation typically requires removing the control console or access panel and a few fasteners; keep track of screws and gaskets

The Machine Control Board is an OEM replacement part for GE ovens. It is responsible for regulating and coordinating all of the oven's electronic components and ensuring they work correctly. This includes circuits for the bake and broil heating elements, temperature sensors, display panel, control buttons, timers, and more.

Symptoms of a faulty machine control board include:

• Unresponsive controls or buttons
• Error codes displayed on the control panel
• Inconsistent heating or temperature regulation

A bad machine control board can occur due to electrical malfunctions, power surges, or component failure. If you notice issues such as unresponsive controls, error codes, or an inability to heat or maintain proper temperature, it may be time to replace the old or damaged machine control board with this genuine OEM part.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


LED light board for wall ovens and ranges. Replace when interior lights flicker, dim, or fail to illuminate. Verify compatibility with your model number.

Control board and overlay assembly with white LED restores the range's front control functions and illuminated display. Replaces a failed or unresponsive electronic control so oven timers, clock and burner controls respond normally. What it does:

• Houses the electronic control circuitry that manages oven bake/ broil and surface burner functions.
• Provides the front membrane/overlay and white LED readout for the clock, timer and user controls.
• Commonly replaces assemblies that show a blank or dim display, intermittent or unresponsive touch/button input, or incorrect timer/clock behavior.
• Restores visible status feedback and user input when the original control assembly has failed.

• Disconnect power to the appliance before attempting service to avoid shock or injury.
• Handle the circuit board as an electrostatic-sensitive device; avoid touching contacts and use proper grounding.
• Ensure all wire harness connectors are fully seated and the overlay is aligned before securing the assembly.
• Test the unit's functions (display, buttons, timers) after reconnecting power and before final reassembly.

Plastic frame board for wall ovens. Replaces cracked, broken, or worn frame components. Essential structural part for proper oven assembly and support.

The Fan Blower is an OEM part for GE ranges and wall ovens. This part helps to circulate air within the oven cavity. The fan blower ensures that heat is evenly distributed during cooking, contributing to consistent cooking results, and prevents the electronic components from overheating, which could lead to malfunctions or reduced lifespan of the appliance.

Causes of damage to the Fan Blower can include accumulation of debris and grease, which can obstruct the fan and strain the motor, and mechanical wear over time that affects the fan's efficiency.

Symptoms of a bad Fan Blower in a range include:

• The oven not cooking evenly
• Overheating of the range's electronic control panel
• Unusual noises, such as rattling or buzzing

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replace your range's door latch access cover if the oven door won't latch properly or the latch mechanism is exposed. Simple repair restores door function.

Fixes loose power connections and electrical arcing in ranges and ovens. This terminal block secures incoming wiring for safe, reliable operation.

Upper air vent channel for wall ovens. Directs airflow in the vent system. Replace if cracked, broken, or missing to restore proper ventilation.

Upper fan mount bracket for wall ovens and ranges. Secures the cooling fan assembly in place. Replace if bracket is bent, broken, or missing.

The Cooling Fan Sensor Board is an OEM component for GE ovens and ranges. It is an electronic module connected to the main control board that monitors internal temperatures. An onboard thermistor sensor in the board regulates the convection fan relay and fan motor speed based on heating demands during the bake and broil functions.

Causes of a failed Cooling Fan Sensor Board can include moisture damage from spills or steam, faulty soldering connections, or manufacturing defects over time. Electronic components are also susceptible to normal wear from frequent heating cycles.

Symptoms of a bad board fan sensor include:

• Inconsistent or improper temperature control not maintaining set oven temperatures
• Issues with selected convection bake or broil modes not activating properly
• Abnormal fan speeds that do not correlate with heating element operation

It is also compatible with Hotpoint, RCA, and KitchenAid wall ovens and range models using the same electronic control system.

Flexible 6-foot conduit that routes and protects power wiring for ranges and wall ovens. Replace if cracked, damaged, or missing during installation.

Fixes electrical issues like oven not heating or controls not responding. This main wire harness connects power throughout your wall oven. Moderate DIY.

Oven display not responding or WiFi features not working? This wire harness connects the control display to the WiFi module, restoring communication.

Control panel lights not working? This LED jumper wire harness restores connections between your oven's control board and status indicator lights.

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

Replacement mounting screw for ranges and ovens. Secures panels, brackets, and internal components. Order when original screw is missing, stripped, or lost.

Black. 8-18 AB HXW 3/8

Rubber grommet for electric ovens and ranges. Seals and protects wiring or components passing through metal panels. Replace if cracked or missing.

Range burner clip secures burner components in place. Replace if bent, broken, or burners wobble. Verify fit with your model number before ordering.

A replacement hex nut used to secure appliance components and restore proper fastening. Installs quickly and helps stop loose or rattling parts caused by a missing or stripped nut. What it does

• Secures mounting studs, brackets, or components in place
• Prevents parts from shifting, vibrating, or coming loose during operation
• Replaces a missing, damaged, or corroded nut to restore reliable fastening

• One hex nut

• Disconnect power and gas before starting work
• Start threads by hand to avoid cross-threading, then tighten with the proper-size wrench
• Do not overtighten; snug until secure to avoid damaging studs or threads
• Use replacement only where the OEM hex nut is specified
