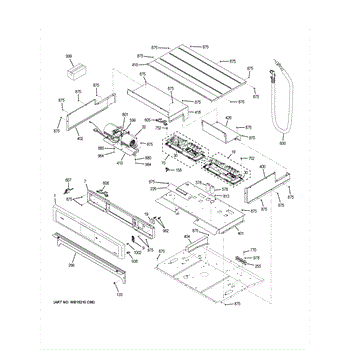

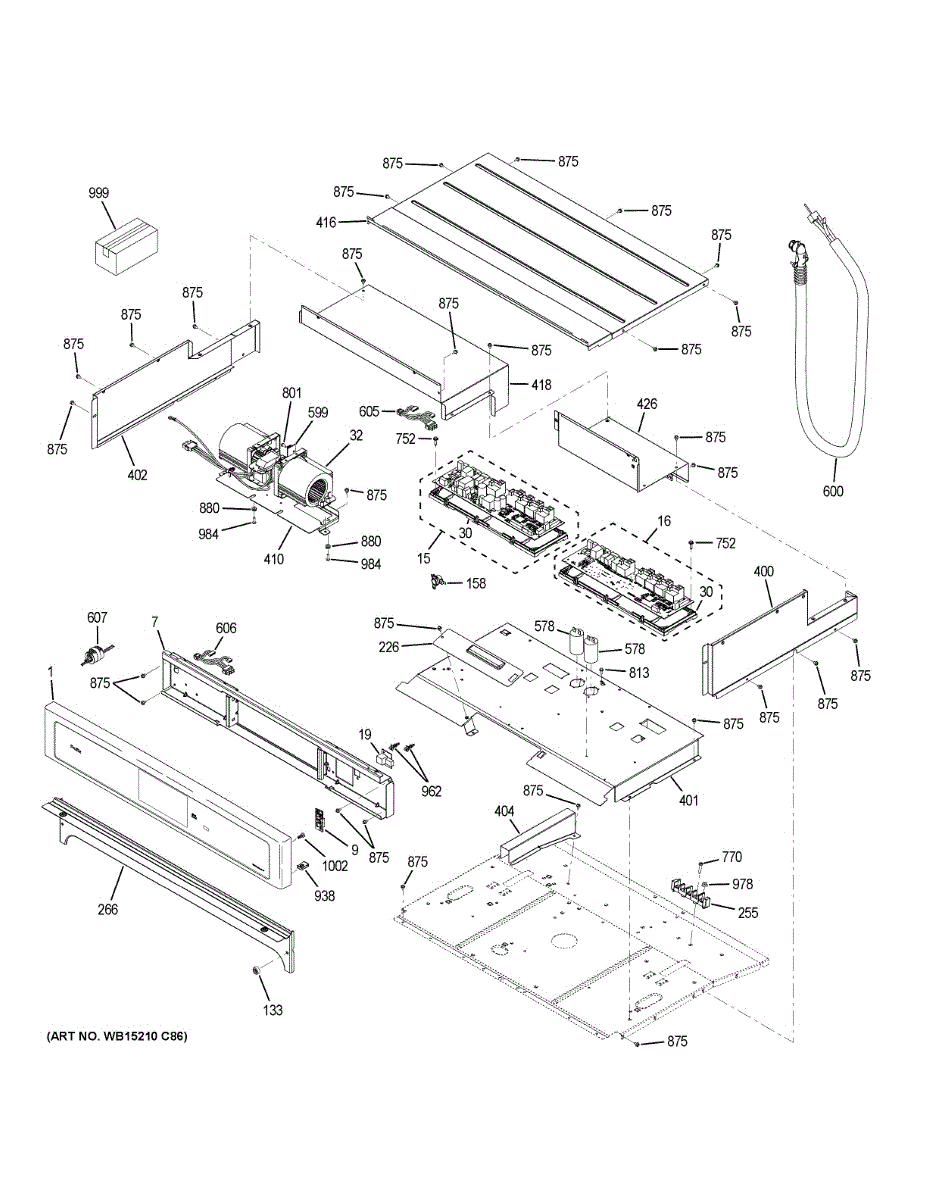

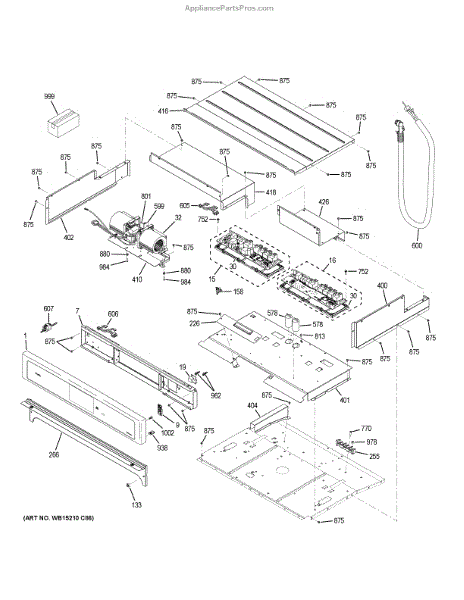

Parts for Ge PT9551SL2SS: Control Panel Parts

The Fan Blower is an OEM part for GE ranges and wall ovens. This part helps to circulate air within the oven cavity. The fan blower ensures that heat is evenly distributed during cooking, contributing to consistent cooking results, and prevents the electronic components from overheating, which could lead to malfunctions or reduced lifespan of the appliance.

Causes of damage to the Fan Blower can include accumulation of debris and grease, which can obstruct the fan and strain the motor, and mechanical wear over time that affects the fan's efficiency.

Symptoms of a bad Fan Blower in a range include:

• The oven not cooking evenly
• Overheating of the range's electronic control panel
• Unusual noises, such as rattling or buzzing

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This block terminal is the wire-connection block that secures incoming power and internal wiring, restoring a safe, reliable electrical connection for the appliance. Replaces worn or damaged terminal connections to help prevent loose wires and arcing. What it does:

• Provides a secure connection point for incoming power and internal leads
• Replaces cracked, burned, or corroded terminal blocks that cause intermittent power or arcing
• Helps stop loose wires that can produce sparks, burning smells, or blown fuses/breakers
• Restores a stable electrical path so controls and heating elements receive power reliably

• One block terminal

• Always disconnect all power (unplug or shut off circuit breaker) before inspecting or replacing electrical parts
• Take a photo of wire routing and terminal screw positions before removal for correct reassembly
• Tighten terminal screws to secure wires; replace if mounting tabs or insulation are damaged

The Wall Oven Capacitor Motor is an OEM part for GE wall ovens. Located inside the oven cavity, this motor is responsible for turning the convection fan which circulates hot air for even baking and roasting.

Symptoms of a bad capacitor motor include:

• Inability to select convection bake or roast features
• Uneven cooking results
• Lack of air circulation inside the oven
• Strange noises coming from the fan/motor area
• The convection fan not turning on

Causes of failure can be wear over time, damage from debris inside the oven, or occasional voltage fluctuations which can degrade motor components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Cooling Fan Sensor Board is an OEM component for GE ovens and ranges. It is an electronic module connected to the main control board that monitors internal temperatures. An onboard thermistor sensor in the board regulates the convection fan relay and fan motor speed based on heating demands during the bake and broil functions.

Causes of a failed Cooling Fan Sensor Board can include moisture damage from spills or steam, faulty soldering connections, or manufacturing defects over time. Electronic components are also susceptible to normal wear from frequent heating cycles.

Symptoms of a bad board fan sensor include:

• Inconsistent or improper temperature control not maintaining set oven temperatures
• Issues with selected convection bake or broil modes not activating properly
• Abnormal fan speeds that do not correlate with heating element operation

It is also compatible with Hotpoint, RCA, and KitchenAid wall ovens and range models using the same electronic control system.

This 6 ft conduit provides a protective, flexible channel for routing wiring between components, helping keep wiring organized and shielded from damage. It's an optional replacement for appliances that require extended wiring protection. What it does

• Protects and organizes electrical wiring by enclosing wires in a flexible conduit
• Helps reduce wear from abrasion, vibration, or contact with sharp edges
• Useful when original wiring routing needs extension or added protection
• Can reduce the chance of exposed wiring that may lead to shorts or intermittent power issues

• One 6 ft conduit

• Intended for use where an appliance's wiring routing requires a longer protective conduit;
• Use appropriate tools and secure conduit ends to strain reliefs or fittings as originally installed
• Disconnect power to the appliance before attempting any wiring work

A small replacement mounting screw used to secure panels and components in household appliances. Restores proper fastening to reduce rattling, loose panels, and misaligned parts for safer, quieter operation. What it does:

• Fastens panels, brackets, and trim to keep appliance parts securely in place.
• Stops vibration-related noise caused by loose fasteners.
• Prevents components from shifting, which can affect fit and function.
• Works wherever the OEM screw specification matches the application.

• Use the matching screw size and thread type for the original hole; do not force a mismatched screw.
• Turn off and disconnect power before accessing internal components to avoid shock.
• Hand-start threads to prevent cross-threading; tighten until snug—do not over-torque.
• If multiple screws or a specific length/type is required, verify the full parts list for your model before ordering.

This is a replacement screw used to secure appliance components and restore proper fit and function. Installing the correct screw prevents loose panels and noisy operation and keeps parts aligned for safe use. What it does:

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Helps stop rattling or vibration caused by missing or stripped fasteners
• Restores secure fit where a screw has been lost or damaged
• Matches the OEM fit so adjoining parts align correctly

• One replacement screw as pictured

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread by hand first, then snug; do not overtighten to avoid cracking plastic or stripping threads
• Replace only with the same type and size screw to ensure proper fit

This silicon controlled rectifier (SCR) switches and regulates power to heating or motor circuits, helping the appliance control temperature and run cycles reliably. It's a direct-fit electronic switching component used in a variety of control systems. What it does:

• Acts as an electronic switch to regulate AC power to heating elements or motors
• Helps control temperature output and maintain consistent cycle performance
• Can prevent unwanted continuous current flow when functioning properly
• Commonly replaced when ovens, ranges, or dryers fail to heat or cycle correctly

• One silicon controlled rectifier (SCR) as shown

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Handle the SCR by its body; avoid touching terminals and static-sensitive areas
• Verify proper orientation and secure mounting; follow OEM wiring and torque practices

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Black. 8-18 AB HXW 3/8

A replacement hex nut used to secure appliance components and restore proper fastening. Installs quickly and helps stop loose or rattling parts caused by a missing or stripped nut. What it does

• Secures mounting studs, brackets, or components in place
• Prevents parts from shifting, vibrating, or coming loose during operation
• Replaces a missing, damaged, or corroded nut to restore reliable fastening

• One hex nut

• Disconnect power and gas before starting work
• Start threads by hand to avoid cross-threading, then tighten with the proper-size wrench
• Do not overtighten; snug until secure to avoid damaging studs or threads
• Use replacement only where the OEM hex nut is specified

This lubricant/cleaner is used during service of cooking appliances to dissolve residue and provide light lubrication on small moving parts. It helps restore smoother operation of control shafts and valves when burner knobs feel stiff or sticky. What it does:

• Cleans deposits and old grease from control shafts and valve components
• Provides light lubrication to reduce friction and sticking
• Helps address symptoms such as hard-to-turn burner knobs or rough valve rotation
• Supports preventative maintenance during range/cooktop service

• Lubricant/cleaner

• Disconnect power and shut off gas; allow the appliance to cool before servicing
• Work in a well-ventilated area and keep away from open flames or ignition sources
• Apply sparingly per service instructions; avoid contact with igniters, electrical components, and flame ports
• Replace any worn or leaking valve—do not rely on lubricant/cleaner to correct a leak
