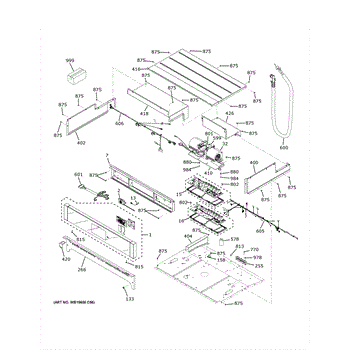

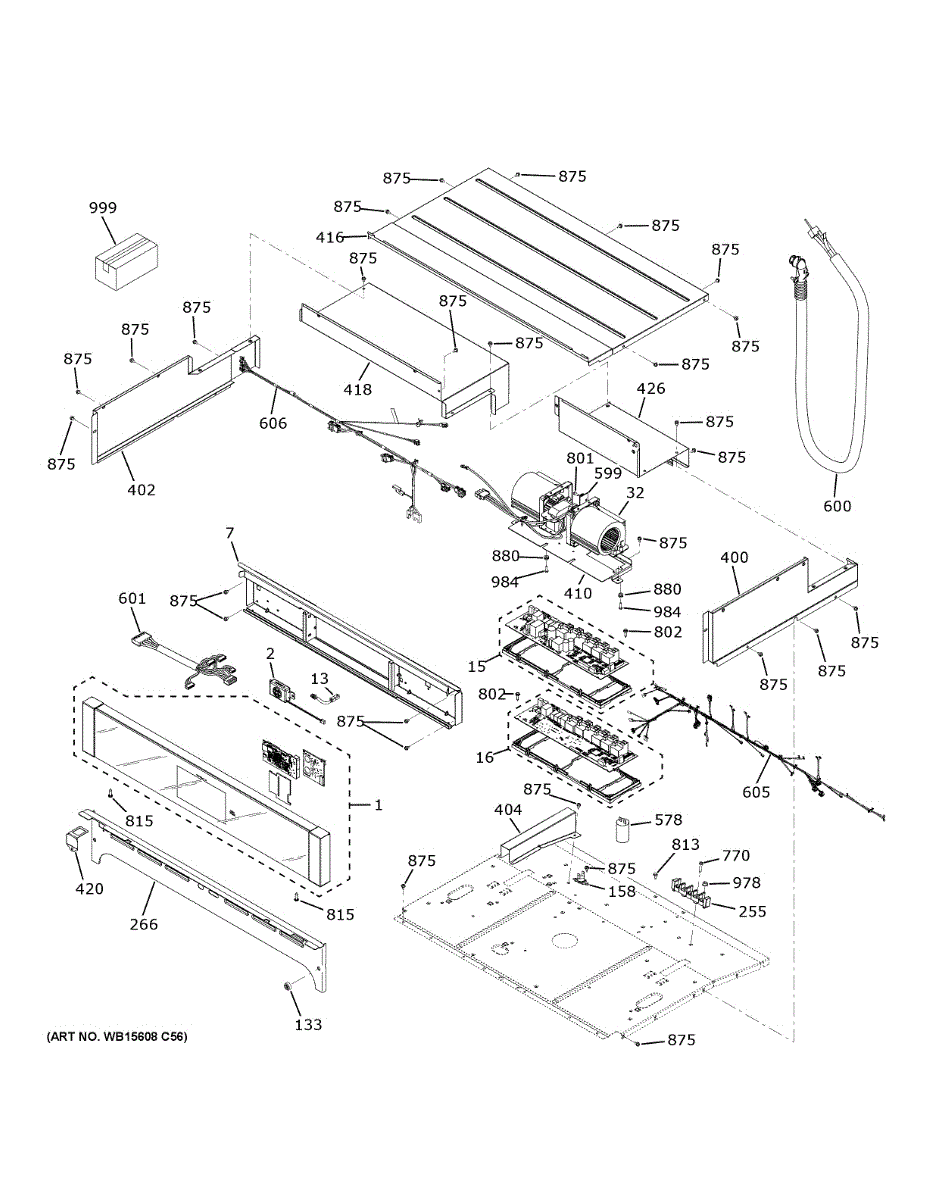

Parts for Ge PTD7000BN1TS: Control Panel Parts

Replaces damaged or faded control panel to restore button access and appearance on your electric range or wall oven. Fits main console surface.

If your range or oven has a circuit not working or intermittent function, this electrical jumper wire bridges terminals to restore proper continuity.

The Fan Blower is an OEM part for GE ranges and wall ovens. This part helps to circulate air within the oven cavity. The fan blower ensures that heat is evenly distributed during cooking, contributing to consistent cooking results, and prevents the electronic components from overheating, which could lead to malfunctions or reduced lifespan of the appliance.

Causes of damage to the Fan Blower can include accumulation of debris and grease, which can obstruct the fan and strain the motor, and mechanical wear over time that affects the fan's efficiency.

Symptoms of a bad Fan Blower in a range include:

• The oven not cooking evenly
• Overheating of the range's electronic control panel
• Unusual noises, such as rattling or buzzing

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Fixes loose power connections and electrical arcing in ranges and ovens. This terminal block secures incoming wiring for safe, reliable operation.

Upper air vent channel for wall ovens. Directs airflow in the vent system. Replace if cracked, broken, or missing to restore proper ventilation.

Upper fan mount bracket for wall ovens and ranges. Secures the cooling fan assembly in place. Replace if bracket is bent, broken, or missing.

This RJ45 mounting bracket secures an RJ45 network/communication jack to the appliance frame, restoring proper connector alignment and mechanical support. It's a simple replacement part for damaged or missing brackets. What it does:

• Holds the RJ45 jack firmly in place to prevent connector movement and intermittent connections
• Aligns the jack for easy cable insertion and secure mating
• Protects the connector and wiring from strain or damage during use
• Helps restore reliable network/communication port positioning after panel or bracket damage

• One RJ45 mounting bracket

• Unplug the appliance or disconnect power before servicing
• Remove the access panel or trim to reach the existing bracket; retain fasteners for reassembly
• Gently disconnect the jack/cable before removing the old bracket; avoid pulling on wires
• Hand-tighten or torque screws to manufacturer specifications; do not overtighten

The Wall Oven Capacitor Motor is an OEM part for GE wall ovens. Located inside the oven cavity, this motor is responsible for turning the convection fan which circulates hot air for even baking and roasting.

Symptoms of a bad capacitor motor include:

• Inability to select convection bake or roast features
• Uneven cooking results
• Lack of air circulation inside the oven
• Strange noises coming from the fan/motor area
• The convection fan not turning on

Causes of failure can be wear over time, damage from debris inside the oven, or occasional voltage fluctuations which can degrade motor components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Cooling Fan Sensor Board is an OEM component for GE ovens and ranges. It is an electronic module connected to the main control board that monitors internal temperatures. An onboard thermistor sensor in the board regulates the convection fan relay and fan motor speed based on heating demands during the bake and broil functions.

Causes of a failed Cooling Fan Sensor Board can include moisture damage from spills or steam, faulty soldering connections, or manufacturing defects over time. Electronic components are also susceptible to normal wear from frequent heating cycles.

Symptoms of a bad board fan sensor include:

• Inconsistent or improper temperature control not maintaining set oven temperatures
• Issues with selected convection bake or broil modes not activating properly
• Abnormal fan speeds that do not correlate with heating element operation

It is also compatible with Hotpoint, RCA, and KitchenAid wall ovens and range models using the same electronic control system.

This 6 ft conduit provides a protective, flexible channel for routing wiring between components, helping keep wiring organized and shielded from damage. It's an optional replacement for appliances that require extended wiring protection. What it does

• Protects and organizes electrical wiring by enclosing wires in a flexible conduit
• Helps reduce wear from abrasion, vibration, or contact with sharp edges
• Useful when original wiring routing needs extension or added protection
• Can reduce the chance of exposed wiring that may lead to shorts or intermittent power issues

• One 6 ft conduit

• Intended for use where an appliance's wiring routing requires a longer protective conduit;
• Use appropriate tools and secure conduit ends to strain reliefs or fittings as originally installed
• Disconnect power to the appliance before attempting any wiring work

Replacement screw for securing panels and components on ranges and ovens. Needed when original fastener is stripped, missing, or damaged during repairs.

Rubber grommet for electric ovens and ranges. Seals and protects wiring or components passing through metal panels. Replace if cracked or missing.

Lubricant cleaner for range and oven control shafts, burner valves, and rack paddles. Dissolves residue and restores smooth operation when parts feel stiff.
