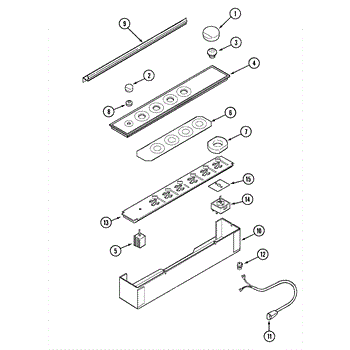

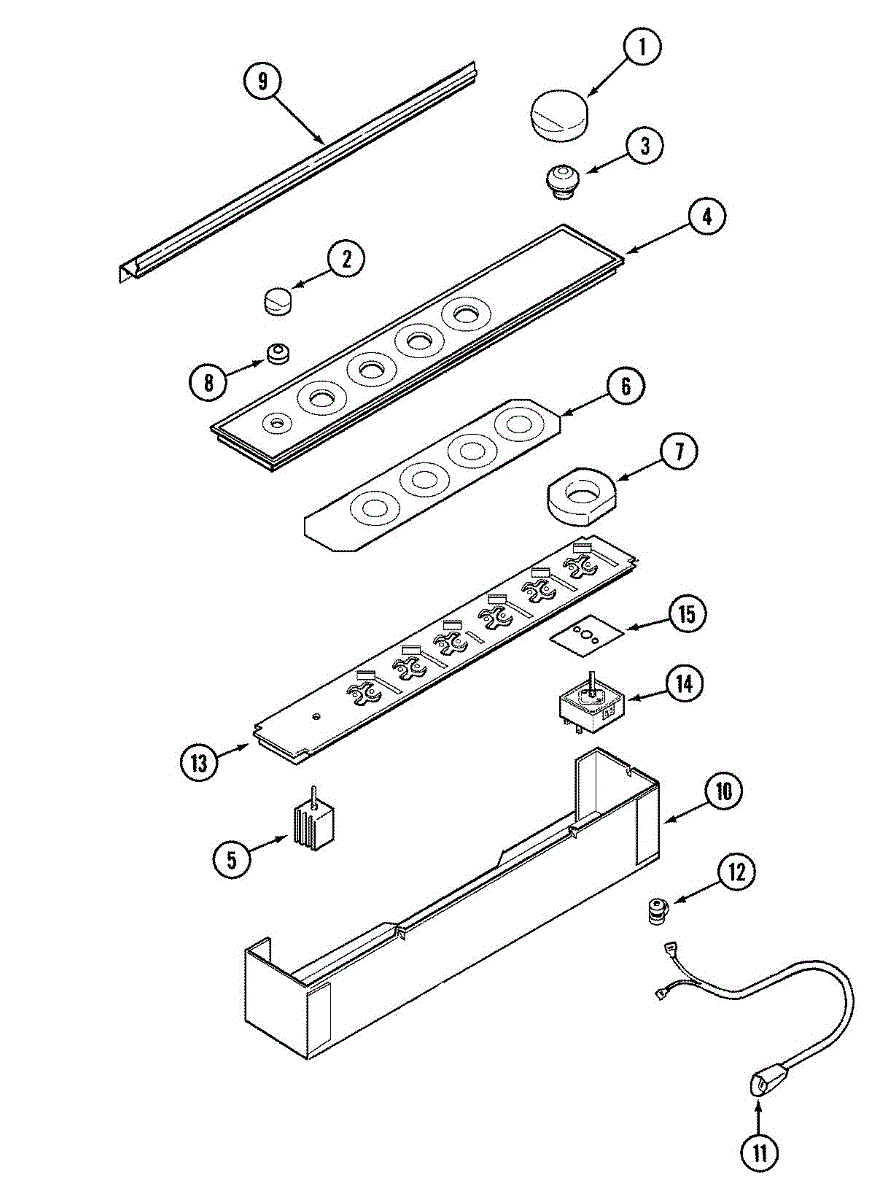

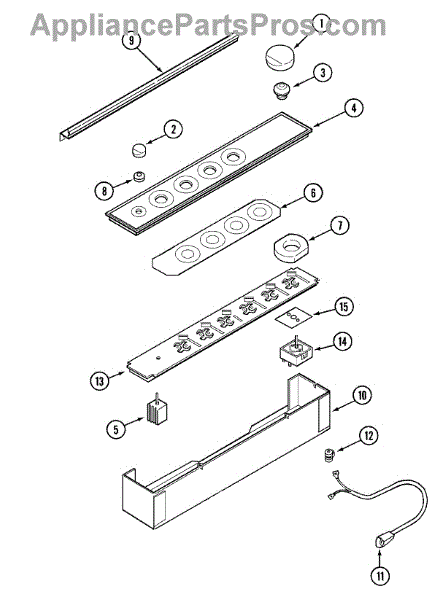

Parts for Jenn-Air CVEX4270B: 03 - Control Panel Parts

Replacement infinite-switch control knob that restores reliable heat selection on electric cooktops and ranges. Push-on design lets you set burner heat levels precisely and replaces cracked, faded, or missing knobs. What it does:

• Turns the infinite switch to select burner heat level and set cooking temperatures.
• Restores a secure grip and tactile detents when the original knob is cracked, worn, or missing.
• Helps when a knob spins, slips, or won't stay set on a chosen heat setting.
• Works with push-on style infinite switch shafts commonly used on electric ranges and cooktops.

• Always disconnect power to the appliance before servicing to avoid shock or injury.
• Typically installs by pulling the old knob straight off the control shaft and pushing the new knob onto the shaft until seated.
• Inspect the switch shaft for wear or damage; a stripped shaft may require replacing the infinite switch rather than the knob.
• If the knob is tight to remove, use a firm, even pull or a suitable knob-puller tool; avoid excessive prying that could damage the control panel.

A replacement control knob that restores safe, reliable selection of settings on the appliance. Fits the original shaft design to provide a secure, easy-turn interface for temperature and function selection. What it does:

• Replaces cracked, stripped, missing, or loose control knobs so settings can be selected and held securely.
• Engages the control shaft spline to transmit user input to the selector or valve.
• Provides a tactile grip and clear pointer for accurate setting selection.
• Helps resolve symptoms like a knob that won't turn, won't stay set, or spins freely without engaging the control.

• Disconnect power to the appliance before starting any repair.
• Align the knob to the control shaft spline and push straight on until fully seated; do not force.
• If the knob does not seat easily, verify shaft and spline condition before proceeding.

This grommet sits in the control panel opening around the valve/switch shaft on select ranges and cooktops. It helps seal out spills and stabilizes the control knob for a clean look and smooth operation.

• Seals the knob/shaft hole to help keep moisture, grease, and crumbs out of the control area
• Centers and supports the knob for a snug, stable feel
• Helps prevent rubbing and cosmetic wear around the panel opening
• Common signs: cracked or missing grommet, visible gap around knob, loose/wobbly knob, evidence of spills beneath the knob

• Disconnect power and, if applicable, shut off gas supply before servicing
• Pull the knob straight off the shaft and lift out the old grommet
• Clean the panel opening; press the new grommet fully into place, matching the original orientation
• Reinstall the knob and ensure smooth, unobstructed operation

This part has been discontinued and is no longer available.

This fan control switch lets you turn the range or cooktop's ventilation fan on and off from the control panel. Replacing a worn switch restores responsive, reliable fan operation when the knob is turned.

• Provides user-operated on/off control for the ventilation fan
• Sends electrical power to the fan motor when activated
• Common fix for a fan that won't start, won't shut off, or runs intermittently
• Typically mounts behind the fan knob on the control panel

• Disconnect power at the breaker or unplug the appliance before servicing
• Remove the knob and access the control panel; note/label wire positions and transfer one at a time to the new switch
• Secure the switch, reassemble, restore power, and test fan operation
• Use care around sharp metal edges and verify connections with your model's wiring diagram

This light lens is the clear plastic cover that fits over an appliance interior light to protect the bulb and help diffuse illumination for better visibility. It restores a finished appearance and keeps the lamp shielded from food and debris. What it does:

• Protects the interior light bulb from spills, splatter and physical damage
• Diffuses and directs light for more even interior illumination
• Prevents direct contact with the hot bulb for improved safety
• Helps maintain a clean, finished look inside the appliance
• Common symptom: cracked, cloudy or missing lens causing glare, visible bulb or reduced protection

• One clear plastic light lens

• Disconnect power or unplug the appliance before replacing any light parts
• Handle the lens carefully to avoid scratches or cracking during install
• Typically snaps into place or secures with small screws—retain original fasteners
• Use correct replacement bulb and ensure the lens is seated fully before restoring power

Size: 8-32 x 1/4 inch.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

This genuine replacement screw secures appliance components so panels, brackets, and assemblies stay tight and properly aligned. Replacing stripped, rusted, or missing hardware restores a solid fit and helps prevent rattles, shifting, or looseness over time.

• Fastens panels, brackets, and internal parts to maintain proper alignment
• Helps resolve issues caused by missing or damaged screws
• Restores secure mounting after service where original hardware is lost
• Use when threads are stripped or the screw head is damaged and won't tighten

• Disconnect power; turn off gas supply if applicable before servicing
• Match screw location and length to your model's parts diagram for correct placement
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Snug firmly but do not overtighten to prevent damage to mounting points

The infinite switch is an OEM replacement part for Whirlpool cooktops. Located inside the panel it helps monitor temperature and functions through sensing heating elements and bake cycles. Precise cooking depends on its calibrated feedback.

Causes of a faulty cooktop interface switch include wire damage from heat exposure, excess baked-on residue insulating contacts, or repeated temperature fluctuations degrading components.

Symptoms include:

• Inability to preheat or maintain set cooking temperatures
• Failure to advance cycles or randomly turning off
• Error messages flashing on the control panel

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

A replacement gasket that seals the infinite (surface) control switch to the cooktop or console, helping keep moisture, grease and debris out of the switch area for cleaner operation and a better seal. What it does

• Seals the infinite switch to the panel to help prevent liquid and food intrusion into the switch housing.
• Cushions and stabilizes the switch for a firmer knob fit and reduced vibration.
• Helps protect the switch contacts from contamination that can cause intermittent control behavior.
• Use when the existing gasket is cracked, flattened, missing, or allowing spills into the controls.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Remove the control knob and access the infinite switch per your model's service instructions.
• Seat the gasket fully around the switch housing so it lies flat against the console; replace if damaged or compressed.
• Inspect the switch and wiring while replacing the gasket; replace the switch if there is visible damage.
