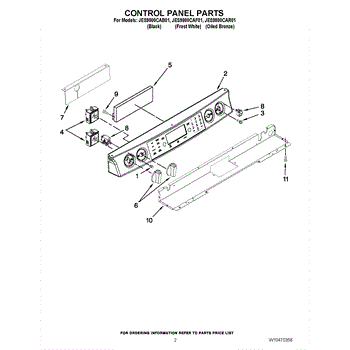

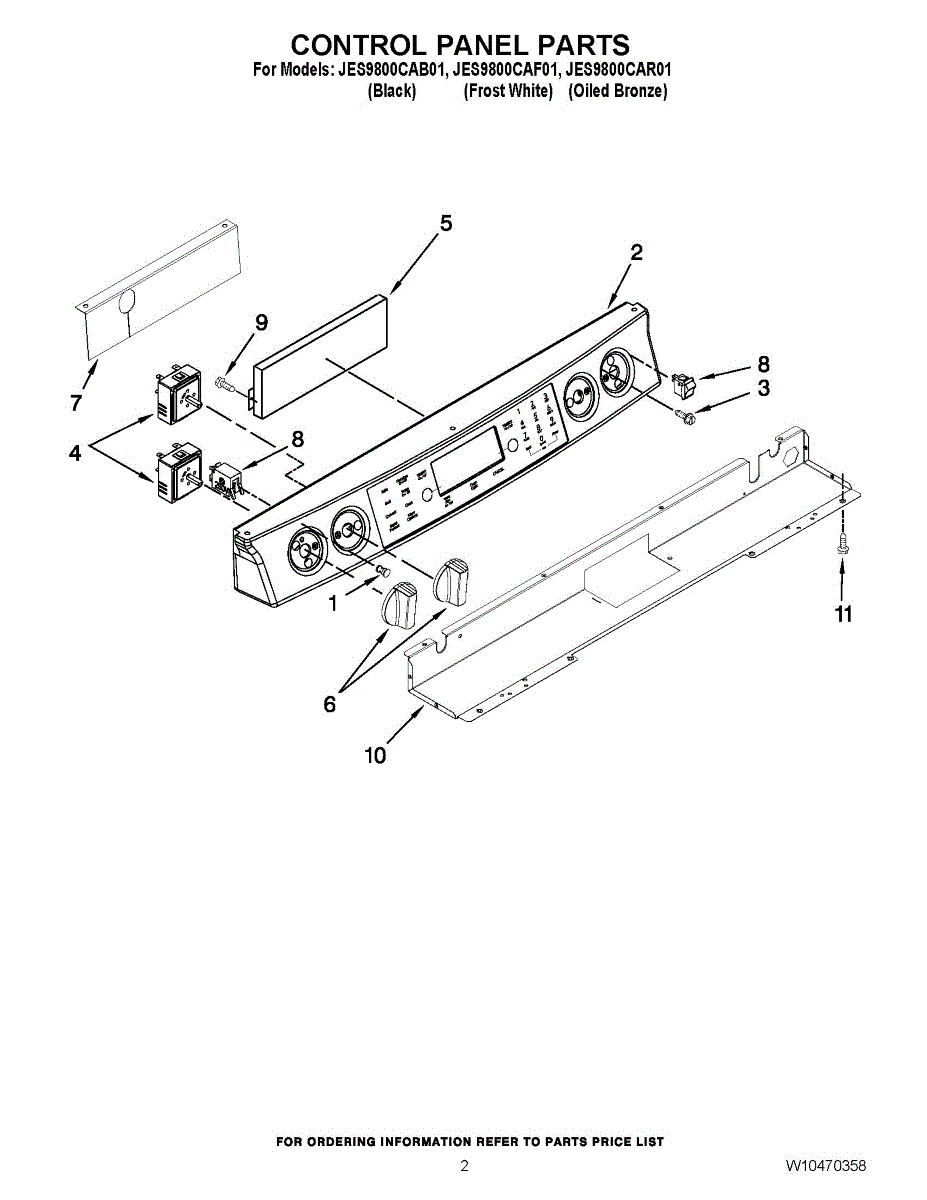

Parts for Jenn-Air JES9800CAB01: 02 - Control Panel Parts

This control panel houses the touchpad and display used to select settings and start cycles. It restores responsive controls and a readable display so you can operate and monitor your appliance's basic functions. What it does:

• Provides the user interface (buttons/touchpad) and display for selecting cycles and options.
• Sends user commands to the appliance's main control so selected functions start and run.
• Common symptoms it can fix: unresponsive or intermittent buttons, blank/flickering/displayed characters missing, or erratic control behavior.
• Designed as a direct-replacement panel to restore normal control and display operation.

• Disconnect power to the appliance before starting any repair to avoid shock or injury.
• Handle the panel and its electronic components carefully to avoid damage from impact or static discharge.
• Ensure wire harness connectors are fully seated and routed clear of heat or moving parts during reassembly.

This control panel houses the touchpad and display used to select settings and start cycles. It restores responsive controls and a readable display so you can operate and monitor your appliance's basic functions. What it does:

• Provides the user interface (buttons/touchpad) and display for selecting cycles and options.
• Sends user commands to the appliance's main control so selected functions start and run.
• Common symptoms it can fix: unresponsive or intermittent buttons, blank/flickering/displayed characters missing, or erratic control behavior.
• Designed as a direct-replacement panel to restore normal control and display operation.

• Disconnect power to the appliance before starting any repair to avoid shock or injury.
• Handle the panel and its electronic components carefully to avoid damage from impact or static discharge.
• Ensure wire harness connectors are fully seated and routed clear of heat or moving parts during reassembly.

This replacement screw secures appliance panels and components to restore proper fit and prevent rattling or movement. It's a direct-fit fastening part used where the original OEM screw is specified. What it does:

• Secures trim, access panels, or internal components to maintain structural fit
• Prevents vibration noise and loose parts by holding assemblies firmly
• Matches OEM fit and threading for correct engagement when used in original locations
• Intended for repairs that require the exact replacement fastener

• Disconnect power and unplug the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; avoid over-tightening which can strip threads or crack plastic

The Large Element Switch is an OEM part for Whirlpool ranges. It regulates the heat output of the large heating element on the cooktop, allowing users to adjust the cooking temperature as needed.

Causes of a bad switch can include wear and tear from regular use, electrical issues, or damage from high heat exposure over time.

Symptoms of a bad large element switch include:

• The large element not heating or staying on continuously
• Inconsistent or incorrect heat levels
• The switch not responding or feeling loose
• The element turning off unexpectedly during use

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This electronic clock control helps manage and monitor the features on an oven. This part is located on the front of the oven so the user can easily see the clock and start and stop times for cooking. The display can also show error codes if one of the oven parts is not working correctly. If this part is damaged, cooking may take longer, overheating may occur, or the foods may come out unevenly cooked.Replacing the part is simple and requires only a Phillips screwdriver. Disconnect the oven from power or turn off the appropriate breaker box. Open the door and access the bottom of the control panel assembly. Remove the screws and lift up on the electronic clock control to unhook it from the appliance. Unplug the wire harnesses before removing the clock. Attach the new part to the wires and screw it into the oven.This electronic clock control is made for use as a genuine OEM replacement part for Jenn Air ovens. It is sold on an individual basis and comes directly sourced from the manufacturer. This part is offered as an individual component.

This is a replacement control knob that restores user control of a range/oven setting. It fits onto the appliance control shaft to provide a comfortable grip and clear position selection. What it does

• Replaces a cracked, stripped, or missing control knob so you can set temperature or function accurately.
• Provides a tactile grip and visible pointer to indicate selected setting.
• Restores smooth turning action when the original knob is worn or broken.
• Matches original fit and shaft engagement to secure to the control post.

• One replacement control knob (color: black).

• Fits on the appliance control shaft; pull off the old knob and push the new knob fully onto the shaft until seated.
• Ensure the oven/range is OFF and controls are cool before replacing the knob.
• No tools typically required; use gentle leverage to avoid damaging the control shaft.
• If the knob does not seat or turn correctly, do not force.

This indicator light installs in the control panel and illuminates when its corresponding function is active. Replace a failed lamp to restore clear status indication, so you can see at a glance when the appliance is operating.

• Lights to indicate a selected function is on (e.g., surface units or oven circuits—varies by model)
• Provides visual confirmation of appliance status during use
• Common symptoms: light will not turn on, stays on constantly, flickers, or the lens is damaged
• Restores proper visual feedback when controls are engaged

• Disconnect power at the breaker before servicing; allow the appliance to cool
• Access the console/control panel and remove the rear cover as needed
• Note wire positions; transfer leads to the new light and secure it in the panel opening
• Reassemble and restore power to test operation

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold
