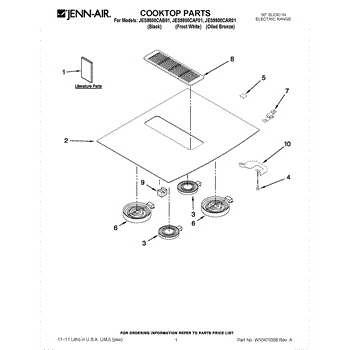

Parts for Jenn-Air JES9800CAB01: 01 - Cooktop Parts

White

The black Cooktop is an OEM part for Whirlpool ranges. It serves as the flat surface where cooking is done by using burners or a warming element. The glass-ceramic or stainless steel cooktop provides an attractive and durable cooking area.

Symptoms of a bad cooktop include:

• Cracks or chips in the glass or surface material
• Burned, stained, or discolored areas that cannot be cleaned
• Dents or depressions that collect moisture or debris
• Inoperable or intermittent burners or heating elements

Causes of a bad cooktop can be cracks or damage from impacts or heavy pots/pans, heating element failures over time, surface deterioration from abrasive cleaners, or prolonged heat exposure.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Surface Element is an OEM part for Whirlpool stoves and cooktops. It is the heating element located on the cooktop, responsible for providing heat to pots and pans for cooking.

Common causes of a bad surface element include wear and tear from repeated use, overheating, or electrical issues. Ensuring the element is functioning correctly is crucial for efficient and safe cooking.

Symptoms of a bad surface element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burning on the element
• Sparking or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 1200 watt - LR / RR element

This is a replacement screw used to secure panels and components on compatible Whirlpool appliances, sold as a pack to replace multiple fasteners at once. It provides a simple way to restore missing or worn screws and stop rattles or loose trim. What it does

• Fastens appliance panels, trim, brackets or internal components
• Restores proper fit where screws are missing or corroded
• Helps eliminate vibration noise and loose parts
• Matches OEM fit for the listed part number when used in the intended locations

• Use the correct screwdriver or nut driver to avoid stripping the head
• Keep screws organized and install only where the OEM diagram specifies
• Disconnect power and follow appliance safety procedures before servicing
• Wear safety glasses and avoid over-tightening to prevent damage

This dual radiant surface element restores even, responsive heat to a smooth-top range or cooktop. It replaces a failed burner so the inner and outer rings heat correctly for dependable everyday cooking.

• Provides heat to a dual-size cooking zone beneath the glass surface
• Works with the surface control to use the inner ring alone or both inner and outer rings
• Common symptoms: burner won't heat, only one ring heats, slow or uneven heating, visible scorching or damage on the element
• Helps restore consistent temperature control and full dual-ring operation

• Disconnect power at the breaker before servicing; elements carry high current
• Lift or remove the cooktop to access the element
• Note wire locations and transfer any mounting brackets/clips from the old element
• Center the element under the burner outline and secure all connections before restoring power

A replacement support bracket that secures the oven heating element in the cavity so the element stays properly positioned for safe, even heating and reliable operation. Restores stable mounting after breakage or wear. What it does:

• Holds the bake/oven heating element in place so it doesn't sag or contact the oven cavity
• Helps maintain consistent heating and prevents element movement or rattling during use
• Commonly used when the existing support is cracked, bent, or missing
• Works with the oven's internal mounting points to align the element correctly

• Always disconnect power to the appliance before starting any repair
• Handle the heating element carefully; support may attach directly to the element terminals or mounting studs
• Basic hand tools are typically required; refer to your model's service instructions for exact steps
