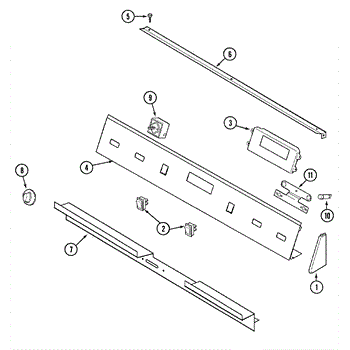

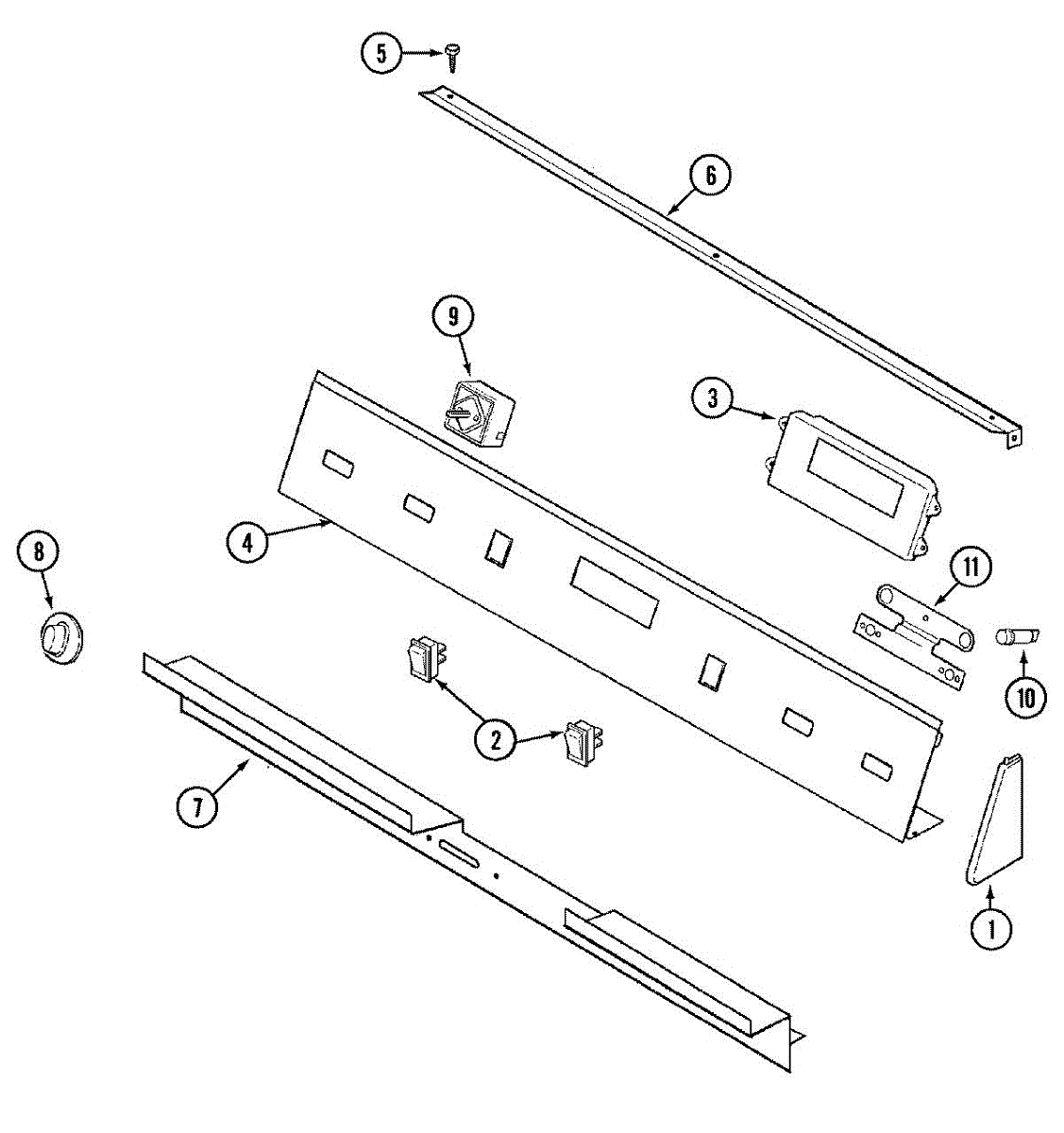

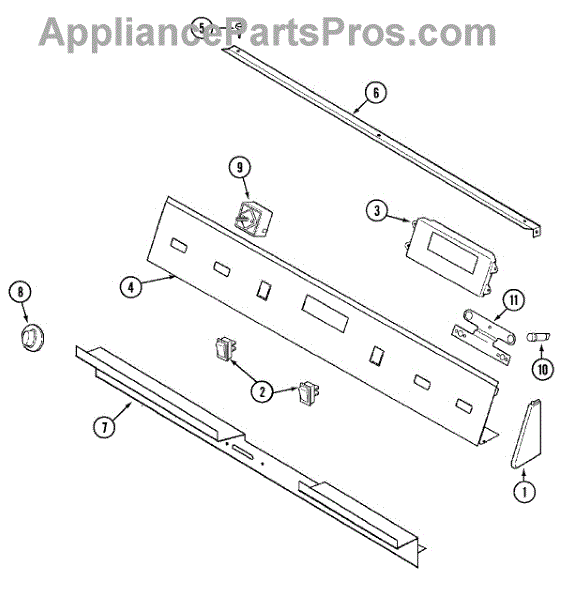

Parts for Jenn-Air SVE47100B: 04 - Control Panel Parts

This hex-head sheet metal screw secures appliance panels, brackets, and trim for a tight, rattle-free fit. Replace missing or stripped fasteners to keep covers and components firmly in place and restore proper alignment.

• Fastens sheet-metal parts, brackets, and trim using a hex drive
• Replaces worn, rusted, missing, or stripped screws
• Helps reduce vibration and rattling from loose panels
• Common signs you need this fastener: head or threads stripped, screw won't tighten, panel or handle coming loose

• Unplug the appliance before service; turn off water supply if working near water lines
• Use the correct nut driver or socket to avoid rounding the head
• Replace one fastener at a time to maintain alignment; do not overtighten
• Match screw type/length to the original location as specified by the manufacturer

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 8-32 x 1/4 inch.

The infinite switch is an OEM replacement part for Whirlpool cooktops. Located inside the panel it helps monitor temperature and functions through sensing heating elements and bake cycles. Precise cooking depends on its calibrated feedback.

Causes of a faulty cooktop interface switch include wire damage from heat exposure, excess baked-on residue insulating contacts, or repeated temperature fluctuations degrading components.

Symptoms include:

• Inability to preheat or maintain set cooking temperatures
• Failure to advance cycles or randomly turning off
• Error messages flashing on the control panel

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This wiring harness connects the refrigerator cooling/condenser fan motor to the main wiring, restoring power and signal flow so the fan can run and help maintain proper cooling. Simple replacement when the old harness is damaged. What it does

• Provides the electrical connection between the cooling/condenser fan motor and the appliance wiring.
• Replaces a damaged, melted or corroded harness that can cause the fan to stop running.
• Helps resolve symptoms such as a warm refrigerator/freezer, intermittent fan operation, or no fan noise when compressor is running.
• Ensures secure, correct plug-and-play connections when installed properly.

• One cooling fan wiring harness

• Always unplug the appliance or turn off power at the breaker before starting work.
• Disconnect the old harness connectors from the fan motor and cabinet wiring; note routing and securement before removal.
• Reconnect new harness making sure all plugs seat fully and any retaining clips or ties are re-used to prevent contact with moving parts.
• After installation, restore power and verify the fan runs and there are no abnormal noises.
