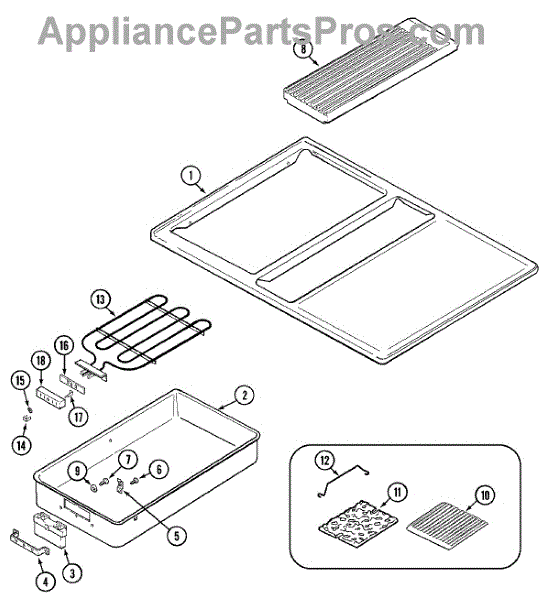

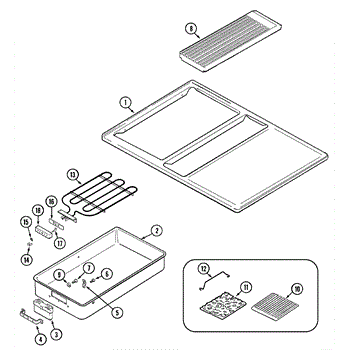

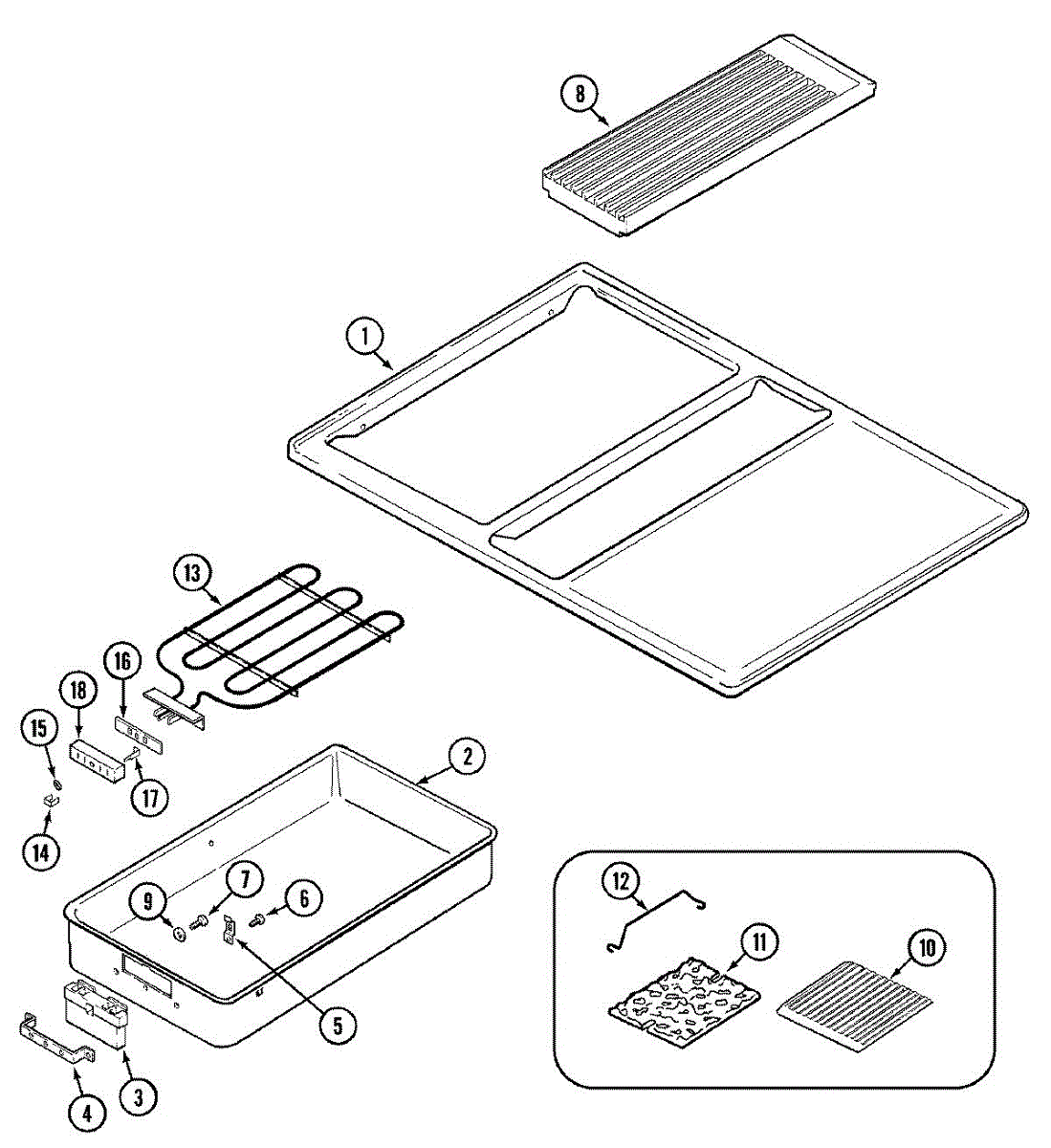

Parts for Jenn-Air SVE47100B: 07 - Top Assembly Parts

Holds the bake element securely in place for proper alignment. Replace if cracked, broken, or missing to restore safe element positioning in your oven.

Replace a damaged or frayed wire harness in your range. This internal wiring component connects electrical parts. Needed when wires are broken or worn.

Fix intermittent or failed burner operation caused by burnt or loose wiring. This wire harness restores reliable connections. 5-minute repair once disassembled.

This ceramic receptacle provides the electrical connection point for a plug-in heating element on a range or cooktop. It mounts inside the cooktop surface and receives the element's terminal prongs to deliver power. Replace this part if the element fails to heat, heats intermittently, or if the receptacle shows signs of burning, arcing, or melting.

This small metal grounding clip attaches to internal components of the range to ensure a proper electrical ground connection. It helps maintain safe operation by preventing static buildup and electrical faults. Replace this clip if it is bent, broken, or missing, which could lead to intermittent electrical issues or safety concerns.

Screw: 8-16 x 3/8 inch.

Hex head sheet metal screw secures appliance panels, brackets, and trim. Replace missing, stripped, or damaged screws to keep covers firmly attached.

Includes one rock plate. 2 used per unit. For the support order 700819.

This rock plate support is used on many of the Jenn-air grill cartridge rock plates.

Stamped metal retaining clip that secures screws to panels and trim. Replace if clip is bent, broken, or missing to properly fasten covers and components.

This contact spade is a push-on electrical terminal used to connect an appliance wire lead to a component's blade. Replacing a worn or heat-damaged connector restores a secure fit and consistent power flow.

• Creates a reliable electrical connection between a wire lead and a flat spade terminal on a component
• Helps prevent arcing, heat build-up, and intermittent power caused by loose or burned terminals
• Common symptoms include: component won't power or heat, intermittent operation, visible discoloration or melting at the connector
• Direct replacement for a damaged or fatigued push-on terminal

• Disconnect power to the appliance before servicing
• Match the size/orientation to the original terminal and replace any discolored or heat-damaged wiring/insulation
• Use an appropriate crimp tool to attach the terminal to the wire lead; ensure a firm crimp
• Push fully onto the mating blade for a tight, secure connection

This terminal block provides an insulated, secure junction for incoming power or harness leads inside the appliance. Replacing a cracked, loose, or heat-damaged block restores a safe, reliable connection and helps prevent arcing or intermittent power.

• Creates a fixed, insulated junction between external supply wires and internal appliance wiring
• Maintains tight screw-lug connections to minimize resistance and heat buildup
• Helps ensure steady power delivery to controls, motors, and heaters
• Common indicators of failure: melted/discolored block, burning odor, visible arcing, loose or stripped terminals, intermittent or no power

• Disconnect power at the breaker and verify zero voltage before servicing
• Photograph/label wire positions; transfer one lead at a time to the new block
• Tighten terminal screws firmly; do not overtighten into the insulator
• Inspect wire ends/ring terminals and strain relief; replace any heat-damaged components per the service information
