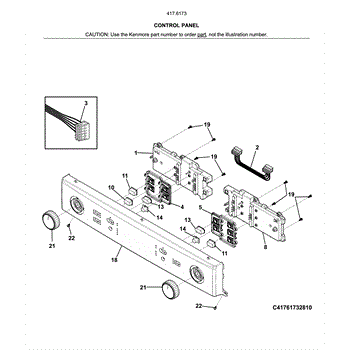

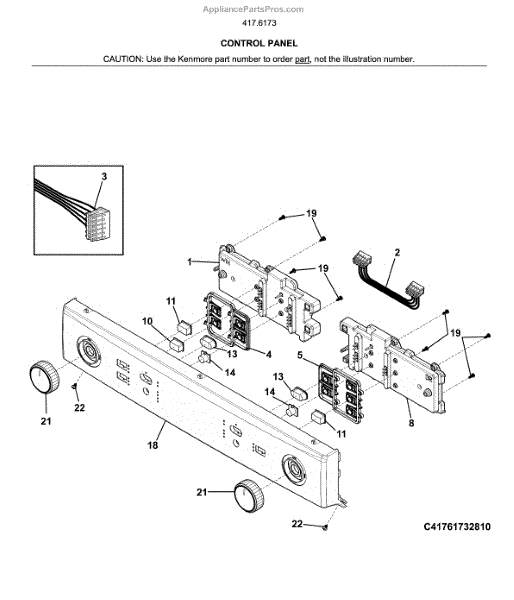

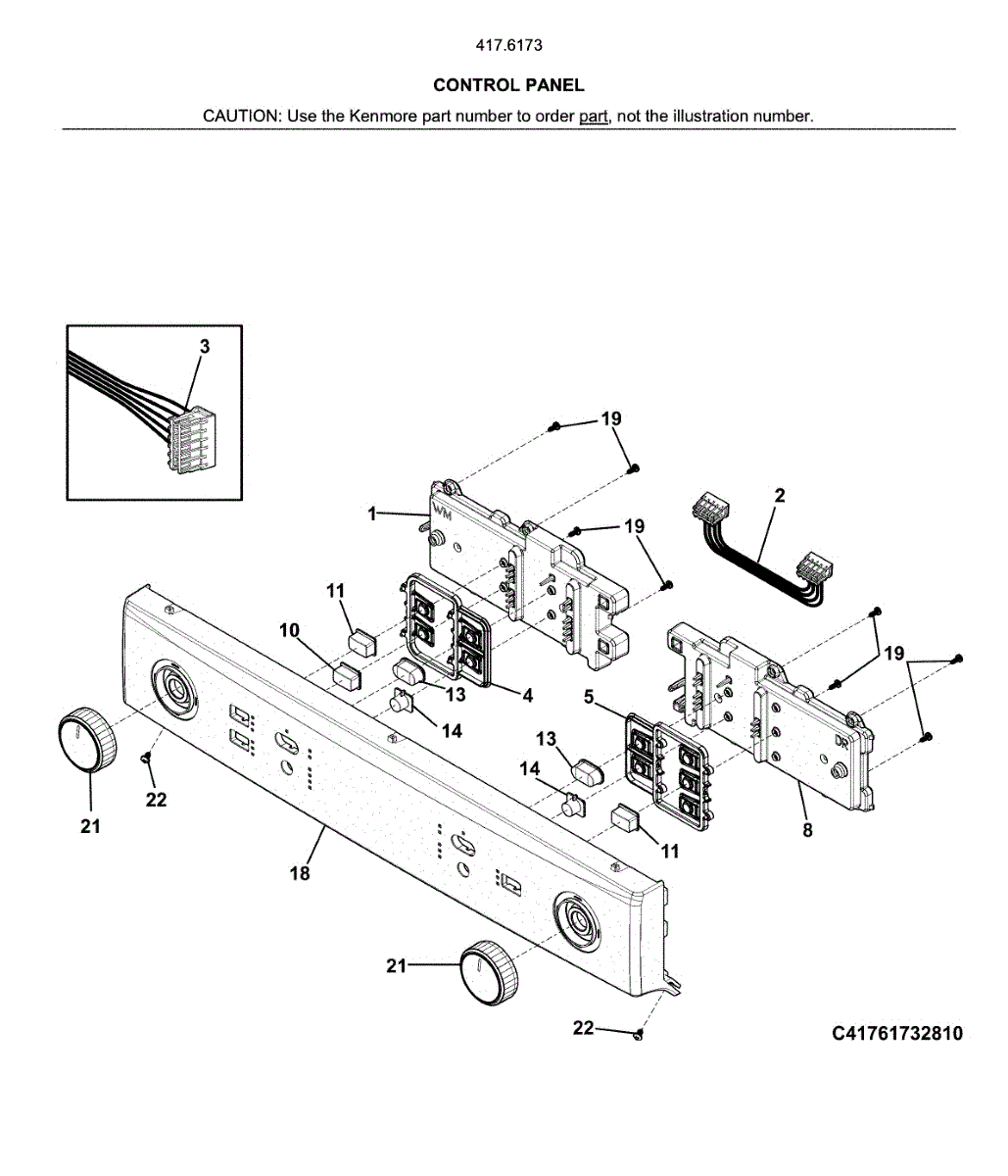

Parts for Kenmore 417.61732811 (41761732811, 417 61732811): Control Panel Parts

This is the user interface control board for the washer section of a laundry center. It manages the display panel and button inputs, allowing you to select wash cycles, settings, and start or pause the machine. Replace this board if the washer display is blank, unresponsive, shows error codes, or if button presses are not registering properly.

Unresponsive control panel or display? This user interface wiring harness connects your display to the control board, restoring communication.

This wiring harness routes power and signals between refrigerator controls, sensors and modules to restore electrical connections for normal operation. It's a direct-fit replacement when original wire assemblies are damaged or corroded. What it does

• Re-establishes electrical connections between control boards, switches, and door components
• Transfers power and signal paths needed for lights, dispensers, sensors or control circuits
• Helps resolve intermittent operation, no-power at a component, or visible wire damage
• Matches OEM connector types and wire groupings for proper fit and function

• One wiring harness as shown

• Disconnect power to the appliance before inspecting or replacing the harness
• Compare harness connectors and pin counts to the original before installation
• Route and secure wires away from sharp edges, moving parts and heat sources

The Board Assembly is an OEM part for Frigidaire dryers. This circuit board is for the electronic functions that control drying cycles, settings, sensors, and input/output components.

Causes of a bad board assembly include physical damage from impact or handling, short-circuiting due to intrusion of foreign materials, or naturally occuring component degradation as electronics age. Environmental exposures like moisture over prolonged use can corrode circuitry.

Symptoms of a bad board assembly can include:

• Non-functional cycles
• Inability to select options
• Failure to advance through sequence
• Unresponsive controls/display

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This is a decorated control panel console for a laundry center, finished in white. It houses the control knobs, buttons, and indicators used to select wash and dry cycles. Replace this console if it is cracked, warped, or if the printed labels and markings have worn off, making it difficult to read or operate the controls.

Control knob assembly for laundry center units. Mounts on the control panel to select wash cycles and dryer settings. Replace if cracked or broken.

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic

This is the official installation instructions sheet that provides step-by-step guidance and illustrations for correctly installing the associated appliance component. Helpful for understanding required connections, fasteners, and safety precautions. What it does

• Shows the manufacturer's recommended installation sequence and placement details.
• Illustrates required connections and orientation so parts fit and operate as intended.
• Identifies any hardware or adjacent components referenced during installation.
• Highlights safety notes and basic precautions to reduce risk during installation.

• One manufacturer installation instructions sheet (paper).

• Read the instructions fully before starting; follow all safety warnings and local codes.
• Turn off power and, if applicable, water supply before working on the appliance.
• Hardware and tools are shown for reference only — only items explicitly listed are included.
