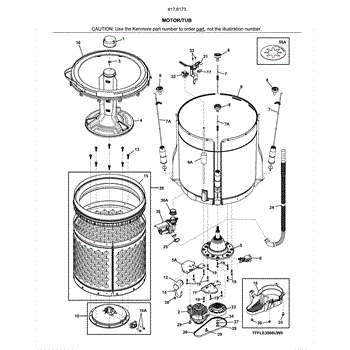

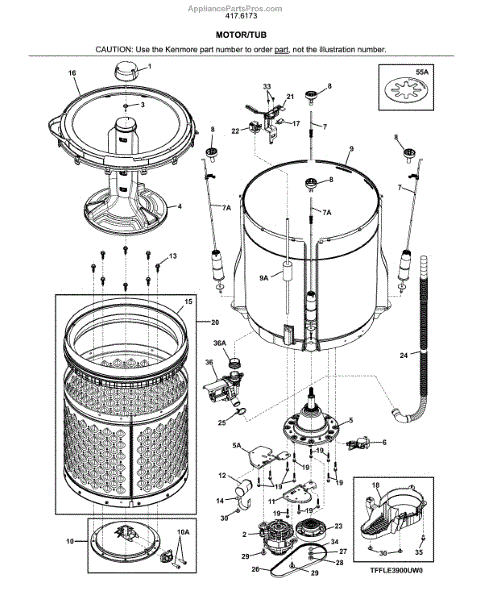

Parts for Kenmore 417.61732811 (41761732811, 417 61732811): Motor / Tub Parts

The Agitator Cap is an OEM part for Frigidaire washing machines. It fits securely atop the central agitator shaft located inside the washing machine tub. During the wash cycle, the agitator cap rotates along with the agitator to help agitate clothes and ensure water is properly distributed.

Causes of a bad agitator cap can include wear and tear over time, exposure to excessive loads or loads containing sharp or abrasive items that cause damage.

Symptoms of a bad agitator cap include:

• Water not properly dispersing during wash cycles
• Agitator not rotating or moving as it should
• Excessive rubbing or grinding noises coming from the agitator area
• Damaged or missing pieces on the cap

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Motor Assembly is an OEM part for Frigidaire washers. It powers the drum's movement, allowing your washer to agitate and spin during the various cycles.

A bad motor assembly can be caused by wear and tear, electrical issues, or mechanical failures. Signs of a faulty motor assembly include the drum not spinning or agitating, unusual noises during operation, or the washer not starting at all.

Symptoms of a bad motor assembly include:

• The drum not spinning or agitating during the wash cycle
• Unusual noises coming from the washer
• The washer not starting or displaying error codes

Replace your worn-out or damaged motor assembly with this genuine OEM part to restore your washer. This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


This is a single replacement screw used to secure appliance panels and trim and restore proper fit. It provides a direct, no-frills fix when a missing or damaged fastener lets parts sit loose or rattle. What it does:

• Secures panels, brackets, trim pieces or small components to restore proper alignment
• Stops rattling or vibration caused by a missing or stripped fastener
• Replaces a lost or damaged screw to prevent gaps that collect dirt or cause wear

• Use the screw only where the OEM part specifies; fit before tightening
• Hand-start threads to avoid cross-threading, then tighten snugly—do not overtighten
• Disconnect power to the appliance before working near electrical components
• If threads are damaged or the mating part is stripped, replace the mating hardware

This washer agitator drives the wash action by moving clothes through water and detergent. Replacing a worn, cracked, or slipping agitator restores proper turnover and cleaning performance in compatible top-load machines.

• Oscillates during the wash cycle to move laundry through water and detergent
• Helps circulate and distribute clothes for effective cleaning
• Engages the drive hub; wear can cause slipping or poor agitation
• Helps resolve: no/weak agitation, agitator not moving, poor cleaning results, or visible damage/looseness

• Disconnect power and shut off water before servicing; work inside the washer basket
• Remove the fabric softener dispenser and inner cap, then the agitator retaining bolt; lift the agitator straight up
• Align splines and seat the new agitator fully; reinstall and tighten the retaining bolt, then reinstall the cap/dispenser
• After reassembly, run a short cycle to ensure proper engagement and operation

The Transmission is an OEM part for Frigidaire combination washer/dryer laundry centers. It refers to the primary mechanical component that allows the center agitator or drum to spin during wash and spin cycles.

Located inside the base of the drum housing, the transmission engages via motor pulley action to oscillate or rotate container contents as needed. Smooth operation is critical for balanced spinning that removes excess water without damaging fabrics.

Causes of transmission issues include worn gears from age, lubrication failure, or shifting/linking mechanism damage from excessive loads.

Symptoms of a failing transmission include:

• Excessive vibration or shaking noisily during spin cycles
• Limited or no agitation or rotation of the drum
• Belts continuously slipping off motor pulleys

Replacing with a Frigidaire OEM transmission restores dependable wash and spin cycles. This keeps laundry moving as designed for thorough cleaning results. Compatible with Electrolux, Gibson, Kelvinator, and Kenmore combo units.


This actuator motor drives the washer's brake and clutch to shift the mechanism between wash and spin. Replacing a worn actuator restores proper shifting so the tub agitates and spins at the right times and cycles can complete.

• Actuates the brake and clutch to change between agitation and spin modes
• Positions the shift mechanism via a small geared motor
• Helps the basket start/stop smoothly during cycle transitions
• Common failure symptoms: no spin, no agitate, stuck in one mode, or repeated clicking from the drive area

• Disconnect power before servicing; allow moving parts to stop completely
• Access the actuator near the drive/brake assembly (location varies by model)
• Note linkage and actuator orientation; remove screws and disconnect the harness, then install the new unit the same way
• Reassemble and run a spin and agitation test or your model's diagnostic check to verify shifting

The Suspension is an OEM part for Frigidaire top-loading agitator washing machines. It refers to springs and vibration-dampening mounts underneath the wash tub.

These components absorb mechanical stresses from unbalanced loads and support the heavy rotating assembly without added noise transfer to adjacent surfaces. Keeping tub components properly isolated is important for structural integrity over many years.

Symptoms of a worn suspension include:

• Visible movement and shaking of the entire machine on top of the unit
• Screeching or screeching noises when agitating heavy loads
• Fastener screws backing out or washing tub no longer level

Replacing with Frigidaire OEM suspension parts renews shock absorption to maintain steady cycles and protect connected plumbing. This is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore top load models.


This suspension rod stabilizes the washer tub during wash and spin, absorbing movement to reduce shaking and noise. Replacing a weakened rod restores proper balance and helps prevent banging, off-balance interruptions, and excess wear on other components.

• Supports and centers the tub within the cabinet
• Dampens vibration and tub oscillation during agitation and spin
• Helps prevent the tub from striking the cabinet
• Symptoms of a failing rod can include excessive vibration/shaking, loud banging, "walking," off-balance/UL errors, or wet loads after spin

• Disconnect power and water supply before servicing; wear gloves and eye protection
• Support the tub before removing the rod—spring tension is present
• Access from the top; release the upper retainer, then unhook the lower end from the tub mount
• Install in the same position/orientation as the original; replacing multiple rods together can help maintain balance

This is a replacement screw used to secure appliance panels and components. It provides a direct-fit fastener to restore secure mounting and proper alignment of parts after repair. What it does:

• Secures panels, brackets, trim, or small components to the appliance frame
• Restores proper alignment and prevents rattling or loose parts
• Helps maintain safe, stable operation when used in the intended mounting location
• Works as a direct replacement for the original fastener when the correct PN is specified

• Use the matching screw hole and thread engagement; do not force or cross-thread
• Tighten to snug fit—avoid over-tightening which can strip threads or crack plastic
• If replacing multiple fasteners, use identical part numbers for consistent fit
• Disconnect power and follow appliance safety guidelines before accessing internal parts

The Start Capacitor is an OEM part for Frigidaire combination washer/dryer laundry centers. It refers to an electronic component located within the motor control circuit board.

This capacitor helps initiate drum movement by providing a boost of electrical current to the drive motor during appliance activation or changes in rinse/spin speed. Smooth start-ups and shifts in agitation depend on proper current delivery.

Causes of a bad start capacitor can be cracking of the outer casing from extended duty cycles or voltage fluctuations degrading dielectric plates inside over many years.

Symptoms include:

• Struggling motor that strains excessively to turn the drum
• Cycles failing to advance after starting or resume spinning
• Unsteady or intermittent pulsing agitation noises

Replacing with a Frigidaire OEM capacitor ensures dependable motor torque for each phase of the cycle. Compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.


This small retaining ring secures internal appliance components to keep assemblies aligned and stable during normal operation. It helps maintain proper spacing and prevents parts from shifting or disengaging. What it does:

• Holds shafts, pins or collars in place to keep moving parts aligned
• Prevents components from slipping free or rattling during operation
• Restores secure fit when a worn or missing ring causes abnormal movement
• Simple replacement can stop noise and improve part engagement

• Disconnect power or gas to the appliance before starting any repair
• Handle small parts carefully; keep hardware organized to avoid loss
• Use appropriate pliers or retaining-ring tools for safe removal and installation
• Verify correct fit and orientation before reassembling the appliance

This outer trim cover replaces a worn or damaged cosmetic panel to restore a clean appearance and protect underlying components from dirt and debris. It's a simple, direct replacement that keeps the appliance looking and functioning as intended. What it does:

• Covers and protects internal components and wiring from dust and spills
• Restores the appliance's finished appearance after damage or wear
• Helps maintain proper airflow/clearance around controls or openings
• Prevents accidental contact with underlying fasteners or edges

• One outer trim cover

• Disconnect power to the appliance before attempting any service
• Installation typically requires removal of adjacent trim or fasteners; retain all screws
• Handle cover edges carefully to avoid scratches; use soft cloth if needed
• If any clips or fasteners are damaged, replace them to ensure secure fit

The Off-Balance Switch is an OEM part for Frigidaire washers. This switch is responsible for detecting vibrations and off-balance loads during spin cycles. It plays an important safety role by automatically stopping the machine if it senses excessive shaking that could damage components or cause the unit to walk or move during operation.

Symptoms of a bad off-balance switch include:

• The machine failing to detect off-balance loads and continuing to operate even with shaking
• Frequent trips of the circuit that stops the machine
• Inability to complete higher spin speeds due to sensed imbalance

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement screw secures panels and small components on compatible Frigidaire appliances to restore a tight, rattle-free fit. Use it when factory screws are missing, stripped, or corroded to keep parts aligned and stable. What it does

• Fastens trim, panels, brackets or small assemblies to appliance cabinet or frame
• Helps stop rattling and vibration caused by loose or missing fasteners
• Maintains proper alignment of removable panels and components
• Provides the correct replacement hardware when original screws are damaged or corroded

• Turn power off or unplug the appliance before accessing internal parts.
• Match screw head style and length to the original before installation.
• Start threads by hand to avoid cross-threading; tighten securely but avoid overtightening.
• Keep small parts away from children and dispose of old/stripped fasteners properly.

The  Bracket assembly is an OEM replacement part for Frigidaire washing machines. This bracket assembly contains an arm that detects any out of balance vibrations in the washing tub during the spin cycle. If excess vibrations are sensed, the arm will trip an internal switch to stop the cycle and prevent potential damage.

Symptoms of a bad bracket include:

• Inability to complete high-speed spin cycles
• Premature ending of the spin portion of cycles
• Error codes related to tub imbalance
• Excessive shaking felt in the washer cabinet or surrounding floor area

Causes of failure can be worn or loose mounting points that reduce the arm's sensitivity over time. Constant back-and-forth movement also causes fatigue that impairs the bracket's balance detection capabilities.

This OEM part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This sensor monitors appliance conditions and relays a signal to the control so heating, cooling, or cycle functions occur at the right time. Replacing a failing sensor restores accurate feedback and more reliable operation.

• Detects operating conditions and sends signals to the control board
• Helps regulate heating/cooling output or cycle timing
• Common symptoms of a failed sensor: erratic operation, incorrect readings, cycles that won't start/finish, or related error codes
• Restores proper control feedback when the original is damaged or out of range

• Disconnect power to the appliance before servicing
• Access the sensor per your service manual; note wire colors/orientation and connector locks before removal
• Transfer any mounting clips or brackets from the original if required
• After installation, run diagnostics or verify resistance/continuity per the tech sheet to confirm proper operation

The Pulley Assembly is an OEM part for Frigidaire washers. It connects to the motor shaft and is responsible for transferring power to the washer's drum, allowing it to spin and agitate during the wash cycle.

A bad motor pulley can be caused by wear and tear, damage, or improper alignment. Signs of a faulty pulley include the drum not spinning or agitating properly, excessive noise during operation, or the washer not completing its cycles.

Symptoms of a bad motor pulley include:

• The drum not spinning or agitating during the wash cycle
• Excessive noise coming from the washer
• The washer not completing its cycles

Replace your worn-out or damaged pulley with this genuine OEM part to restore your washer. This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


The Drain Hose is an OEM part for Frigidaire washing machines. It connects the washing machine tub drain to the home's water supply lines, allowing dirty water to be drained away after each cycle. During operation, the drain hose facilitates the emptying of water from the washer once the wash and spin cycles are complete.

Symptoms of a bad drain hose include:

• Water not fully draining from the machine after cycles
• Puddles or leaks observed around the washer
• Blockages in the drain line preventing proper emptying
• Splitting, cracking or collapsing of the drain hose material over time

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This hose/wire clamp secures appliance hoses or wiring to prevent rubbing, chafing and unwanted movement—helping reduce leaks, shorts, and noise from loose lines. Simple, small replacement that restores proper routing and retention. What it does:

• Holds a drain hose, water line or wiring bundle in place at attachment points
• Prevents hoses or wires from rubbing against sharp edges or moving parts
• Reduces risk of leaks, electrical chafing, rubbing noise, and vibration-related wear
• Fits into a mounting tab or hole and snaps or tightens to retain the line

• Disconnect power and shut off water before accessing plumbing or wiring
• Inspect nearby hoses/wires and mounting tabs; replace if damaged
• Position clamp over the hose or bundle and engage onto the mounting tab until secure
• Use appropriate pliers if needed; avoid over-tightening or deforming the hose

The Belt is an OEM part for Frigidaire combination washer/dryer laundry centers. It refers to the elastic overdrive belt that circulates mechanical rotation from the drivetrain motor to the washing tub and drum inside.

Located inside the hidden motor compartment, this V-belt transmits high-torque oscillating or spinning motion through changes in the transmission clutch mechanism. Proper belt tension is critical for engaged operation between motor and drum.

Causes for belt damage or failure include cracks developing over extended use, drying/hardening from heat exposure, or slipping off motor pulleys from stretching or wear over time.

Symptoms include:

• Drum or agitator failing to turn during cycles
• Abnormally loud clanking/squealing noises from inside
• Tripped overload on the motor due to overtaxed movement

Replacing the belt with a Frigidaire OEM part restores smooth power transmission for thorough, dependable cleaning cycles. Compatible with Electrolux, Gibson, Kelvinator, and Kenmore combo laundry units.


This is a flat metal washer used as a load-distributing spacer in appliance assemblies. It helps keep fasteners seated and reduces wear between mating parts for reliable mechanical fit and alignment. What it does

• Distributes load from a nut or bolt to prevent pull-through and improve joint stability
• Maintains proper spacing and alignment of assembled components
• Reduces friction and wear between parts that rotate or clamp together
• Helps prevent fasteners from loosening under vibration or movement

• One flat washer

• Inspect mating surfaces and replace any damaged hardware before installing the washer
• Use the washer with the specified bolt/nut size and torque per manufacturer guidance
• Wear safety glasses and disconnect power to the appliance if working near electrical components

The Nut is an OEM part for Frigidaire washers. It secures the washer's motor in place, ensuring stability and proper functioning during operation.

A bad nut can be caused by wear and tear, damage, or improper installation. Signs of a faulty nut include the motor becoming loose, excessive vibration during operation, or unusual noises coming from the washer.

Symptoms of a bad lock nut include:

• The motor becoming loose or shifting position
• Excessive vibration or shaking of the washer
• Unusual noises coming from the washer

Replace your worn-out or damaged nut with this genuine OEM part to restore your washer. This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


No.8 pan head `10 - 10b x 0.50 `cr/sq drive

This flat washer provides a secure, low-profile spacer between mating parts in the washer assembly to prevent loosening and reduce wear. It restores proper fit and alignment for quieter, more reliable operation. What it does:

• Acts as a spacer and load distributor between fasteners and components
• Helps maintain proper alignment of moving parts to reduce vibration and noise
• Prevents metal-on-metal wear where used in the assembly
• Commonly replaced when worn, bent, or corroded causes looseness or rattling

• Turn off power and water supply to the appliance before beginning any repair
• Replace only with the exact washer size and thickness specified for your model
• Keep hardware and surrounding parts clean; inspect for related wear or damage

This replacement screw fastens appliance panels and components to restore secure fit and reduce movement. It's a direct-fit fastener used where the original mounting screw has become stripped, lost, or damaged. What it does:

• Secures panels, brackets, trim, or small internal components in place
• Stops rattling and vibration caused by loose fasteners
• Replaces a missing or damaged mounting screw to restore proper alignment
• Works where the original factory screw was used for fastening

• Use the correct screwdriver bit to avoid stripping the head
• Do not overtighten; snug until secure to prevent damage to threads or sheet metal
• Disconnect power before working near live electrical components or heating elements
• Keep removed screws organized to ensure correct reinstallation

This seal restores a tight barrier between mating surfaces in your appliance, helping prevent leaks and performance loss. Replace a cracked, flattened, or torn seal to maintain proper containment of air or water and efficient operation.

• Forms a tight air- or water-resistant barrier where specified by the manufacturer
• Helps maintain proper temperatures, airflow, and/or water containment
• Wear or damage can lead to moisture leaks, condensation/frost, or longer run times
• Visible cracks, tears, gaps, or poor sealing are common indicators it's time to replace

• Disconnect power and shut off water before servicing
• Access the sealed area per your model's service manual and remove the old seal
• Clean mating surfaces; seat the new seal fully and evenly in its channel or onto the surface
• Test for proper sealing before returning to service

The Pump Assembly is an OEM component for Frigidaire washing machines. It is responsible for draining wash water from the washer tub at the end of each cycle before refilling with fresh water for rinses.

Symptoms of a bad pump assembly include:

• Incomplete draining of water at the end of cycles
• Standing or pooling water left in the bottom of the tub
• The washer fails to fill or refill with water properly
• Loud grinding or buzzing noises coming from the pump motor area

Causes of a bad pump assembly can be normal wear and tear over time, an obstructed drain line, or issues with the pump housing or impeller.

This genuine Frigidaire washer pump assembly restores efficient drainage and water circulation. This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


This wiring harness connects the refrigerator's control board to key components, restoring reliable electrical pathways so fans, lights, and ice/water systems receive proper signals. Use it to replace damaged or burned wiring that causes intermittent or no operation. What it does

• Routes power and control signals between the control board and components.
• Replaces cracked, frayed, or heat-damaged wires that can cause intermittent operation or component failure.
• Helps resolve symptoms such as lights or fans not running, no ice/water operation, or loss of control communication.
• Restores factory wiring configurations and secure connector fit.

• One complete wiring harness as shown.

• Disconnect power to the appliance before beginning work to avoid shock or damage.
• Verify connectors match and seat fully; do not force connectors into place.
• Route and secure the harness along factory paths; use existing clips and retainers when present.
• Inspect surrounding components for heat or damage that could have caused the harness failure.
