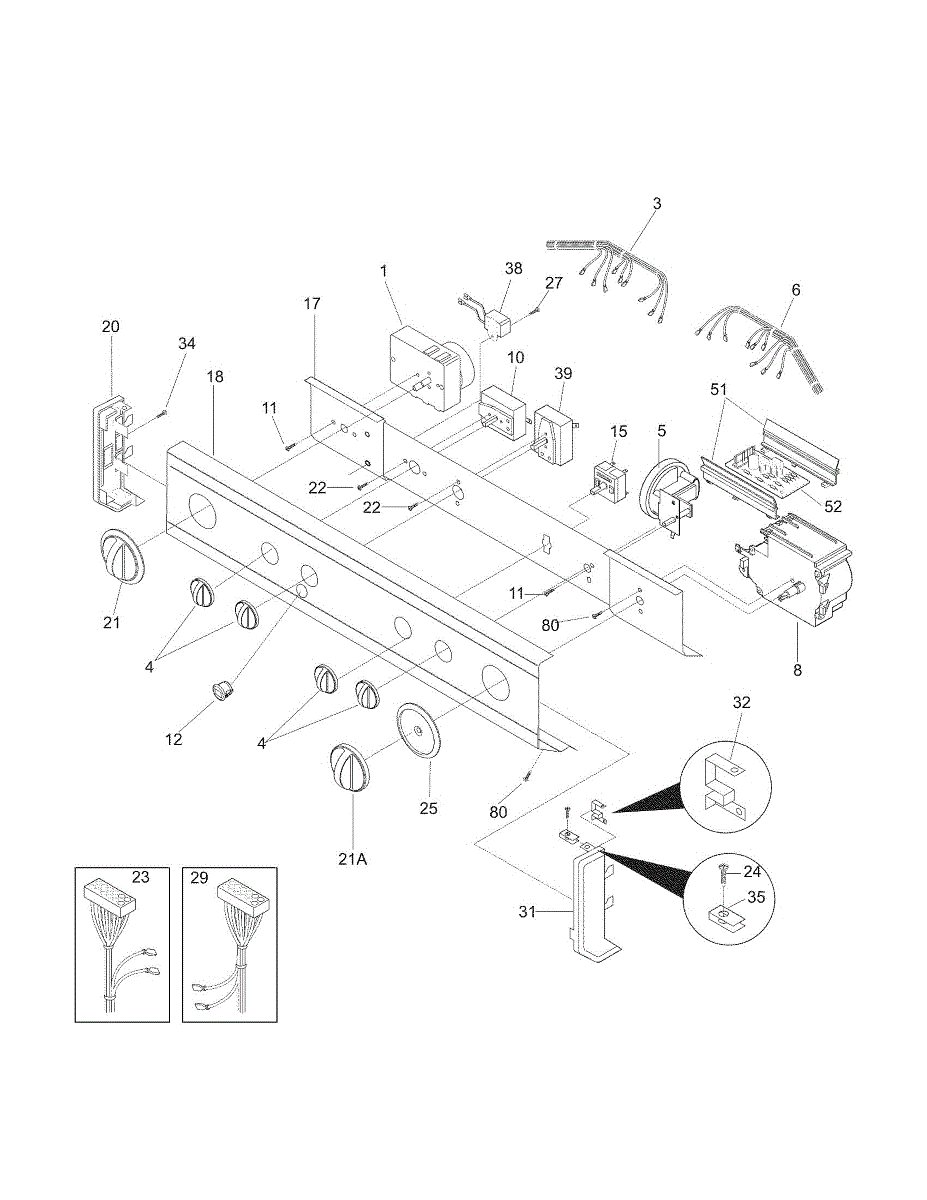

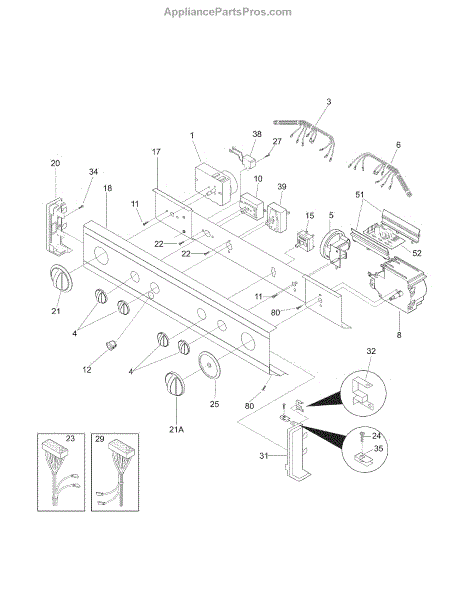

Parts for Kenmore 417.97912704 (41797912704, 417 97912704): Control Panel Parts

Dryer won't turn off or advance cycles? This control timer regulates cycle progression and automatic shutoff. Moderate DIY repair restores timing.

White rotary control knob for washer dryer combo units. Replaces cracked, worn, or missing knobs to restore dial operation and control selection.

Wiring harness for washer dryer combo units. Connects electrical components throughout the machine. Replace if wires are frayed, damaged, or corroded.

If your washer won't drain, stuck on one cycle, or the dial won't advance, the control timer likely failed. Controls wash and dry cycle duration.

The Start Switch is an OEM replacement part for Frigidaire dryers. This part initiates the dryer's cycle once the user selects the desired settings. By pressing the start switch, the motor activates, and the drying process begins, ensuring clothes are dried according to the selected specifications.

Symptoms of a bad Start Switch include:

• The dryer not starting when the switch is pressed
• Intermittent starting issues, where the dryer sometimes starts and sometimes doesn’t
• The need to hold the switch in place to keep the dryer running
• Unusual noises when the switch is pressed

Causes for a malfunctioning Start Switch can include electrical issues, such as faulty wiring or connections, wear and tear from frequent use, or internal failures within the switch mechanism that prevent it from signaling the motor to start.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore dryers.

Secures panels, brackets, and trim on appliances. Replace when missing, stripped, or damaged to restore a tight, rattle-free fit and proper alignment.

This round on/off switch replaces the worn or broken power control on compatible appliances, restoring reliable on/off operation and user control at the front panel. Designed to match OEM fit and function for direct replacement. What it does:

• Provides a simple on/off user control for the appliance's power circuit
• Re-establishes consistent electrical contact when the original switch fails
• Commonly fixes symptoms like no power from the control location, intermittent power, or a switch that won't stay on
• Operates as the primary user-actuated power control for the associated circuit

• One round on/off switch

• Disconnect power to the appliance before testing or replacing the switch to avoid shock
• Verify correct wiring location and connectors before removing the old switch; transfer any wiring harness or connectors exactly
• Handle with care to avoid damage to the switch actuator or mounting tabs

White. Left hand side

Color: white. Measures about 2 inches in Diameter.

The Dryer Timer Knob is an OEM part for Frigidaire dryers. It is responsible for allowing users to set the drying time and cycle selection by turning the timer shaft. The knob securely attaches to the timer and provides an easy way to control dryer settings.

Over time, the timer knob can become damaged due to repeated use, excessive force when turning, or wear on the internal connection points. If the knob becomes stripped, cracked, or no longer stays in place, it may need to be replaced.

Symptoms of a bad timer knob include:

• The knob spins freely without adjusting the timer
• Cracks or breaks in the knob
• Difficulty selecting or changing dryer settings
• The knob does not stay attached to the timer

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Mounting screw secures panels, trim, or brackets in dryers, washers, and ranges. Replace lost, stripped, or corroded screws to restore stability.

This is a replacement mounting screw used to secure appliance panels, brackets, and components. Replacing worn or missing screws restores proper fit and reduces rattles or loose parts for safe, stable operation. What it does:

• Secures panels, brackets, trim, or small components in place
• Helps eliminate rattling, vibration, and loose or misaligned parts
• Restores proper fastening after maintenance or part replacement
• Matches the appliance's original fastener style for correct fit

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct driver bit to avoid stripping the head
• Do not overtighten; snug until secure to prevent thread or component damage

Wiring harness for laundry center and washer dryer combo units. Connects electrical components. Replace if wires are frayed, damaged, or connectors worn.

White. Right hand side

Control board mounting bracket for dryers. Secures the electronic control board to the dryer frame. Replace if bracket is cracked, bent, or missing.

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic

Hex washer head ,10-32 x 0.375. Ground

Dryer won't start or smells like burning? A melted or loose terminal block where the power cord connects is often the cause. Easy 20-minute repair.
