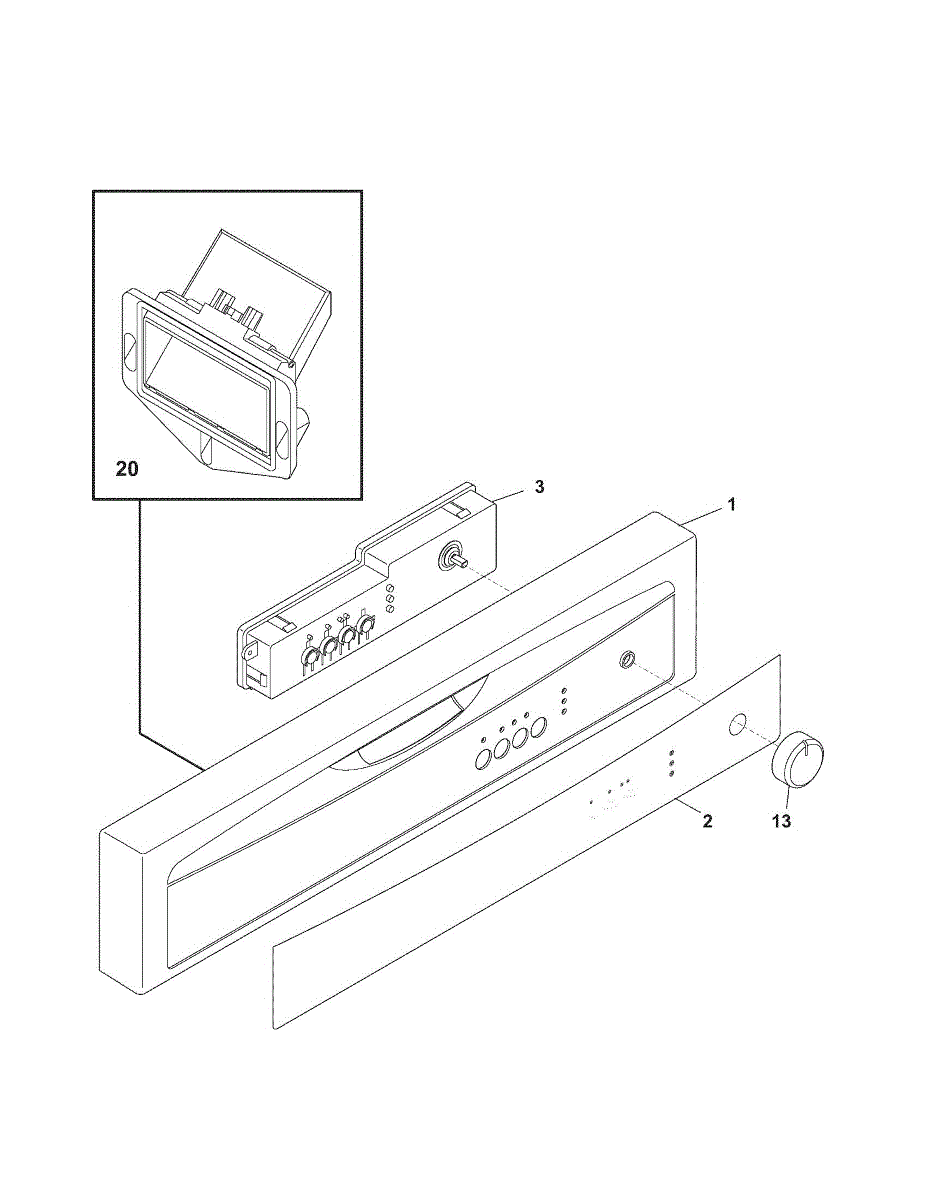

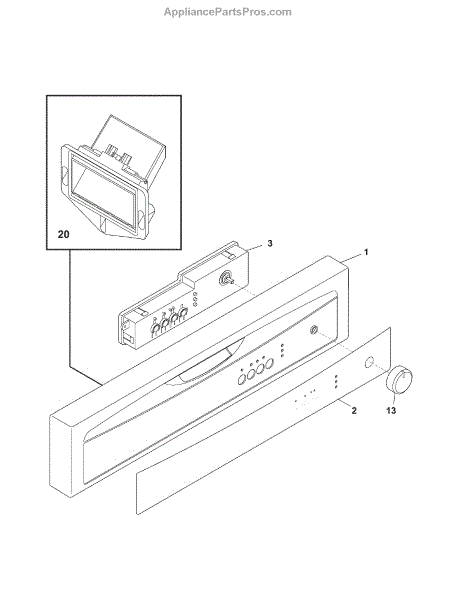

Parts for Kenmore 587.15248700 (58715248700, 587 15248700): Control Panel Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Replace your dishwasher's touch pad control panel if buttons are unresponsive, the overlay is cracked, or the panel shows wear. Restores control interface.

Color: Black

Mounting screw for dishwasher assembly. Secures internal components and panels. Replace if missing, stripped, or corroded during maintenance or repair.

Replacement care guide and operating manual for your dishwasher. Provides setup, usage, and maintenance instructions if original was lost or damaged.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

This repair parts list is a printed parts diagram that helps you identify OEM part locations and reference part numbers for ordering and repairs. It's a quick-reference sheet for technicians and DIYers preparing a fix. What it does:

• Shows exploded views and component locations to help identify the correct replacement parts
• Lists OEM part numbers and item callouts for accurate ordering
• Speeds diagnosis and parts gathering by clarifying where parts fit and connect
• Useful as a visual reference during disassembly and reassembly

• This is a reference document, not a wearable or installable appliance component
• Keep the sheet dry and flat to preserve legibility
• Use the parts list alongside the appliance service manual or schematic for safe repairs

Replacement wire harness for dishwashers. Connects control board to power components. Replace if wires are burned, melted, frayed, or connectors damaged.

Replacement mounting screw for dishwasher panels and internal components. Secures brackets and chassis parts. Replace stripped, missing, or damaged hardware.

This thermistor is the dishwasher's temperature sensor. It reports water temperature to the control so the heater and cycle timing are managed correctly, helping restore reliable wash performance and more consistent drying.

• Monitors water temperature in the tub/sump and sends readings to the control board
• Helps the control regulate heater operation and determine cycle progress/timing
• Failure can result in no heat or poor drying
• May cause unusually long/short cycles or temperature-related fault codes

• Disconnect power at the breaker and shut off the water supply before servicing
• Access is typically from the toe-kick/base area or sump; remove the lower access panel as needed
• Release the locking tab/clip, remove the sensor, and ensure the existing seal/O-ring is properly seated; install the new sensor fully to prevent leaks
• Reconnect the wire harness, restore power, and run a test cycle to check for leaks and proper heating

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
