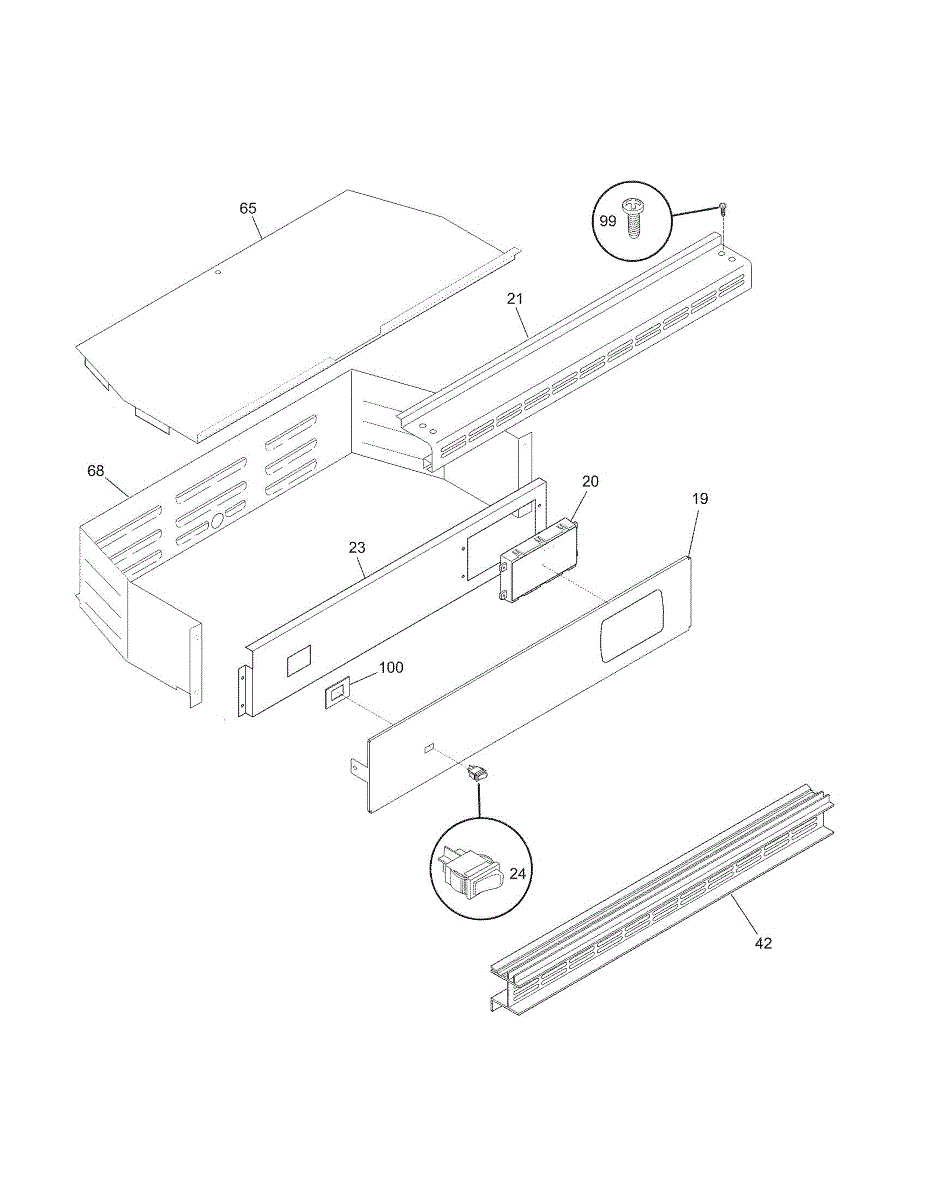

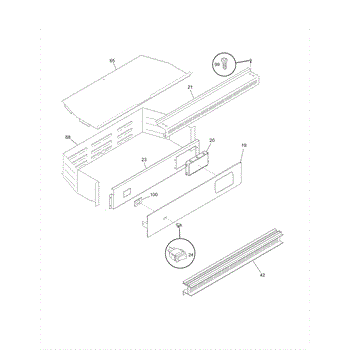

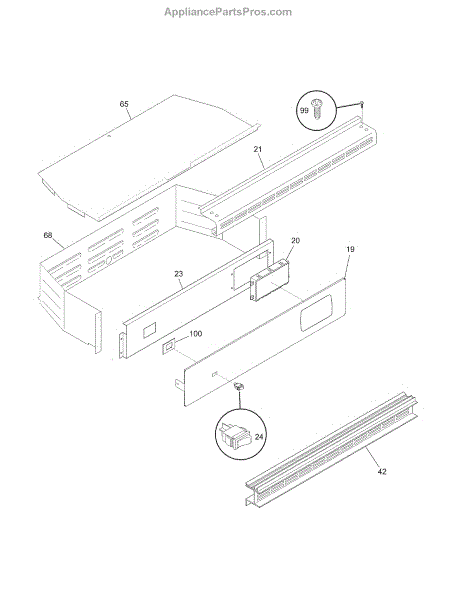

Parts for Kenmore 790.30522802 (79030522802, 790 30522802): Control Panel Parts

The Clock/Timer is an OEM component specially designed for Frigidaire wall ovens. Responsible for keeping time and controlling cook cycle duration, it precisely manages common appliance programs.

Cumulative exposure to high internal oven temperatures causes sensitive integrated circuits to malfunction limiting functionality over the years. Cooking convenience decreases without reliable timekeeping.

Causes involve expected electronic component wear from prolonged elevated heating operating regularly. Impacts pose abrupt risks as well in occasional ovens.

Symptoms of a bad clock/timer include:

• Clock time continually resetting incorrectly
• Inability to set or monitor timed cooking functions
• Errors or malfunctions in automatic programs

Replacing with this OEM Frigidaire clock/timer restores accurate preprogrammed baking capability. Compatibility also fits some Kenmore, Electrolux, and Gibson appliances ensuring time-saving features renew efficiency through authorized repairs. Original components maintain performance quality.

The Control Board with Overlay is an OEM part for Frigidaire wall ovens and ranges. This control board governs all functionality of the oven through electronic programming and user inputs.

Causes of a bad control board can include moisture damage, component failures from power surges or fluctuations over time, and software/firmware issues.

Symptoms of a bad control board include:

• Failures of temperature regulation or heating elements
• Inoperable or unresponsive control knobs and display
• Continuous beeping noises or error codes shown
• The oven failing to begin or complete cooking cycles

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Rocker Switch is an OEM part for Frigidaire ranges and ovens. It is responsible for turning the interior oven light on and off. The light switch allows visibility of the oven cavity for viewing food during the cooking process.

Causes can include normal wear and tear over time, exposure to heat inside the oven cavity, or accidental damage.

Symptoms of a bad oven light rocker switch include:

• The oven light failing to illuminate when the door is opened
• The light remaining on even when the door is closed
• An inconsistent or flickering oven light
• The switch itself becoming loose, cracked, or non-responsive

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Switch Rocker is an OEM part for Frigidaire ranges. This switch is used to control various functions of the range, such as turning on heating elements or activating specific cooking modes. It provides a reliable and straightforward interface for managing the range's features.

You should replace the range switch rocker if it becomes faulty. Causes of a bad switch rocker can include wear and tear from frequent use, exposure to high temperatures, electrical malfunctions, or physical damage from impacts or mishandling. A defective switch rocker can result in unresponsive controls, making it challenging to operate the range effectively.

Symptoms of a bad Range Switch Rocker include:

• The switch not responding when pressed
• Inconsistent or flickering performance of the heating elements
• Physical damage or looseness in the switch
• Intermittent operation or complete failure to activate the desired function

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This repair parts list is a printed parts diagram that helps you identify replacement components and part numbers so you can order the correct items for a repair. It's a reference sheet for locating parts and confirming assemblies. What it does:

• Shows exploded views and part callouts to identify specific components
• Lists OEM part numbers used to confirm correct replacements
• Helps troubleshoot by linking visible parts to common fault areas
• Speeds ordering and communication with service technicians or parts suppliers

• One printed repair parts list / parts diagram

• This is a reference document only — it is not a replacement part or repair tool
• Keep the sheet dry and handle by the edges to avoid smudging or damage
• Use with appliance unplugged/power off and follow all safety guidelines when performing repairs

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This is a replacement mounting screw used to secure panels and components in compatible Frigidaire appliances. It restores proper fit and helps prevent rattles, loose panels, and parts that shift during operation. What it does:

• Fastens trim, panels, brackets, or controls to the appliance frame
• Restores secure attachment to reduce vibration, noise, and movement
• Replaces stripped, missing, or corroded screws that prevent proper assembly
• Works wherever the OEM screw with this part number is specified

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug—do not overtighten to avoid stripping threads or damaging parts
• Keep removed hardware organized and compare parts to the old screw for correct fit
