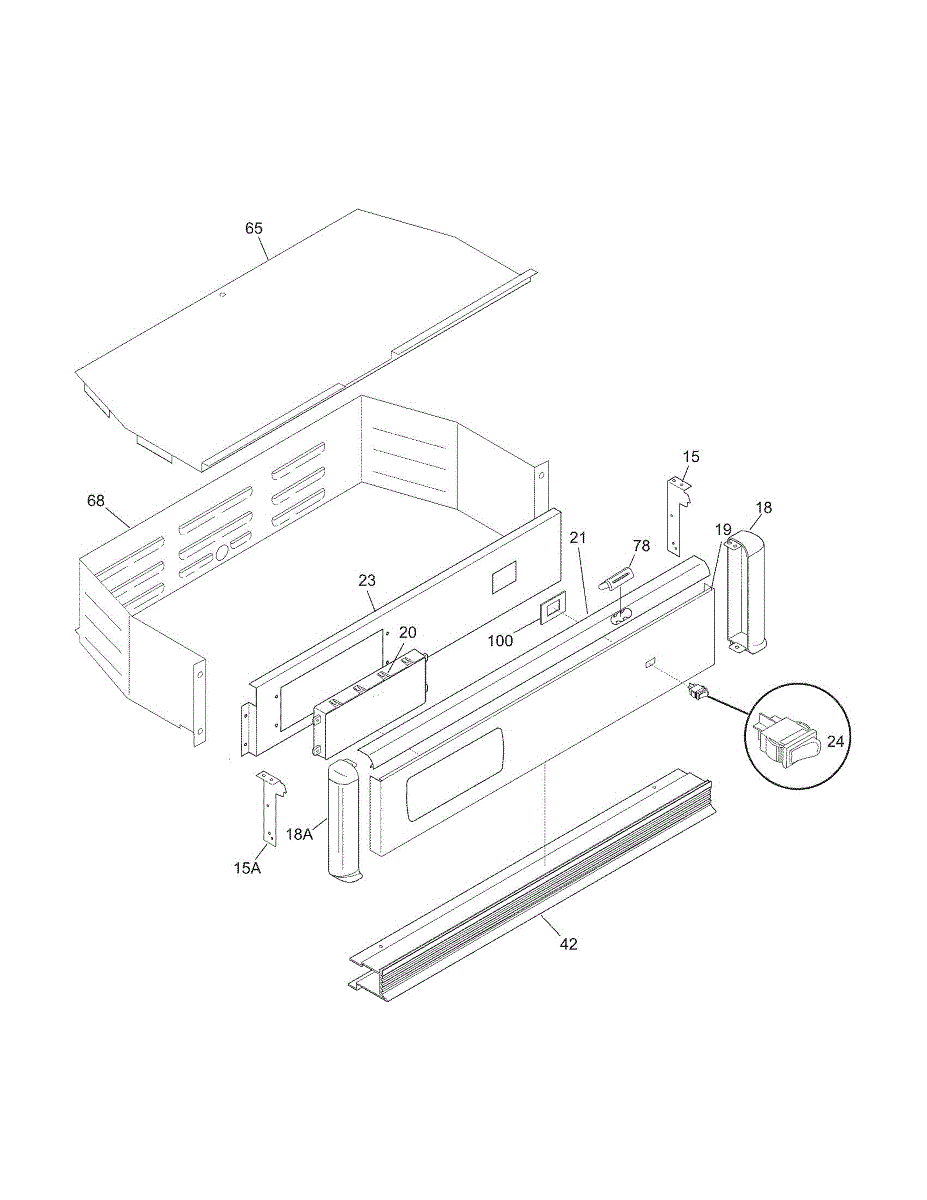

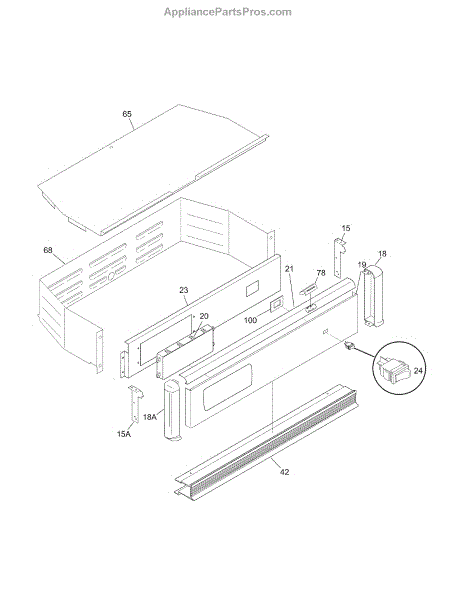

Parts for Kenmore 790.40452800 (79040452800, 790 40452800): Control Panel Parts

Secures the rear control panel to your oven for a stable, flush fit. Replace if the original bracket is bent, broken, or missing to eliminate panel movement.

Left-side backguard support bracket secures the backguard to your oven frame. Replace if bracket is cracked, broken, or missing to restore stability.

These decorative and functional caps cover the exposed ends of oven heating elements or control assemblies, located at element termination points. Replace when caps are cracked, discolored from overheating, or missing, which can expose dangerous electrical connections.

These decorative and functional caps cover the exposed ends of oven heating elements or control assemblies, located at element termination points. Replace when caps are cracked, discolored from overheating, or missing, which can expose dangerous electrical connections.

The main electronic control center that manages all oven functions including temperature regulation, timing, and cooking modes. Mounted behind the control panel, it should be replaced if the oven won't heat, displays error codes, or responds erratically to control inputs.

The oven control board manages all oven functions including temperature control, timing, and heating element operation, typically located behind the front control panel. Replace when the oven won't heat, temperature is inaccurate, or control buttons don't respond.

This electronic control board manages your oven's cooking functions, temperature regulation, and timer operations. It interprets signals from the control panel and activates heating elements, fans, and other components to maintain proper cooking temperatures. Replace this board if your oven won't heat up, displays error messages, or the control buttons don't respond.

Black top trim piece for wall ovens. Covers the gap between the oven and cabinet for a finished look. Replace if cracked, chipped, or missing.

Mounting bracket that secures the clock or timer to your oven's control panel. Replace if cracked, bent, or missing to properly secure the timer assembly.

The Rocker Switch is an OEM part for Frigidaire ranges and ovens. It is responsible for turning the interior oven light on and off. The light switch allows visibility of the oven cavity for viewing food during the cooking process.

Causes can include normal wear and tear over time, exposure to heat inside the oven cavity, or accidental damage.

Symptoms of a bad oven light rocker switch include:

• The oven light failing to illuminate when the door is opened
• The light remaining on even when the door is closed
• An inconsistent or flickering oven light
• The switch itself becoming loose, cracked, or non-responsive

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Switch Rocker is an OEM part for Frigidaire ranges. This switch is used to control various functions of the range, such as turning on heating elements or activating specific cooking modes. It provides a reliable and straightforward interface for managing the range's features.

You should replace the range switch rocker if it becomes faulty. Causes of a bad switch rocker can include wear and tear from frequent use, exposure to high temperatures, electrical malfunctions, or physical damage from impacts or mishandling. A defective switch rocker can result in unresponsive controls, making it challenging to operate the range effectively.

Symptoms of a bad Range Switch Rocker include:

• The switch not responding when pressed
• Inconsistent or flickering performance of the heating elements
• Physical damage or looseness in the switch
• Intermittent operation or complete failure to activate the desired function

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Decorative trim piece for wall ovens. Replaces cracked, chipped, or missing trim around the oven frame. Restores the finished look of your appliance.

Oven housing cover that protects internal components. Replace if yours is cracked, broken, or missing to restore proper enclosure and appearance.

This decorative trim kit restores the finished appearance around the appliance opening, covering gaps and worn edges for a clean, factory-look finish. Ideal when original trim is chipped, dented, or missing. What it does:

• Replaces damaged or missing cosmetic trim to improve appearance
• Covers gaps between the appliance and surrounding cabinetry or fascia
• Helps hold surrounding trim pieces in proper alignment
• Restores a consistent factory finish for resale or upkeep

• Disconnect power and follow the appliance manufacturer's safety instructions before servicing
• Basic hand tools typically required; trim may snap or screw into place per OEM design
• Handle edges carefully to avoid scratching finish; protect work surfaces
• Follow OEM installation instructions for fit and any sealing recommendations

This is an official repair parts list — a parts diagram sheet that helps you identify replacement components and part numbers for appliance repairs. Use it as a reference when diagnosing or ordering parts. What it does:

• Shows the appliance's exploded parts diagram so you can locate and identify individual components
• Lists OEM part numbers and item callouts to simplify ordering the correct replacements
• Helps which part is missing, damaged, or needs service before disassembly
• Useful for technicians and DIYers to parts without trial-and-error

• This is a reference document, not a repair manual; follow appliance service manual instructions for disassembly and repair
• Always disconnect power and, if applicable, water supply before servicing an appliance
• Keep the sheet dry and on-hand while ordering parts to ensure accurate part selection

Oval-head square-drive screw secures interior and exterior oven panels, brackets, and trim. Replace worn, stripped, or missing screws for secure assembly.

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.
