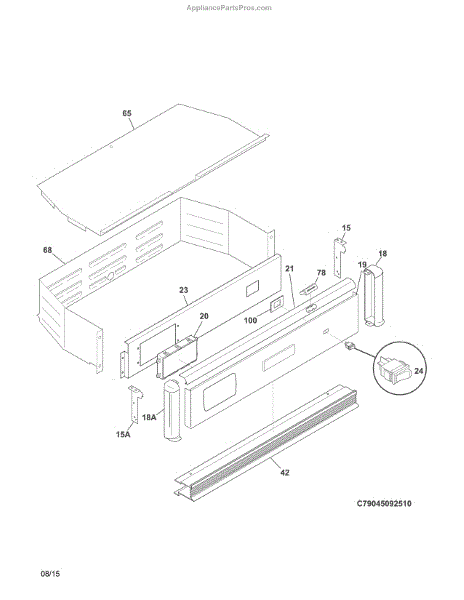

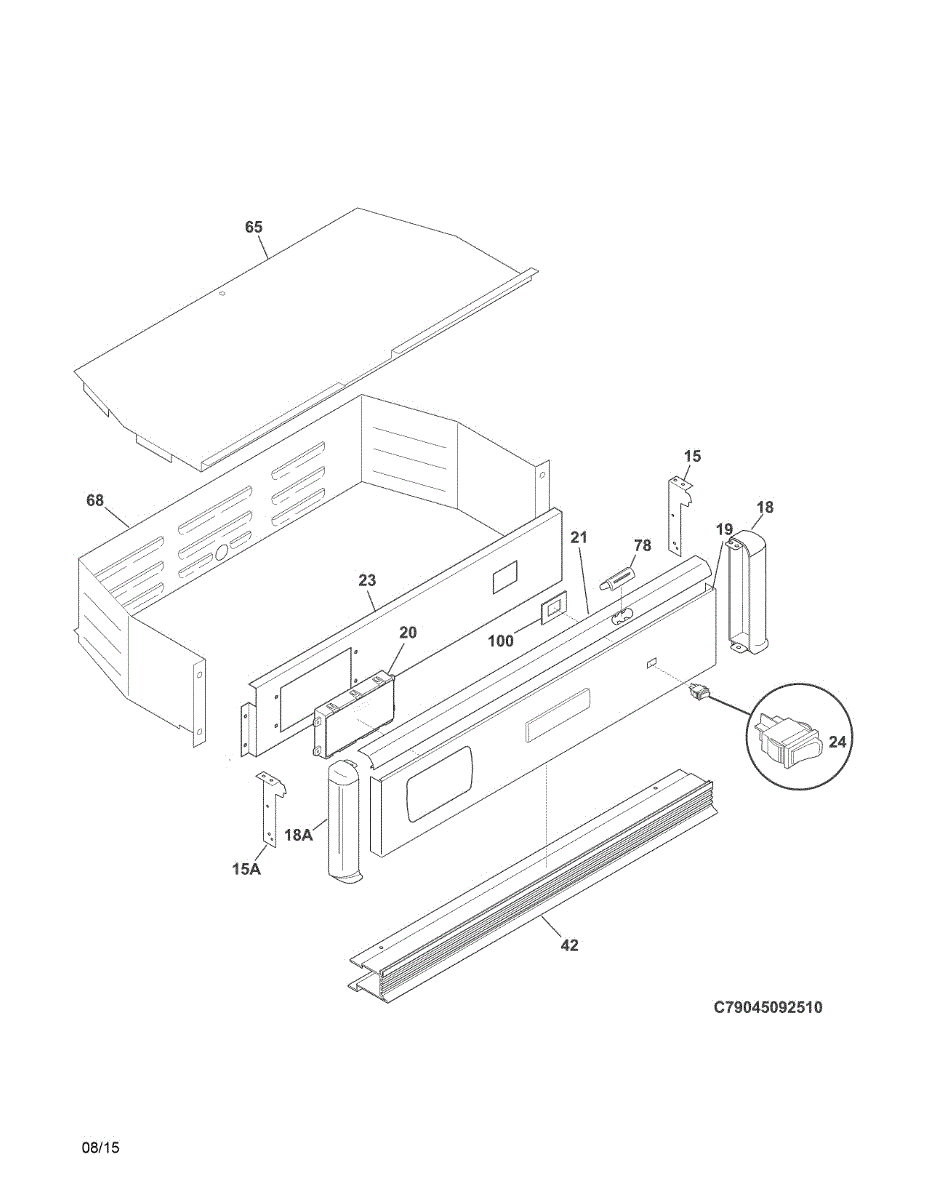

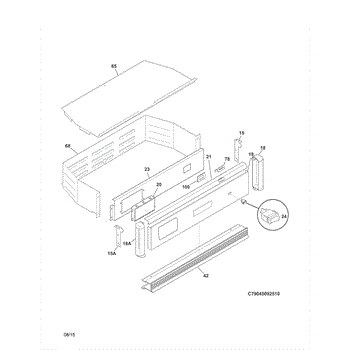

Parts for Kenmore 790.45099510 (79045099510, 790 45099510): Control Panel Parts

This left-side backguard support bracket secures the oven/stove backguard to the range frame, restoring stability and correct alignment. It prevents the backguard from sagging or shifting and helps maintain a safe, finished fit at the rear of the appliance. What it does:

• Supports and anchors the left side of the rear backguard to the range cabinet
• Prevents the backguard from moving, rattling, or sagging during use
• Restores proper alignment so rear panels and controls fit securely
• Common symptom: loose or misaligned backguard or visible gap at the rear

• Disconnect power to the appliance before starting any repair
• Remove the backguard or access panel to reach mounting locations; keep hardware for reinstallation if reusable
• Align the bracket with existing mounting holes and secure using the original fasteners or OEM replacements
• Wear gloves to protect against sharp sheet-metal edges and verify secure fit before restoring power

This clock timer is the oven's electronic control. It powers and times the bake/broil circuits and provides the display and keypad interface. Replacing a failed control can restore reliable oven operation, programming, and accurate clock/timer functions.

• Controls bake and broil relays based on user settings and oven sensor feedback
• Displays time, temperature, and status; accepts keypad commands
• Manages timed functions such as kitchen timer and delay start
• Common symptoms: blank or erratic display, unresponsive buttons, oven won't heat/start, frequent beeping or error codes

• Disconnect power at the breaker before servicing to prevent electrical shock
• Handle the board carefully and avoid static discharge; do not touch components or contacts
• Label or photograph wire connections; transfer connectors one at a time to the new control
• After installation, set the clock and test all oven functions; perform calibration if your model supports it

This genuine OEM part is a clock timer for ovens. The clock timer is the part of the oven that allows the user to set a time for cooking and baking. If the timer buttons are no longer responding to touch or the timer's digital display is no longer visible, it will need to be replaced. Luckily, replacing a timer is a fairly simple repair.To get started, make sure the range is unplugged. Once unplugged, pull the range out and away from the wall to gain access to the upper back panel. Remove the mounting screws to the panel to gain access to the back of the control panel. Locate the timer and proceed to unthread the screws that hold it in place. Once loosened, pull the timer out of its place and install the new timer by threading the mounting screws that secure it to the control panel. Reinstall the upper back panel and restore power to the appliance.This replacement part is sold individually and is compatible with Frigidaire, Electrolux, Gibson, Kelvinator, and Westinghouse brand ovens.

The Rocker Switch is an OEM part for Frigidaire ranges and ovens. It is responsible for turning the interior oven light on and off. The light switch allows visibility of the oven cavity for viewing food during the cooking process.

Causes can include normal wear and tear over time, exposure to heat inside the oven cavity, or accidental damage.

Symptoms of a bad oven light rocker switch include:

• The oven light failing to illuminate when the door is opened
• The light remaining on even when the door is closed
• An inconsistent or flickering oven light
• The switch itself becoming loose, cracked, or non-responsive

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Switch Rocker is an OEM part for Frigidaire ranges. This switch is used to control various functions of the range, such as turning on heating elements or activating specific cooking modes. It provides a reliable and straightforward interface for managing the range's features.

You should replace the range switch rocker if it becomes faulty. Causes of a bad switch rocker can include wear and tear from frequent use, exposure to high temperatures, electrical malfunctions, or physical damage from impacts or mishandling. A defective switch rocker can result in unresponsive controls, making it challenging to operate the range effectively.

Symptoms of a bad Range Switch Rocker include:

• The switch not responding when pressed
• Inconsistent or flickering performance of the heating elements
• Physical damage or looseness in the switch
• Intermittent operation or complete failure to activate the desired function

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

The Overlay is an OEM part for Frigidaire ranges. This component is the interface layer that sits over the control panel, providing labels and markings for the various buttons and controls. It ensures that users can easily identify and operate the range settings.

You should replace the overlay if it becomes damaged or worn out. Causes of a bad overlay can include exposure to high temperatures, frequent cleaning, or general wear and tear, which can cause the labels to fade or peel off.

Symptoms of a bad overlay include:

• Fading or illegible labels
• Peeling or bubbling of the overlay surface
• Difficulty in reading and using the controls accurately
• Physical damage such as cracks or tears

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Range Overlay is an OEM part for Frigidaire ranges. This part serves as a protective and decorative cover for the control panel, providing clear markings for the various buttons and settings. It's essential for ensuring users can accurately select and monitor cooking settings, contributing to the usability and functionality of the range.

Causes of damage to the range overlay can range from excessive cleaning, use of harsh chemicals, to simple wear and tear over time.

Symptoms of a bad Range Overlay include:

• Fading or wear of the markings, making it difficult to read settings.
• Peeling or bubbling of the overlay material.
• Damage or tears that interfere with the function or aesthetics of the control panel.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.
