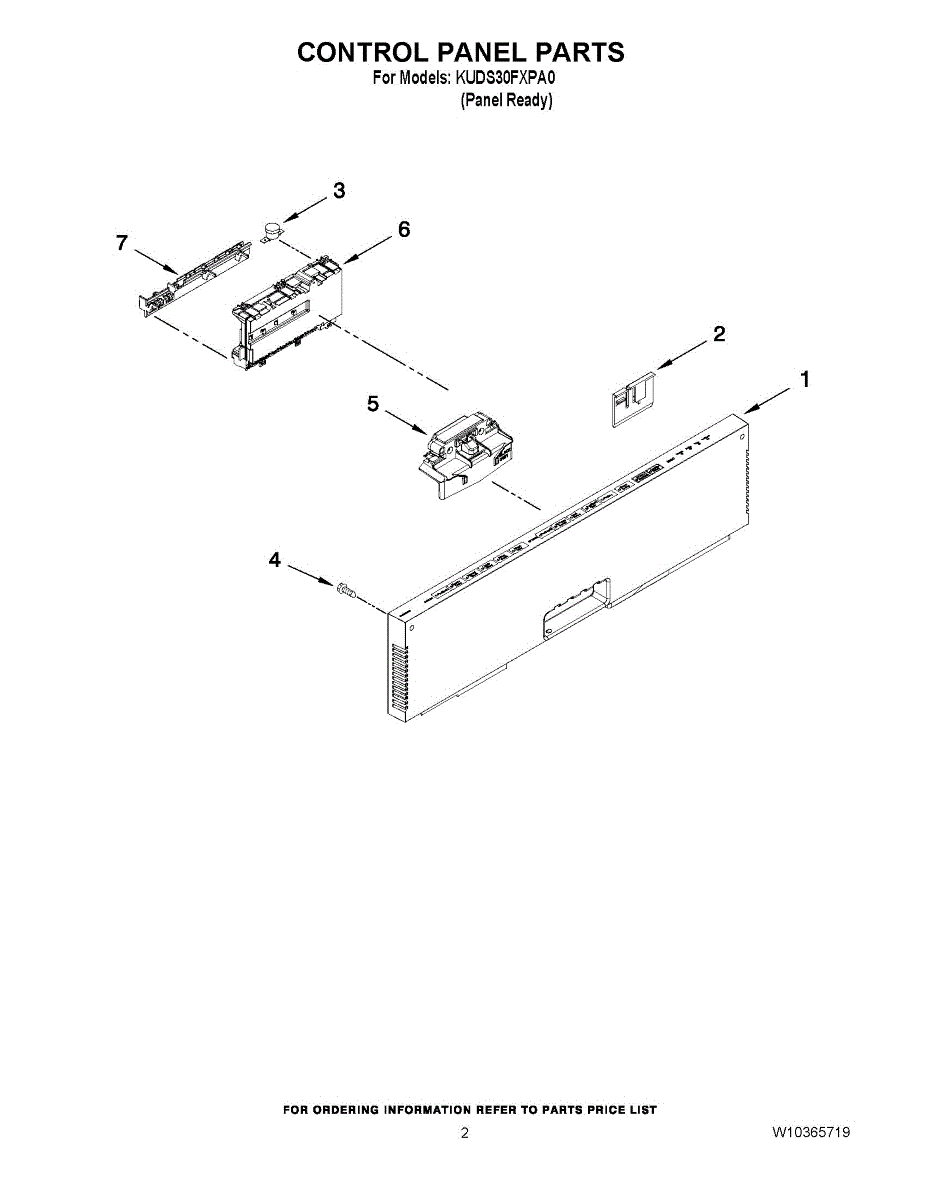

Parts for Kitchenaid KUDS30FXPA0: 02 - Control Panel Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Control panel assembly that houses the user controls and display, restoring control access and readable status information for your appliance. Replaces a failed or damaged front interface so you can select settings and monitor cycles. What it does:

• Provides the appliance's user interface (buttons or touch controls) and display so you can choose cycles and options.
• Shows time, cycle progress, and diagnostic/status messages on the integrated display.
• Fixes symptoms like unresponsive buttons or touchpad, blank or dim display, and controls that don't accept selections.
• Re-establishes proper electrical connection between the user interface and the main control when original panel is damaged.

• Disconnect power (unplug or shut off circuit breaker) before attempting any service.
• Installation typically requires removing exterior trim or screws and unplugging a multi-pin connector—handle connectors gently.
• Avoid touching display lens or keypad surface to prevent damage; reassemble panels carefully to maintain fit and seal.

This small retaining clip secures trim and appliance components to keep panels and assemblies in place, helping prevent rattling and loose parts during use. It's a simple replacement that restores proper fit and alignment. What it does:

• Holds panels, trim, or small assemblies in place to maintain a secure fit
• Prevents rattling, vibration noise, and movement of loose parts
• Replaces broken, bent, or missing clips that allow gaps or misalignment
• Works where a small fastener is needed to secure plastic or metal components

• Disconnect power or unplug the appliance before servicing to avoid shock or injury
• Inspect the mounting area for damage; replace any broken mating tabs or screws for a secure fit
• Installation typically requires basic hand tools such as pliers or a screwdriver; apply steady pressure to snap clip into place

The Fuse Kit is an OEM part for Whirlpool dishwashers. This kit includes a thermal fuse and necessary installation components. The fuse is a safety device that protects the dishwasher from overheating by cutting off electrical power if the temperature gets too high.

You should replace the fuse if it becomes defective. Causes of a bad fuse can include electrical surges, overheating, or age-related wear and tear, all of which can compromise the fuse's ability to function properly.

Symptoms of a bad dishwasher fuse include:

• Dishwasher not starting
• Intermittent operation or sudden shutdowns during cycles
• No power to the control panel
• Error codes indicating a thermal issue

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory screw secures appliance components. It restores a tight, reliable hold when the original hardware is stripped, missing, or corroded—helping prevent vibration and keeping panels and brackets properly aligned.

• Provides threaded fastening for panels, brackets, covers, or internal components
• Replaces worn, rusted, stripped, or missing hardware
• Helps reduce vibration and rattling from loose parts
• Restores proper alignment and a secure fit of attached parts

• Disconnect power; turn off water supply before service
• Note original screw location and retain any spacers or clips for reassembly
• Start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping

The Door Latch Assembly is an OEM part for Whirlpool dishwashers. It ensures a secure latch and seal for the dishwasher door during operation.

Causes of a bad dishwasher door latch assembly can include worn-out or broken latch components, damaged or malfunctioning door switches, or misalignment of the latch mechanism.

Symptoms of a bad Dishwasher Door Latch Assembly include:

• Difficulty in closing or latching the dishwasher door
• The dishwasher not starting or running when the door is closed
• Leaks or water spills around the door area
• Inconsistent or intermittent operation of the dishwasher

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This electronic control board is the dishwasher's main circuit board. It directs wash, drain, and dry functions and coordinates the user interface. Replacing a failed board restores responsive controls and reliable, complete cycles.

• Times and sequences wash, drain, and dry operations
• Distributes power to the circulation pump, drain pump, inlet valve, and heating circuit
• Monitors sensors and door switch; communicates with the display/indicator lights
• Common symptoms: won't start, unresponsive controls, cycles that stall or never advance, blinking lights or error codes

• Disconnect power at the breaker before servicing; verify no voltage is present
• Use ESD protection and handle the board by its edges
• Label/photograph connectors; transfer any mounting brackets or jumpers from the original board
• Some models require configuration/programming after install—follow the tech sheet stored inside the unit

This brace connector secures a support brace inside the appliance to help keep internal panels and assemblies aligned and stable. Replacing a worn or damaged connector restores proper support and reduces noise and movement. What it does:

• Fastens and stabilizes an internal support brace or frame
• Prevents panel or assembly movement that can cause vibration or rattling
• Helps maintain proper alignment of connected components
• Replaces broken or corroded connector hardware to restore secure mounting

• One brace connector

• Disconnect power (and gas, if applicable) before starting any repair
• Access may require removing outer or control panels; save existing fasteners for reuse
• Use basic hand tools; avoid overtightening to prevent cracking plastic or bending metal
• Inspect and replace as needed
