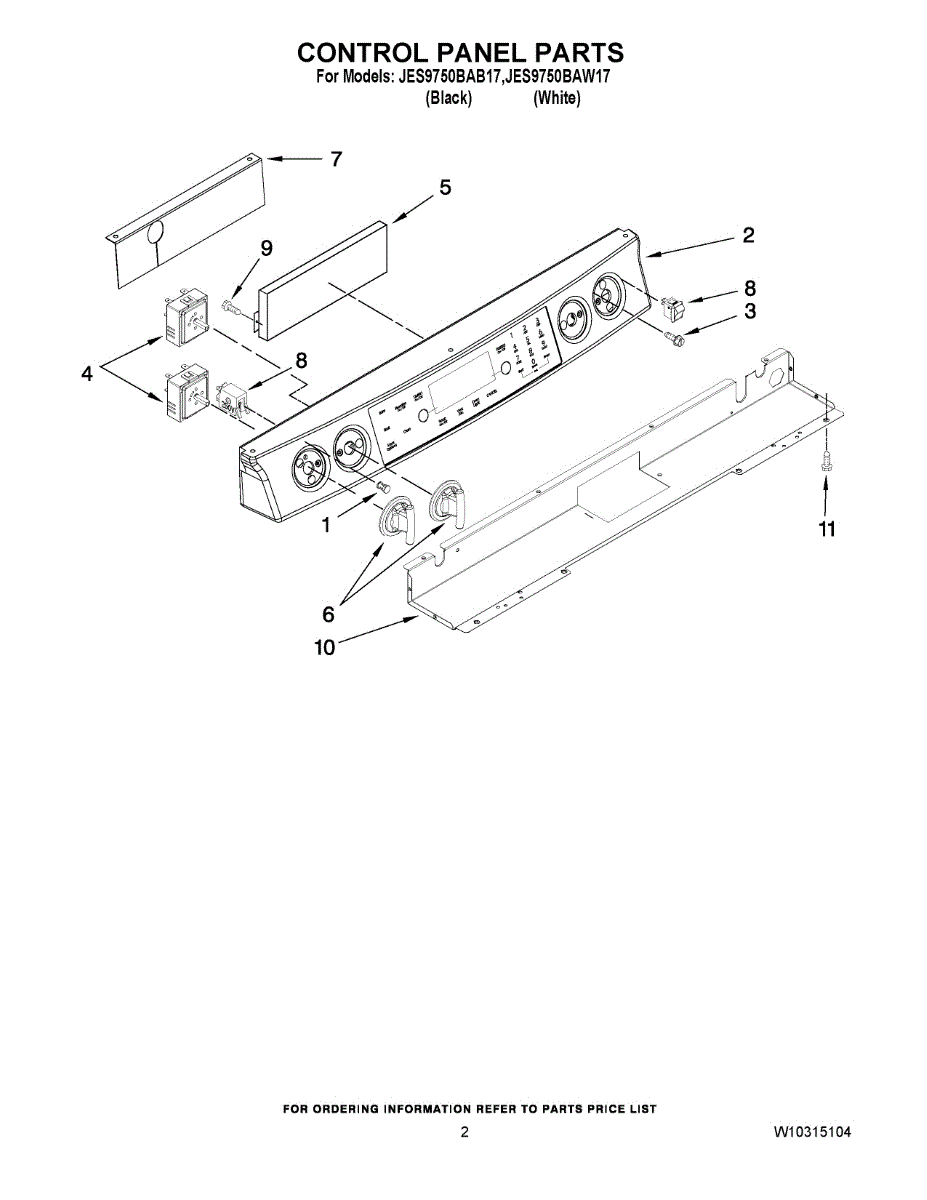

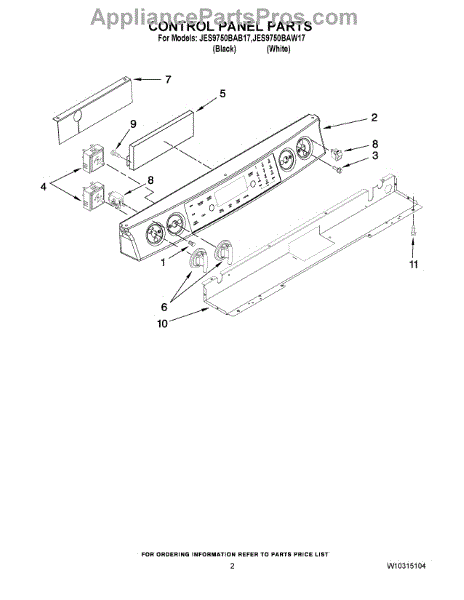

Parts for Maytag JES9750BAW17: 02 - Control Panel Parts

To order indicator light use WP903115.

This part is a control panel for Whirlpool stovetops and ovens. The control panel houses all the buttons the user will need to set the oven function, temperature, timers, and the clock. It also monitors and manages stovetop and oven functionality. Physical impacts, liquid spills, exposure to high heat, and other factors can damage the exterior controls or the interior circuit board.Signs that the oven control panel might be failing include erroneous operations, inoperable controls, and the oven or stovetop not functioning. The control panel cannot be repaired and will need to be replaced. Users will need to first cut the power, and then remove the shroud/cowl that protects the control panel to locate the mounting screws. Remove the mounting screws, disconnect the wiring, and install the new control board.This genuine OEM part is sold individually and is designed to work with Whirlpool and Jenn-Air ovens.

This replacement screw secures appliance panels and components to restore proper fit and prevent rattling or movement. It's a direct-fit fastening part used where the original OEM screw is specified. What it does:

• Secures trim, access panels, or internal components to maintain structural fit
• Prevents vibration noise and loose parts by holding assemblies firmly
• Matches OEM fit and threading for correct engagement when used in original locations
• Intended for repairs that require the exact replacement fastener

• Disconnect power and unplug the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; avoid over-tightening which can strip threads or crack plastic

This infinite switch controls the power level to a surface burner on an electric range or cooktop, allowing smooth, variable heat settings. Replacing a failed switch restores precise temperature control and reliable burner shutoff.

• Regulates power cycling to a surface element for low, medium, and high heat levels
• Common failure symptoms: burner won't heat, only heats on high, won't turn off, or fluctuates/uneven heat
• Mounts behind the control knob and controls a single surface burner
• Restores consistent heat selection and responsive knob control

• Disconnect power at the breaker before servicing
• Pull off the knob and access the switch from the control panel
• Note wire positions or take a photo; transfer wires one at a time to the new switch
• Secure the switch, reinstall panels/knob, and test burner operation

This electronic control board manages the appliance's key functions and user interface. Replacing a failed board restores proper operation, responsive controls, and accurate timing/temperature so cooking cycles start, run, and finish as intended. What it does

• Controls heating outputs and other loads based on selected settings
• Monitors sensor inputs to regulate temperature and timing
• Drives the display and interprets keypad inputs from the control panel
• Common symptoms: won't start or heat, blank/unresponsive display, error codes/beeping, erratic temperature or cycle behavior

• 1 electronic control board

• Disconnect power at the breaker before servicing; verify no voltage is present
• Use ESD precautions and handle the board by its edges
• Access the board behind the control panel; photo wire locations, then move connectors one at a time and reuse mounting hardware
• Restore power and run a test cycle; perform control/temperature calibration if your model supports it

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This indicator light installs in the control panel and illuminates when its corresponding function is active. Replace a failed lamp to restore clear status indication, so you can see at a glance when the appliance is operating.

• Lights to indicate a selected function is on (e.g., surface units or oven circuits—varies by model)
• Provides visual confirmation of appliance status during use
• Common symptoms: light will not turn on, stays on constantly, flickers, or the lens is damaged
• Restores proper visual feedback when controls are engaged

• Disconnect power at the breaker before servicing; allow the appliance to cool
• Access the console/control panel and remove the rear cover as needed
• Note wire positions; transfer leads to the new light and secure it in the panel opening
• Reassemble and restore power to test operation

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
