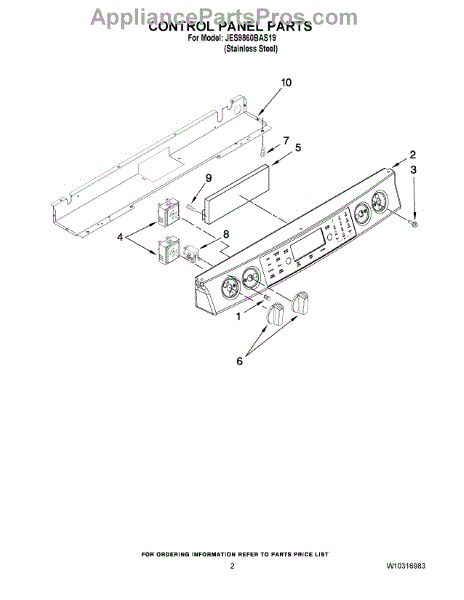

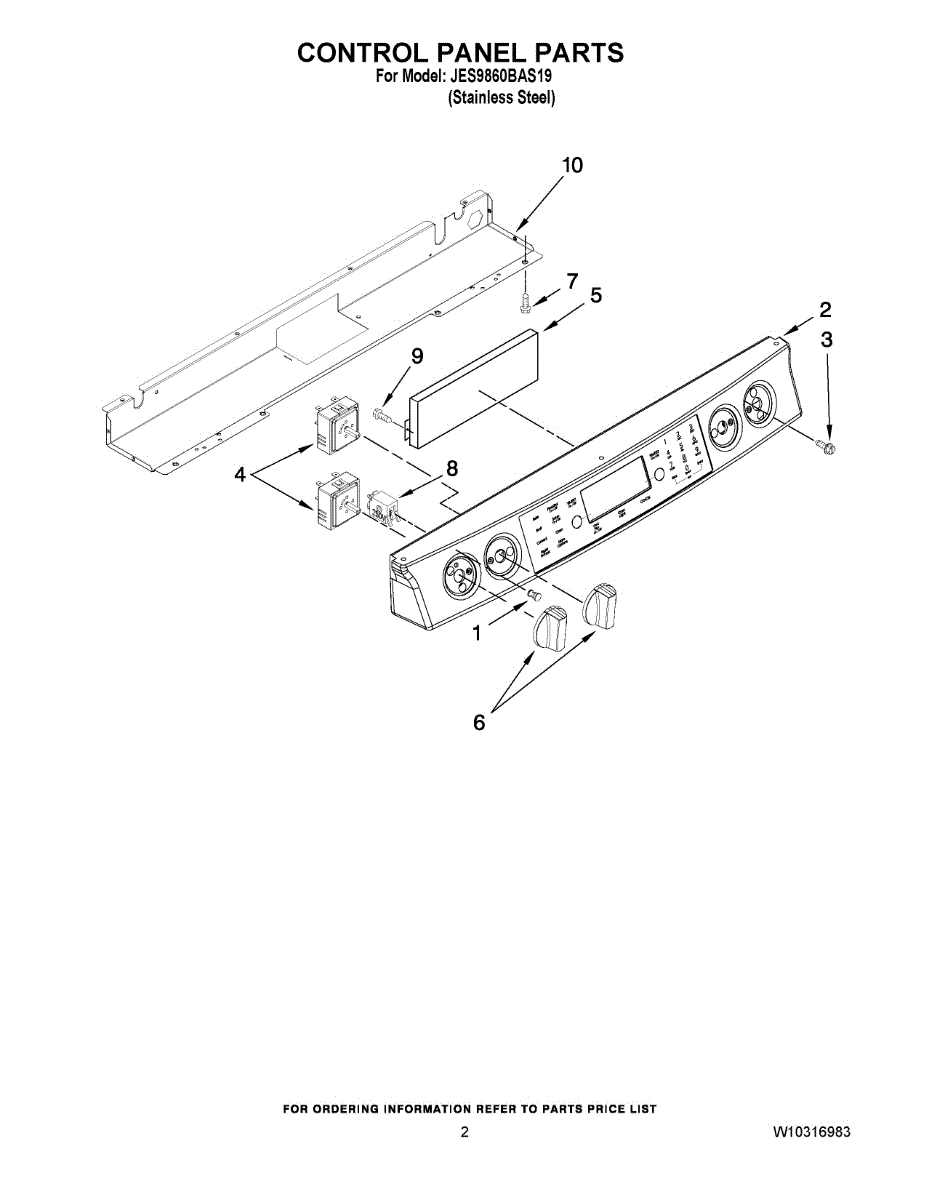

Parts for Maytag JES9860BAS19: 02 - Control Panel Parts

To order indicator light use WP903115.

This control panel assembly is the front console that houses the oven/range user interface and display, restoring visible controls and user input so you can select cycles, set temperatures, and monitor settings. What it does

• Contains the control interface (buttons/touchpad and display) used to select functions, temperatures and timers.
• Re-establishes visible feedback and input when buttons are unresponsive or the display is blank or flickering.
• Helps restore control of oven/range functions when the console is cracked, damaged, or failing.
• Works as the direct replacement for the damaged or nonworking control console to return normal user operation.

• Disconnect power at the breaker or unplug the appliance before starting—electrical shock hazard.
• Handle the display and trim carefully to avoid damage; some wiring harnesses or connectors must be disconnected and reattached.
• Keep track of screws and retainers; a basic screwdriver set is usually required.

This replacement screw secures appliance panels and components to restore proper fit and prevent rattling or movement. It's a direct-fit fastening part used where the original OEM screw is specified. What it does:

• Secures trim, access panels, or internal components to maintain structural fit
• Prevents vibration noise and loose parts by holding assemblies firmly
• Matches OEM fit and threading for correct engagement when used in original locations
• Intended for repairs that require the exact replacement fastener

• Disconnect power and unplug the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; avoid over-tightening which can strip threads or crack plastic

This infinite switch controls the power level to a surface burner on an electric range or cooktop, allowing smooth, variable heat settings. Replacing a failed switch restores precise temperature control and reliable burner shutoff.

• Regulates power cycling to a surface element for low, medium, and high heat levels
• Common failure symptoms: burner won't heat, only heats on high, won't turn off, or fluctuates/uneven heat
• Mounts behind the control knob and controls a single surface burner
• Restores consistent heat selection and responsive knob control

• Disconnect power at the breaker before servicing
• Pull off the knob and access the switch from the control panel
• Note wire positions or take a photo; transfer wires one at a time to the new switch
• Secure the switch, reinstall panels/knob, and test burner operation

This electronic clock control helps manage and monitor the features on an oven. This part is located on the front of the oven so the user can easily see the clock and start and stop times for cooking. The display can also show error codes if one of the oven parts is not working correctly. If this part is damaged, cooking may take longer, overheating may occur, or the foods may come out unevenly cooked.Replacing the part is simple and requires only a Phillips screwdriver. Disconnect the oven from power or turn off the appropriate breaker box. Open the door and access the bottom of the control panel assembly. Remove the screws and lift up on the electronic clock control to unhook it from the appliance. Unplug the wire harnesses before removing the clock. Attach the new part to the wires and screw it into the oven.This electronic clock control is made for use as a genuine OEM replacement part for Jenn Air ovens. It is sold on an individual basis and comes directly sourced from the manufacturer. This part is offered as an individual component.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This indicator light installs in the control panel and illuminates when its corresponding function is active. Replace a failed lamp to restore clear status indication, so you can see at a glance when the appliance is operating.

• Lights to indicate a selected function is on (e.g., surface units or oven circuits—varies by model)
• Provides visual confirmation of appliance status during use
• Common symptoms: light will not turn on, stays on constantly, flickers, or the lens is damaged
• Restores proper visual feedback when controls are engaged

• Disconnect power at the breaker before servicing; allow the appliance to cool
• Access the console/control panel and remove the rear cover as needed
• Note wire positions; transfer leads to the new light and secure it in the panel opening
• Reassemble and restore power to test operation

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold
