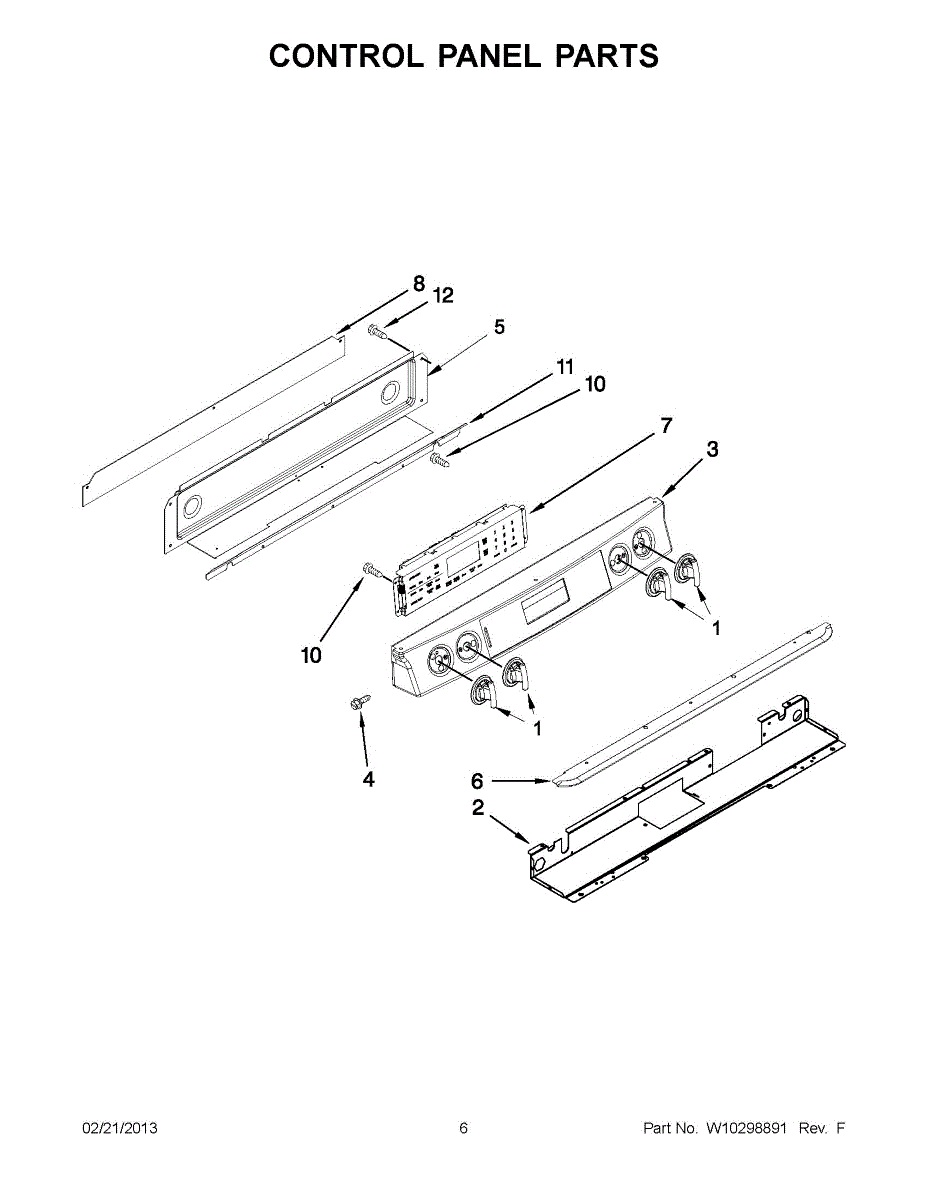

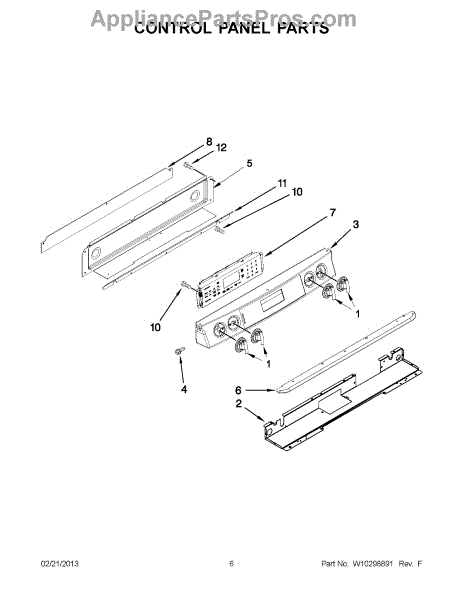

Parts for Maytag JGS9900BDB15: 03 - Control Panel Parts

This control panel and touchpad is for an oven. It provides users with the means to control the oven and stove top. By using the touchpad, users are able to set the oven function and temperature, adjust the timer, check the clock, and more. The panel also houses (but does not include) the knobs to control the stove's burners. This is a front-mounted control panel rather than side or rear-mounted.The control panel can be damaged in several ways. The most common is hot liquid spilled on or near the touchpad. The touchpad will also eventually wear out over time through normal use. With a damaged touchpad, controlling the oven will be difficult or impossible. To replace the control panel, unplug the stove, then remove the burner knobs. Remove the mounting screws and pry the panel loose. Disconnect the wiring and then install the new panel.This is a genuine OEM replacement part. It is sold individually. It fits Whirlpool and Jenn-Air ovens.

Color: Black. For biscuit order 98008169. For white order WP98008544.

This electronic control board manages the oven's user interface and heating functions. It processes keypad inputs, controls the display, and switches bake/broil circuits so cooking cycles start, regulate temperature, and complete reliably.

• Interprets keypad/selector inputs to run oven functions and timed cycles
• Switches bake and broil circuits via onboard relays to reach and hold set temperature
• Operates the clock, timer, and status/error display
• Typical symptoms of a failed board: no heat, temperature swings, unresponsive controls, blank/flickering display, beeping or error codes

• Disconnect power at the breaker before servicing; oven controls carry live voltage
• Use ESD protection and handle the board by the edges to avoid static damage
• Note/photograph wire locations; transfer any model-specific overlay, brackets, or harnesses from the original control as needed
• Restore power and run a test bake to ensure proper heating and display operation

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.
