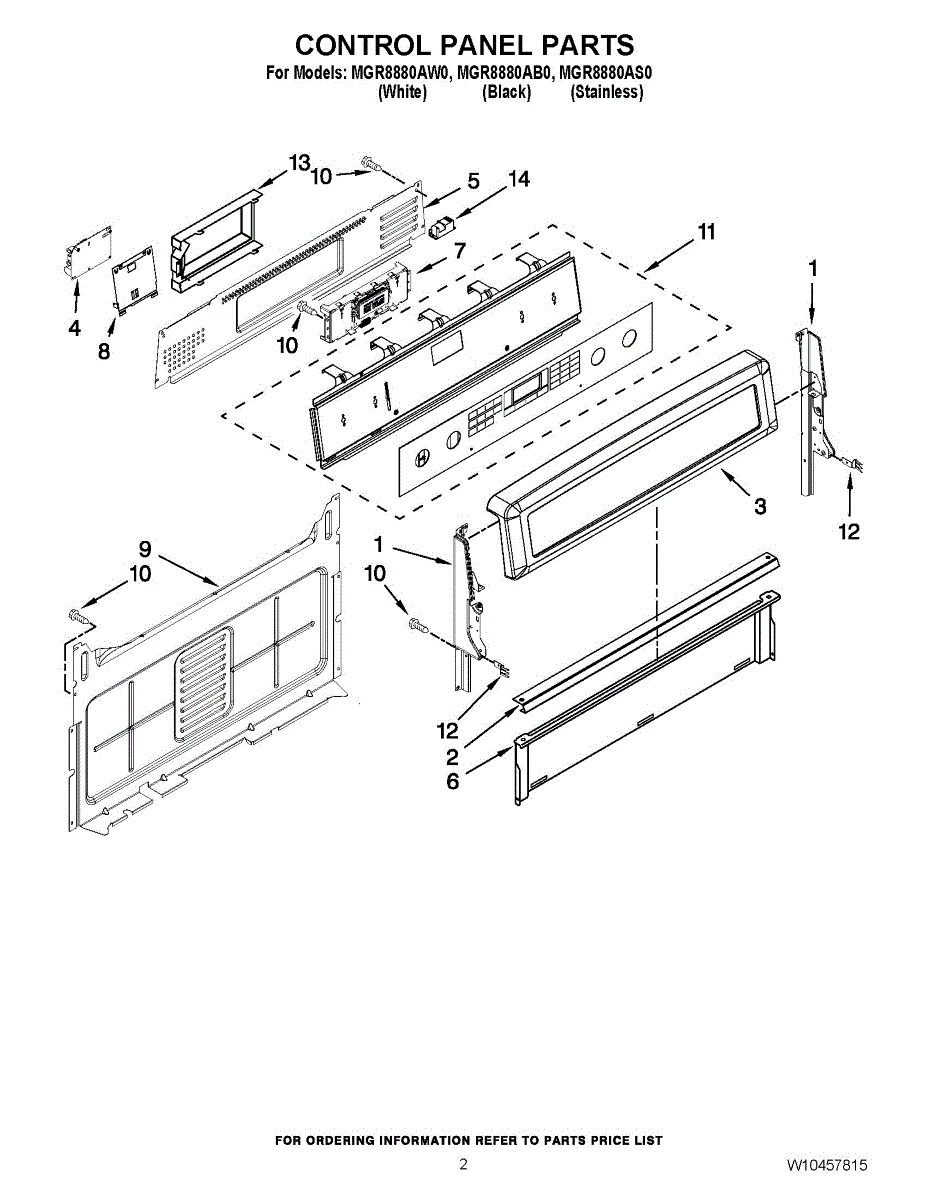

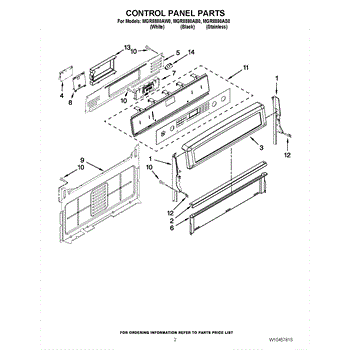

Parts for Maytag MGR8880AB0: 02 - Control Panel Parts

Color: White  Note: Left side endcap

Color: Black   Note: Left side endcap

Color: Black   Note: Right side endcap

Color: White  Note: Right side endcap

Color: White

Color: Black

Color: Stainless

The Spark Module is an OEM replacement part for Whirlpool ranges. It is an electrical component that generates the spark needed to ignite the gas burners. By sparking consistently and reliably, the module allows the cooktop burners to ignite with each use.

Causes of a bad spark module can include normal wear and tear over time, exposure to moisture or residue, or issues with the electronic components that produce the spark.

Symptoms of a bad spark module include:

• Burners that will not ignite or light consistently
• Burners that ignite but then immediately go out
• Only some of the burners lighting while others do not
• A clicking sound coming from the ignitors but no visible spark

Note: For harness from spark module to igniters use part number 9756892.

This OEM Whirlpool replacement spark module is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This heat shield protects oven or range components from direct heat, helping prevent damage to nearby panels and wiring. It's a direct-replacement exterior shield used when existing metal shields are warped, cracked, or missing. What it does:

• Diverts and dissipates heat away from control panels, insulation, or adjacent components
• Helps stop heat-related discoloration, warping, or premature wear of nearby parts
• Restores proper clearance and airflow around the oven cavity after shield damage
• Commonly replaced when you see scorched areas, melted trim, or gaps where a shield once sat

• One heat shield (exact shape and mounting holes as shown in OEM diagram)

• Disconnect electrical power (and gas, if applicable) before starting any repair
• Remove oven racks and any trim panels to access the shield; keep track of fasteners
• Compare the replacement to the removed part to confirm fit before fastening
• If mounting hardware is damaged or missing, procure correct OEM fasteners — only the shield is guaranteed to ship

This electronic control board manages oven functions and the user interface so your range heats and times cycles correctly. It replaces a faulty control to restore consistent oven operation and display feedback. What it does:

• Controls bake, broil and timed cooking cycles and maintains oven temperature regulation
• Manages front display and touchpad inputs for setting modes and timers
• Sends control signals to igniter and gas valve circuits
• Helps resolve symptoms like unresponsive controls, incorrect cycle behavior, or erratic display/readouts

• Disconnect power and shut off gas supply before starting any repair.
• Handle the new board carefully; avoid touching components and use anti-static precautions if available.
• Verify connectors and mounting orientation match before final installation.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This red indicator light lens covers the control-panel light opening. It restores a clean, finished look and keeps the status light easy to see while helping protect the opening from debris and accidental contact.

• Covers and diffuses the indicator light for clear visibility
• Fills the control panel opening for a finished, factory appearance
• Helps shield the opening from dust, splashes, and contact
• Common fixes: cracked, missing, loose, or discolored indicator lens

• Disconnect power by unplugging the appliance or switching off the breaker before servicing
• Access the control panel/backguard per your model's instructions
• Release the old lens (tabs/retainer) and press the new lens into the opening until fully seated
• Restore power and verify the indicator light is visible through the lens
