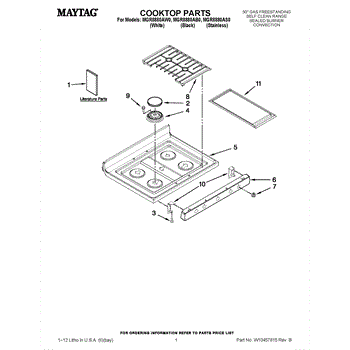

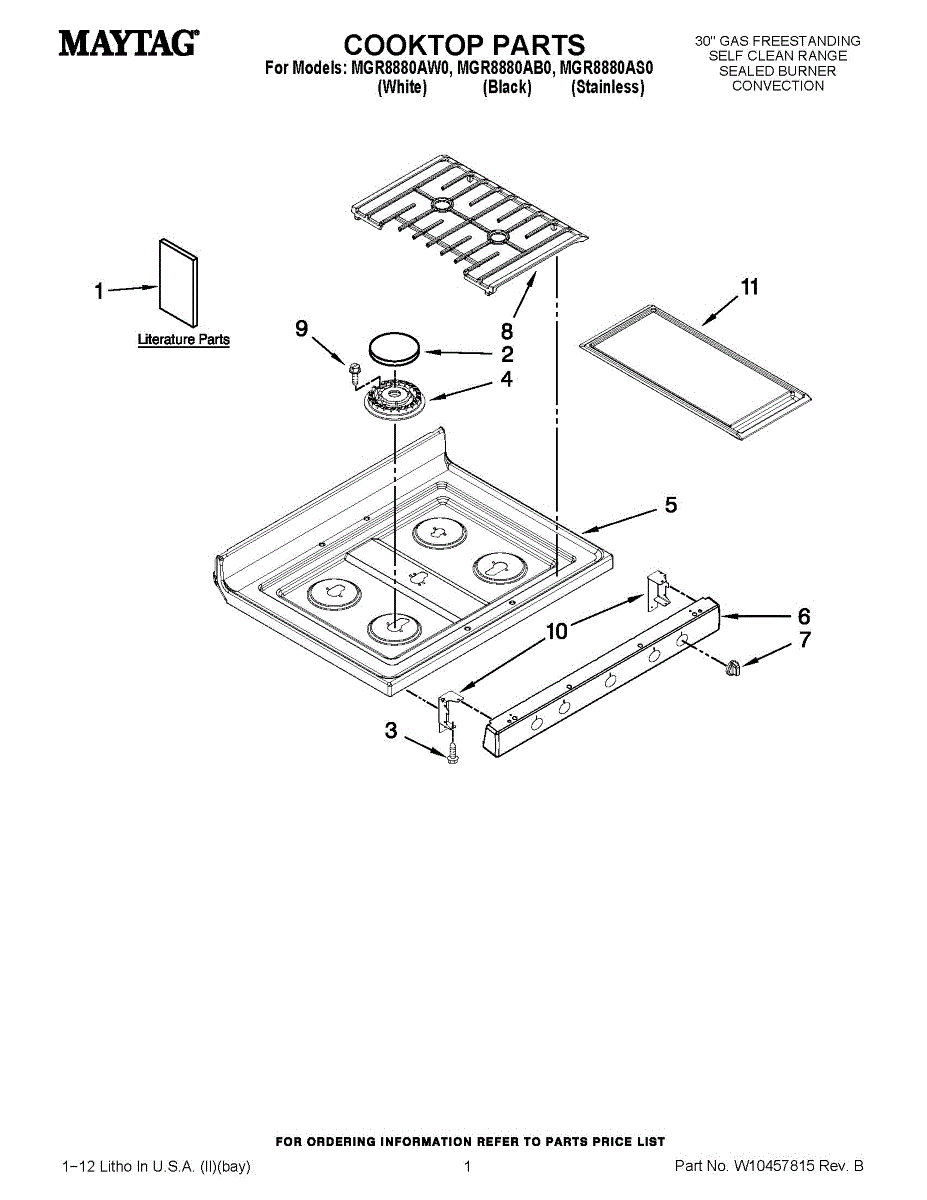

Parts for Maytag MGR8880AB0: 01 - Cooktop Parts

Color: Black. Kit includes five burner caps. For the burner cap kit in grey use part number WPW10183372.

This factory screw secures panels, brackets, or trim within your appliance. Replacing a missing or stripped fastener restores a tight fit, reduces vibration and rattles, and helps keep components aligned for reliable, long-term performance.

• Fastens panels, brackets, or trim to the appliance cabinet/frame
• Replaces damaged, rusted, or missing hardware
• Helps eliminate vibration noises, gaps, and loose-fitting parts
• Supports proper alignment of adjoining components

• Disconnect power; turn off gas/water supplies where applicable.
• Match to the original screw from your model's parts diagram before installation.
• Start threads by hand to avoid cross-threading; use the correct driver bit for the head.
• Tighten snugly—do not overtighten to prevent stripping threads or cracking plastic bosses.

This gas surface burner head sits on the burner base and channels gas through precision ports for quick ignition and an even flame. Replacing a worn or clogged head helps restore reliable lighting and consistent heat.

• Distributes gas from the burner base to the flame ports for even flame patterns
• Interfaces with the spark electrode to enable ignition
• Helps maintain proper flame shape and heat output
• Common symptoms include burner won't light, weak/uneven or yellow flames, delayed ignition, or continuous clicking

• Disconnect power and shut off the gas supply before servicing
• Remove grate and burner cap; lift the old burner head off the base
• Clean the burner base and electrode area; align the new head with locator pins and the electrode opening, then seat fully
• Reinstall cap and grate; restore gas/power and test ignition and flame

This auxiliary surface burner head mounts over the orifice on your gas cooktop/range and distributes gas through precision ports for an even flame. Replacing a clogged or damaged head restores fast ignition and consistent heat on the small burner. What it does:

• Distributes gas through ports to produce a stable, even flame on the auxiliary burner
• Interfaces with the igniter electrode for quick, reliable lighting
• Common symptoms of a worn/clogged head: burner won't ignite or clicks without lighting; weak, uneven, or yellow flame; delayed ignition
• Helps restore proper simmer performance after corrosion, warping, or blocked ports

• 1 auxiliary burner head

• Shut off gas and disconnect power; allow the cooktop/range to cool completely
• Remove grate and burner cap, then lift off the old head; clear debris from the orifice and around the igniter (do not enlarge burner ports)
• Position the new head over the orifice and igniter; align locating features and seat fully; if your model uses screws, tighten them evenly without over-torquing
• Reinstall the cap and grate, restore gas/power, and verify even flame and normal ignition

This burner head mounts on the cooktop and distributes gas evenly to produce a steady flame. Replacing a worn or damaged head restores proper flame pattern and helps your burner light quickly and cook consistently.

• Directs gas through precisely sized ports to create an even flame
• Can resolve issues like uneven flames, yellow/orange flames, or delayed ignition
• Helps when the burner won't light or only lights partially
• Replaces a corroded, clogged, or warped burner head

• Disconnect power and shut off gas supply before servicing
• Allow the cooktop to cool completely
• Lift off the grate and cap; remove the old head and align the new head on the burner base
• Ensure ports are clean and seated correctly; test for proper ignition and flame

This metal gas control knob replaces a damaged or worn stove/range knob to restore a secure grip and reliable control over burner settings. Easy to use and styled to match original factory controls. What it does:

• Allows safe selection of gas burner heat settings by turning the valve shaft
• Restores a firm, non-slip surface when an existing knob is cracked, stripped, or loose
• Helps resolve issues where the knob won't turn or won't stay set at the chosen flame level
• Matches original fit and feel for straightforward operation

• Turn off the appliance and shut off gas supply before servicing
• Typically installs by aligning on the valve shaft and pushing into place; no special tools required
• If knob does not seat correctly, check shaft for debris or a damaged splined insert

This replacement gas control knob restores positive, easy control of a range burner valve so you can adjust flame settings and operate the burner smoothly. Simple swap for a worn, stripped, or missing knob. What it does:

• Turns the burner valve to set flame height and turn the burner on/off
• Replaces cracked, stripped, loose, or missing knobs that slip on the valve stem
• Restores tactile, indexed control for accurate heat adjustments
• Helps eliminate spinning or wobbling while you operate the burner

• Always shut off the appliance power and gas supply before servicing.
• Most installs are push-on: pull the old knob straight off the valve stem and align the new knob's splines, then push until seated.
• If the knob won't seat or the valve stem is damaged, stop and inspect the valve; do not force the knob.

This replacement surface burner control knob attaches to the valve stem on a gas range or cooktop, letting you select and adjust flame levels. Replacing a worn or missing knob restores positive feel and accurate control of your burners.

• Mounts to the burner valve stem to turn from OFF to LITE/HI/LO and regulate flame height
• Restores proper control when the original knob is cracked, stripped, loose, or missing
• May help when the knob spins without moving the valve or won't stay on the stem
• Helps ensure consistent heat settings for cooking

• Ensure all burner controls are OFF and the appliance is cool before starting
• Pull the old knob straight off the valve stem; avoid prying or twisting sideways
• Align the new knob with the OFF position and press straight on until fully seated
• If the knob won't seat securely, inspect the valve stem for wear or damage

The Burner Grate is an OEM part for Whirlpool gas ranges. This heavy-duty grate sits above the burners to safely distribute heat from the elements below.

Causes may be normal wear and tear from regular cooking use. Accidental damage from cookware is also possible over the years.

Symptoms of a faulty burner grate include:

• Warping or sagging over time affects pan placement and heat distribution
• Broken or missing wires that compromise safety
• Rough or sharp surfaces that could damage cookware
• Discoloration or buildup from prolonged heat exposure

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Griddle is an OEM part for Whirlpool ranges. It provides an extra-large, flat cooking surface ideal for cooking multiple servings of foods like pancakes, eggs and bacon simultaneously.

Causes of a bad griddle can include warping or distortion of the steel over time and use, deep scratches or grooves that bacteria can harbor, or damage from too high of cooking temperatures.

Symptoms of a bad griddle include:

• Foods sticking excessively or burning easily
• Difficulty cleaning baked-on messes from the surface
• Visible warping or buckling of the steel

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
