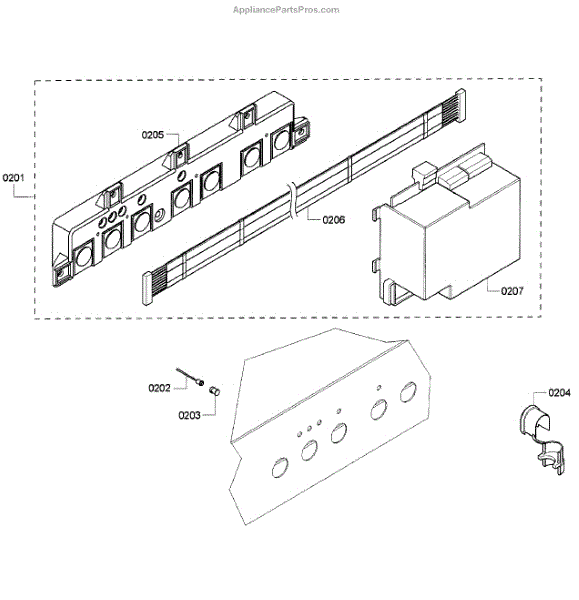

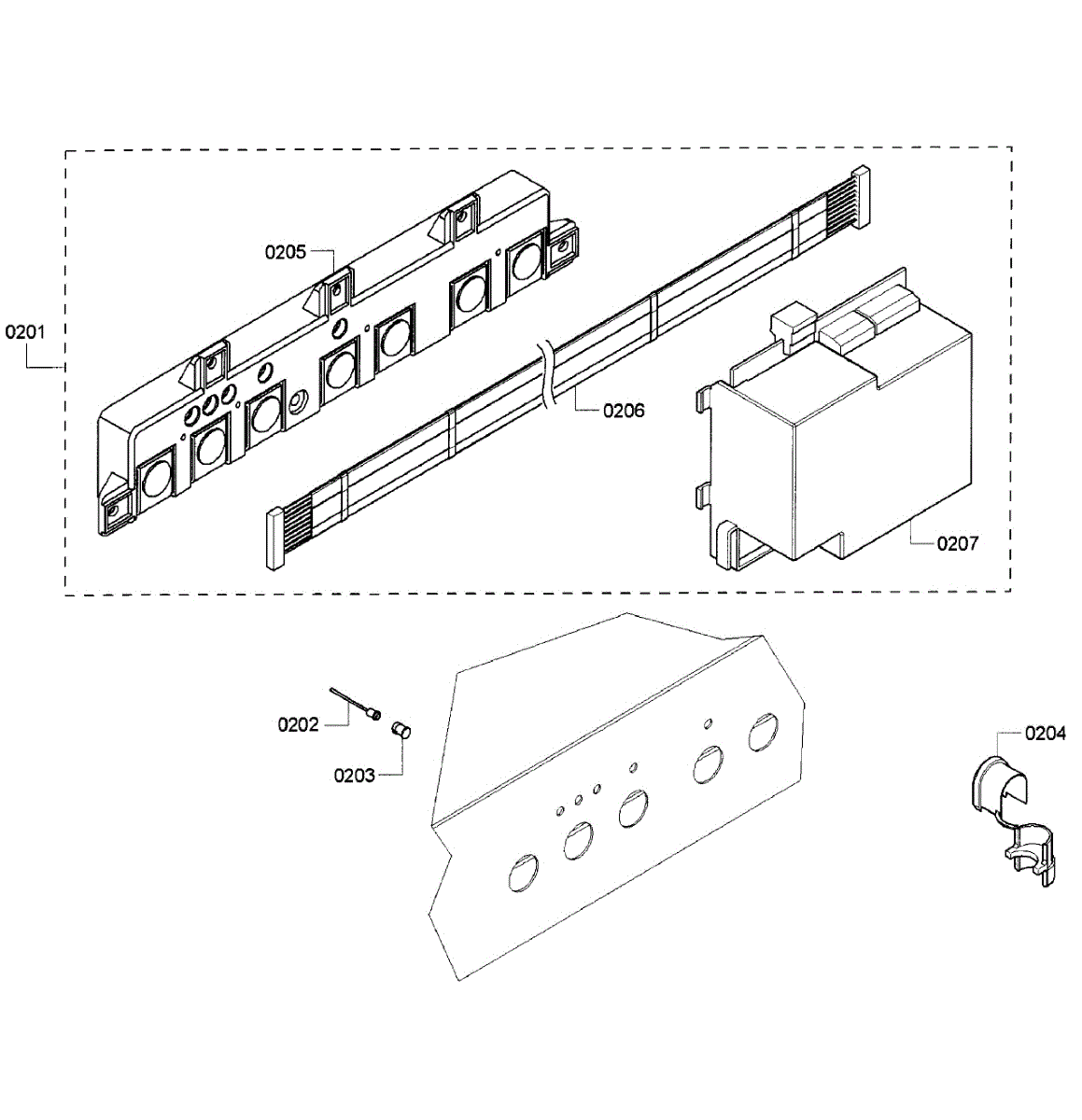

Parts for Thermador PH48CS/02: Control Panel Parts

This Control Unit is an OEM part for Bosch vent hoods. Serving as the central control hub, this unit governs the various functions and settings of the vent hood.

A common issue with a malfunctioning Control Unit involves electrical malfunctions or component failure.

Symptoms of a defective Control Unit may include:

• Inoperative fan or lighting functions
• Unresponsive control buttons or settings
• Erratic behavior or intermittent functioning of the vent hood

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

Blue LED lens cover for range hood lighting. Replaces cracked, discolored, or missing 3mm lens covers. Restores clean appearance to hood illumination.

This strain relief keeps the appliance's power or internal wiring secure where the harness passes through the cabinet, reducing stress on wires and helping prevent frays or loose connections. It's a small replacement part that restores proper cable routing and strain protection. What it does:

• Secures and protects wiring where the harness passes through a chassis or housing
• Prevents wire abrasion and reduces stress at the entry point
• Helps stop intermittent electrical connections caused by loose or pinched wiring
• Restores correct cable routing for safer, longer-lasting wiring

• Disconnect power before servicing; follow all safety instructions for your appliance
• Remove access panels as needed to reach the harness entry point
• Seat the strain relief fully in the opening and route the wiring through the boot without pinching

This electronic control unit directs and coordinates the appliance's operation. It interprets inputs from the controls and sensors and switches power to key components, helping restore proper response and reliable performance when the original board fails. What it does:

• Processes user inputs and sensor signals to manage functions and timing
• Drives relays/switching to power components such as motors, heaters, valves, or fans
• Stores the control logic for modes and settings
• Typical symptoms include no response to controls, won't start, intermittent shutdowns, or error codes

• 1 electronic control unit (board/module)

• Disconnect power at the breaker or unplug the appliance before servicing
• Use ESD precautions; handle the board by the edges to avoid static damage
• Label/photograph all connectors and transfer any brackets or covers from the original board
• Ensure all connectors are fully seated before reassembly and testing

Range hood not powering on or controls unresponsive? A faulty cable harness disrupts electrical connections. Moderate DIY repair, typically 30-45 minutes.

If your range hood won't power on or has intermittent electrical issues, a faulty cable harness may be the cause. This internal wiring component is crucial.
