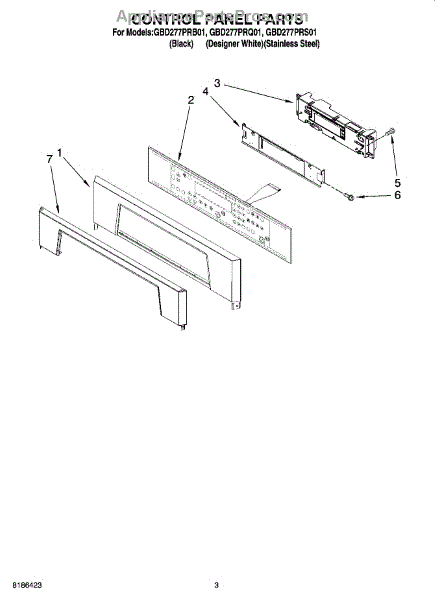

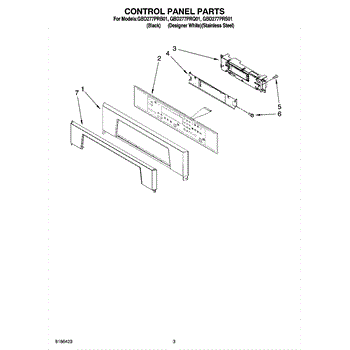

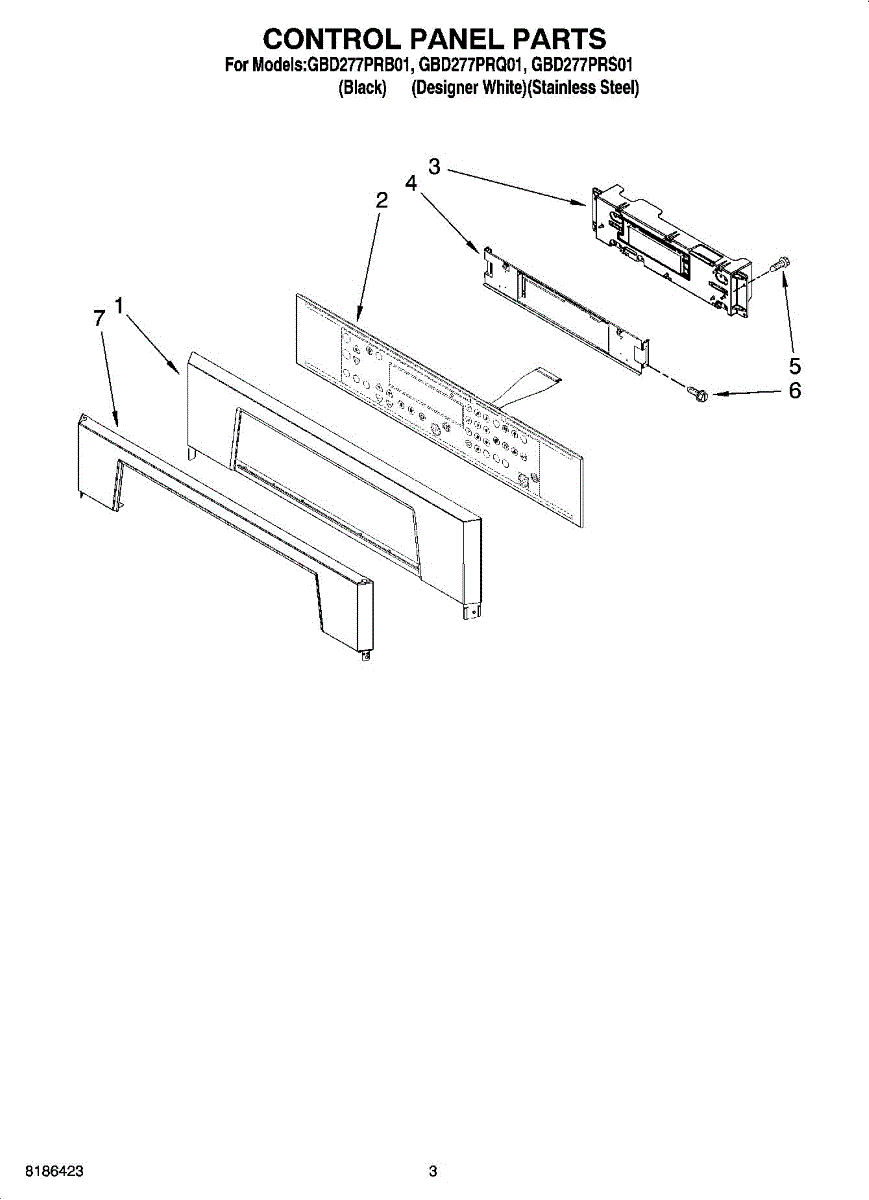

Parts for Whirlpool GBD277PRS01: 02 - Control Panel Parts

This control panel assembly provides the user interface and housing for oven/range controls, restoring button access, display visibility, and function selection so the appliance responds correctly to settings and commands. What it does:

• Replaces the front control interface and bezel so buttons, touchpads, and the display operate reliably
• Restores visible readout and selector feedback when the original panel is cracked, faded, or malfunctioning
• Addresses symptoms such as unresponsive controls, missing or dim display segments, or cosmetically damaged panels
• Acts as the mounting surface for buttons, switches, and electronics that communicate with the control board

• One control panel assembly (black) as shown

• Disconnect power (unplug or shut off breaker) before starting any repair
• Remove backguard or console trim per service manual to access mounting screws and harness connections
• Handle the panel and any display lens carefully to avoid scratching or damaging the keypad/overlay

Black touchpad

This latch sister board controls the oven's motorized door lock used for self-clean and safety interlock functions. Replacing a failed board restores reliable lock/unlock operation so your oven can start cycles and complete cleaning as designed.

• Powers the door-latch motor when commanded by the main control
• Engages or releases the door lock during self-clean cycles
• What's included: One latch sister board.

• Disconnect power at the breaker before servicing
• Use ESD protection and handle the board by the edges
• Access is typically behind the control/upper panel; photograph wiring and transfer connectors one at a time
• After reassembly, verify latch operation before running a full self-clean

Screw for side trim.

Screw for control panel.
