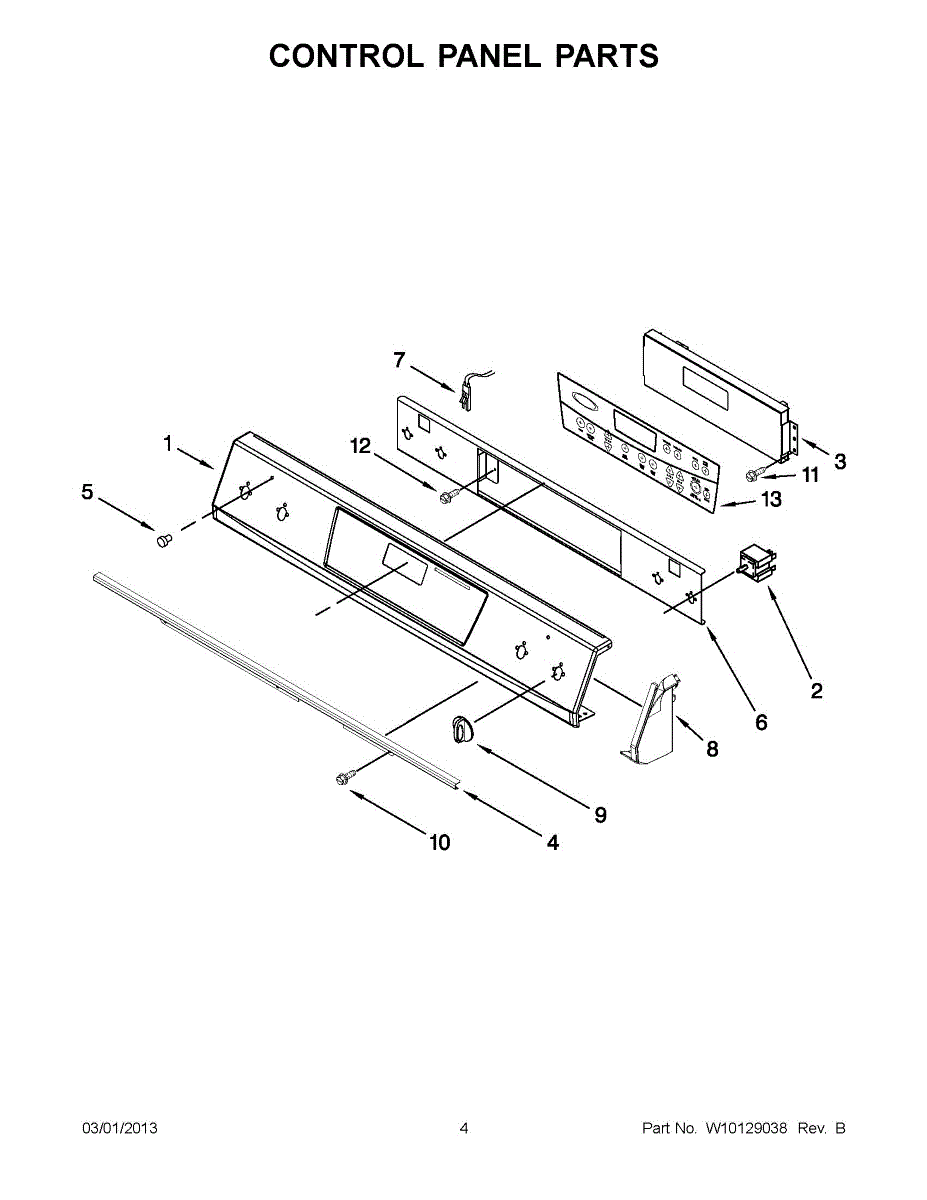

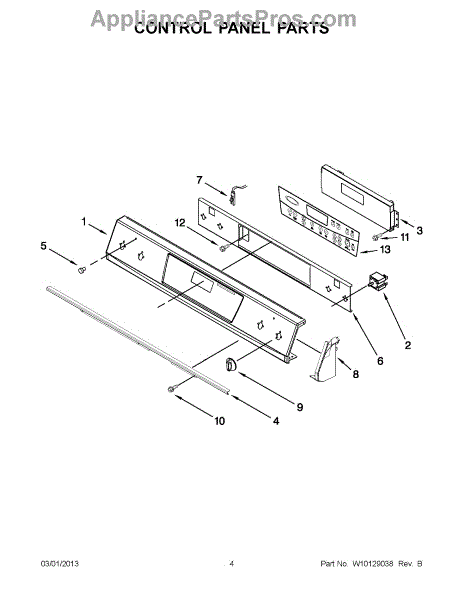

Parts for Whirlpool GY396LXPQ03: 02 - Control Panel Parts

For small, 6 inch element. Rating: 1500Watt. Typically for right rear element.

This infinite switch controls the variable heat settings for a cooktop surface burner so you can adjust cooking temperature smoothly and restore proper burner operation. What it does:

• Regulates power to a surface heating element so burners heat at selected settings
• Replaces a worn or failed control that causes burners to stay off or not heat properly
• Fixes burners that only work on one setting or won't respond to the knob
• Helps eliminate inconsistent or fluctuating burner temperatures

• Disconnect power to the range before starting any work to avoid electrical shock
• Accessible from the cooktop or back panel depending on model; remove panels carefully
• Note wire locations or take a photo before disconnecting; reconnect wires to matching terminals

For small element with rating of 1800Watt. Typically for right front or left rear element.

This red indicator light lens covers the control-panel light opening. It restores a clean, finished look and keeps the status light easy to see while helping protect the opening from debris and accidental contact.

• Covers and diffuses the indicator light for clear visibility
• Fills the control panel opening for a finished, factory appearance
• Helps shield the opening from dust, splashes, and contact
• Common fixes: cracked, missing, loose, or discolored indicator lens

• Disconnect power by unplugging the appliance or switching off the breaker before servicing
• Access the control panel/backguard per your model's instructions
• Release the old lens (tabs/retainer) and press the new lens into the opening until fully seated
• Restore power and verify the indicator light is visible through the lens

Surface unit indicactor light.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This is a replacement mounting screw used to secure panels and small components on Whirlpool appliances, restoring proper fastening to reduce rattling and prevent parts from shifting during operation. What it does

• Secures panels, trim pieces or small brackets to the appliance frame or components
• Helps stop loose parts that cause rattling or vibration during use
• Keeps controls and external trim aligned and properly seated
• Replaces missing or worn screws that can lead to unsecured panels or gaps

• Disconnect power (and gas if applicable) before servicing the appliance
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread carefully and tighten until snug; do not overtighten to avoid damaging threads or plastic parts
• Replace with the same screw type and size for proper fit and function

This latch knob screw secures the latch knob to its shaft on compatible appliances. Replace a missing, stripped, or rusted screw to restore a firm, reliable attachment and proper latch/knob operation. What it does:

• Attaches the latch knob securely to the latch mechanism/shaft
• Helps maintain proper door latch engagement and knob control
• Common fix for a loose, wobbly, or falling-off knob
• Replaces a lost, corroded, or cross-threaded screw

• 1 latch knob screw

• Disconnect power and allow the appliance to cool completely before servicing
• Align the knob on the shaft and start the screw by hand to avoid cross-threading
• Tighten with the correct screwdriver; do not overtighten to prevent damage
• The latch engages and releases smoothly after installation
