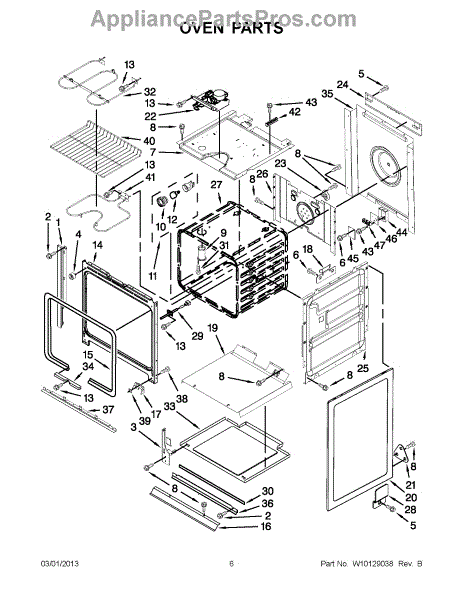

Parts for Whirlpool GY396LXPQ03: 03 - Oven Parts

Screw for side trim.

Left side hinge receiver for door hinge. For right side hinge receiver use WP4455606.

Right side hinge receiver for door hinge. For left side hinge receiver use WP4455605.

This small replacement bumper cushions contact points to reduce noise, prevent wear, and help doors or panels close more quietly and sit flush. Use it to restore proper cushioning where an original bumper is worn or missing. What it does:

• Absorbs shock and prevents metal-to-metal contact that can cause noise or chipping
• Helps doors, panels, or components close more softly and remain properly seated
• Reduces vibration transferred to surrounding parts for quieter operation
• Restores protective spacing to prevent rubbing and premature wear

• Disconnect power to the appliance before servicing and follow the manufacturer's safety instructions
• Typically installs at the contact point; remove the old bumper and press or place the replacement into position
• If the bumper uses adhesive or a fastener, use the same method indicated by the OEM for secure fitment

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

This oven light assembly provides interior illumination so you can check cooking progress without opening the door. It replaces a failed lamp component to restore clear, reliable oven cavity lighting. What it does:

• Replaces the oven interior lamp assembly to restore illumination
• Lets you view food without opening the oven door, reducing heat loss
• Commonly used when the oven light is out, flickering, or the lens is cracked
• Works with compatible ranges and wall ovens that use this factory lamp assembly

• Disconnect power to the appliance before installing to avoid shock hazard
• Allow the oven to cool fully; handle bulbs and glass parts carefully to avoid breakage
• Basic hand tools may be required; follow the appliance service manual for access and removal steps

120-130 volt, 15 watt.

The Whirlpool element mounting screw is an OEM replacement part responsible for securely fastening the heating element to the designated location inside the oven. This part ensures that the heating element remains firmly attached to the appliance's structure. The element mounting screw is crafted from durable materials to withstand high temperatures to provide a reliable and stable connection between the heating element and the oven.

This part fixes the following symptoms:

• Loose or wobbly heating element
• Uneven heating inside the oven
• Excessive vibrations or rattling noises during operation

The Whirlpool element mounting screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This front frame fin replaces a damaged or worn front frame piece to help keep the dryer drum/tub aligned and reduce rubbing or airflow leaks. It restores the front assembly fit for reliable operation. What it does:

• Supports the front edge of the tub/drum and helps maintain proper drum alignment
• Helps seal and guide airflow at the dryer front to promote efficient air movement
• Reduces rubbing, scraping, or vibration caused by a cracked or warped front frame area
• Resolves symptoms like unusual noise, clothes catching, or uneven drum rotation when damaged

• Disconnect power (and gas if applicable) before starting any repair
• Replacement typically requires removing the dryer front panel or bulkhead; follow your model's service instructions
• Keep all fasteners and seals in place and reassemble securely before testing

The Oven Gasket is an OEM component specifically designed for Whirlpool ranges. This gasket measuring 75.40 inches seals the oven door, preventing heat from escaping and maintaining optimal cooking temperatures inside the oven cavity.

Causes of a bad gasket include warping, cracks or tears that compromise the seal overtime due to repeated exposure to high heat.

Symptoms of a bad gasket include:

• Inefficient or uneven cooking
• Lower than expected oven temperatures
• Escaping heat from around the oven door
• A worn/damaged appearance

This Whirlpool OEM replacement gasket is also compatible with KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

Mounting bracket for bottom trim.

Color: White.

Color: Black.

This genuine replacement part is a door lock motor switch assembly for ovens. The door lock motor switch assembly is the part that locks the oven door. The reason it would need to be replaced is if the motor or switch has failed and is no longer able to keep the oven door locked and secured when closed. This can happen due to excessive wear and tear over time. To replace this part, start by unplugging the oven. After that, pull the oven away from the wall and proceed to remove the upper back access panel of the range. Once removed, lift the panel off and locate the lock motor and switch assembly. Disconnect the wires from the motor and switch. Once removed, unthread the two mounting screws that hold the assembly in place. Remove the connection rod. Proceed to install the new switch and motor assembly by reattaching the connection rod and refastening the mounting screws. Reattach the wires to the motor and switch and proceed to reinstall the back panel of the oven. This genuine OEM part is sold individually and is compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Sears/Kenmore brand ovens.

The Upper Oven Thermal Fuse is an OEM part compatible with Whirlpool double wall ovens. Located near the upper oven heating element, this safety device protects the upper oven cavity from excessive heat rises. If temperatures get too high, the fuse automatically cuts power to prevent overheating.

Symptoms of a blown upper oven thermal fuse include:

• The upper oven failing to heat or losing total heating function
• Burning smells emanating from the upper oven cavity
• Safety shutdown errors related to over-temperature conditions

Common causes are airflow restriction trapping heat or faulty wiring allowing overheating. Natural aging also deteriorates fuses over extended use cycles.

Compatible brands include KitchenAid, Jenn-Air and some Kenmore wall oven models.

Right and left hand side.

The Oven Temperature Sensor is an OEM part for Whirlpool ovens. This component is responsible for monitoring the oven's internal temperature, sending data to the control board to maintain the desired cooking temperature. It ensures accurate temperature readings, which are essential for baking, roasting, and other cooking functions.

Causes of a bad Oven Temperature Sensor include prolonged exposure to high temperatures, which can degrade its responsiveness over time. Additionally, physical damage or wear and tear can lead to inaccurate temperature readings.

Symptoms of a bad Oven Temperature Sensor include:

• The oven temperature is inconsistent with the setting.
• Food is not cooking evenly or as expected.
• The oven fails to reach the set temperature, or it overshoots it significantly.
• Error codes related to temperature regulation appear on the oven's display.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

The Broil Element is an OEM part for Whirlpool ovens. This element is located at the top of the oven and provides the high heat necessary for broiling food.

Causes of a faulty Broil Element can vary. One indicator is visible damage like blistering, bulging, or breaks in the element. Another sign could be a lack of heat when the broil function is turned on, which might signal a burned-out element. If the element is constantly tripping the circuit breaker, it could point to an electrical issue.

Symptoms of a malfunctioning Broil Element include:

• Food not broiling or browning properly.
• The oven not reaching the set temperature or taking longer than usual to heat.
• Unusual electrical odors or sparks coming from the element area during use.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Gasket Retainer is an OEM part for Whirlpool ovens. It secures the oven door gasket in place, ensuring a tight seal that prevents heat from escaping during cooking. This helps maintain consistent cooking temperatures and improves energy efficiency.

Causes of a bad oven gasket retainer can include wear and tear from repeated use, heat damage, or accidental impact that causes the retainer to break or become misshapen.

Symptoms of a bad oven gasket retainer include:

• The oven door gasket not staying in place
• Heat escaping from the oven, leading to uneven cooking
• Visible damage or deformation of the retainer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement back cover restores the appliance's rear housing to protect internal components from debris and accidental contact. It keeps wiring and controls enclosed and helps maintain proper airflow behind the unit. What it does:

• Covers and protects the motor, wiring, and control components at the rear of the appliance
• Replaces cracked, broken, or missing rear panels that expose internal parts
• Stops rattling or vibration caused by loose or damaged covers
• Helps prevent debris and pets from entering the cabinet area

• Disconnect power to the appliance before starting any repair
• Basic hand tools required; mounting screws may need removal and reinstallation
• Handle edges carefully—sheet metal can be sharp

This ground screw secures the appliance's grounding wire or strap to the chassis or terminal area, creating a reliable bonding point. Replace a missing or damaged screw to restore a proper ground connection during installation or service.

• Provides the designated bonding point for the grounding wire/strap
• Fastens to the frame or terminal area using 8-32 machine threads
• Helps maintain a consistent ground path for safe operation
• Typical reasons to replace: stripped head/threads, corrosion, or a missing screw

• Disconnect power at the breaker or unplug the appliance before servicing
• Route the ground wire/strap to the specified grounding location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Ensure the ground connection is secure and complies with local electrical codes before restoring power

U-type clip

The Oven Rack is an OEM part for Whirlpool ovens. This durable rack provides a stable surface for your cookware, allowing for optimal air circulation and even heat distribution. The rack measures about 24 inches wide by 16 inches deep.

Causes of a bad Oven Rack can include warping due to excessive heat, accumulation of rust or food debris, and physical damage which can affect its stability and performance.

Symptoms of a bad Oven Rack include:

• Difficulty sliding the rack in and out, indicating warping or damage.
• Uneven cooking or baking results due to poor placement or heat circulation.
• The rack failing to hold weight securely, posing a risk of dropping cookware.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Oven Heating Element is an OEM replacement part for Whirlpool ovens. It is a crucial component responsible for generating the heat necessary for baking, roasting, and broiling in the oven cavity.

Causes of a bad oven heating element can include mechanical failure, electrical malfunctions, or simply reaching the end of its lifespan due to repeated heating and cooling cycles.

Symptoms of a bad oven heating element:

• Oven not heating up properly or failing to reach the set temperature
• Uneven heating or hot spots within the oven cavity
• Visible damage or breaks in the heating element coil
• Unusual smells or burning odors emanating from the oven

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ovens.

This terminal block is the insulated connection point where the appliance's incoming power ties into the internal wiring. Replacing a heat-damaged or loose block restores a safe, reliable electrical path and helps prevent arcing and intermittent power loss.

• Connects the supply conductors to the unit's internal wiring
• Provides insulated posts to securely fasten and distribute power
• Helps maintain tight, low-resistance connections
• Common failure signs: melted/discolored plastic, burned or loose terminals, arcing, scorching, or intermittent/no power after confirming the cord and breaker

• Disconnect power at the breaker or unplug the appliance; verify no voltage before servicing
• Photograph or label wire positions to ensure correct reassembly
• Inspect and replace any heat-damaged wire ends or lugs; use appropriate terminals
• Tighten connections securely and ensure wires are fully seated and strain-relieved as originally installed

The Screw is an OEM replacement part for Whirlpool ranges. This screw is used to secure various components of the range, ensuring that parts such as panels, brackets, or burners remain firmly in place during operation. It is designed to withstand the high-heat environment of a range, providing long-lasting durability.

Symptoms of a bad or missing Screw include:

• Loose or misaligned range components
• Rattling or unusual noises during operation
• Difficulty maintaining the range's structural stability

Causes of a failing or missing screw can include normal wear over time, accidental loss during maintenance or repairs, or damage from overtightening. Replacing faulty screws ensures the appliance remains safe and functional.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Terminal Block is an OEM part for Whirlpool ranges and ovens. It is designed to provide a secure connection point for the appliance's electrical wiring, ensuring the safe transmission of power to the heating elements and other components.

You should replace the terminal block if it becomes damaged or faulty. Causes of a bad terminal block can include electrical arcing, loose connections, or damage from overheating. A compromised terminal block can lead to electrical issues, affecting the performance and safety of the appliance.

Symptoms of a bad terminal block include:

• The oven or range not heating up properly
• Visible damage or burning around the terminal block
• Intermittent power issues or flickering display
• Unusual electrical smells or sparks from the terminal area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
