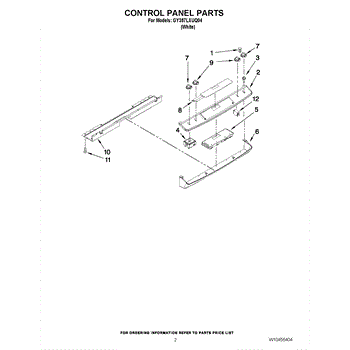

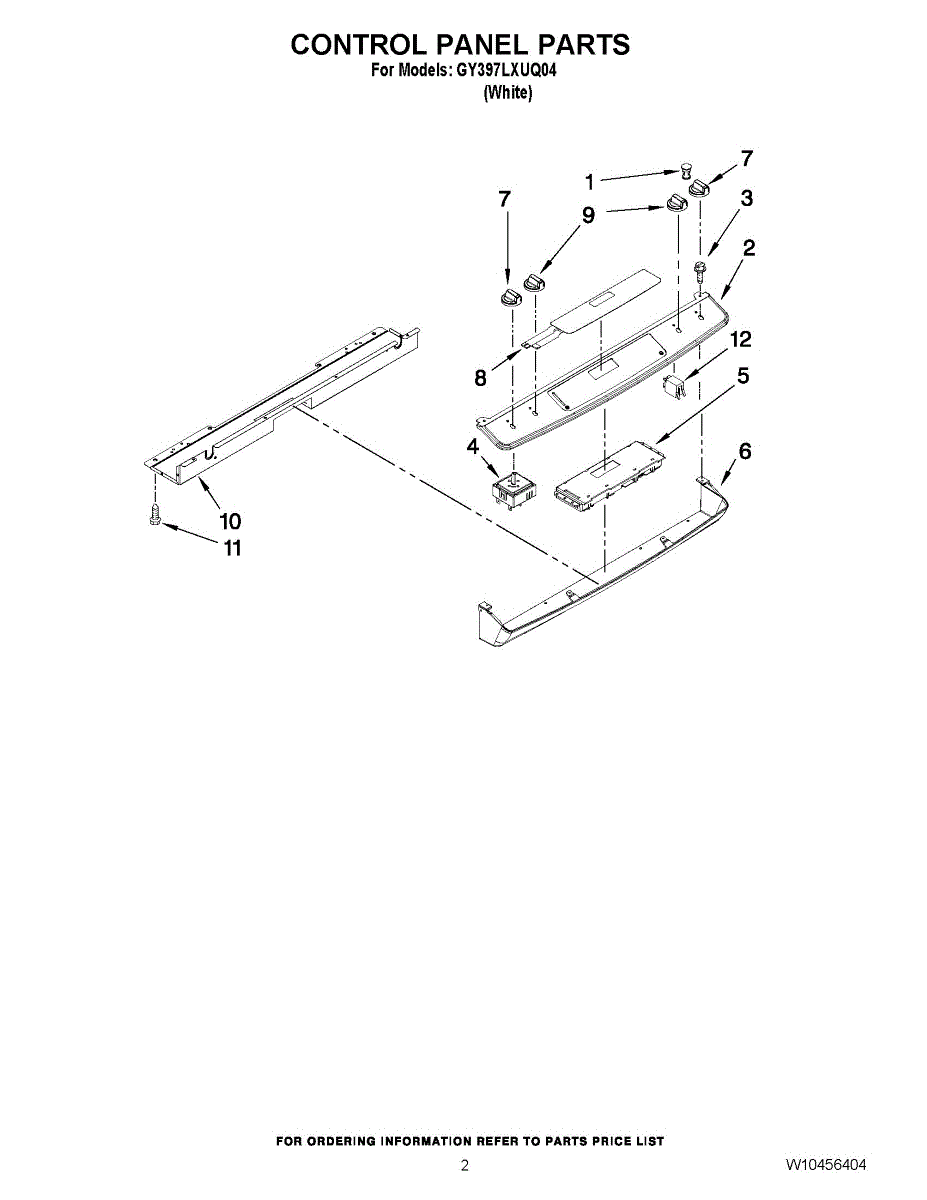

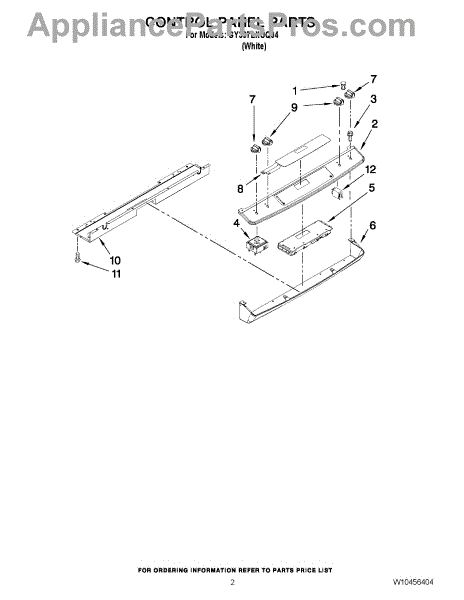

Parts for Whirlpool GY397LXUQ04: 02 - Control Panel Parts

To order indicator light use WP903115.

This control panel is the appliance's front user interface that lets you select settings and start cycles, restoring normal button and display operation for responsive control. It replaces a worn, damaged or unresponsive panel to recover normal user input. What it does:

• Provides the front-facing buttons and display used to select cycles and options
• Sends user commands to the appliance's control board for start/stop and setting changes
• Commonly replaces panels that are cracked, have stuck or unresponsive buttons, or show a blank or intermittent display
• Restores tactile feedback and readable indicators so settings can be entered reliably

• Disconnect power to the appliance before beginning any work to avoid shock
• Handle the panel and ribbon/connector areas carefully; avoid bending contacts or pulling on wires
• Install with the original fasteners and connectors; ensure all connectors are fully seated before restoring power

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

The Infinite Switch is an OEM part for Whirlpool ranges and cooktops, intricately designed to regulate the heat of the burners. This essential component allows for precise temperature control, enabling users to adjust the heat setting from low to high with infinite variability, hence its name.

The primary causes for these issues often stem from electrical problems within the switch itself, such as worn contacts or internal components failing.

Symptoms of a malfunctioning Infinite Switch include:

• The burner not heating up or only reaching a single temperature, regardless of the setting
• The burner heating intermittently or not turning on at all
• Unpredictable temperature fluctuations, making cooking difficult and unreliable

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Whirlpool Infinite Switch is an OEM part for Whirlpool ranges. Whirlpool electric ranges. This switch controls the multiple heat settings of the small element, allowing the user to select their desired cooking temperature. It is an important electrical component that regulates burner heating cycles.

Symptoms of a bad infinite switch include:

• The element not heating up adequately or failing to maintain temperature
• Inability to select or change heat settings on the
• Burner operates intermittently or fails to heat properly

Causes of a bad infinite switch can include failure over many heating cycles. The electrical contacts within the switch may become corroded or deteriorate from repeated exposure to cooktop temperatures and cooking residue.

It is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore electric range models.

This is a control panel that is used on many ovens. It is an interior part located near the buttons a user can press to turn on the oven, change the temperature, and select cooking methods. The control panel is the component that controls the oven based on which buttons are pressed. It includes a small display screen that shows the temperature, time, or error codes if a part of the appliance is not working correctly.It's important to be sure the range is unplugged before replacing the control panel. A Phillips screwdriver can unthread the screws holding the rear access panel. Pull the panel down and note where the wires are connected to the damaged control panel. Remove the old control panel and position the new one before securing it with screws. Replace the wires on the correct terminals before tightening the screws and replacing the access panel. Turn back on the power and push back the oven before use.This is a genuine OEM replacement control panel used for a variety of Whirlpool ovens. It is sold on an individual basis. A pair of work gloves and basic tools may be required for the replacement process.

Color: White

The membrane switch is the low-profile keypad behind your microwave's control panel. It registers button presses so you can select settings and start cooking. Replace it if keys stop responding or require excessive pressure.

• Converts keypad presses into signals for the electronic control
• Enables selection of power levels, cook times, and options
• Common symptoms: some or all keys don't work, intermittent response, must press very hard
• If the unit won't start/stop from the keypad, the membrane switch may be faulty

• Disconnect power at the breaker before servicing
• Remove the control panel to access the keypad; note ribbon orientation and routing
• Handle the flexible ribbon carefully—don't crease it—and fully seat/lock the connector

Color: White

A small replacement screw used to secure appliance components and panels. This genuine-style fastener restores proper fit and function when original screws are missing, loose, or damaged. What it does:

• Secures panels, brackets, or small components in place
• Restores proper alignment and prevents rattling or movement
• Replaces stripped, corroded, or lost fasteners
• Works where the appliance design calls for this specific screw size and thread

• Use the matching driver size and apply firm, even pressure to avoid stripping the head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic parts
• Disconnect power or move appliance away from utilities when working near electrical or gas components
• Inspect and repair the threaded hole before installing the new screw

This indicator light installs in the control panel and illuminates when its corresponding function is active. Replace a failed lamp to restore clear status indication, so you can see at a glance when the appliance is operating.

• Lights to indicate a selected function is on (e.g., surface units or oven circuits—varies by model)
• Provides visual confirmation of appliance status during use
• Common symptoms: light will not turn on, stays on constantly, flickers, or the lens is damaged
• Restores proper visual feedback when controls are engaged

• Disconnect power at the breaker before servicing; allow the appliance to cool
• Access the console/control panel and remove the rear cover as needed
• Note wire positions; transfer leads to the new light and secure it in the panel opening
• Reassemble and restore power to test operation
