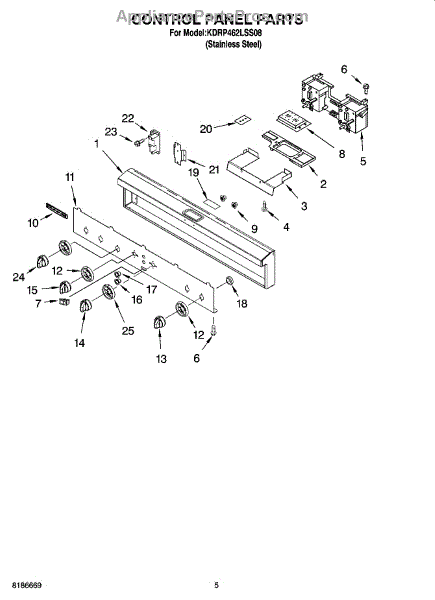

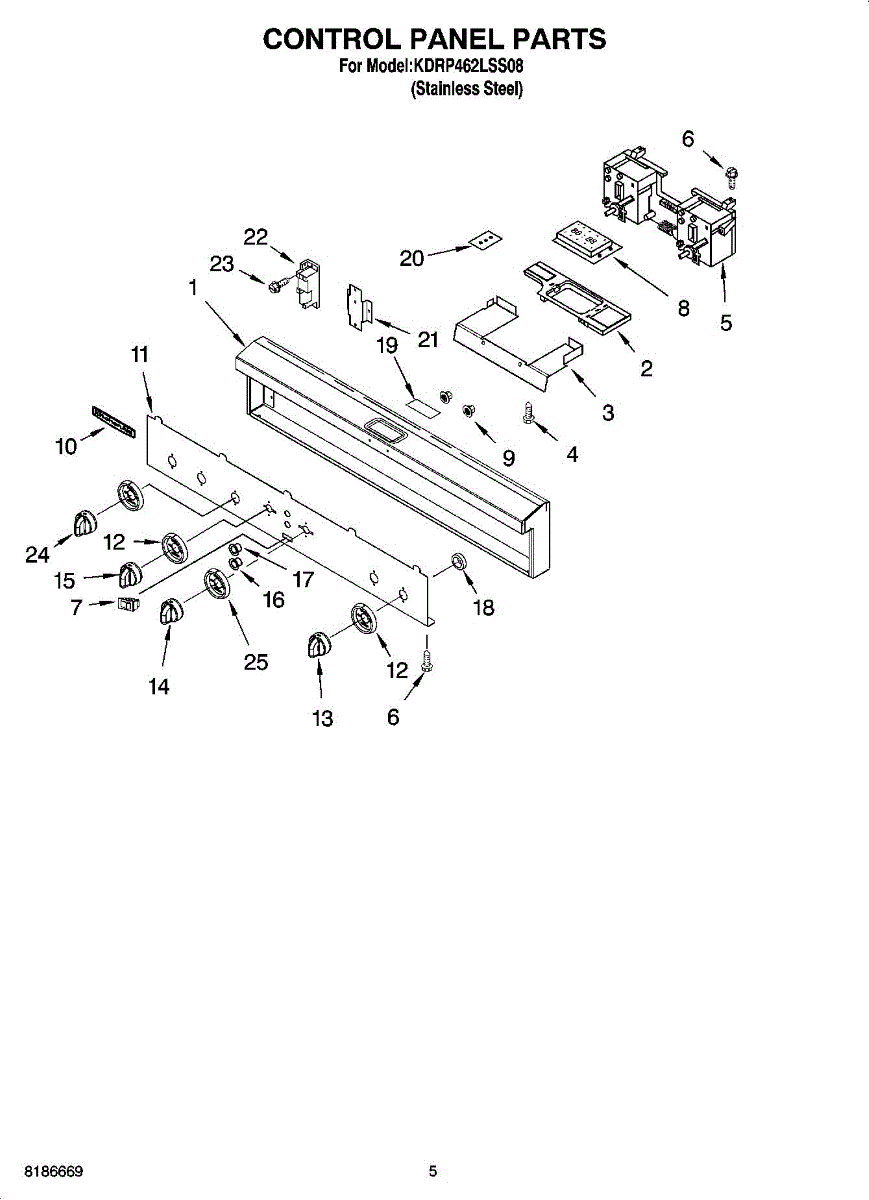

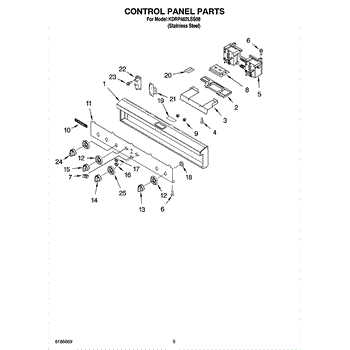

Parts for Kitchenaid KDRP462LSS08: 04 - Control Panel Parts

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

A factory screw with 8-32 machine threads used to secure brackets, panels, and internal components where specified. Restores a solid, factory fit when the original fastener is missing, stripped, or corroded. What it does:

• Provides the specified 8-32 machine-thread fastening for OEM components
• Helps prevent looseness, vibration, or rattling from a missing/damaged screw
• Replaces screws with worn heads or stripped threads to enable proper tightening
• Supports correct reassembly during part replacement or service

• 1 screw

• Disconnect power; shut off water and/or gas before servicing
• Match the new screw to the original for thread and length before installing
• Start threads by hand to avoid cross-threading; tighten until snug
• Do not overtighten into plastic or thin metal; replace damaged inserts/clips if found

• Thread size: 8-32 (machine)

This single-pole, single-throw rocker switch provides simple on/off control for a component in your appliance. Replacing a worn or sticking switch restores dependable operation and a positive, consistent toggle feel.

• Provides maintained on/off control for one circuit (SPST)
• Opens/closes the circuit to send or cut power to a specific feature (e.g., light or fan)
• Common failure signs: feature won't turn on/off, intermittent operation, rocker feels loose or sticks
• May show heat discoloration or arcing marks when failing

• Disconnect power at the breaker or unplug the appliance before servicing
• Access typically requires removing a control panel or trim; use appropriate hand tools
• Tag/photograph wire locations and transfer them to the same terminals on the new switch
• Seat the switch fully in the panel and ensure wires are not pinched; restore power and test

This display module is the electronic board that illuminates the control-panel readout on your oven. Replacing it restores a clear, reliable view of the clock, temperature, and status information so you can set and monitor cooking precisely.

• Drives the control-panel display for time, temperature, and function/status indications
• Receives signals from the main control and renders prompts and error codes
• Common symptoms: dim/faded or blank display, missing segments, flickering, intermittent readout
• Helps when the oven operates but the display is not readable

• Disconnect power at the breaker and allow the unit to cool before servicing
• Remove the control panel/console to access the module; note wire locations or take photos
• Handle the board by the edges and transfer any mounting hardware from the original
• Restore power, set the clock, and verify display operation

This replacement control knob restores a worn or damaged gas range control interface so you can safely and accurately adjust burner/oven settings. It gives a secure grip and reliable rotational control for normal operation. What it does:

• Fits onto the gas control shaft to allow manual selection of burner or oven settings.
• Restores proper tactile feel and alignment when the original knob is cracked, stripped, or missing.
• Helps prevent accidental slips or imprecise adjustments that make flame/temperature control difficult.
• Common symptom: knob spins, won't engage the valve, or is physically broken and cannot be used.

• Turn off gas supply and electric power to the appliance and allow all surfaces to cool before attempting replacement.
• Remove the old knob by pulling it straight off the control shaft; align the new knob to the splines and push it firmly into place.
• Do not force the knob if it doesn't seat smoothly; double-check alignment.

This replacement temp/time control knob restores a secure, easy-to-read interface for setting oven temperature and timer functions. It provides a simple push-on replacement for cracked, worn, or missing control knobs. What it does:

• Rotates to adjust oven temperature or timer settings; tactile fit helps prevent slipping
• Replaces cracked, broken, faded, or missing knobs that are hard to grip or read
• Restores proper alignment on the control shaft for accurate manual adjustments
• Helps eliminate intermittent or imprecise control caused by damaged knobs

• Disconnect power to the appliance before servicing; follow all safety precautions
• This is a push-on knob—pull the old knob straight off the control shaft and align splines before pushing the new knob fully into place
• Do not force the knob; if it does not seat correctly, inspect the control shaft for damage
• If the control shaft is damaged or the knob still slips after installation, the control assembly may require replacement

This selector knob is the user-facing control dial that lets you choose cycles or settings on the appliance. It restores a positive grip and clear detent feedback so the control panel is easy to operate. What it does:

• Replaces a worn, cracked, or missing selector knob to restore manual control of cycles/settings
• Provides a keyed fit to align with the control shaft and maintain proper detents
• Helps stop slipping, spinning, or loose feel when turning the control
• Useful when the original knob is faded, damaged, or no longer engages the shaft

• One selector knob

• Remove power to the appliance before servicing to avoid shock or injury
• Pull the old knob straight off the control shaft; press the new knob onto the shaft until seated
• If resistance or misalignment occurs, verify shaft type and knob orientation before forcing

This is the Enter button used on the appliance control panel to confirm selections and start keypad commands. It restores normal keypad operation when the original enter key is cracked, worn, or missing. What it does:

• Provides a tactile contact point for the control panel to register "enter" or confirm commands
• Replaces a cracked, loose, or missing enter key that won't actuate the switch
• Helps resolve symptoms like an unresponsive enter key or inability to confirm selections
• Works with the existing control panel and switch assembly to restore user input

• One Enter button

• Disconnect power to the appliance before servicing to avoid shock or injury
• Access may require removing the control panel or control board cover—keep track of screws and fasteners
• Replace the key cap carefully; avoid forcing parts or bending contacts
• The underlying switch or membrane may need service

This switch seal is a small rubber gasket that protects a control or door switch from moisture and debris, helping maintain reliable operation and prevent damage to the switch assembly. What it does:

• Creates a moisture- and dust-resistant barrier around a switch to reduce shorting and corrosion
• Helps keep switches operating smoothly by blocking contaminants that cause sticking or intermittent contacts
• Supports safe electrical performance by keeping water away from switch terminals and housings
• Common symptom linkage: switch malfunction, intermittent control, or moisture-related failures near switch area

• Disconnect power to the appliance before inspecting or replacing the seal
• Remove surrounding trim or components carefully to avoid damaging the switch or housing
• Confirm correct orientation and full seating of the seal during reassembly for an effective barrier
• If the switch shows damage or corrosion, replace the switch assembly as well

The Whirlpool spark module is an OEM replacement part responsible for controlling the ignition and sparking of the gas burners in a Whirlpool range or cooktop. The spark module is typically located behind the control panel or near the burners, and it generates the electrical sparks needed to ignite the gas for cooking.

Causes of a bad module can include electrical surges, physical damage, or simply wear and tear over time.

This part fixes the following symptoms:

• Gas burners fail to ignite or have weak or inconsistent sparks
• Continuous sparking even after the burner is lit
• No spark at all when attempting to ignite the burners
• Unresponsive or non-functional burner control knobs
• Visible damage, such as burn marks or corrosion, on the spark module

The Whirlpool spark module can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This hex-head sheet metal screw secures appliance panels, brackets, and trim for a tight, rattle-free fit. Replace missing or stripped fasteners to keep covers and components firmly in place and restore proper alignment.

• Fastens sheet-metal parts, brackets, and trim using a hex drive
• Replaces worn, rusted, missing, or stripped screws
• Helps reduce vibration and rattling from loose panels
• Common signs you need this fastener: head or threads stripped, screw won't tighten, panel or handle coming loose

• Unplug the appliance before service; turn off water supply if working near water lines
• Use the correct nut driver or socket to avoid rounding the head
• Replace one fastener at a time to maintain alignment; do not overtighten
• Match screw type/length to the original location as specified by the manufacturer
