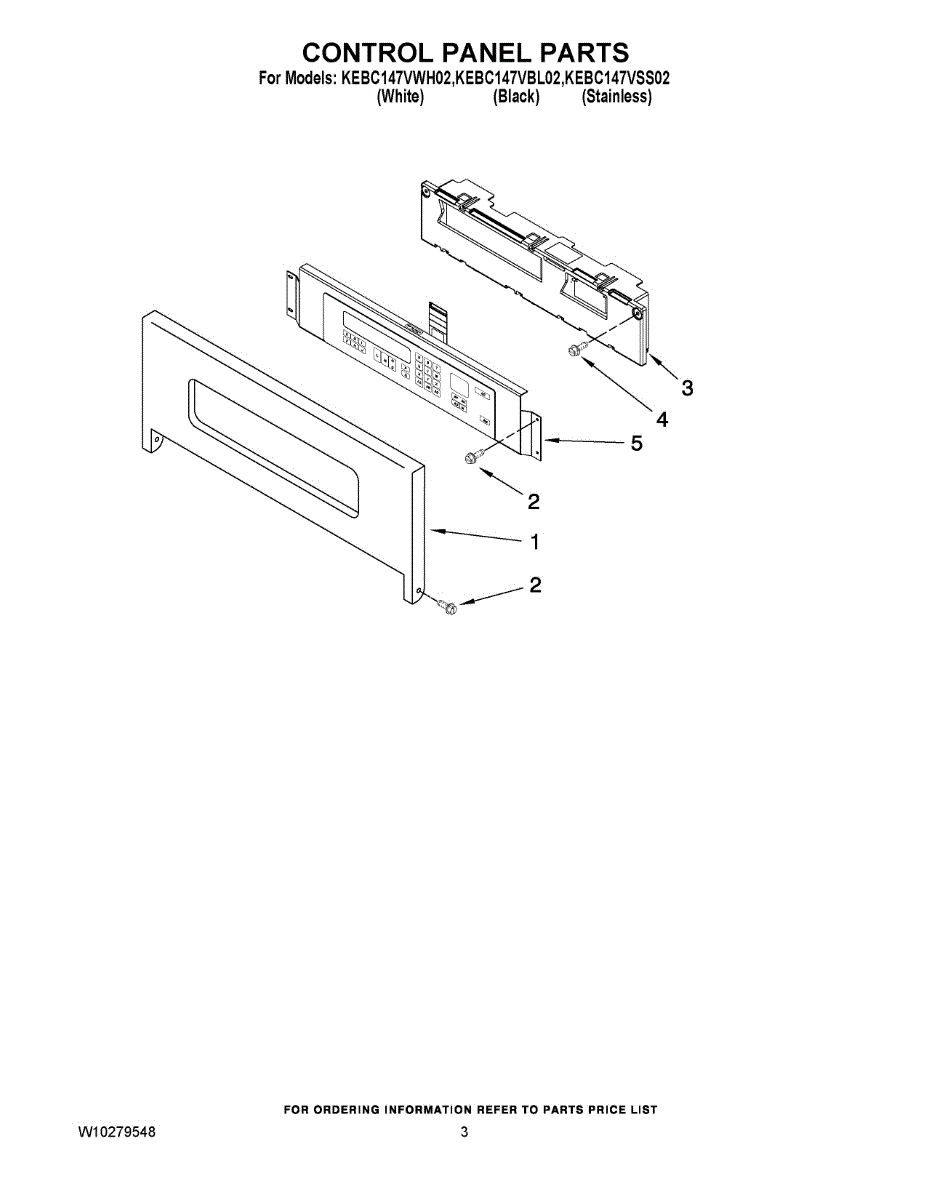

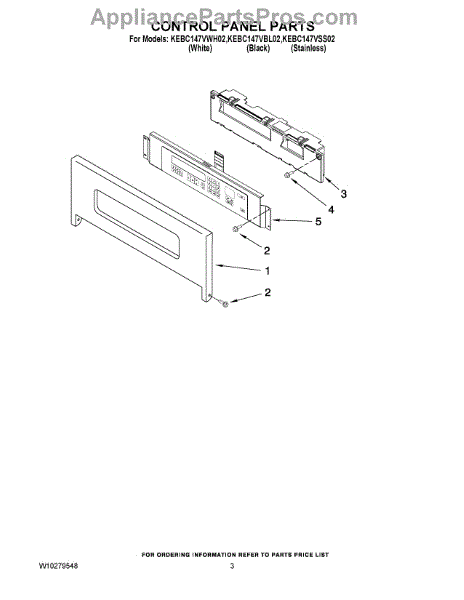

Parts for Kitchenaid KEBC147VSS02: 02 - Control Panel Parts

This control panel is the main user interface for the appliance, restoring button and display functions so cycles and settings can be selected and monitored. It delivers a factory-fit replacement to regain reliable control. What it does:

• Replaces a worn, cracked, or unresponsive control panel to restore button and touch operations
• Restores display readouts and control feedback so cycles and options can be selected normally
• Common symptom fix: unresponsive buttons, blank or erratic display, or missing control functions
• Works as the user-facing assembly that connects to the appliance's electronic control system

• One control panel assembly

• Disconnect power to the appliance before starting any repair to avoid shock
• Basic hand tools typically required; remove trim or bezels carefully to access mounting screws
• Label connectors before disconnecting and reconnect securely; avoid forcing plastic clips

This electronic control panel replaces the appliance's damaged or unresponsive user interface, restoring visible display and button/touch control so the unit can receive commands and cycle through settings. What it does:

• Houses the touchpad/buttons and display used to select cycles, temperatures, and options
• Re-establishes visual feedback when the original panel is cracked, faded, or non-responsive
• Fixes symptoms like unresponsive keys, missing icons, or intermittent display behavior
• Works with the main control board to transmit user commands to the appliance

• One electronic control panel assembly

• Disconnect power to the appliance before starting any repair to avoid shock or damage
• Handle the display and ribbon cables carefully; avoid bending or pinching connectors
• Verify connector orientation and seating before reassembly; test operation with power on once safely reinstalled

Screw for side trim.

Screw for control panel.

This membrane switch touch pad is the flat control-panel interface that lets you send commands to your range/oven. It restores responsive touch-button control and clear input for cooking settings and timed functions. What it does:

• Replaces a worn or damaged control keypad so button presses register correctly
• Fixes symptoms like unresponsive or intermittent touch buttons
• Helps resolve incorrect or stuck on-screen prompts caused by damaged pad contacts
• Provides the tactile surface and icon labels for the appliance control board to read inputs

• One membrane switch touch pad (assembly)

• Disconnect power to the appliance before starting any repair
• Handle the membrane pad carefully to avoid creasing or contaminating contacts
• Inspect the control board and connector for damage before installing the new pad
