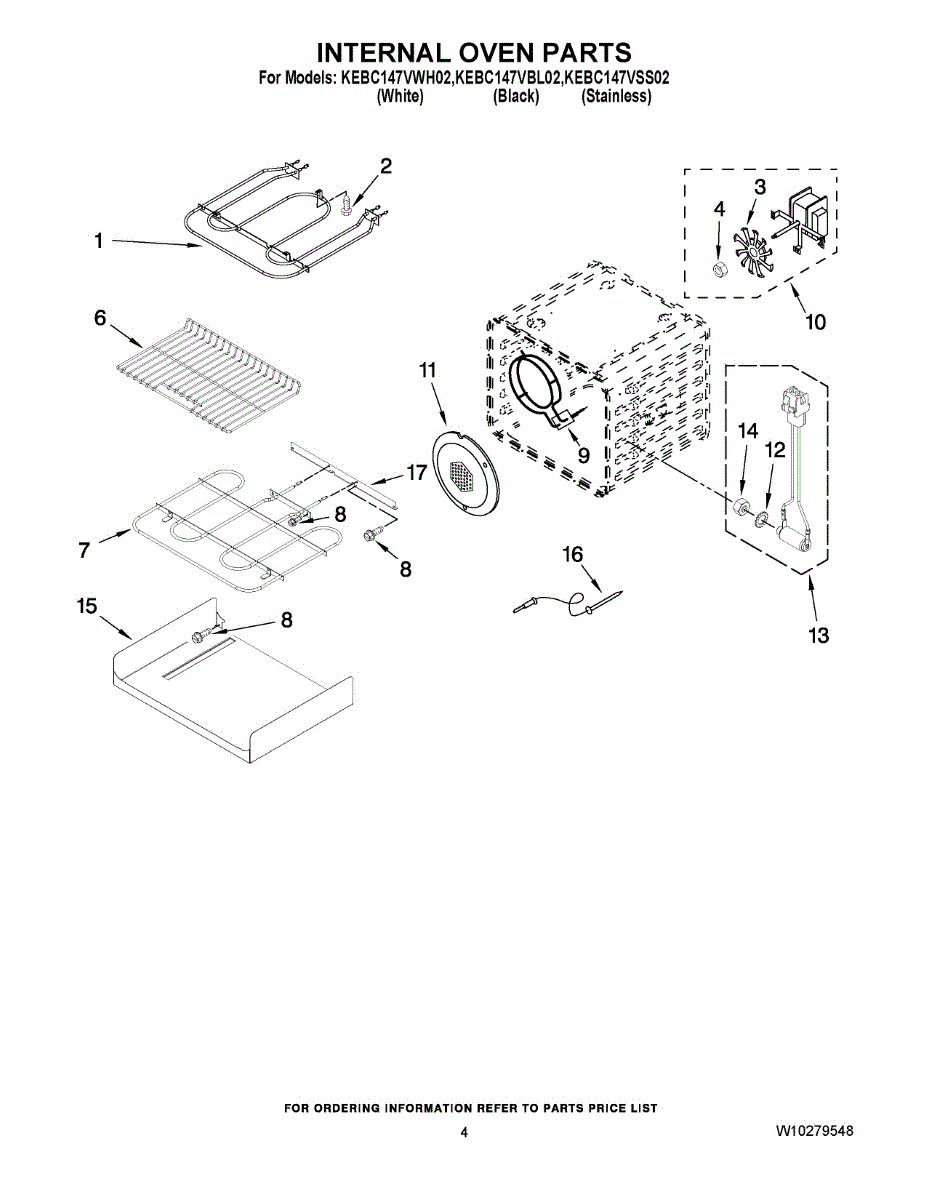

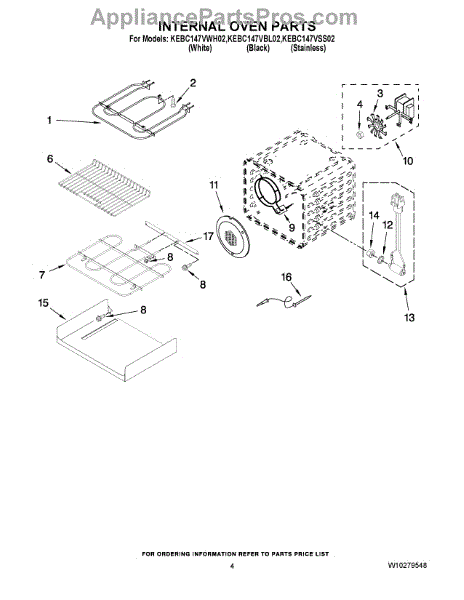

Parts for Kitchenaid KEBC147VSS02: 03 - Internal Oven Parts

The Broil Element is an OEM part for Whirlpool ovens. It is designed to provide intense, direct heat from the top of the oven cavity during the broiling function. The broil element is a key component responsible for achieving the desired browning and charring effects when broiling foods.

Symptoms of a bad broil element include:

• Uneven or incomplete broiling of foods
• Failure of the element to heat up or maintain consistent temperature
• Visible signs of damage or deterioration on the element surface
• Flickering or irregular heating patterns during broiling

Causes of a bad broil element can include prolonged use and exposure to high temperatures, which can lead to the element becoming brittle and prone to cracking or breaking. Electrical issues, such as power surges or faulty connections, can also contribute to premature failure of the broil element.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Whirlpool element mounting screw is an OEM replacement part responsible for securely fastening the heating element to the designated location inside the oven. This part ensures that the heating element remains firmly attached to the appliance's structure. The element mounting screw is crafted from durable materials to withstand high temperatures to provide a reliable and stable connection between the heating element and the oven.

This part fixes the following symptoms:

• Loose or wobbly heating element
• Uneven heating inside the oven
• Excessive vibrations or rattling noises during operation

The Whirlpool element mounting screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This convection fan blade mounts to the fan motor and circulates hot air during convection cycles. Replacing a bent or damaged blade restores proper airflow, promoting more even temperatures and consistent baking and roasting performance.

• Mounts on the convection motor shaft to drive airflow through the oven cavity
• Helps maintain uniform temperatures for consistent convection baking/roasting
• Typical failure signs: rattling or scraping noises, visible wobble or damaged fins, weak airflow, or the fan not spinning freely
• A worn blade can contribute to uneven results in convection mode

• Disconnect power and allow the appliance to cool completely before servicing
• Access the blade behind the interior fan cover or rear panel (varies by model); note blade orientation and any spacers/washers for reassembly
• Handle sharp edges; avoid bending fins and ensure the blade spins freely without rubbing before restoring power
• For microwave/OTR convection units, high-voltage components are present.

This oven rack restores a stable, level surface for cookware and slides smoothly on the cavity rails. Replace a bent, rusted, or missing rack to ensure safe support and proper positioning for baking, roasting, and broiling.

• Provides a sturdy, level platform for pans and dishes inside the oven
• Slides on side rails so you can adjust rack height as needed
• Replace if bent/warped, rusted, or if the original rack is missing
• Common symptoms include binding when sliding, tilting, or inability to sit level

• Disconnect power and allow the oven to cool completely before working inside
• Pull the old rack forward to the stop, lift the front to clear the stop, and remove
• Align the rear of the new rack with the guides, lower into the rails, and slide fully in
• Remove racks before running a self-clean cycle to minimize discoloration and preserve smooth sliding

The Bake Element is an OEM part for Whirlpool ovens, designed to provide consistent and even heating necessary for baking. Located at the bottom of the oven cavity, this element heats up when electricity is applied, radiating heat throughout the oven to bake food evenly.

The most common cause of bake element failure is wear and tear from regular use. Over time, the element can burn out or become damaged, affecting its ability to heat properly.

Symptoms of a failing Bake Element include:

• The oven not heating up properly or taking longer than usual to reach the desired temperature.
• Uneven baking results, with some areas of food undercooked or overcooked.
• No visible glow from the bake element when the oven is turned on, indicating it isn't heating.
• Physical signs of wear or damage on the element, such as blistering, cracks, or breaks.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

This convection element supplies heat for your oven's convection mode. Working with the convection fan, it circulates hot air to maintain even, consistent baking and roasting performance.

• Provides the heat source during convection cycles for circulated-air cooking
• Helps maintain uniform cavity temperature and even browning
• Restores convection function when the original element is open or damaged
• Common symptoms: convection not heating, fan runs but little/no heat, longer or uneven cook times in convection

• Disconnect power at the breaker and allow the oven to cool completely
• Remove oven racks and the rear interior cover to access the element
• Remove mounting screws, pull the element forward, and transfer wires one at a time; ensure tight, secure connections
• Reinstall the cover, restore power, and run a brief convection test

This fan motor powers the cooling fan that moves air through your unit. Replacing a worn or noisy motor restores proper airflow to help maintain stable temperatures and reliable performance. What it does:

• Drives the fan blade to circulate air for cooling and temperature control
• Helps prevent component overheating caused by weak or stalled airflow
• Fixes: fan not running or starting intermittently
• Fixes: loud humming, grinding, or rattling from the fan area
• Fixes: longer run times or warm spots due to poor airflow

• Includes: 1 fan motor

• Disconnect power before servicing; allow moving parts to stop
• Note wire positions and motor orientation; take a photo for reference
• Transfer the existing fan blade and mounting hardware as needed
• After install, ensure the fan spins freely and no wiring contacts moving parts before restoring power

This replacement jack mounts inside the oven cavity and provides the receptacle for the food temperature probe. It restores a dependable connection so the control can monitor internal food temperature and operate probe-cook features as intended.

• Provides the in-oven receptacle for the food/meat temperature probe
• Carries the probe's signal to the control during probe-cook cycles
• Helps resolve issues where the control does not recognize a probe or the probe feature won't run
• Replaces a jack that is damaged, corroded, or loose

• Disconnect power at the breaker and allow the oven to cool completely
• Access from inside the oven; remove the mounting screw(s) and carefully pull the jack to reach the wire harness
• Transfer/connect the harness and seat any gasket or insulation to maintain the oven cavity seal
• Do not overtighten fasteners; avoid pinching or damaging wires and insulation

A hex locknut used to secure rotating shafts and threaded fasteners on compatible appliances. Small but critical, it keeps components held firmly in place to prevent loosening during normal operation. What it does:

• Secures shafts, pulleys, or control components to prevent axial movement
• Stops parts from working loose due to vibration or regular use
• Can resolve symptoms like noisy operation, wobbling parts, or loose knobs/assemblies
• Provides a reliable threaded connection when paired with the correct mating fastener

• One hex locknut (quantity: 1)

• Disconnect power and, if applicable, unplug appliance before starting any repair
• Use the correct wrench or socket size and tighten until snug—avoid overtightening
• If access requires disassembly, keep track of removed parts.

Color: brown. Its total length is about 25 inches.
