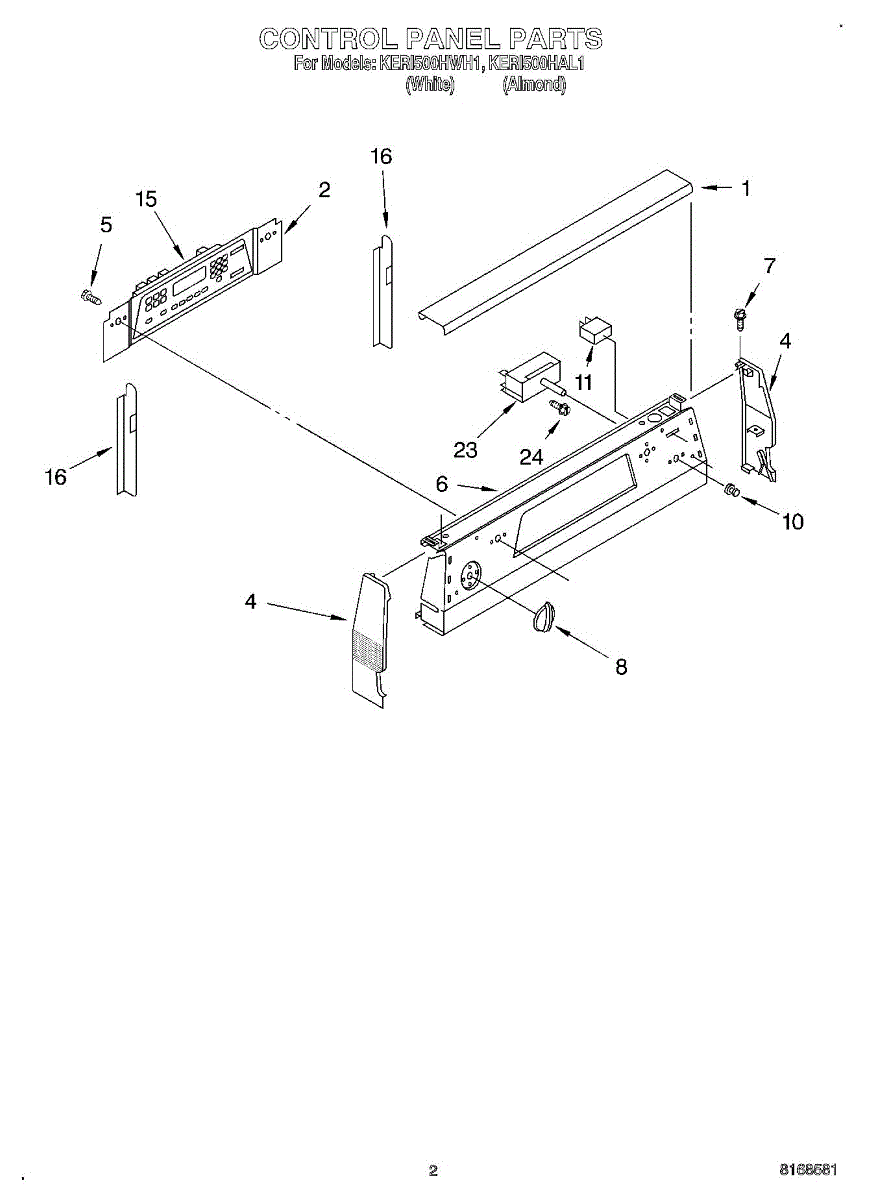

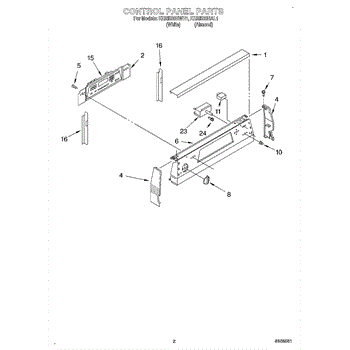

Parts for Kitchenaid KERI500HAL1: 02 - Control Panel Parts

Size: 10-16 x 3/8 inch.

This replacement screw restores secure fastening for appliance panels and components, helping stop loose parts and rattling so controls and panels stay aligned. Use when original screws are missing, stripped, or damaged. What it does:

• Secures panels, trim, control boards, brackets, or components to the appliance frame
• Stops rattling, vibration noise, and loose or misaligned parts caused by missing or damaged fasteners
• Replaces stripped, corroded, or missing screws to restore proper fit and function
• Matches OEM fit and threading for straightforward hardware replacement when the correct screw is identified

• Turn off power and unplug the appliance before accessing internal components
• Use the correct screwdriver or bit to avoid stripping the head; do not force mismatched drivers
• Tighten until snug—do not overtighten, which can strip threads or crack plastic
• Keep removed hardware organized and verify the replacement screw matches the original before installation

Color: Almond.

Color: White. Other colors: For black use WP9750372FF, for biscuit use WP9750372FC.

Red indicator lens that snaps over a control-panel indicator light to restore visibility and color. Replaces cracked, faded, or missing indicator covers so status lights are easier to see during use. What it does:

• Covers and protects the control-panel indicator light from dirt and damage.
• Restores the red color and improves visibility when the original lens is faded or discolored.
• Keeps light directed through the panel for a clear status signal.
• Common symptoms: cracked or missing lens, washed-out/red light appears dim or uneven.

• Disconnect power to the appliance before attempting replacement to avoid shock or accidental activation.
• Typically snaps into the control-panel opening; some models may use small retainers or screws—retain any fasteners from the original part.
• Replace only with the correct lens to ensure proper fit and color.
• If the indicator still appears dim after replacing the lens, inspect the bulb/LED and wiring (replace only after verifying power is off).

This microcomputer is the main electronic control board that governs oven/microwave functions and user interface, restoring reliable control and timing when the original control fails. What it does:

• Manages oven/microwave control logic, timers and user commands
• Powers and communicates with the display and touchpad/buttons
• Replaces a failed control to resolve unresponsive controls, blank or erratic displays, or incorrect cycle behavior
• Restores normal electronic control of heating and cooking cycles

• Disconnect power (unplug or switch off circuit breaker) before any service
• Handle the board by edges and avoid static discharge; use a grounded strap if available
• Verify connector orientation and seat wiring harnesses fully before reassembly

For small, 6 inch element. Rating: 1500Watt. Typically for right rear element.

This infinite switch controls the variable heat settings for a cooktop surface burner so you can adjust cooking temperature smoothly and restore proper burner operation. What it does:

• Regulates power to a surface heating element so burners heat at selected settings
• Replaces a worn or failed control that causes burners to stay off or not heat properly
• Fixes burners that only work on one setting or won't respond to the knob
• Helps eliminate inconsistent or fluctuating burner temperatures

• Disconnect power to the range before starting any work to avoid electrical shock
• Accessible from the cooktop or back panel depending on model; remove panels carefully
• Note wire locations or take a photo before disconnecting; reconnect wires to matching terminals

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking
