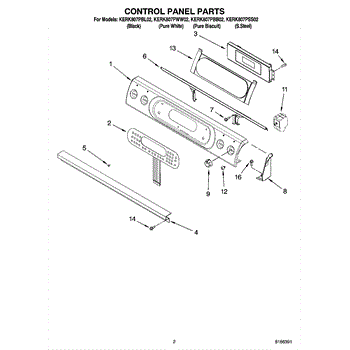

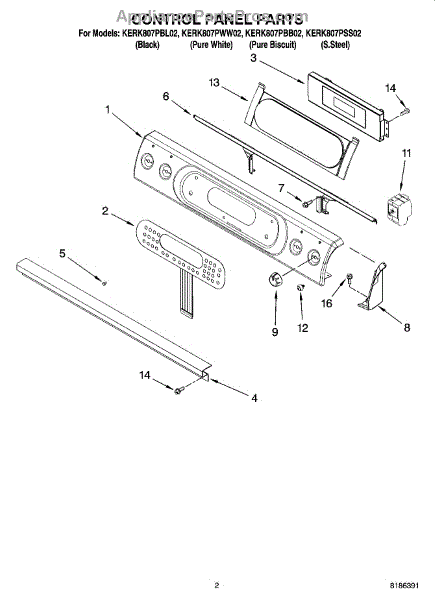

Parts for Kitchenaid KERK807PSS02: 02 - Control Panel Parts

Color: Black

Color: White

Color: Biscuit

This is a switch membrane, also known as a keypad, that is used with ovens, ranges, and stoves. The part is located in the center of the front of the appliance. It is made up of several layers and acts as a switch to turn the appliance on and off. It also includes several buttons so users can choose cooking settings, set temperatures, and otherwise alter the operation of the appliance.Regular use or damage can cause the switch membrane to become damaged. When this occurs, the buttons may not work correctly or there may be no way to turn the appliance on and off. If this is the case with a switch membrane, it should be replaced. Unplug the appliance and remove the screws from the back. Find the tabs on the side and press them to remove the housing. Remove the bottom screws to take off the ribbon connector. Remove the original part and replace it with the OEM replacement component.Created for compatibility with KitchenAid ranges, ovens, and stoves, the switch membrane is sold as a single part. This is an authentic OEM replacement component that is sourced straight from the manufacturer.

This red indicator light lens covers the control-panel light opening. It restores a clean, finished look and keeps the status light easy to see while helping protect the opening from debris and accidental contact.

• Covers and diffuses the indicator light for clear visibility
• Fills the control panel opening for a finished, factory appearance
• Helps shield the opening from dust, splashes, and contact
• Common fixes: cracked, missing, loose, or discolored indicator lens

• Disconnect power by unplugging the appliance or switching off the breaker before servicing
• Access the control panel/backguard per your model's instructions
• Release the old lens (tabs/retainer) and press the new lens into the opening until fully seated
• Restore power and verify the indicator light is visible through the lens

This latch knob screw secures the latch knob to its shaft on compatible appliances. Replace a missing, stripped, or rusted screw to restore a firm, reliable attachment and proper latch/knob operation. What it does:

• Attaches the latch knob securely to the latch mechanism/shaft
• Helps maintain proper door latch engagement and knob control
• Common fix for a loose, wobbly, or falling-off knob
• Replaces a lost, corroded, or cross-threaded screw

• 1 latch knob screw

• Disconnect power and allow the appliance to cool completely before servicing
• Align the knob on the shaft and start the screw by hand to avoid cross-threading
• Tighten with the correct screwdriver; do not overtighten to prevent damage
• The latch engages and releases smoothly after installation

Color: Biscuit

Color: White

Color: Black

This infinite switch controls the heat level for a stove's top burner, restoring variable temperature settings for safer, more consistent cooking. Replace a worn or faulty switch to regain smooth high-to-low burner control. What it does:

• Regulates burner power in response to the control knob for variable heat settings
• Commonly causes no heat, no change between settings, or burners stuck on high/low when failing
• Works with electric coil and some radiant surface elements to adjust cooking temperature
• Acts as the user-interface control between the knob and the burner element

• Disconnect all power to the range before starting—risk of electric shock if live
• Handle sharp metal edges and hot surfaces with care; wear gloves and eye protection

This infinite switch controls a cooktop burner's heat output, letting the surface element cycle between temperature settings for precise cooking. Replaces a worn or failed control to restore proper surface-element operation and heat regulation. What it does:

• Regulates power to a single top/burner surface element so heat increases or decreases smoothly
• Common repair for burners that won't heat, won't change temperature, or stay too hot/cold
• Restores cycling behavior when the element fails to turn on or off at selected settings
• Works with standard knob-style cooktop controls that use infinite-switch technology

• One infinite switch

• Disconnect power to the range or cooktop before starting any repair
• Label and photograph wiring before removal to ensure correct reconnection
• Access may require removing the surface element and control panel; handle ceramic and wiring with care

This bushing is a small sleeve-style bearing that supports a rotating shaft and reduces metal-to-metal wear for smooth operation. It helps restore proper alignment and quiet operation when the original bushing is worn. What it does

• Guides and supports a rotating shaft or spindle to reduce friction and wear
• Prevents metal-to-metal contact that can cause grinding or scoring
• Helps stop rubbing, squeaking, or vibration caused by a worn bearing surface
• Restores proper alignment of the moving component for smoother operation

• Inspect the mating shaft and housing for wear or damage before installing a new bushing
• Press or seat the bushing evenly; avoid hammering directly on the bushing surface
• Use proper tools and safety gear; disconnect power or unplug the appliance before service
• If surrounding parts are worn (shafts, seals, clips), replace them to prevent premature bushing failure

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This is a replacement mounting screw used to secure appliance panels and components. It restores proper fastening so panels and parts stay aligned and stable during normal use. What it does:

• Fastens appliance panels, trim or internal components in place
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop panel vibration and maintain proper component alignment
• Matches OEM fit where specified for a secure installation

• One replacement mounting screw

• Verify screw size and fit before installation; use the correct screw location from your parts diagram
• Turn off and disconnect power to the appliance before accessing internal components
• Hand-start the screw to avoid cross-threading; tighten until snug—do not over-tighten
• Wear safety glasses and follow manufacturer service instructions when applicable
