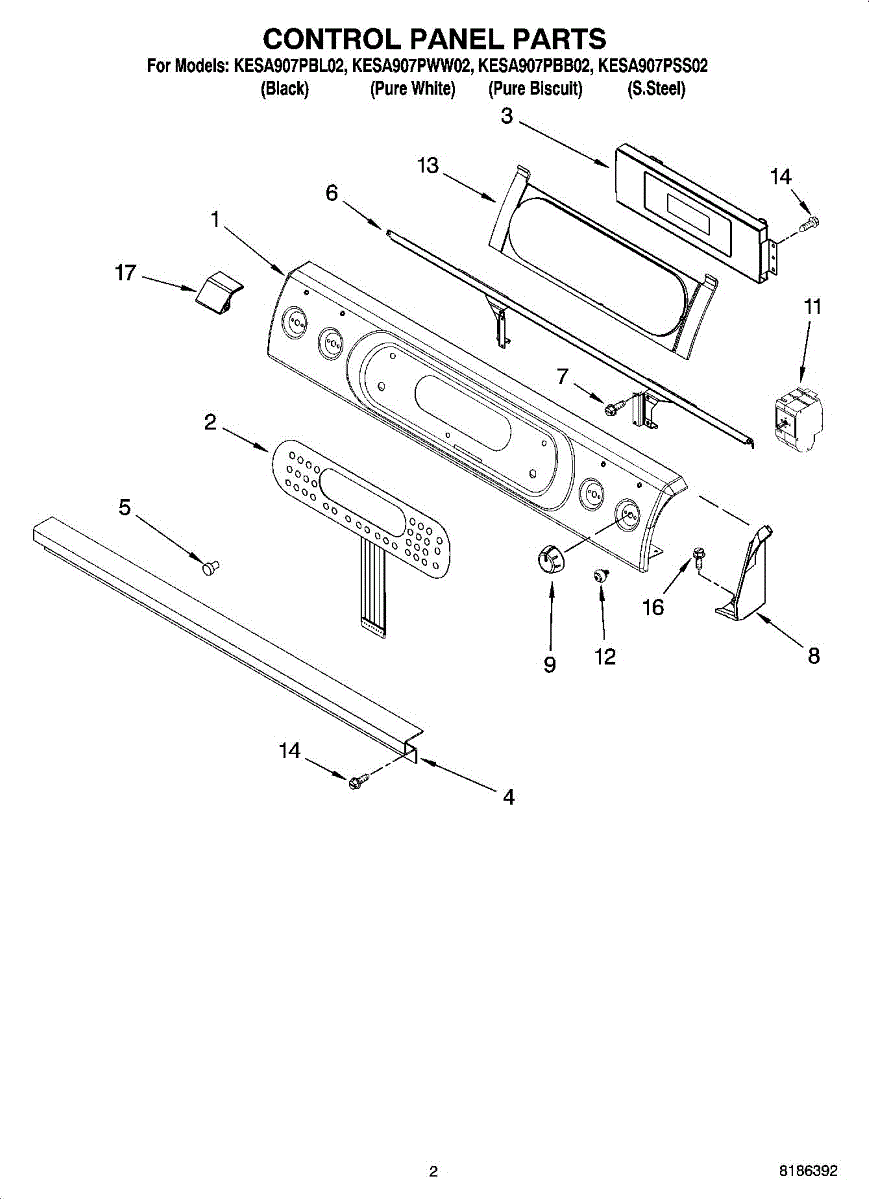

Parts for Kitchenaid KESA907PBL02: 02 - Control Panel Parts

Color: White

Color: Biscuit

Color: Black

Replace a non-responsive or damaged range control panel. Restores oven temperature settings, timer functions, and display. Moderate DIY repair, 1-2 hours.

Color: Black

Color: White

Color: Biscuit

Range membrane touch pad with control buttons located on the front panel. Replace if buttons are unresponsive, cracked, or worn. Includes layers and switch.

Broken indicator light lens? This red lens covers the control panel light opening, restoring visibility and protection. Easy DIY fix in under an hour.

Loose or missing dishwasher door latch? This latch knob screw secures the knob to its shaft, restoring firm operation. Quick 5-minute fix.

Color: Stainless steel

Color: Biscuit. Left hand side

Color: Black. Left hand side

Color: White. Left hand side

Color: Black. Right hand side

Color: White. Right hand side

Color: Biscuit

Color: White

Color: Black

Burner won't heat or stays on high? This infinite switch restores variable temperature control to your range's top burner for safer, more consistent cooking.

Fix a burner stuck on high, won't heat, or unresponsive to knob adjustments. This infinite switch restores precise temperature control. Easy DIY repair.

This bushing is a small sleeve-style bearing that supports a rotating shaft and reduces metal-to-metal wear for smooth operation. It helps restore proper alignment and quiet operation when the original bushing is worn. What it does

• Guides and supports a rotating shaft or spindle to reduce friction and wear
• Prevents metal-to-metal contact that can cause grinding or scoring
• Helps stop rubbing, squeaking, or vibration caused by a worn bearing surface
• Restores proper alignment of the moving component for smoother operation

• Inspect the mating shaft and housing for wear or damage before installing a new bushing
• Press or seat the bushing evenly; avoid hammering directly on the bushing surface
• Use proper tools and safety gear; disconnect power or unplug the appliance before service
• If surrounding parts are worn (shafts, seals, clips), replace them to prevent premature bushing failure

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

Replacement mounting screw for securing appliance panels, trim, and internal components. Restores proper fastening when original screws are missing or stripped.

This mounting bracket provides a secure support point to fasten appliance components to the cabinet or chassis, restoring proper alignment and stability. Ideal when original bracket is bent, cracked, or missing to reduce vibration and movement. What it does:

• Secures panels, modules, or assemblies to the appliance frame to prevent shifting during operation
• Restores correct component alignment that can affect door fit, seals, or function
• Helps reduce vibration, rattling, and noise caused by loose or damaged supports
• Used when the original bracket is bent, broken, or missing

• Basic hand tools typically required; follow appliance-specific service manual for access
• Disconnect power and water before servicing to avoid injury
• Retain original fasteners unless replacement hardware is specified by the OEM
