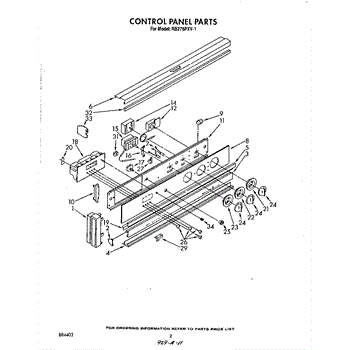

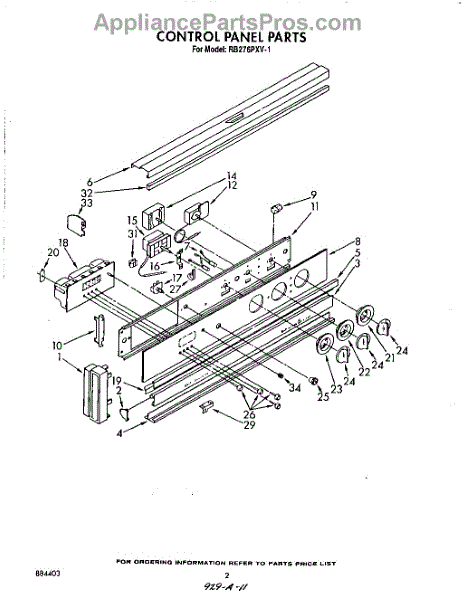

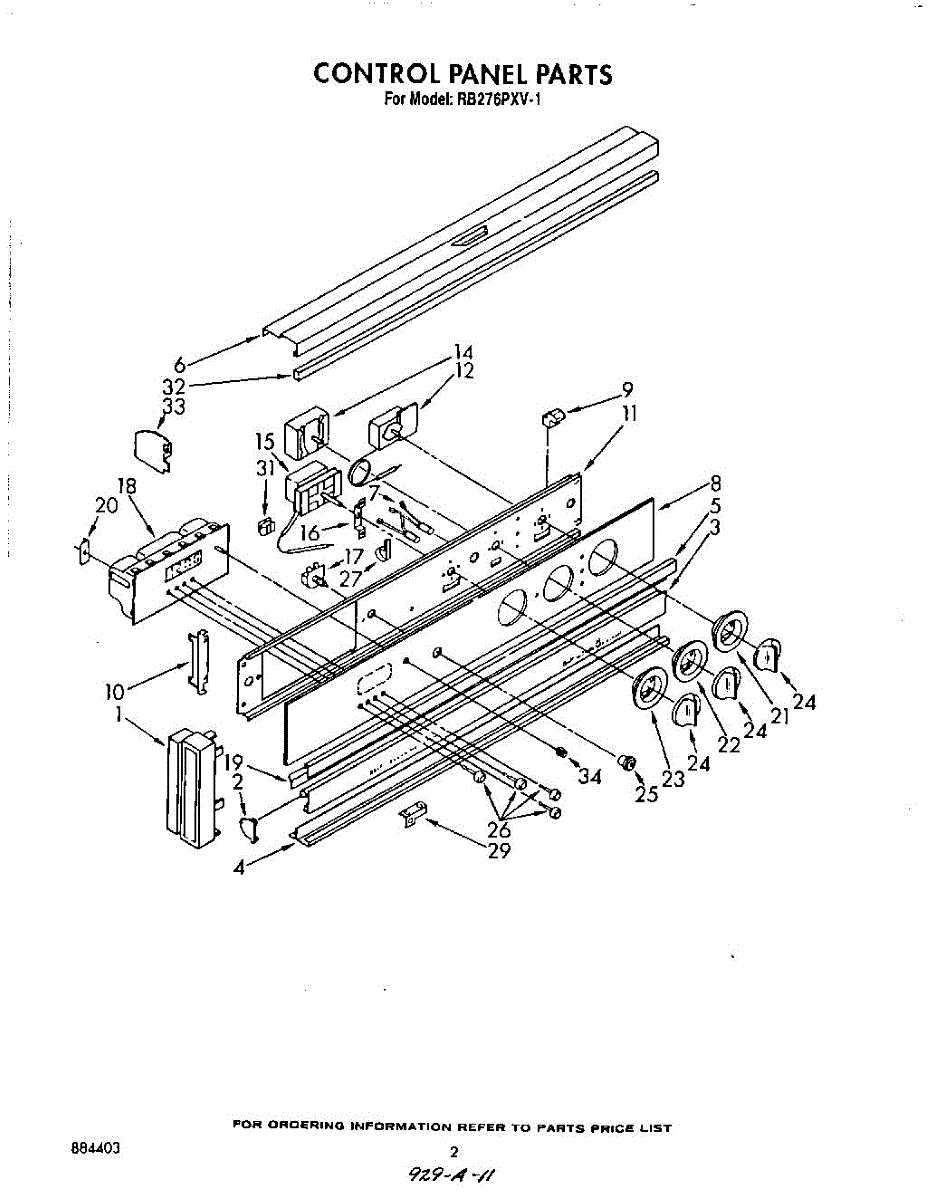

Parts for Whirlpool RB276PXV1: 02 - Control Panel Parts

Size: 10-32 x 1/2 inch.

This flat-head screw secures panels, brackets, or trim so they sit flush on your appliance. Replacing a worn or missing screw restores a tight fit and helps prevent vibration, rattling, or shifting components.

• Provides a countersunk, flush-mount fastener for panels, trim, brackets, or covers
• Helps maintain alignment and secure attachment during operation
• Replaces stripped, rusted, or missing hardware
• Symptoms can include loose panels or handles, rattling noises, or visible gaps/misalignment

• Disconnect power (and shut off gas, if applicable) before servicing
• Match screw length and thread to the original for proper fit
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Support the part being fastened to keep alignment while tightening

This part has been discontinued by the manufacturer and is no longer available.

Size: 10-32 x 1/2 inch.

Size: 10-32 x 1/2 inch.

This part has been discontinued by the manufacturer and is no longer available.

This flat-head screw secures panels, brackets, or trim so they sit flush on your appliance. Replacing a worn or missing screw restores a tight fit and helps prevent vibration, rattling, or shifting components.

• Provides a countersunk, flush-mount fastener for panels, trim, brackets, or covers
• Helps maintain alignment and secure attachment during operation
• Replaces stripped, rusted, or missing hardware
• Symptoms can include loose panels or handles, rattling noises, or visible gaps/misalignment

• Disconnect power (and shut off gas, if applicable) before servicing
• Match screw length and thread to the original for proper fit
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Support the part being fastened to keep alignment while tightening

Size: 6-32 x 9/32 inch.

This latch knob screw secures the latch knob to its shaft on compatible appliances. Replace a missing, stripped, or rusted screw to restore a firm, reliable attachment and proper latch/knob operation. What it does:

• Attaches the latch knob securely to the latch mechanism/shaft
• Helps maintain proper door latch engagement and knob control
• Common fix for a loose, wobbly, or falling-off knob
• Replaces a lost, corroded, or cross-threaded screw

• 1 latch knob screw

• Disconnect power and allow the appliance to cool completely before servicing
• Align the knob on the shaft and start the screw by hand to avoid cross-threading
• Tighten with the correct screwdriver; do not overtighten to prevent damage
• The latch engages and releases smoothly after installation

Size: 6-32 x 9/32 inch.

This selector switch escutcheon is the black trim plate that fits around the control knob on the console. It restores a clean, finished look and proper alignment around the switch when the original bezel is cracked, missing, or faded.

• Finishes the opening around the selector switch and protects the panel edges
• Helps the control area look clean and aligned with the knob
• Replace when the bezel is cracked, warped, missing, or discolored
• Cosmetic component; the switch itself may be faulty

• Disconnect power before servicing
• Pull the control knob straight off the switch shaft
• Release tabs or remove screws (as applicable), lift off the old escutcheon, and align/install the new one
• Reinstall the knob and restore power; verify smooth knob movement

This part has been discontinued and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This part has been discontinued by the manufacturer and is no longer available.

Color: Black. To order extension shaft for this knob use 3149320.
