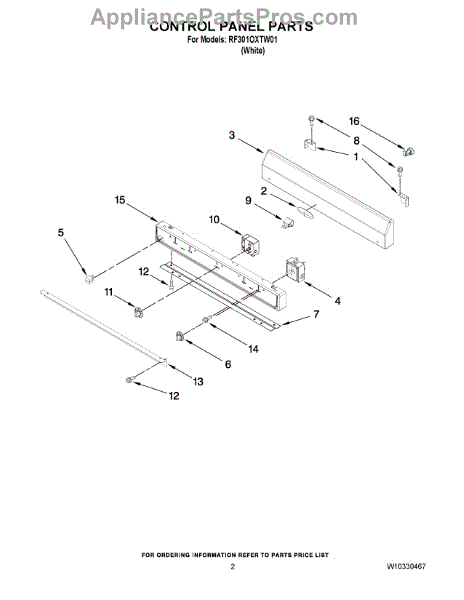

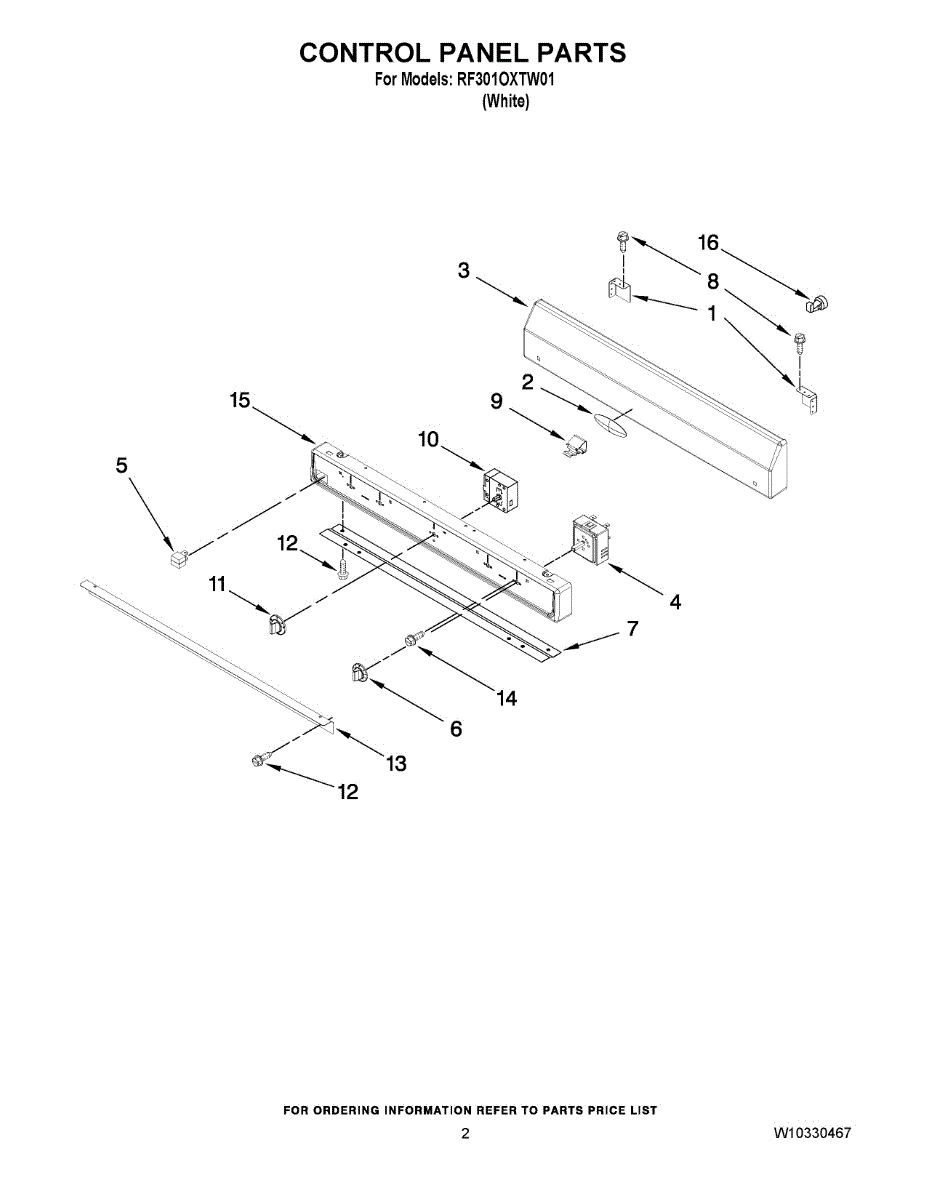

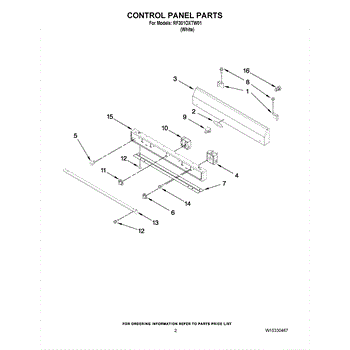

Parts for Whirlpool RF301OXTW01: 02 - Control Panel Parts

The Whirlpool Infinite Switch is an OEM part for Whirlpool ranges. Whirlpool electric ranges. This switch controls the multiple heat settings of the small element, allowing the user to select their desired cooking temperature. It is an important electrical component that regulates burner heating cycles.

Symptoms of a bad infinite switch include:

• The element not heating up adequately or failing to maintain temperature
• Inability to select or change heat settings on the
• Burner operates intermittently or fails to heat properly

Causes of a bad infinite switch can include failure over many heating cycles. The electrical contacts within the switch may become corroded or deteriorate from repeated exposure to cooktop temperatures and cooking residue.

It is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore electric range models.

The Whirlpool Infinite Switch is an OEM part for Whirlpool ranges. Whirlpool electric ranges. This switch controls the multiple heat settings of the large element, allowing the user to select their desired cooking temperature. It is an important electrical component that regulates burner heating cycles.

Symptoms of a bad infinite switch include:

• The element not heating up adequately or failing to maintain temperature
• Inability to select or change heat settings on the
• Burner operates intermittently or fails to heat properly

Causes of a bad infinite switch can include failure over many heating cycles. The electrical contacts within the switch may become corroded or deteriorate from repeated exposure to cooktop temperatures and cooking residue.

It is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore electric range models.

Replace a worn or missing surface-burner knob with this black infinite switch control knob. It restores smooth, accurate heat selection on your range or cooktop when the original knob is cracked, stripped, loose, or missing. What it does:

• Interfaces with the surface burner's infinite switch to select OFF through Low–High heat levels
• Restores positive, secure control of the burner
• Typical symptoms: knob cracked, spins freely, falls off, or can't adjust temperature
• Helps ensure consistent response when turning the burner on/off and setting heat

• Disconnect power and allow the cooking surface to cool completely
• Pull the old knob straight off the switch shaft
• Align the new knob with the shaft and press on until fully seated; do not force
• Rotate through all settings to confirm smooth operation

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

This thermostat is a temperature-sensitive safety switch for range and wall-oven systems. It opens or closes its electrical contacts at a set temperature to help regulate heat, protect components, and keep the appliance operating safely and reliably.

• Senses temperature and opens/closes the circuit at its calibrated threshold
• Helps prevent overheating by interrupting power when excessive heat is detected
• Automatically resets once temperatures drop, depending on design and application
• Common failure signs include no heat, heat dropping out during preheat/bake, or no continuity through the thermostat when cool

• Disconnect power at the breaker; if gas, also shut off the gas supply before servicing
• Access the part per your model; photograph wiring and move connectors to the new thermostat one at a time
• Reinstall in the original orientation and location so it senses heat correctly; do not alter factory routing
• After installation, run a brief test cycle to confirm normal operation

This thermostat knob fits onto the control shaft so you can select and adjust cooking temperature. Replace a cracked or stripped knob to restore smooth operation and a clean, finished look.

• Attaches to the thermostat stem to allow manual temperature selection
• Replaces knobs that are cracked, stripped, loose, or missing
• Helps when the knob spins without engaging or won't stay on the shaft
• Restores proper control feel and appearance

• Disconnect power to the appliance and allow surfaces to cool before service
• Pull the old knob straight off the thermostat shaft
• Align the new knob with the shaft and press straight on until fully seated; do not force
• The pointer aligns with the control markings before use

This is a threaded machine screw used to fasten appliance panels and components. It restores secure attachment points so panels, brackets, and assemblies stay firmly mounted and reduce rattling or misalignment. What it does

• Secures panels, brackets, or small components to the appliance chassis
• Restores loose or missing fasteners that cause vibration, rattling, or unsecured parts
• Provides the correct thread engagement to prevent stripped holes when installed properly
• Works wherever an 8-18 threaded screw is specified by the manufacturer

• Disconnect power to the appliance before beginning any repair.
• Use the correct screwdriver or nutdriver to avoid stripping the head.
• Do not overtighten; snug until secure to prevent damage to threads or panels.
• Follow manufacturer service instructions for safe disassembly.

This genuine replacement screw secures appliance components so panels, brackets, and assemblies stay tight and properly aligned. Replacing stripped, rusted, or missing hardware restores a solid fit and helps prevent rattles, shifting, or looseness over time.

• Fastens panels, brackets, and internal parts to maintain proper alignment
• Helps resolve issues caused by missing or damaged screws
• Restores secure mounting after service where original hardware is lost
• Use when threads are stripped or the screw head is damaged and won't tighten

• Disconnect power; turn off gas supply if applicable before servicing
• Match screw location and length to your model's parts diagram for correct placement
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Snug firmly but do not overtighten to prevent damage to mounting points

This spacer maintains the correct gap between mating components inside your appliance, keeping parts aligned and operating smoothly. Replacing a worn or missing spacer restores proper fit and helps prevent rubbing, noise, and premature wear. What it does:

• Sets and preserves the correct stand-off between components for proper alignment
• Helps ensure smooth operation and consistent control feel
• Reduces friction and contact that can cause noise or wear
• Common failure signs: loose or wobbly parts, rubbing/scraping sounds, misalignment, poor fit

• 1 spacer

• Disconnect power and, if applicable, shut off gas supply before servicing.
• Note the orientation of the original spacer and match it during reassembly.
• Handle nearby trim and control components carefully to avoid damage.
• After reassembly, verify smooth operation and proper clearances before restoring power/gas.
