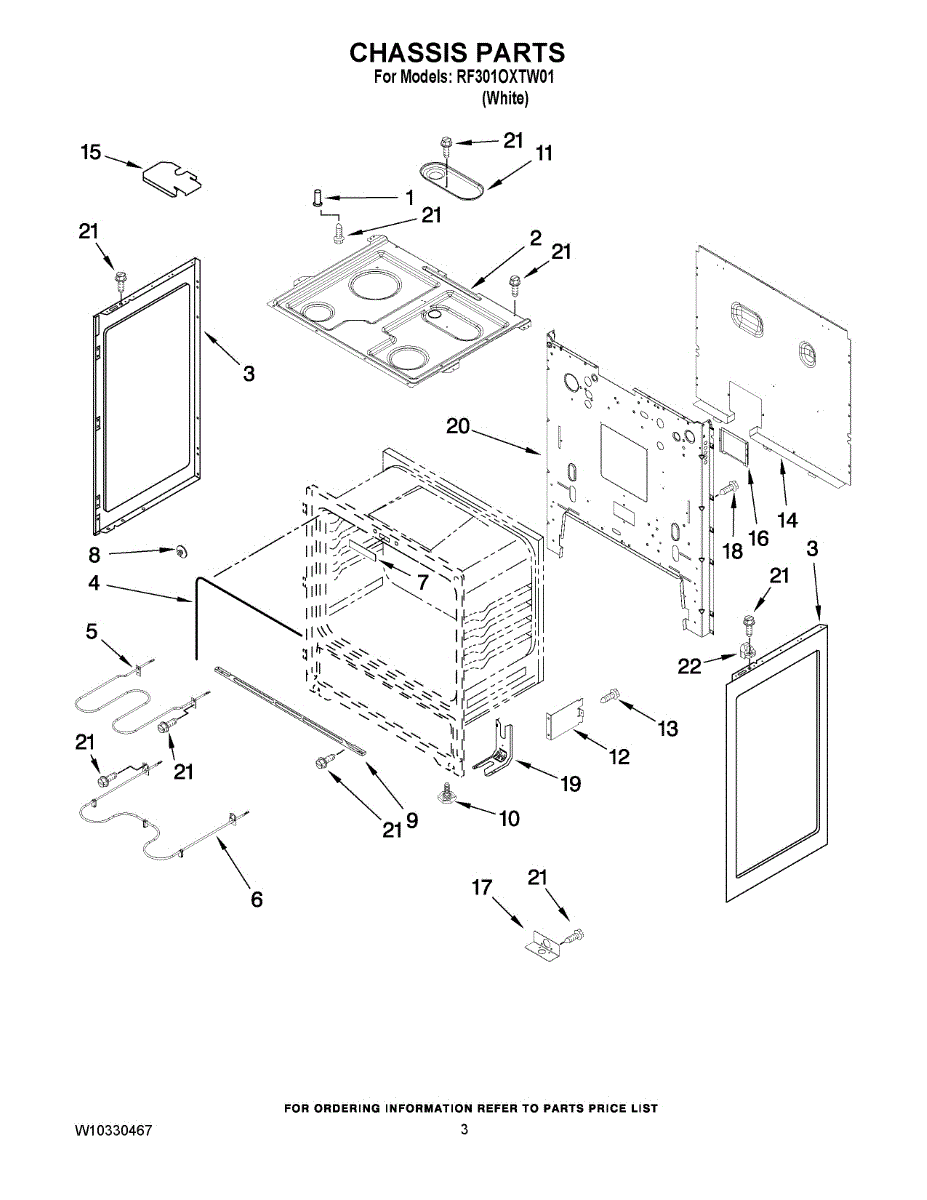

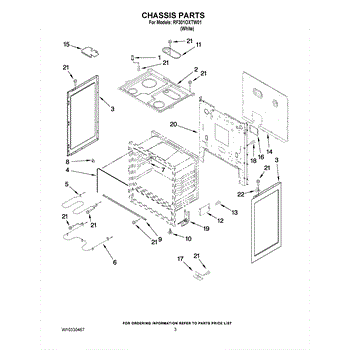

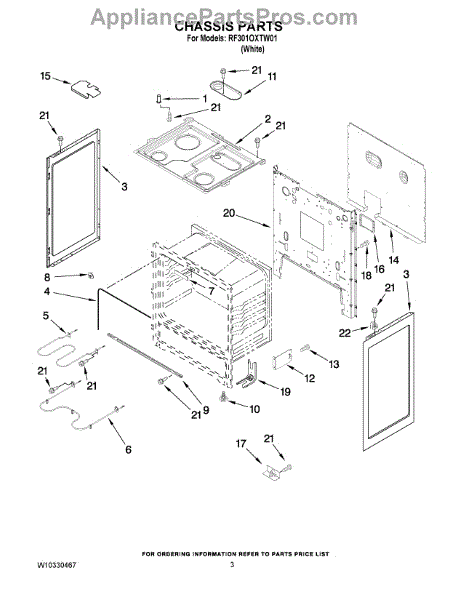

Parts for Whirlpool RF301OXTW01: 03 - Chassis Parts

The Oven Door Seal is an OEM part for Whirlpool ovens. This seal is crucial for maintaining the oven’s efficiency by creating an airtight seal around the door, preventing heat from escaping during cooking. It helps ensure that the oven maintains the correct temperature, which is essential for even cooking and energy efficiency.

Common causes of a bad oven door seal include wear and tear from regular use, exposure to high temperatures, and damage from cleaning or handling.

Symptoms of a bad oven door seal include:

• Heat escaping from around the oven door
• Longer cooking times or uneven cooking
• The oven door not closing properly
• Visible cracks, tears, or deformation in the seal

This OEM part is also compatible with some Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Broil Element is an OEM component for Whirlpool ranges. It is a vital heating component located at the top of the oven cavity that provides intense radiant heat for broiling functions.

Symptoms of a bad Broil Element include:

• Inability to engage broil mode
• Poor or negligible heating from the broiler
• Tripped circuit breakers when trying to broil
• Visible cracks, breaks, or damage to the broil element

Causes of failure can include deterioration over many heating and cooling cycles. Metal fatigue from constant expansion and contraction eventually causes cracking or breakage.

This replacement broil element also fits Maytag, KitchenAid, Jenn-Air, Amana, and some Kenmore models.

The Oven Bake Element is an OEM part for Whirlpool ovens. This crucial component is responsible for providing the heat necessary for baking. Located at the bottom of the oven, the bake element heats up when electricity passes through it, allowing your oven to reach the desired cooking temperature. This OEM Replacement Part has push-on terminal ends and measures approximately 23-5/8"wide x 15-3/8" long, with 3-3/8" inserts

Symptoms of a failing oven bake element include:

• Lack of heat production when the oven is turned on
• Uneven baking results
• Visible damage to the element such as blistering or splits
• A trip in the circuit breaker when the oven is activated

Causes of bake element failure typically include thermal stress causing material fatigue, accidental damage during cleaning, and electrical issues such as short circuits.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

If you are unable to use your old connectors order TJMA02875-1.

This spacer secures and maintains proper spacing between adjacent appliance components to prevent rubbing and misalignment, helping restore smooth, stable operation after wear or replacement. What it does:

• Positions and cushions parts to prevent metal-on-metal contact and reduce noise or vibration
• Keeps components aligned for proper fit and function after panel or assembly reinstallation
• Helps maintain clearance for moving parts to avoid abrasion and premature wear
• Useful when replacing worn fasteners, clips, or assemblies that rely on precise spacing

• Disconnect power (unplug or switch off circuit breaker) before beginning any repair
• Handle small parts carefully and retain any associated fasteners; compare new part to old for orientation
• Use basic hand tools as required; avoid forcing parts into place to prevent damage

The Leveling Leg is an OEM replacement part for Whirlpool ranges. These adjustable legs help balance and stabilize the range.

Causes of a bad leveling leg commonly involve wear over time, thread or weld failures from supporting heavy loads, as well as damage due to impact or drops during installation.

Symptoms of a faulty leveling leg include:

• Instability such as rocking motions felt while cooking
• Uneven heating
• Doors that do not close properly

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This 10-24 threaded screw secures appliance components that use a #10 machine screw. It provides reliable fastening for panels, brackets, and assemblies so parts stay aligned and stable during normal use and service. What it does:

• Fastens panels, brackets, or assemblies that accept a 10-24 machine screw
• Maintains alignment and structural connection under normal operating loads
• Replaces worn, stripped, or missing screws to restore secure mounting
• Works with sheet-metal and component mating nuts or threaded inserts commonly used in appliances

• One 10-24 threaded screw

• Power tools can be used; avoid overtightening to prevent stripped threads or damaged components
• Disconnect power and follow all safety steps for your appliance before servicing
• Ensure proper engagement and torque to avoid damage

For screws order: WP7101P485-60.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.
