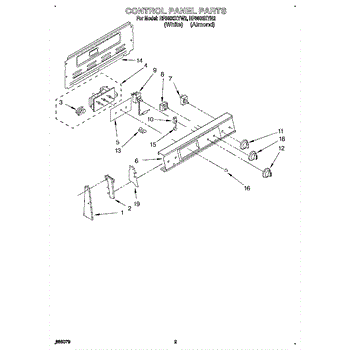

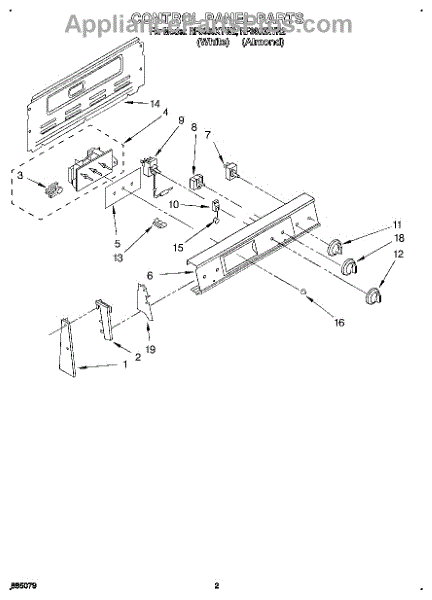

Parts for Whirlpool RF3600XYN2: 02 - Control Panel Parts

This part has been discontinued and is no longer available.

Replacement screw for securing components inside your range or oven. Needed when original fasteners are stripped, lost, or damaged during repairs.

Replacement mounting screw for securing panels, brackets, and components to your appliance chassis. Needed when original screws are stripped or missing.

This part has been discontinued and is no longer available.

This part has been discontinued and is no longer available.

This part has been discontinued and is no longer available.

This insulating part provides thermal protection for internal appliance components, helping reduce heat transfer and protect wiring and nearby parts from heat-related damage. It's a simple replacement to restore proper insulation where worn or missing. What it does:

• Shields nearby components from excessive heat and helps maintain safe operating temperatures
• Protects wiring, connectors, and plastic parts from heat exposure that can cause melting or failure
• Helps reduce heat transfer that can worsen component wear or trigger thermal faults
• Commonly replaced when insulation is torn, brittle, scorched, or missing

• One insulating part as shown

• Disconnect power to the appliance before attempting any repair to avoid shock or injury
• Verify the part position and orientation before removal; take photos to aid reassembly
• Use basic hand tools; avoid compressing or damaging the insulating material during installation
• If you see heat damage to wires or other components, inspect and replace those parts as needed.

Specs: 10-16 x 1/2 inch.

If your range burner won't adjust temperature or stays on high, the infinite control switch likely failed. Direct plug-in replacement, 15-minute DIY fix.

Burner stuck on high or won't regulate temperature? This infinite switch controls top burner heat settings. Straightforward DIY fix, 15-30 minutes.

Replacement 8-18 thread screw for securing panels, brackets, and trim on appliances. Replace worn, stripped, or missing screws to keep components aligned.

Size: 6-32 x 9/32 inch.

This part has been discontinued and is no longer available

Color: Black

Color: Black

This replacement timer knob attaches to the control panel timer so you can set and adjust time reliably. Replacing a worn or missing knob restores a secure grip and clear pointer orientation for everyday use.

• Attaches to the timer shaft to turn

OFF -> BROIL -> TIMED BAKE -> CLEAN -> BAKE.

Replacement 8-18 thread screw for securing panels, brackets, and trim on appliances. Replace worn, stripped, or missing screws to keep components aligned.
