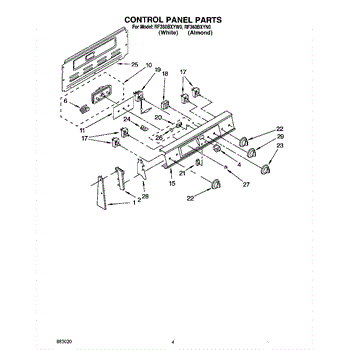

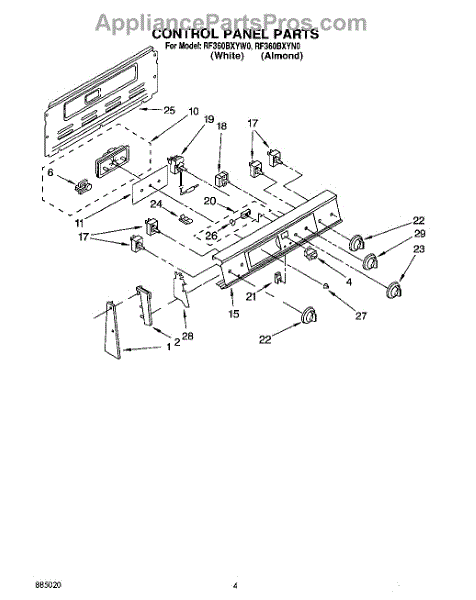

Parts for Whirlpool RF360BXYN0: 03 - Control Panel Parts

This part has been discontinued and is no longer available.

A replacement mounting screw to secure appliance panels and components so parts stay properly fastened during normal use. Small but essential hardware for stable, rattle-free operation and reliable repairs. What it does:

• Fastens panels, brackets or components to the appliance chassis
• Prevents loose panels, vibration noise, or parts shifting during operation
• Used when original screw is lost, damaged, or stripped
• Restores proper fit and alignment after disassembly for service

• Disconnect power and water before starting any repair
• Use the correct screw type and length; do not force or substitute oversized fasteners
• Tighten until snug—avoid overtightening to prevent stripped threads or cracked parts
• Keep small parts away from children and pets

10 - 16 x 1/2

This part has been discontinued and is no longer available.

This part has been discontinued and is no longer available.

Color: Black. Instruction sheet included.

This part has been discontinued and is no longer available.

This insulating part provides thermal protection for internal appliance components, helping reduce heat transfer and protect wiring and nearby parts from heat-related damage. It's a simple replacement to restore proper insulation where worn or missing. What it does:

• Shields nearby components from excessive heat and helps maintain safe operating temperatures
• Protects wiring, connectors, and plastic parts from heat exposure that can cause melting or failure
• Helps reduce heat transfer that can worsen component wear or trigger thermal faults
• Commonly replaced when insulation is torn, brittle, scorched, or missing

• One insulating part as shown

• Disconnect power to the appliance before attempting any repair to avoid shock or injury
• Verify the part position and orientation before removal; take photos to aid reassembly
• Use basic hand tools; avoid compressing or damaging the insulating material during installation
• If you see heat damage to wires or other components, inspect and replace those parts as needed.

This is a genuine replacement screw used to secure panels, brackets, and components on compatible Whirlpool appliances. It restores proper fastening so loose parts stop rattling and panels stay aligned. What it does

• Fastens trim, panels, brackets, or mounting hardware to appliance chassis
• Helps stop vibration and rattling caused by missing or stripped fasteners
• Restores secure connections after repair or part replacement
• Matches OEM thread specification to fit intended mounting holes

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand and tighten until snug; do not overtighten
• Inspect mating threads and replace if damaged

Specs: 10-16 x 1/2 inch.

This latch knob screw secures the latch knob to its shaft on compatible appliances. Replace a missing, stripped, or rusted screw to restore a firm, reliable attachment and proper latch/knob operation. What it does:

• Attaches the latch knob securely to the latch mechanism/shaft
• Helps maintain proper door latch engagement and knob control
• Common fix for a loose, wobbly, or falling-off knob
• Replaces a lost, corroded, or cross-threaded screw

• 1 latch knob screw

• Disconnect power and allow the appliance to cool completely before servicing
• Align the knob on the shaft and start the screw by hand to avoid cross-threading
• Tighten with the correct screwdriver; do not overtighten to prevent damage
• The latch engages and releases smoothly after installation

The Infinite Switch is an OEM part for Whirlpool ranges and cooktops. This part controls the temperature of the small burner on electric ranges and cooktops by regulating the power supplied to the burner. The infinite switch allows for precise temperature settings, providing the flexibility to cook a wide variety of dishes by adjusting the heat level as needed.

Over time, infinite switches can wear out or malfunction, leading to issues with controlling the burner's temperature.

Symptoms of a bad Infinite Switch include:

• The burner does not heat or heats intermittently
• The burner heats to full power regardless of the setting
• Inability to adjust the burner's temperature accurately
• Physical damage to the switch, such as cracking or melting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Surface Element Switch is an OEM replacement part for Whirlpool ranges and ovens. This component serves as the control mechanism for the 8-inch surface heating element, allowing you to precisely regulate the temperature or turn the burner on and off.

Symptoms of a faulty surface element switch may include:

• The heating element not turning on or off properly
• Issues with adjusting or maintaining the desired heat level
• Flickering or erratic behavior of the burner

Causes of needing to replace the surface element switch can include normal wear and tear over time, electrical malfunctions, or damage from exposure to high heat or spills.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore range and oven models.

For small element switch use- 3149404

This is a genuine replacement screw used to secure panels, brackets, and components on compatible Whirlpool appliances. It restores proper fastening so loose parts stop rattling and panels stay aligned. What it does

• Fastens trim, panels, brackets, or mounting hardware to appliance chassis
• Helps stop vibration and rattling caused by missing or stripped fasteners
• Restores secure connections after repair or part replacement
• Matches OEM thread specification to fit intended mounting holes

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand and tighten until snug; do not overtighten
• Inspect mating threads and replace if damaged

Size: 6-32 x 9/32 inch.

This part has been discontinued and is no longer available

Color: Black

Color: Black

This replacement timer knob attaches to the control panel timer so you can set and adjust time reliably. Replacing a worn or missing knob restores a secure grip and clear pointer orientation for everyday use.

• Attaches to the timer shaft to turn and set the kitchen timer
• Common fix for knobs that are cracked, stripped, loose, or missing
• Helps when the timer can't be set or the shaft spins without turning
• Restores smooth rotation and proper alignment on the control panel

• Disconnect power to the appliance before servicing
• Pull the old knob straight off the timer shaft
• Align the new knob with the shaft and press firmly until fully seated
• Test timer operation and pointer alignment before restoring power

OFF -> BROIL -> TIMED BAKE -> CLEAN -> BAKE.
