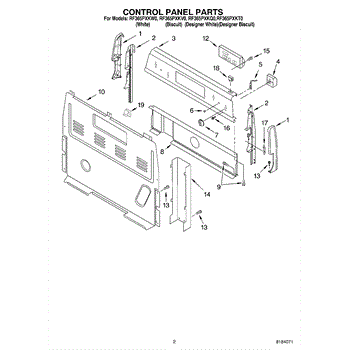

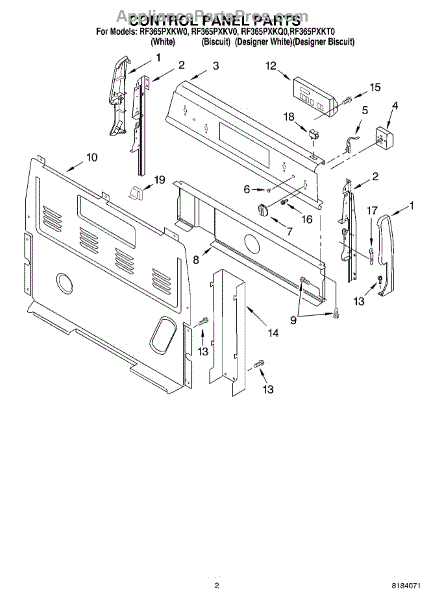

Parts for Whirlpool RF365PXKV0: 02 - Control Panel Parts

Color: Black. Left hand side. For the right hand side order 3186189.

Color: White. Left hand side. For the right hand side order 3186191.

Color: Biscuit. Left hand side. For the right hand side order 8272508.

Color: White. Right hand side. For the left hand side order 3186190.

Color: Biscuit. Right hand side. For the left hand side order 8272507.

Color: Black. Right hand side. For the left hand side order 3186188

Left hand side. For the right hand side order 8523409.

Right hand side. For the left hand side order 8523408.

Color: White.

Color: Black.

Color: Biscuit.

The Infinite Control Switch is an OEM part for Whirlpool ranges and cooktops. This part allows for precise adjustment of the heat level, enabling users to achieve the perfect temperature for various cooking techniques, from simmering to boiling.

Causes of a bad Infinite Control Switch can range from electrical issues, such as short circuits or worn contacts, to mechanical failures within the switch itself.

Symptoms of a malfunctioning Infinite Control Switch include:

• Burners not heating to the set level or overheating
• Inability to adjust the burner temperature
• Burners not turning on or off when the control switch is operated

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Surface Element Switch is an OEM replacement part for Whirlpool ranges and ovens. This component serves as the control mechanism for the 8-inch surface heating element, allowing you to precisely regulate the temperature or turn the burner on and off.

Symptoms of a faulty surface element switch may include:

• The heating element not turning on or off properly
• Issues with adjusting or maintaining the desired heat level
• Flickering or erratic behavior of the burner

Causes of needing to replace the surface element switch can include normal wear and tear over time, electrical malfunctions, or damage from exposure to high heat or spills.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore range and oven models.

For small element switch use- 3149404

This red indicator light lens covers the control-panel light opening. It restores a clean, finished look and keeps the status light easy to see while helping protect the opening from debris and accidental contact.

• Covers and diffuses the indicator light for clear visibility
• Fills the control panel opening for a finished, factory appearance
• Helps shield the opening from dust, splashes, and contact
• Common fixes: cracked, missing, loose, or discolored indicator lens

• Disconnect power by unplugging the appliance or switching off the breaker before servicing
• Access the control panel/backguard per your model's instructions
• Release the old lens (tabs/retainer) and press the new lens into the opening until fully seated
• Restore power and verify the indicator light is visible through the lens

Color: Biscuit. For white use WP8522565. For black use WP8522566.

Color: Black. For biscuit use WP8522567. For white use WP8522565.

Color: White. For biscuit use WP8522567, for black use WP8522566.

This upper electrical cover protects and conceals the appliance's control box and wiring, helping keep electrical components safe from dust and accidental contact. It restores a finished appearance and supports secure mounting of the console area. What it does:

• Covers and shields the control box and wiring from dust, debris and accidental contact.
• Helps keep electrical connections secure by providing a proper mounting surface for the console.
• Restores the appliance's exterior appearance when the original cover is cracked, warped or missing.
• Reducing exposed components can help avoid nuisance issues like loose connectors or intermittent controls.

• Disconnect power (unplug or shut off the breaker) before starting any work.
• Handle panels carefully — metal edges can be sharp; wear gloves if needed.
• Keep original screws/fasteners or replace with equivalent OEM screws; verify alignment before tightening.

Color: Biscuit.

This electronic control board is the appliance's main controller. It interprets keypad/sensor inputs and energizes the correct loads so cycles start, run, and finish as selected—restoring reliable operation when the original board fails.

• Coordinates cycle timing and selected options
• Processes signals from user interface controls and sensors
• Switches power to motors, pumps, valves, heaters, or fans via onboard relays
• Typical failure symptoms: no display or response, won't start, cycle won't advance, or recurring error codes

• Disconnect power at the breaker or unplug before servicing
• Use ESD protection and handle the board by its edges
• Document and transfer connectors one-by-one; reuse any mounting hardware as needed
• Follow the service manual for any model-specific programming/calibration or diagnostics after installation

This white control panel is the front fascia for select ranges. It mounts to the console/backguard and supports the oven control and switches, restoring a clean, secure control area when the original panel is cracked, warped, or discolored.

• Provides the finished front surface for the console/backguard
• Supports and aligns the oven control and switch/selector components
• Helps keep buttons/knobs properly seated and labeled
• Typical symptoms: cracks, broken mounting tabs, bowing/warping, heavy discoloration, or controls that feel loose

• Disconnect power at the breaker before servicing
• Remove console/backguard screws and carefully lift off the existing panel
• Transfer the electronic control, switches/knobs, brackets, and hardware to the new panel
• Support the control board and wiring to avoid strain; reassemble and restore power

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This replacement terminal block cover encloses the appliance's incoming power connections. It protects the wire terminals from accidental contact and debris, restoring a safe, finished connection area when the original cover is damaged or missing. What it does:

• Covers and shields the power terminal block where the supply wires connect
• Helps prevent accidental contact with live electrical connections
• Helps keep dust and debris out of the connection area
• Common signs: missing or broken cover, cover won't stay attached, visible heat damage or discoloration on the original cover

• One terminal block cover

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the terminal block per your model's service information
• Reuse existing mounting hardware; position and secure the new cover without pinching wires
• Inspect wires/terminals for heat damage or looseness and correct before reassembly

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking

This spring clip is a small metal retainer used to secure wiring or small components in place, preventing movement and accidental disconnection. It helps maintain reliable electrical and mechanical connections inside the appliance. What it does:

• Holds wiring harnesses or small terminals securely to reduce chafing and intermittent connections
• Keeps connectors and small components from shifting during operation or transport
• Helps prevent wire strain that can cause shorts or loss of function
• Commonly replaced when clip is bent, broken, or missing and wiring becomes loose

• One spring clip

• Turn off power to the appliance at the breaker before inspecting or replacing
• Use needle-nose pliers to compress and seat the clip; avoid forcing or over-bending
• Verify the clip secures the intended wire or terminal without pinching insulation
• If wiring shows damage, replace the wiring/harness per OEM guidance rather than relying on the clip alone

Color: Biscuit

Color: White

Color: Black. Instruction sheet included.
